In today's electronics industry, environmental responsibility is more than a trend—it's a necessity. The Restriction of Hazardous Substances (RoHS) directive plays a pivotal role in ensuring that printed circuit boards (PCBs) are manufactured with minimal environmental and health risks. For engineers, understanding RoHS compliance is critical to designing and producing PCBs that meet global standards while maintaining performance and reliability.
This blog explores why RoHS compliance matters in PCB manufacturing, detailing its requirements, benefits, and challenges. We'll also discuss how compliance impacts material selection, manufacturing processes, and market access, providing actionable insights for engineers navigating this regulatory landscape.
Recommended Reading: RoHS-Compliant PCB Manufacturing: What You Need to Know
What is RoHS Compliance?
RoHS, or Restriction of Hazardous Substances, is a directive originating from the European Union (EU) in 2002 (Directive 2002/95/EC). It restricts the use of specific hazardous materials in electrical and electronic equipment (EEE), including PCBs. The directive aims to reduce environmental pollution and protect human health by limiting substances that can accumulate in landfills or harm workers during manufacturing and recycling.
The RoHS directive has evolved over time. RoHS 1, effective July 1, 2006, restricted six substances. RoHS 2 (Directive 2011/65/EU), implemented in 2013, expanded the scope to include additional equipment and stricter compliance requirements. RoHS 3 (Directive 2015/863), effective July 22, 2019, added four phthalates, bringing the total to ten restricted substances:
- Lead (Pb): < 0.1% or 1000 ppm
- Mercury (Hg): < 0.1% or 1000 ppm
- Cadmium (Cd): < 0.01% or 100 ppm
- Hexavalent Chromium (Cr6+): < 0.1% or 1000 ppm
- Polybrominated Biphenyls (PBB): < 0.1% or 1000 ppm
- Polybrominated Diphenyl Ethers (PBDE): < 0.1% or 1000 ppm
- Bis(2-ethylhexyl) phthalate (DEHP): < 0.1% or 1000 ppm
- Butyl benzyl phthalate (BBP): < 0.1% or 1000 ppm
- Dibutyl phthalate (DBP): < 0.1% or 1000 ppm
- Diisobutyl phthalate (DIBP): < 0.1% or 1000 ppm
These limits apply to each homogeneous material in a PCB, such as solder, laminates, or coatings, ensuring that even trace amounts are controlled.
Why RoHS Compliance Matters for PCBs
PCBs are the backbone of electronic devices, and their manufacturing processes often involve materials like lead-based solder or brominated flame retardants. RoHS compliance is critical for several reasons:
Environmental Protection

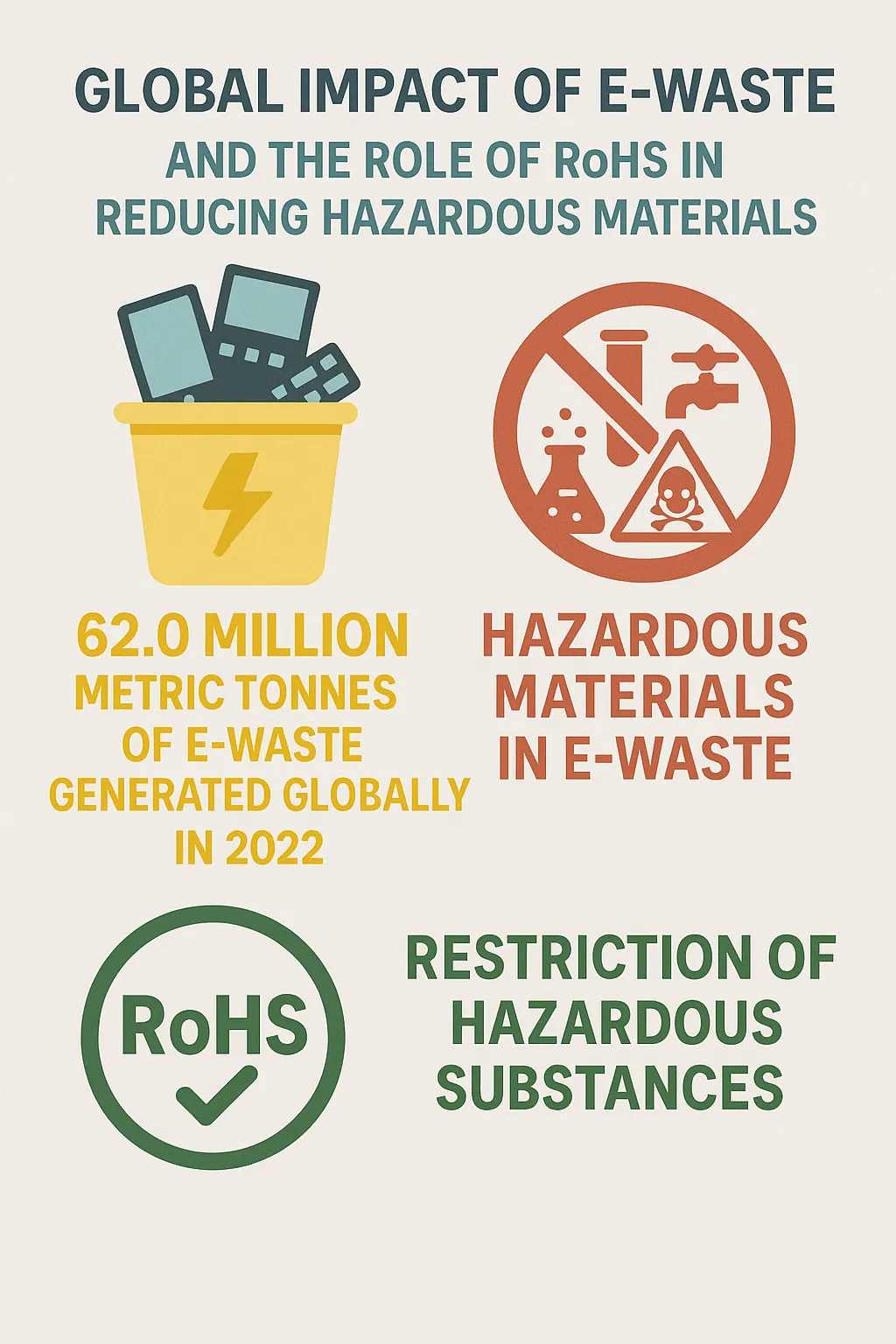

Non-compliant PCBs contribute to electronic waste (e-waste), with hazardous substances like lead leaching into soil and water. In 2022, the UN estimated 62 million metric tons of e-waste were generated globally, with only 22.3% properly recycled. RoHS-compliant PCBs reduce toxic waste, making recycling safer and more sustainable.
Worker and Consumer Safety
Hazardous substances pose risks during manufacturing and disposal. Lead exposure, for instance, can cause neurological damage, with the WHO estimating that lead poisoning accounts for 1.5% of global deaths annually. RoHS compliance minimizes these risks, protecting workers and end-users.
Market Access
Compliance is mandatory for selling EEE in the EU and other regions with similar regulations, such as China and California. Non-compliant products face fines, recalls, or market bans. For example, in 2020, the EU imposed penalties averaging €10,000 per violation for non-compliant electronics.
Key Requirements for RoHS-Compliant PCBs
Achieving RoHS compliance requires careful attention to materials, processes, and documentation. Here are the key requirements:
Material Selection
RoHS-compliant PCBs use lead-free materials, such as tin-silver-copper (SAC) solder alloys, which have a melting point of 217–220°C compared to 183°C for traditional tin-lead solder. Substrate materials like FR-4 must avoid brominated flame retardants, opting for phosphorus-based alternatives with a decomposition temperature (Td) above 340°C to withstand higher reflow temperatures.
Manufacturing Process Adjustments
Lead-free soldering requires higher temperatures, impacting thermal management. For instance, reflow ovens must maintain precise profiles to avoid component damage, with peak temperatures reaching 245–260°C. Manufacturers may need to retrofit equipment or train staff to handle these processes, increasing initial costs but ensuring compliance.
Testing and Certification
Compliance is verified through methods like X-ray fluorescence (XRF) testing, which non-destructively measures elemental concentrations. Manufacturers must provide a Certificate of Conformance (CoC) and maintain material declaration forms from suppliers. Third-party certifications, such as IPC or UL standards, further validate compliance.
Challenges of RoHS Compliance
While RoHS compliance offers significant benefits, it presents challenges for PCB manufacturers and designers:
Higher Costs
Lead-free materials and processes are often more expensive. For example, SAC solder costs 20–30% more than tin-lead solder, and retrofitting production lines can require investments of $50,000–$100,000 for mid-sized manufacturers.
Thermal Management
Higher soldering temperatures increase the risk of thermal stress on components. For instance, multilayer PCBs with 6+ layers may experience delamination if laminates lack sufficient thermal stability, requiring materials with a glass transition temperature (Tg) above 170°C.
Supply Chain Coordination
Ensuring all components and materials are RoHS-compliant requires robust supplier verification. A single non-compliant component, such as a resistor with leaded solder, can render an entire PCB non-compliant, leading to costly recalls.
Benefits of RoHS Compliance
Despite the challenges, RoHS compliance offers substantial advantages:
Enhanced Thermal Performance
RoHS-compliant PCBs, especially those using halogen-free laminates, can withstand temperatures up to 300°C, improving reliability in high-heat applications like automotive electronics.
Global Market Competitiveness
Compliance opens doors to major markets. The EU electronics market, valued at €150 billion in 2023, requires RoHS adherence, giving compliant manufacturers a competitive edge.
Brand Reputation
Companies prioritizing RoHS compliance demonstrate environmental responsibility, enhancing their reputation among eco-conscious consumers and partners.
How ALLPCB Supports RoHS Compliance
At ALLPCB, we understand the complexities of RoHS compliance and are committed to supporting engineers in meeting these standards. Our advanced manufacturing facilities use lead-free soldering and RoHS-compliant materials, such as FR-4 laminates with phosphorus-based flame retardants. With quick-turn prototyping, we enable rapid testing of compliant designs, while our global logistics ensure timely delivery to markets requiring RoHS adherence. Our rigorous supplier verification and XRF testing guarantee that every PCB meets regulatory requirements, empowering engineers to focus on innovation.
Conclusion
RoHS compliance is a cornerstone of modern PCB manufacturing, balancing environmental responsibility with technical performance. By restricting hazardous substances, RoHS protects the environment, ensures worker safety, and enables access to global markets. While compliance presents challenges like higher costs and thermal management, the benefits—enhanced reliability, market competitiveness, and brand reputation—far outweigh the hurdles.
For engineers, partnering with a trusted manufacturer like ALLPCB simplifies the compliance process, providing high-quality, RoHS-compliant PCBs that meet both regulatory and performance standards. As the electronics industry continues to evolve, RoHS compliance will remain a critical factor in driving sustainable innovation.
