Are you looking to cut costs on PCB batch production without sacrificing quality? In this comprehensive guide, we’ll walk you through proven strategies for PCB batch cost reduction, dive into PCB manufacturing cost analysis, and share tips for optimizing PCB production costs. Whether you’re a startup or an established electronics manufacturer, achieving cheap PCB batch production is possible with the right approach. Let’s explore how to streamline your process and save money on every batch.

Why Cost-Effective PCB Batch Production Matters

In the fast-paced world of electronics, every dollar counts. Printed Circuit Boards (PCBs) are the backbone of nearly all electronic devices, from smartphones to industrial equipment. However, producing them in batches can quickly become expensive if costs aren’t managed carefully. High production costs can eat into profit margins, delay projects, or make your product less competitive in the market.

By focusing on cost-effective strategies, you can reduce expenses, scale production, and maintain high-quality standards. This guide will break down actionable steps to help you achieve these goals, ensuring that your PCB batches are both affordable and reliable.

Understanding the Factors Driving PCB Manufacturing Costs

Before diving into cost-saving strategies, it’s important to understand what drives the expenses in PCB production. A thorough PCB manufacturing cost analysis can reveal areas where savings are possible. Here are the key factors that influence costs:

• Board Size and Complexity: Larger boards or those with intricate designs (like multi-layer PCBs) require more materials and manufacturing time, increasing costs.
• Material Selection: Standard FR-4 materials are cost-effective, while high-frequency or specialty materials can significantly raise expenses.
• Layer Count: Single-layer boards are cheaper to produce than multi-layer ones. For example, a 4-layer PCB can cost 2-3 times more than a 2-layer board due to additional processing steps.
• Quantity: Small batch runs often have higher per-unit costs because setup fees are spread across fewer units. Larger batches typically benefit from economies of scale.
• Turnaround Time: Expedited production schedules often come with premium fees. Standard lead times are more budget-friendly.
• Assembly Requirements: Surface-mount technology (SMT) or through-hole components, along with manual or automated assembly, can impact costs.
• Testing and Quality Assurance: Rigorous testing, such as Automated Optical Inspection (AOI) or In-Circuit Testing (ICT), adds to the cost but ensures reliability.

By analyzing these factors, you can identify which areas to target for PCB batch cost reduction. Let’s explore specific strategies to optimize your production process.

Strategies for PCB Batch Cost Reduction

Reducing costs doesn’t mean cutting corners on quality. With the right techniques, you can achieve cheap PCB batch production while maintaining the performance and reliability of your boards. Here are some practical approaches:

1. Optimize Your PCB Design for Manufacturing

Design plays a huge role in production costs. A design that’s optimized for manufacturing—often called Design for Manufacturability (DFM)—can save you significant expenses. Consider these tips:

• Minimize Layer Count: If possible, reduce the number of layers in your PCB. For instance, moving from a 6-layer to a 4-layer design can cut costs by 20-30% without compromising functionality in many cases.
• Standardize Component Sizes: Use standard component footprints and avoid custom or odd-sized parts that require special handling or sourcing.
• Reduce Board Size: Shrinking the dimensions of your PCB can lower material costs. For example, reducing a board from 100mm x 100mm to 80mm x 80mm can save on substrate material costs by nearly 36%.
• Avoid Tight Tolerances: Unless absolutely necessary, relax trace widths and spacing. For instance, using 6-mil traces instead of 4-mil traces can make manufacturing easier and cheaper.

2. Choose Cost-Effective Materials

The materials you select for your PCB have a direct impact on costs. While high-performance materials are necessary for specific applications, many projects can use more affordable options without sacrificing quality.

• Stick to FR-4: This is the most common and cost-effective substrate material for general-purpose PCBs. It offers good thermal and mechanical properties for most applications.
• Opt for Standard Copper Thickness: Using 1 oz copper instead of 2 oz or higher can reduce costs unless your design requires higher current-carrying capacity.
• Avoid Exotic Finishes: While gold plating offers excellent conductivity, it’s expensive. HASL (Hot Air Solder Leveling) is a cheaper alternative for many designs.

3. Leverage Economies of Scale

One of the simplest ways to achieve optimizing PCB production costs is to increase your batch size. Larger production runs spread setup costs across more units, lowering the per-unit price.

• Plan for Bulk Orders: If your project allows, order larger quantities upfront. For example, producing 1,000 units instead of 100 can reduce per-unit costs by up to 50%.

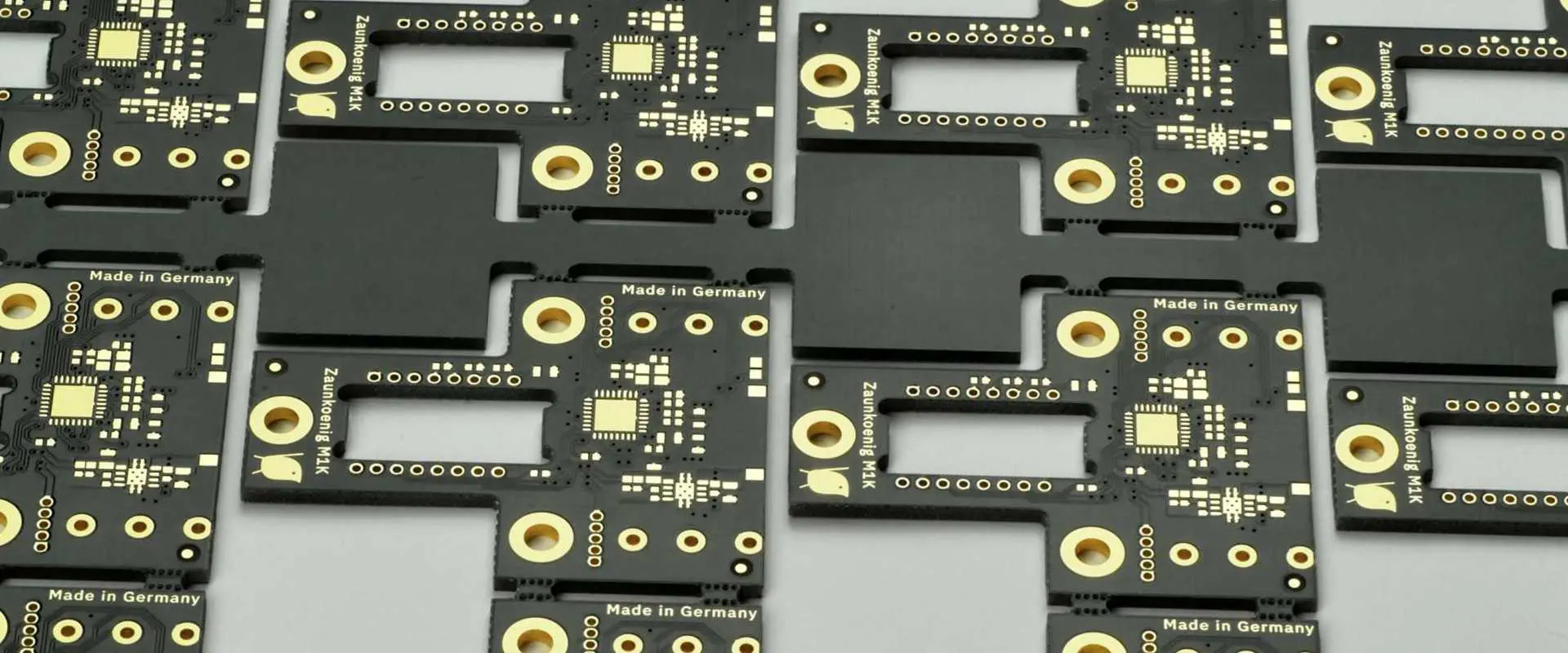

• Panelization: Group multiple PCB designs onto a single panel during manufacturing. This reduces waste and maximizes the use of materials, cutting costs by 10-15% in some cases.

4. Simplify Assembly Processes

Assembly is another area where costs can add up quickly. Simplifying this step can lead to significant savings in cheap PCB batch production.

• Use Surface-Mount Components: SMT components are generally cheaper to assemble than through-hole parts because they can be placed by automated machines, reducing labor costs.
• Minimize Manual Work: Designs that require hand-soldering or manual adjustments increase labor expenses. Aim for designs that can be fully automated during assembly.
• Consolidate Components: Reduce the variety of components in your design to streamline sourcing and assembly. For instance, using a single resistor value across multiple parts of the board can lower inventory costs.

5. Balance Turnaround Time with Cost

Rush orders often come with a hefty price tag. While fast delivery might be necessary for urgent projects, planning ahead can save money.

• Opt for Standard Lead Times: Choosing a standard production timeline over an expedited one can reduce costs by 20-40%, depending on the manufacturer.
• Schedule Production in Advance: Work with your supplier to align production with your project timeline, avoiding last-minute rush fees.

Advanced Tips for Optimizing PCB Production Costs

Beyond the basics, there are advanced strategies that can further help in optimizing PCB production costs. These require a deeper understanding of the manufacturing process but can yield substantial savings.

1. Collaborate with Your Manufacturer Early

Engaging with your manufacturing partner during the design phase can uncover cost-saving opportunities. Manufacturers often provide DFM feedback to help streamline production.

• Request DFM Reviews: Many manufacturers offer free design reviews to identify potential issues like overly tight tolerances or inefficient layouts that could increase costs.
• Discuss Batch Sizes: Work with your supplier to determine the most cost-effective batch size for your project, balancing inventory needs with per-unit pricing.

2. Use Simulation Tools for Testing

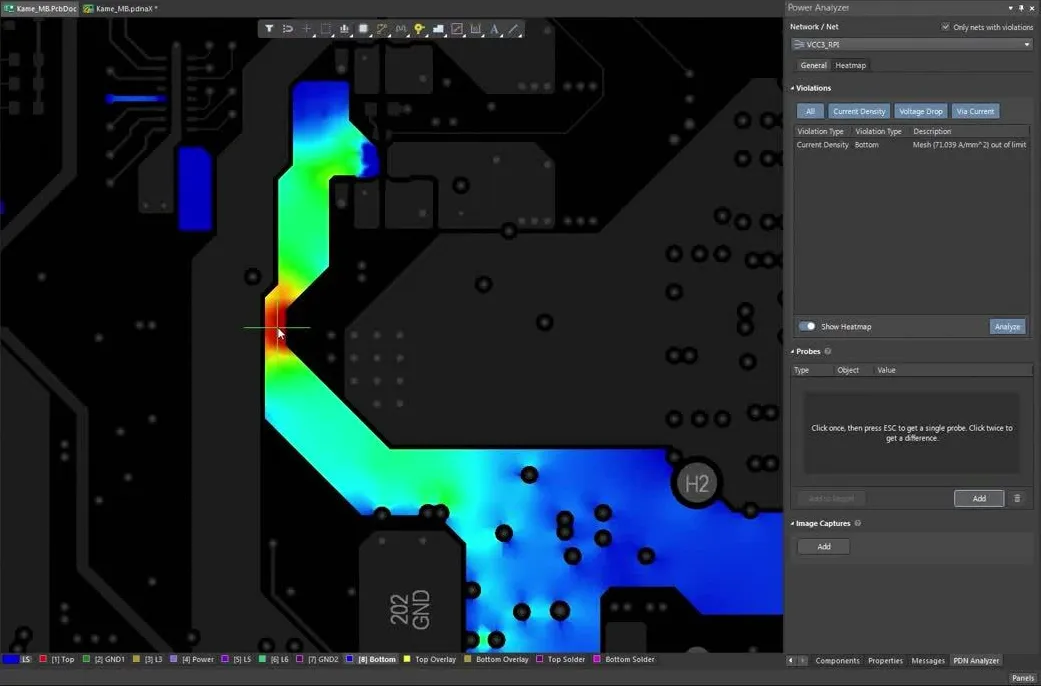

Testing physical prototypes can be expensive, especially if multiple iterations are needed. Simulation software can help identify design flaws before production, saving both time and money.

• Thermal Analysis: Simulate heat dissipation to ensure your board won’t overheat, avoiding costly redesigns. For example, ensuring components stay below 85°C during operation can prevent failures.
• Signal Integrity Checks: Use simulation to verify signal speeds and impedance matching. A typical target for high-speed designs is maintaining 50-ohm impedance to avoid signal loss.

3. Negotiate Long-Term Contracts

If you anticipate ongoing PCB needs, consider negotiating long-term contracts with your supplier. This can lock in lower rates and ensure priority production slots, reducing costs over time.

Common Mistakes to Avoid in PCB Batch Production

Even with the best intentions, certain pitfalls can drive up costs. Here are common mistakes to steer clear of during PCB batch cost reduction efforts:

• Over-Engineering Designs: Adding unnecessary features or overly complex layouts can inflate costs without adding value to the final product.
• Ignoring DFM Guidelines: Failing to follow manufacturing guidelines can lead to production delays or defects, requiring costly rework.
• Choosing the Cheapest Option Blindly: While cutting costs is important, opting for the lowest-priced materials or services without evaluating quality can result in unreliable boards and long-term expenses.

How to Perform a PCB Manufacturing Cost Analysis

Conducting a PCB manufacturing cost analysis is a critical step in identifying savings opportunities. Follow these steps to get a clear picture of your expenses:

1. Break Down Material Costs: List out the cost of substrates, copper, finishes, and other materials used in your PCB.
2. Calculate Labor and Assembly Costs: Include expenses related to manual or automated assembly processes.
3. Factor in Overhead: Account for setup fees, tooling costs, and other indirect expenses that contribute to the total cost.
4. Analyze Testing Expenses: Determine the cost of quality assurance processes like AOI or functional testing.
5. Compare Quotes: Gather pricing from multiple suppliers to benchmark costs and negotiate better rates.

By regularly analyzing costs, you can track where money is being spent and adjust your strategy to maximize savings.

Conclusion: Achieving Cheap PCB Batch Production

Cost-effective PCB batch production is within reach if you take a strategic approach. By optimizing your design, selecting affordable materials, leveraging economies of scale, and collaborating with your manufacturer, you can significantly lower expenses without compromising quality. A detailed PCB manufacturing cost analysis helps uncover hidden opportunities for savings, while avoiding common mistakes ensures long-term success.

At ALLPCB, we’re committed to helping you achieve cheap PCB batch production through innovative solutions and expert support. Start implementing these strategies today to reduce costs and streamline your production process. With the right plan, you’ll not only save money but also gain a competitive edge in the electronics market.
