When it comes to designing printed circuit boards (PCBs) for surgical robots, choosing the right laminate material is critical. Surgical robot PCB laminates must meet strict requirements for reliability, precision, and performance under demanding conditions. But what makes a laminate suitable for such high-stakes medical applications? In short, the ideal surgical robot PCB laminate should offer excellent signal integrity, thermal stability, and biocompatibility while adhering to medical standards. Materials like high-performance PCB laminates and alternatives to FR-4, such as Rogers PCB material, often stand out for these uses.
In this detailed guide, we’ll dive deep into the world of medical device PCB substrates, exploring the key factors to consider when selecting a laminate for surgical robots. Whether you’re an engineer working on cutting-edge robotics or a designer aiming for top-tier performance, this blog will help you navigate the complexities of high-performance PCB laminate selection. Let’s explore the materials, properties, and best practices to ensure your surgical robot PCBs are built to last and perform flawlessly.
Why PCB Laminate Selection Matters for Surgical Robots

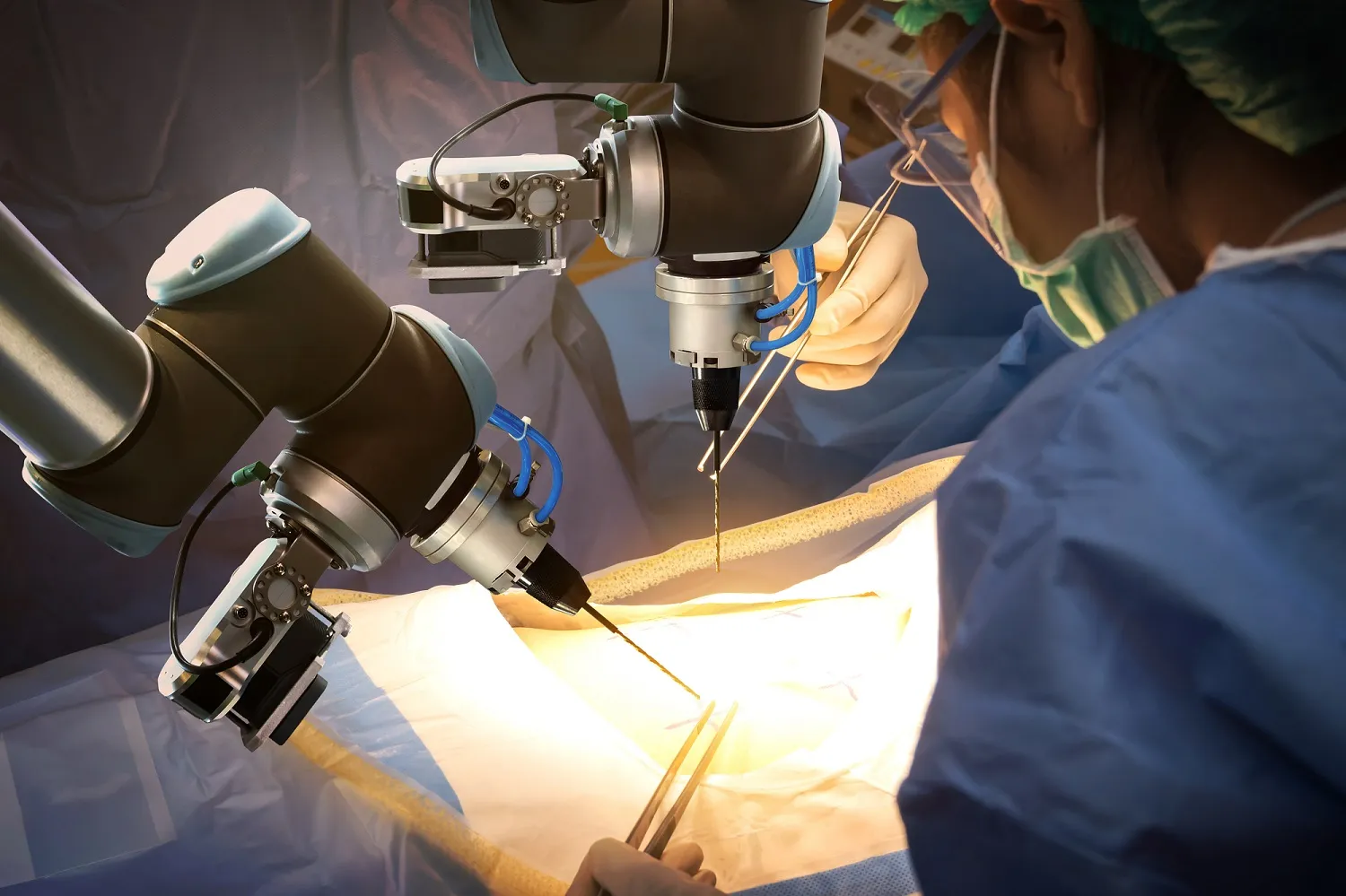

Surgical robots are marvels of modern engineering, performing precise tasks like minimally invasive surgeries with incredible accuracy. The PCBs inside these devices act as the central nervous system, controlling motors, sensors, and communication systems. A single failure in the PCB can lead to catastrophic results in a medical setting. That’s why selecting the right surgical robot PCB laminate is not just a technical decision—it’s a matter of safety and reliability.
Unlike standard electronics, surgical robots operate in environments where factors like electromagnetic interference (EMI), temperature fluctuations, and even sterilization processes can impact performance. A poorly chosen laminate can degrade signal integrity, overheat, or fail under stress. By focusing on high-quality medical device PCB substrates, you ensure that the PCB can handle high-frequency signals, maintain low dielectric loss, and resist environmental challenges.
Key Factors in Choosing a Surgical Robot PCB Laminate
When selecting a laminate for surgical robot applications, several critical factors come into play. Let’s break them down to understand how each impacts performance and reliability.
1. Signal Integrity and High-Frequency Performance

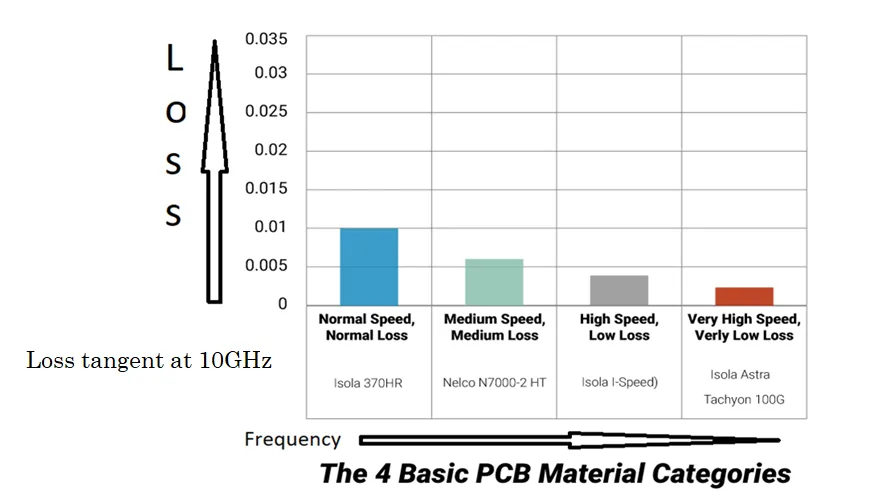

Surgical robots often rely on high-speed data transmission for real-time control and feedback. For instance, sensors and imaging systems may operate at frequencies above 1 GHz, requiring laminates with low dielectric constant (Dk) and low dissipation factor (Df). A laminate with a Dk of 3.0 to 4.0 and a Df below 0.005 is often ideal for maintaining signal clarity and minimizing loss.
Standard FR-4, with a Dk of around 4.5 and a higher Df, may not suffice for these high-frequency needs. This is where high-performance PCB laminates like Rogers PCB material shine. These materials are engineered for low signal loss and consistent performance at high frequencies, making them a top choice for surgical robot designs.
2. Thermal Stability and Heat Dissipation
During operation, surgical robots generate heat from power-intensive components like processors and actuators. If the PCB laminate cannot handle thermal stress, it may warp or degrade over time. Look for materials with a high glass transition temperature (Tg), ideally above 150°C, to ensure stability. Additionally, a thermal conductivity of at least 0.5 W/m·K helps dissipate heat effectively, protecting sensitive components.
Some FR-4 alternatives offer enhanced thermal properties compared to standard options, but advanced laminates often outperform them in extreme conditions. Choosing a material with proven thermal reliability is essential for long-term performance in medical environments.
3. Mechanical Strength and Durability
Surgical robots often involve intricate movements, and their PCBs must withstand vibrations and mechanical stress without cracking or delaminating. A laminate with high tensile strength and good flexural properties is necessary to avoid physical damage. For example, laminates with a tensile strength of over 50 MPa are typically robust enough for such applications.
Durability also extends to resistance against moisture and chemicals, as surgical equipment may undergo sterilization processes involving steam or harsh disinfectants. Laminates with low moisture absorption rates (below 0.2%) are preferred to prevent swelling or electrical failures.
4. Biocompatibility and Regulatory Compliance
Since surgical robots interact with human tissue (directly or indirectly), the materials used in their PCBs must be safe and compliant with medical standards like ISO 10993 for biocompatibility. While the laminate itself may not come into direct contact with patients, outgassing or chemical leaching during operation could pose risks. Opt for laminates that are certified for medical use or have been tested for low toxicity.
Additionally, compliance with standards like IPC-6012 (for PCB performance) and RoHS (for restricted substances) ensures that the laminate meets industry benchmarks for safety and environmental impact.
Popular PCB Laminate Materials for Surgical Robots
With the key factors in mind, let’s explore some of the most suitable laminate materials for surgical robot applications. Each material has unique properties that cater to the specific demands of medical device PCB substrates.
1. Rogers PCB Material: A High-Performance Choice
Among high-performance PCB laminates, Rogers materials are widely recognized for their exceptional electrical properties. With a dielectric constant as low as 2.2 in some variants and a dissipation factor below 0.001, these laminates are ideal for high-frequency circuits in surgical robots. They also offer excellent thermal stability, with Tg values often exceeding 200°C.
Rogers laminates are particularly useful for applications involving RF and microwave signals, such as wireless communication modules in robotic systems. While they come at a higher cost than traditional options, their reliability in critical medical devices justifies the investment.
2. FR-4 Alternatives: Balancing Cost and Performance
Standard FR-4 is a common laminate for many electronics due to its affordability and decent performance. However, for surgical robots, its limitations in high-frequency and thermal management make it less ideal. Fortunately, enhanced FR-4 alternatives with improved dielectric properties (Dk around 4.0) and higher Tg (up to 170°C) are available.
These alternatives provide a middle ground for designs that don’t require the extreme capabilities of premium laminates but still need better performance than standard FR-4. They are often used in less demanding sections of a surgical robot’s PCB, helping to control costs without sacrificing reliability.
3. Polyimide Laminates: Flexibility and Durability
For surgical robots with flexible or rigid-flex PCBs, polyimide laminates are a go-to option. These materials offer excellent thermal resistance (Tg above 250°C) and can bend without breaking, making them suitable for compact or dynamic designs. Their ability to withstand repeated sterilization cycles also aligns well with medical requirements.
Polyimide is often used in areas of the robot where space is limited, such as articulated arms or endoscopic tools. Its combination of flexibility and durability ensures long-term performance in challenging conditions.
Challenges in Selecting the Right Laminate
While the options above provide a strong starting point, selecting a surgical robot PCB laminate isn’t always straightforward. Engineers often face trade-offs between performance, cost, and availability. For instance, high-performance materials like Rogers PCB material can significantly increase production costs, while cheaper alternatives may compromise on signal integrity or durability.
Another challenge is ensuring compatibility with manufacturing processes. Some advanced laminates require specialized fabrication techniques, such as precise control over lamination temperatures or drilling methods, to avoid damaging the material. Partnering with a reliable PCB supplier who understands the nuances of medical-grade laminates can help overcome these hurdles.
Best Practices for Designing with High-Performance Laminates
To maximize the benefits of a high-performance PCB laminate, follow these design and implementation tips tailored for surgical robot applications.
1. Match Laminate Properties to Circuit Needs
Not every part of a surgical robot PCB requires the same level of performance. For high-speed digital or RF sections, prioritize low-loss laminates with tight impedance control (e.g., ±5% tolerance). For power circuits, focus on thermal conductivity and mechanical strength. Using a hybrid stack-up with different materials for different layers can optimize both cost and performance.
2. Simulate and Test Before Production
Before finalizing your laminate choice, use simulation tools to model signal integrity, thermal behavior, and EMI performance. For example, ensure that the laminate maintains a consistent impedance of 50 ohms for critical traces. Follow up with prototype testing under real-world conditions, including temperature cycling and sterilization exposure, to validate the material’s reliability.
3. Collaborate with Material Experts
Laminate selection often benefits from input from material suppliers or PCB fabrication specialists. They can provide data sheets, recommend specific grades, and advise on stack-up configurations that align with surgical robot requirements. Leveraging their expertise ensures that you avoid common pitfalls and select the most suitable medical device PCB substrate.
Future Trends in PCB Laminates for Medical Robotics
As surgical robots evolve, so do the demands on PCB laminates. Emerging trends point toward even more advanced materials with integrated functionalities. For instance, laminates with embedded passive components (like capacitors and resistors) are being developed to save space and enhance performance. Additionally, eco-friendly laminates that reduce environmental impact while maintaining high standards are gaining traction in the medical field.
Another exciting development is the rise of ultra-low-loss materials for next-generation 5G-enabled surgical robots. These laminates, with dissipation factors as low as 0.0009, support faster data rates and improved connectivity for remote surgeries. Staying ahead of these trends can give engineers a competitive edge in designing cutting-edge medical devices.
Conclusion: Making the Right Choice for Surgical Robot PCBs
Selecting the right surgical robot PCB laminate is a balancing act of performance, reliability, and cost. By prioritizing factors like signal integrity, thermal stability, and biocompatibility, you can ensure that your PCB meets the rigorous demands of medical robotics. Materials like Rogers PCB material and other FR-4 alternatives offer tailored solutions for high-frequency and high-reliability needs, while polyimide laminates provide flexibility for compact designs.
At the core of every successful surgical robot is a well-designed PCB built on a foundation of the right high-performance PCB laminate. Take the time to analyze your specific requirements, test potential materials, and partner with trusted suppliers to bring your vision to life. With the right laminate, your surgical robot can achieve the precision and dependability needed to save lives and advance medical technology.
