If you're looking for a reliable and cost-effective surface finish for your printed circuit boards (PCBs), Hot Air Solder Leveling, commonly known as HASL, might be the solution. This guide dives deep into the HASL process, exploring its advantages and disadvantages, the differences between leaded and lead-free HASL, as well as insights on rework and limitations. Whether you're a PCB designer, engineer, or manufacturer, this comprehensive resource will help you understand if HASL is the right choice for your project.
What Is the HASL Process?
Hot Air Solder Leveling (HASL) is a widely used surface finish technique applied to the exposed copper on PCBs. Its primary purpose is to protect the copper from oxidation and provide a solderable surface for component attachment. The HASL process involves dipping the PCB into a bath of molten solder and then using hot air to level the solder across the surface, ensuring an even coating.

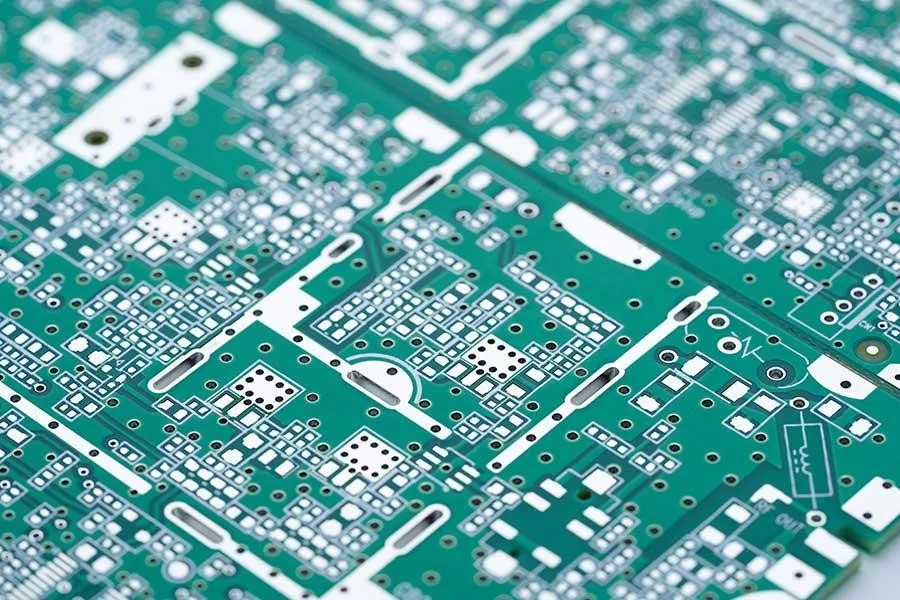

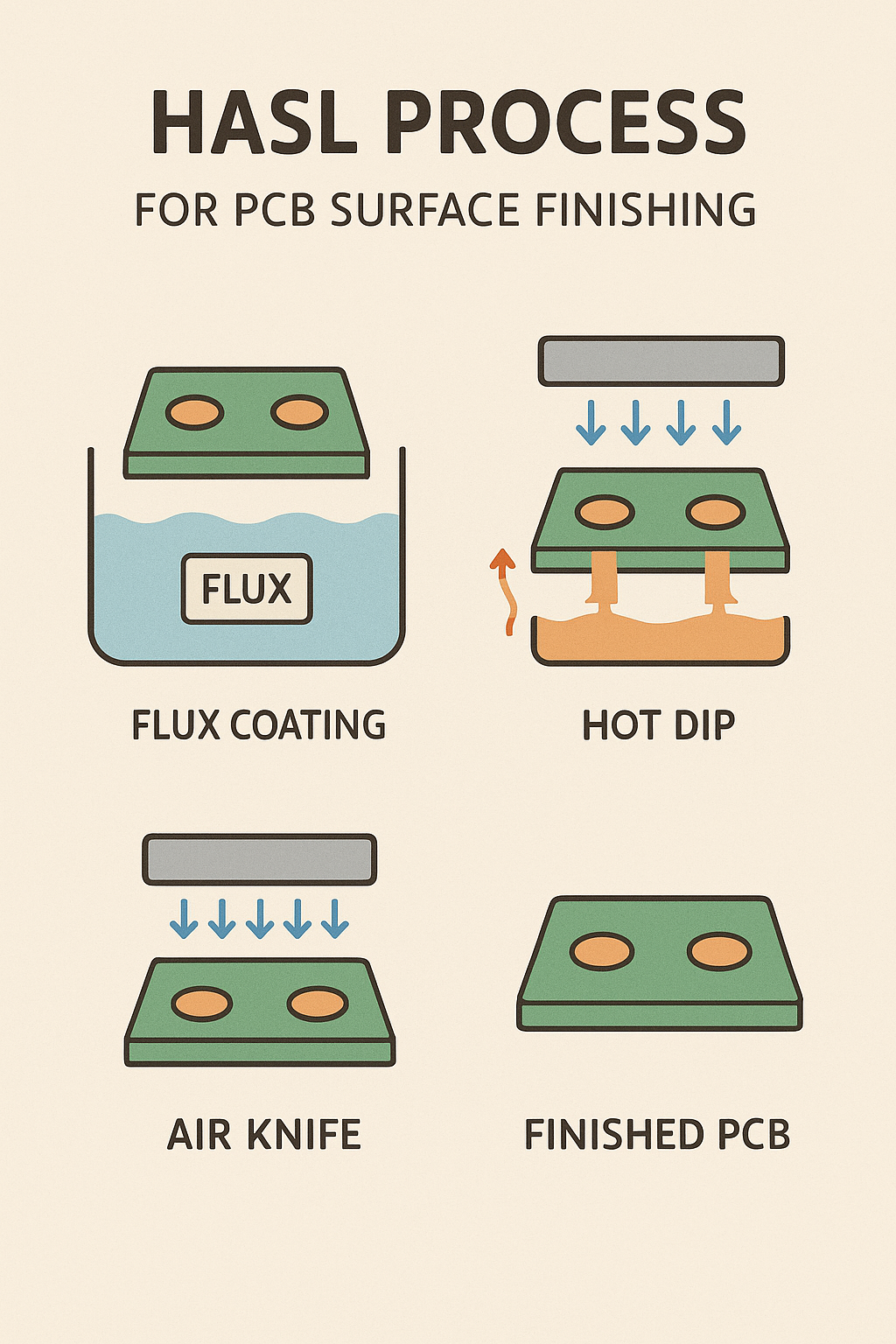

The process typically follows these steps:
- Cleaning: The PCB is cleaned to remove any contaminants or oxides from the copper surface.
- Flux Application: A flux is applied to improve the wetting of the solder on the copper.
- Solder Bath: The board is immersed in molten solder, usually at temperatures between 250°C and 260°C (482°F to 500°F), depending on whether leaded or lead-free solder is used.
- Hot Air Leveling: High-pressure hot air knives blow excess solder off the board, leaving a thin, uniform layer on the copper pads and traces.
- Cooling and Cleaning: The board cools down, and any residual flux is cleaned off to finalize the finish.
This process creates a durable, solderable surface that is ready for assembly. HASL has been a staple in the industry for decades due to its simplicity and effectiveness.
Advantages of HASL for PCB Manufacturing
The HASL process offers several benefits that make it a popular choice for many PCB applications. Here are the key advantages:
- Cost-Effective: HASL is one of the most affordable surface finishes available. Its straightforward process and widely available materials keep production costs low, making it ideal for budget-conscious projects.
- Excellent Solderability: The solder coating ensures that components can be easily attached during assembly. The surface is pre-tinned, which promotes strong solder joints with minimal risk of poor connections.
- Durability: HASL provides a robust layer that protects copper from oxidation over time. This durability is especially useful for boards that may be stored for extended periods before assembly.
- Wide Compatibility: HASL works well with a variety of soldering techniques, including wave soldering and manual soldering, making it versatile for different manufacturing setups.
- Proven Reliability: As one of the oldest surface finishes in the industry, HASL has a long track record of reliability in diverse applications, from consumer electronics to industrial equipment.
For projects where cost and solderability are top priorities, HASL often stands out as the go-to option. Its ability to deliver consistent results without breaking the bank is a major draw for many engineers.
Disadvantages of HASL: What to Watch Out For
While HASL has many strengths, it’s not without its drawbacks. Understanding these disadvantages is crucial when deciding if this surface finish suits your PCB needs.
- Uneven Surface: The hot air leveling process can sometimes leave an uneven solder layer, with thicknesses varying between 1 to 25 micrometers. This inconsistency can pose challenges for fine-pitch components, where precise placement is critical.
- Thermal Stress: The high temperatures involved in the HASL process can introduce thermal stress to the PCB, potentially causing warping or delamination in thinner boards.
- Not Ideal for High-Density Designs: Due to the uneven surface and potential for solder bridging, HASL is less suitable for high-density interconnect (HDI) designs or boards with very small component footprints.
- Limited Shelf Life: While HASL protects against oxidation, the solder layer can degrade over time if exposed to harsh environmental conditions, reducing solderability after prolonged storage.
- Environmental Concerns: Traditional leaded HASL raises environmental and health concerns due to the use of lead, though lead-free alternatives address this issue to some extent.
These limitations highlight why HASL may not be the best choice for every project. For advanced designs requiring flat surfaces or environmental compliance, other finishes might be worth considering.

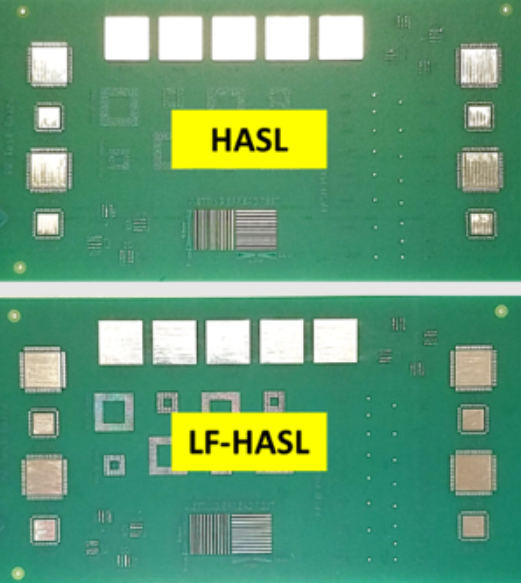

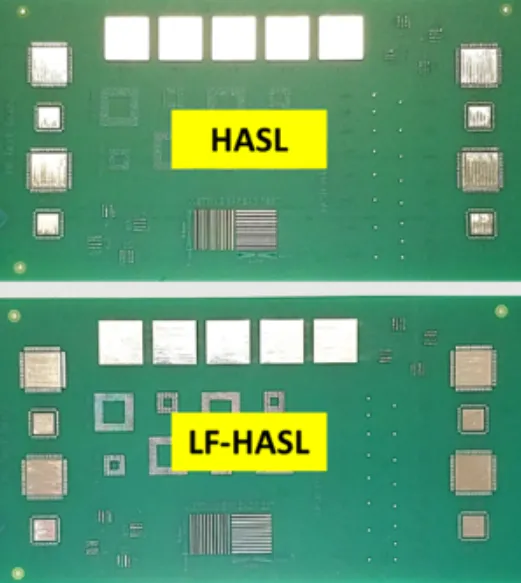

Leaded HASL vs. Lead-Free HASL: Key Differences
HASL comes in two main variants: leaded and lead-free. Each has unique characteristics that impact performance, cost, and compliance with regulations. Let’s break down the differences.
Leaded HASL
Leaded HASL uses a tin-lead alloy, typically a 63/37 mix (63% tin, 37% lead), for the solder coating. This traditional method offers several benefits:
- Lower Melting Point: Leaded solder melts at around 183°C (361°F), which reduces thermal stress on the PCB during the HASL process.
- Better Wetting: The presence of lead enhances the solder’s ability to flow and adhere to copper, resulting in a smoother finish.
- Cost Efficiency: Leaded solder is generally cheaper than lead-free alternatives, keeping production costs down.
However, leaded HASL is restricted in many regions due to environmental and health regulations like RoHS (Restriction of Hazardous Substances). Its use is often limited to specific industries or applications where exemptions apply.
Lead-Free HASL
Lead-free HASL uses alloys such as tin-silver-copper (SAC) or pure tin to comply with modern environmental standards. Here’s what sets it apart:
- Environmental Compliance: Lead-free HASL meets RoHS requirements, making it suitable for products sold in regions with strict regulations.
- Higher Melting Point: Lead-free solder melts at higher temperatures, often around 217°C to 220°C (423°F to 428°F), which can increase thermal stress on the PCB.
- Slightly Higher Cost: The materials and processing for lead-free HASL are more expensive, though the difference is often minimal.
While lead-free HASL is the preferred choice for most modern applications, it can be less forgiving during soldering due to poorer wetting compared to leaded solder. Engineers must weigh these factors based on regulatory needs and project requirements.
HASL Rework: Challenges and Best Practices
Reworking PCBs with a HASL finish can be necessary when components fail or design changes are required. However, the HASL surface presents unique challenges during rework. Here’s what to keep in mind:
- Solderability After Rework: The HASL coating may degrade after multiple soldering cycles, as the thin solder layer can be consumed or oxidized. This can lead to poor solder joints if not addressed.
- Thermal Stress: Repeated exposure to high temperatures during rework can weaken the PCB substrate or cause pad lifting, especially on boards already stressed during the initial HASL process.
- Uneven Surface Issues: The unevenness of HASL can complicate rework for fine-pitch components, increasing the risk of solder bridging or insufficient solder coverage.
To achieve successful rework with HASL-finished PCBs, consider these best practices:
- Use a controlled soldering station with precise temperature settings to avoid overheating the board. For lead-free HASL, keep temperatures below 260°C (500°F) to minimize thermal damage.
- Apply fresh flux before rework to improve solder wetting and reduce oxidation on the HASL surface.
- Inspect pads and traces after rework to ensure no damage or lifting has occurred, using magnification tools if necessary.
While HASL allows for rework, it’s not as forgiving as some other finishes. Proper tools and techniques are essential to maintain board integrity.
HASL Limitations: When to Consider Alternatives
Despite its many advantages, HASL has limitations that may make it unsuitable for certain applications. Recognizing these constraints can guide you toward the right surface finish for your PCB.
- Fine-Pitch and HDI Challenges: As mentioned earlier, HASL’s uneven surface is a significant limitation for fine-pitch components (below 0.5mm pitch) and high-density designs. The risk of solder bridging or misalignment increases with smaller footprints.
- Signal Integrity Concerns: For high-frequency or high-speed applications, HASL may not provide the flatness needed for consistent impedance control. Variations in solder thickness can affect signal performance, especially above 1 GHz frequencies.
- Environmental Durability: HASL-finished boards may struggle in harsh environments with high humidity or temperature fluctuations. The solder layer can corrode over time, impacting long-term reliability.
- Compatibility with Advanced Assembly: HASL is not ideal for processes like wire bonding or underfill applications, where a flatter or more specialized surface finish is required.
For projects involving cutting-edge technology or extreme conditions, alternatives like ENIG (Electroless Nickel Immersion Gold) or OSP (Organic Solderability Preservative) might offer better performance. These finishes provide flatter surfaces and improved compatibility with advanced designs, though often at a higher cost.
Applications of HASL in PCB Projects
HASL remains a popular choice for a wide range of applications due to its balance of cost and performance. Some common uses include:
- Consumer Electronics: Products like remote controls, calculators, and basic household devices often use HASL for its affordability and reliability in low-complexity designs.
- Industrial Equipment: Many industrial control boards rely on HASL for its durability and compatibility with wave soldering processes.
- Prototyping: During the prototyping phase, engineers often choose HASL to keep costs low while testing designs before moving to more advanced finishes for production.
For high-volume production of simpler designs, HASL can significantly reduce expenses without compromising quality. Its proven track record makes it a safe bet for many standard applications.
How to Choose Between HASL and Other Finishes
Deciding whether HASL is the right surface finish for your PCB involves evaluating several factors:
- Budget: If cost is a primary concern, HASL’s affordability often makes it the top choice.
- Design Complexity: For boards with fine-pitch components or high-density layouts, consider alternatives with flatter surfaces.
- Environmental Regulations: Ensure compliance with regional standards by opting for lead-free HASL if leaded solder is restricted.
- Operating Conditions: Assess the environmental conditions the PCB will face. For extreme temperatures or humidity, a more robust finish might be necessary.
- Assembly Process: Confirm that HASL aligns with your assembly methods, such as wave soldering or reflow soldering.
By carefully weighing these considerations, you can determine if HASL meets your project’s needs or if another finish would be a better fit.
Conclusion: Is HASL Right for Your PCB?
Hot Air Solder Leveling (HASL) is a time-tested surface finish that offers a compelling mix of cost-effectiveness, solderability, and durability. Its straightforward process and wide compatibility make it a go-to option for many PCB applications, from consumer electronics to industrial equipment. However, limitations like uneven surfaces, thermal stress, and challenges with fine-pitch designs mean it’s not a one-size-fits-all solution.
Understanding the nuances of the HASL process, including the differences between leaded and lead-free variants, rework challenges, and specific limitations, empowers you to make informed decisions. Whether you’re working on a budget-friendly prototype or a high-volume production run, HASL can be a reliable choice when applied to the right projects.
At ALLPCB, we’re committed to helping you navigate the complexities of PCB manufacturing. By leveraging the insights in this guide, you can confidently choose the surface finish that aligns with your design goals and performance requirements.
