When it comes to PCB manufacturing and assembly, precision is everything. One of the key decisions you’ll face is choosing between panel fiducials and board fiducials for alignment during the surface mount technology (SMT) process. So, what’s the difference, and which is the better choice for your project? In short, panel fiducials are reference markers placed on the larger panel that holds multiple PCBs, aiding in alignment for the entire batch, while board fiducials are markers on individual PCBs for precise component placement. The right choice depends on your production scale, design complexity, and assembly requirements. In this blog, we’ll dive deep into the nuances of panel fiducials, board fiducials, PCB alignment strategies, SMT alignment methods, and the debate of global vs. local fiducials to help you make an informed decision.
What Are Fiducials and Why Do They Matter in PCB Assembly?
Fiducials are small copper markers or reference points placed on a PCB or panel to assist automated assembly machines in achieving accurate alignment. These markers act as visual guides for pick-and-place machines and other equipment during SMT assembly, ensuring components are placed exactly where they need to be. Without fiducials, even a slight misalignment can lead to misplaced components, soldering defects, or complete assembly failure.
In modern PCB manufacturing, where components can be as small as 0.4mm x 0.2mm (0402 package size), precision is non-negotiable. Fiducials help machines recognize the orientation and position of a board or panel, compensating for any rotational or positional errors. Whether you’re producing a single prototype or mass-producing thousands of boards, fiducials play a critical role in maintaining quality and efficiency.
Understanding Panel Fiducials: Alignment for the Big Picture

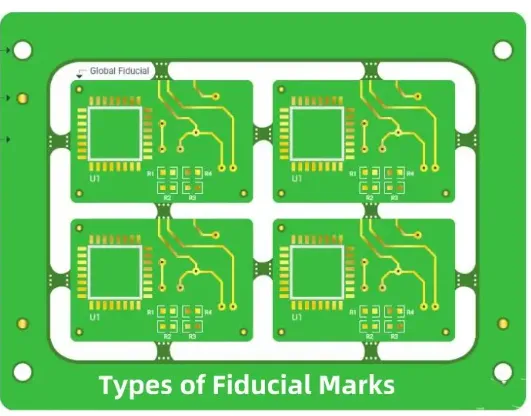

Panel fiducials are reference markers placed on the panel—a larger sheet that holds multiple individual PCBs during manufacturing. These markers are typically positioned on the edges or corners of the panel, outside the boundaries of the individual boards. Their primary purpose is to provide a global reference point for the entire panel, ensuring that automated equipment can align the panel correctly before processing.
Advantages of Panel Fiducials
- Global Alignment: Panel fiducials enable machines to align the entire panel at once, which is especially useful for high-volume production where multiple boards are processed simultaneously.
- Efficiency in Mass Production: By aligning the panel as a whole, you reduce setup time for each individual board, speeding up the assembly process.
- Consistency Across Boards: Since all boards on the panel are aligned using the same reference points, panel fiducials help maintain uniformity across the batch.
Limitations of Panel Fiducials
- Limited Precision for Individual Boards: Panel fiducials focus on the big picture, so they may not account for slight variations or misalignments in individual PCBs within the panel.
- Not Ideal for Complex Designs: If your PCB has tight tolerances (e.g., component spacing less than 0.5mm), relying solely on panel fiducials may result in placement errors.
Panel fiducials are often referred to as “global fiducials” because they provide a broad alignment reference for the entire manufacturing setup. They are best suited for projects where speed and efficiency take precedence over ultra-precise placement on individual boards.
Exploring Board Fiducials: Precision for Individual PCBs
Board fiducials, on the other hand, are markers placed directly on each individual PCB within a panel. These are typically smaller and positioned near the corners of the board or close to critical components. Their role is to provide a local reference point for precise alignment during SMT assembly.
Advantages of Board Fiducials
- High Precision: Board fiducials allow machines to fine-tune alignment for each individual PCB, ensuring accurate component placement even for high-density designs with tolerances as tight as 0.1mm.
- Flexibility for Complex Designs: For boards with fine-pitch components (e.g., 0.5mm pitch QFN packages), board fiducials offer the precision needed to avoid misalignment.
- Correction of Panel Variations: If a panel has slight distortions or manufacturing inconsistencies, board fiducials help compensate by providing localized alignment data.
Limitations of Board Fiducials
- Increased Design Effort: Adding fiducials to every board requires extra space and planning, which can be challenging for compact designs.
- Slower Setup for Mass Production: Machines may need to recalibrate for each board, potentially slowing down the assembly process in high-volume scenarios.
Board fiducials are often called “local fiducials” because they focus on specific, localized alignment for each PCB. They are ideal for projects where precision is critical, such as in medical devices or high-speed electronics with signal integrity requirements (e.g., maintaining impedance of 50 ohms for RF traces).
Global vs. Local Fiducials: Which Approach Wins?
The debate of global vs. local fiducials often comes down to the specific needs of your project. Global fiducials (panel fiducials) are designed for efficiency and consistency across large batches, while local fiducials (board fiducials) prioritize precision for individual boards. Let’s break down the key factors to consider when choosing between these two approaches.
Production Volume
For high-volume production runs, global fiducials are often the better choice. They streamline the alignment process by focusing on the panel as a whole, reducing setup time. For example, if you’re producing 10,000 units of a simple consumer electronics board, panel fiducials can help maintain a throughput of 5,000 boards per hour on a high-speed SMT line.
Design Complexity
For complex designs with high-density components or tight tolerances, local fiducials are essential. If your board includes a BGA (Ball Grid Array) component with a 0.4mm pitch, even a 0.05mm misalignment can cause soldering failures. Board fiducials ensure the pick-and-place machine adjusts for each PCB’s unique position.
Cost Considerations
Adding board fiducials to every PCB can increase design and manufacturing costs slightly due to the need for extra copper pads and clearance areas. However, the cost of rework or scrap due to misalignment often outweighs this initial investment. For instance, a misplaced component on a $50 board can lead to a total loss, while the cost of adding fiducials might be less than $0.10 per board.
Hybrid Approach
In many cases, a combination of global and local fiducials offers the best of both worlds. By placing panel fiducials for initial alignment and board fiducials for fine-tuning, you can achieve both efficiency and precision. This hybrid PCB alignment strategy is common in industries like automotive electronics, where production volumes are high, but quality standards are strict.
SMT Alignment Methods: How Fiducials Fit In
SMT alignment methods rely heavily on fiducials to ensure accuracy during component placement. Let’s explore how different alignment techniques integrate with panel and board fiducials.
Vision-Based Alignment
Most modern pick-and-place machines use vision systems to detect fiducials. Cameras scan the copper markers to determine the position and orientation of the panel or board. For panel fiducials, the machine aligns the entire panel before starting placement. For board fiducials, the vision system adjusts for each PCB, often scanning multiple markers to account for rotation (up to 0.1 degrees of correction).
Laser Alignment
Some high-end SMT equipment uses laser systems for alignment, especially for ultra-precise applications. These systems can detect fiducials with sub-micron accuracy, making them ideal for boards with local fiducials. For example, laser alignment can achieve placement accuracy within 0.025mm, critical for components like 0201 resistors.
Mechanical Alignment
In older or low-cost setups, mechanical alignment using physical guides or pins may be used. However, this method lacks the precision of vision or laser systems and is rarely used with fiducials. It’s more common for manual assembly or prototyping, where fiducials may not even be necessary.
Best Practices for Implementing Fiducials in PCB Design
Whether you choose panel fiducials, board fiducials, or a combination of both, following best practices ensures optimal results. Here are some actionable tips for incorporating fiducials into your PCB alignment strategy.
Fiducial Placement
- For panel fiducials, place at least three markers on the panel edges, ideally in a triangular pattern to account for rotation and scaling. A common configuration is one marker at each corner of the panel, with a minimum diameter of 1mm.
- For board fiducials, place two or three markers near the corners of each PCB, ensuring a clearance area of at least 2mm around each marker to avoid interference with other components.
Fiducial Size and Shape

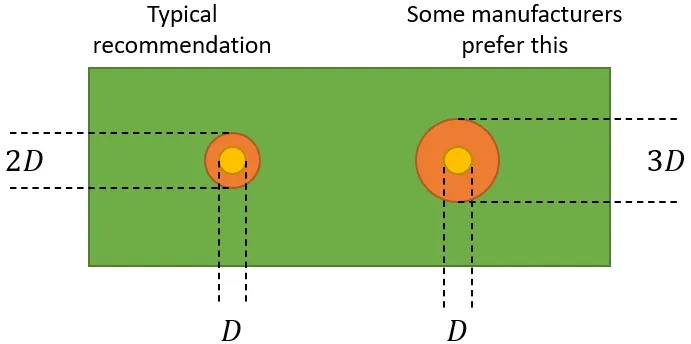

- Use circular copper pads for fiducials, as they are easily recognized by vision systems. A diameter of 1mm to 1.5mm is standard for most machines.
- Ensure the fiducial is free of solder mask or silkscreen to maximize visibility. The contrast between the copper and the surrounding area helps cameras detect the marker.
Coordination with Assembly House
Provide clear documentation of fiducial locations in your design files. Specify whether the markers are for global or local alignment so the assembly team can configure their equipment accordingly. If your design uses a hybrid approach, label panel and board fiducials distinctly to avoid confusion.
Common Challenges and How to Overcome Them
Even with the best PCB alignment strategy, challenges can arise. Here are some common issues and solutions when using fiducials.
Misalignment Due to Panel Warping
Panels can warp during manufacturing due to thermal stress or material inconsistencies, leading to misalignment. Using local fiducials on each board helps mitigate this by allowing machines to adjust for individual PCB positions. Additionally, ensure your panel design includes breakaway tabs or V-scoring to minimize stress during depanelization.
Fiducial Detection Failures
If a fiducial is obscured by solder mask or poorly contrasted against the background, vision systems may fail to detect it. Always keep fiducials exposed and maintain a clearance area around them. Test your design with a sample run to confirm that the assembly equipment can recognize all markers.
Space Constraints on Small Boards
For compact designs, finding space for board fiducials can be tricky. In such cases, prioritize placing fiducials near critical components or high-density areas. If space is extremely limited, rely on panel fiducials and communicate with your assembly partner to ensure their equipment can handle the alignment requirements.
Conclusion: Making the Right Choice for Your PCB Project
Choosing between panel fiducials and board fiducials—or opting for a hybrid approach—depends on the unique needs of your PCB project. Panel fiducials excel in high-volume production, offering efficiency and consistency with a global alignment focus. Board fiducials shine in complex, high-precision designs, providing localized accuracy for individual PCBs. By understanding the strengths and limitations of each, as well as the broader context of SMT alignment methods and global vs. local fiducials, you can develop a PCB alignment strategy that ensures quality and reliability.
At ALLPCB, we’re committed to helping you achieve flawless PCB assembly through optimized design practices. Whether you’re working on a simple prototype or a complex multilayer board, incorporating the right fiducials into your design can make all the difference. Use the insights from this guide to select the best alignment strategy for your next project, and enjoy smoother, more efficient manufacturing processes.
