In the fast-evolving world of electronics, High-Density Interconnect (HDI) PCBs are at the forefront of innovation, enabling smaller, faster, and more powerful devices. However, with higher component density comes a critical challenge: thermal management. If heat is not properly managed in HDI assembly, it can lead to performance issues, component failure, and reduced lifespan of the board. So, how can engineers tackle thermal management challenges in high-density PCBs? The answer lies in strategic design techniques such as optimized component placement, effective use of thermal vias, and careful material selection.
In this comprehensive guide, we’ll dive deep into the thermal management challenges of HDI assembly and explore practical solutions for heat dissipation in HDI PCBs. Whether you’re an engineer designing cutting-edge electronics or a manufacturer looking to improve board reliability, this blog will provide actionable insights to address thermal issues in high-density designs.
Understanding Thermal Management Challenges in HDI Assembly
HDI PCBs are designed to pack more components into a smaller space, often using microvias, blind vias, and buried vias to achieve higher wiring density. While this allows for compact and efficient designs, it also creates significant thermal management hurdles. The primary challenges include:
- Increased Heat Generation: With more components squeezed into a limited area, the heat generated by power-intensive parts like processors and power amplifiers rises dramatically. For instance, modern microprocessors can generate heat fluxes exceeding 100 W/cm2, putting immense strain on the PCB.
- Limited Space for Heat Dissipation: The compact nature of HDI designs leaves little room for traditional cooling solutions like large heat sinks or fans, making passive heat dissipation more challenging.
- Complex Layer Structures: HDI PCBs often have multiple layers (sometimes 8 or more), which can trap heat within the board, especially if thermal pathways are not properly designed.
- Material Constraints: Standard PCB materials may not withstand the high temperatures generated in HDI assemblies, leading to delamination or degradation over time.
Addressing these challenges requires a multi-faceted approach that integrates design, material selection, and manufacturing techniques. Let’s explore the key strategies for effective thermal management in HDI assembly.
Key Strategies for Heat Dissipation in HDI PCBs
Effective heat dissipation in HDI PCBs is crucial to maintaining performance and reliability. Below are proven strategies that engineers can implement during the design and assembly process to manage heat efficiently.
1. Optimizing Component Placement for Heat Management
Component placement plays a vital role in thermal management. Poor placement can create hotspots, where heat accumulates in specific areas of the board, leading to thermal stress and potential failure. To optimize component placement for heat dissipation in HDI assembly:
- Distribute Heat-Generating Components: Place high-power components, such as CPUs or power regulators, away from each other to avoid concentrated heat buildup. Spread them across the board to allow for more uniform heat distribution.
- Position Near Thermal Pathways: Place heat-intensive components close to thermal vias or heat sinks to facilitate faster heat transfer away from the board.
- Avoid Overcrowding: Ensure adequate spacing between components to prevent heat from being trapped. For example, maintaining a clearance of at least 0.5 mm between high-power components can reduce thermal interference.
By strategically planning component placement for heat, designers can significantly reduce the risk of hotspots and improve overall thermal performance.
2. Leveraging Thermal Vias for Efficient Heat Transfer

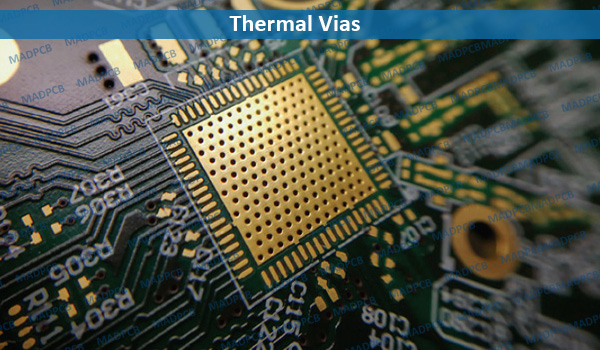

Thermal vias are small holes in the PCB that are filled or plated with conductive material, typically copper, to transfer heat from one layer of the board to another or to an external heat sink. In HDI assembly, thermal vias are indispensable for heat dissipation due to the multi-layer structure of these boards.
- Placement and Density: Position thermal vias directly beneath or near high-heat components. A common practice is to use an array of vias with a pitch of 0.8 mm to 1.2 mm, depending on the board design, to maximize heat transfer without compromising structural integrity.
- Via Filling: Use copper-filled vias for better thermal conductivity compared to unfilled or epoxy-filled vias. Copper has a thermal conductivity of approximately 400 W/m·K, making it highly effective for heat dissipation.
- Connection to Ground Planes: Connect thermal vias to large copper ground planes, which act as heat spreaders, distributing heat across a wider area and reducing localized temperature spikes.
By incorporating thermal vias strategically, engineers can create efficient pathways for heat to escape, preventing overheating in critical areas of the HDI PCB.
3. HDI Material Selection for Thermal Performance
The choice of materials in HDI assembly has a direct impact on thermal management. Standard FR-4 materials, while cost-effective, often fall short in high-temperature environments due to their relatively low thermal conductivity (around 0.3 W/m·K) and glass transition temperature (Tg) of about 130°C. For HDI PCBs, consider the following material options:
- High-Tg FR-4: With a Tg of 170°C or higher, high-Tg FR-4 offers better thermal stability for moderate heat applications in HDI designs.
- Polyimide: Known for its excellent thermal resistance (Tg above 250°C) and flexibility, polyimide is ideal for HDI boards in high-temperature environments, such as aerospace or automotive applications.
- Metal-Core PCBs (MCPCBs): For extreme heat dissipation needs, metal-core materials like aluminum or copper provide thermal conductivity values of 1-2 W/m·K or higher, far surpassing traditional laminates.
- Ceramic-Based Materials: These materials offer superior thermal conductivity (up to 20 W/m·K) and are suitable for ultra-high-power HDI applications, though they come at a higher cost.
Selecting the right material based on thermal requirements and budget constraints is a critical step in HDI material selection for thermal management. Additionally, using thermally conductive adhesives and coatings can further enhance heat dissipation.
4. Incorporating Advanced Heat Dissipation Techniques
Beyond vias and material selection, advanced techniques can further improve heat dissipation in HDI PCBs:
- Copper Coin Technology: Embedding copper coins or slugs directly into the PCB under high-power components provides a direct thermal path to a heat sink or enclosure, achieving thermal conductivity rates comparable to pure copper.
- Heat Sinks and Spreaders: Attach small, low-profile heat sinks or heat spreaders to critical components. For HDI designs, ensure these solutions are lightweight and compatible with the compact layout.
- Thermally Optimized Layouts: Design the PCB layout to include wider copper traces (e.g., 0.2 mm or thicker) near power components to act as mini heat spreaders, reducing thermal resistance.
These advanced methods can be tailored to the specific needs of an HDI assembly, ensuring optimal heat management even in the most demanding applications.
Design Tools and Simulation for Thermal Management

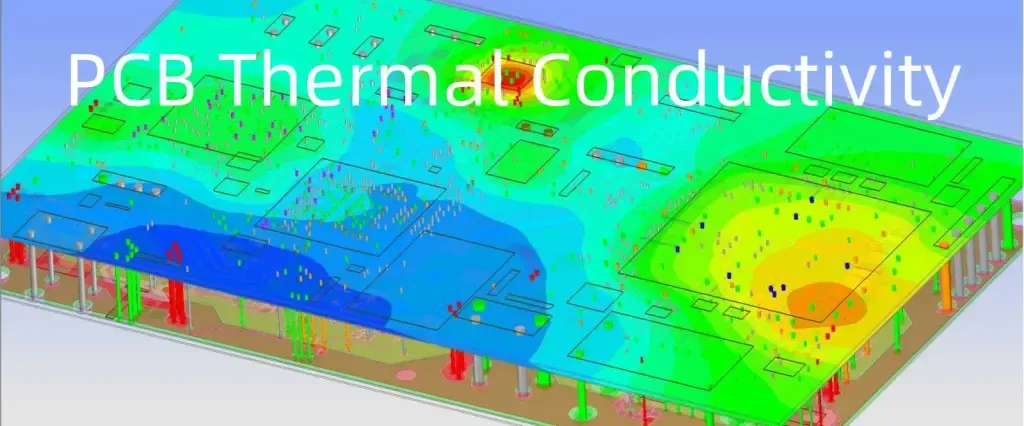

Before manufacturing an HDI PCB, thermal simulation tools are invaluable for predicting and addressing potential heat issues. Modern design software allows engineers to model heat distribution, identify hotspots, and test different thermal management strategies virtually. Key benefits include:
- Hotspot Detection: Identify areas where heat exceeds safe thresholds (e.g., above 85°C for most components) and adjust the design accordingly.
- Via and Material Testing: Simulate the effectiveness of thermal vias or different material choices under various operating conditions.
- Cost Efficiency: Address thermal issues during the design phase to avoid costly redesigns or failures after production.
By integrating thermal analysis into the design process, engineers can create HDI assemblies that are both high-performing and thermally stable.
Manufacturing Considerations for Thermal Management in HDI Assembly
Thermal management doesn’t end with design; manufacturing processes also play a crucial role. During HDI assembly, ensure the following:
- Precision in Via Formation: Use laser drilling for microvias to achieve accurate placement and filling, ensuring optimal thermal conductivity.
- Quality Control for Materials: Verify that the selected materials meet thermal specifications through testing, such as thermal cycling between -40°C and 125°C to simulate real-world conditions.
- Soldering Techniques: Use reflow soldering profiles that prevent thermal shock to components, maintaining a peak temperature below the component’s maximum rating (often around 260°C for lead-free soldering).
Partnering with a reliable manufacturer that understands the intricacies of HDI assembly thermal management can make a significant difference in the final product’s performance.
Conclusion: Building Thermally Efficient HDI PCBs
Thermal management is a cornerstone of successful HDI assembly. As high-density PCBs continue to power advanced electronics, addressing heat dissipation challenges through strategic design and manufacturing is more important than ever. By optimizing component placement for heat, leveraging thermal vias, focusing on HDI material selection for thermal performance, and incorporating advanced heat dissipation techniques, engineers can create reliable and efficient HDI PCBs.
At ALLPCB, we’re committed to supporting engineers in overcoming the thermal challenges of HDI assembly. With expertise in high-density interconnect technology and a focus on quality, we provide the tools and resources needed to bring thermally efficient designs to life. Start implementing these strategies in your next project to ensure your HDI PCBs perform at their best, even under the most demanding conditions.
