In the world of PCB manufacturing, component misplacement is a costly error that can lead to significant rework and scrap expenses. The component misplacement cost often includes not only the price of materials but also labor, time, and potential delays in production schedules. Whether you're dealing with PCB rework cost, SMT rework challenges, or the broader cost of defects in PCB production, these issues can impact profitability and product reliability. This is especially critical in industries like the component misplacement automotive industry, where precision and quality are non-negotiable. In this blog, we’ll explore the financial and operational impacts of component misplacement, break down the costs associated with rework and scrap, and provide actionable strategies to minimize these errors.
Understanding Component Misplacement in PCB Manufacturing
Component misplacement occurs when electronic components are incorrectly positioned or oriented on a printed circuit board (PCB) during assembly. This can happen due to human error, machine calibration issues, or design flaws. Such mistakes might seem minor at first, but they can lead to malfunctioning boards, failed quality checks, and ultimately, higher production costs.
In surface-mount technology (SMT) assembly, where components are placed with high-speed automated machines, even a slight misalignment can cause electrical shorts, open circuits, or poor solder joints. For instance, a capacitor placed just 0.1 mm off its intended position might result in a connection failure, forcing manufacturers to spend time and resources on SMT rework. The component misplacement cost in such scenarios includes the price of the wasted component, the labor for rework, and sometimes even the scrapping of an entire board if the damage is irreparable.
The Financial Impact of Component Misplacement
The cost of defects in PCB production can be staggering, especially when component misplacement is a recurring issue. Let’s break down the financial implications into specific categories to understand where the expenses pile up.
1. Material Costs
Every misplaced component represents a direct material loss. For example, high-value components like microcontrollers or specialized sensors can cost anywhere from $5 to $50 each. If a batch of 1,000 boards has a 2% misplacement rate, that’s 20 components wasted, potentially costing hundreds of dollars in materials alone. In industries like the component misplacement automotive industry, where boards often use expensive, application-specific parts, these costs can escalate quickly.
2. Labor and Rework Costs
The PCB rework cost is often the most significant expense tied to component misplacement. Rework involves identifying the error, removing the misplaced component, cleaning the area, and soldering a new component in place. Depending on the complexity of the board and the skill level of the technician, rework can take anywhere from 10 minutes to an hour per board. At an average labor rate of $30 per hour, reworking just 10 boards could cost $50 to $300 in labor alone.
In SMT rework, the process is even more delicate. Specialized tools like hot air rework stations or microscopes are often needed to handle tiny components, adding to the expense. Moreover, rework introduces the risk of further damaging the board, potentially leading to scrap.
3. Scrap and Lost Production

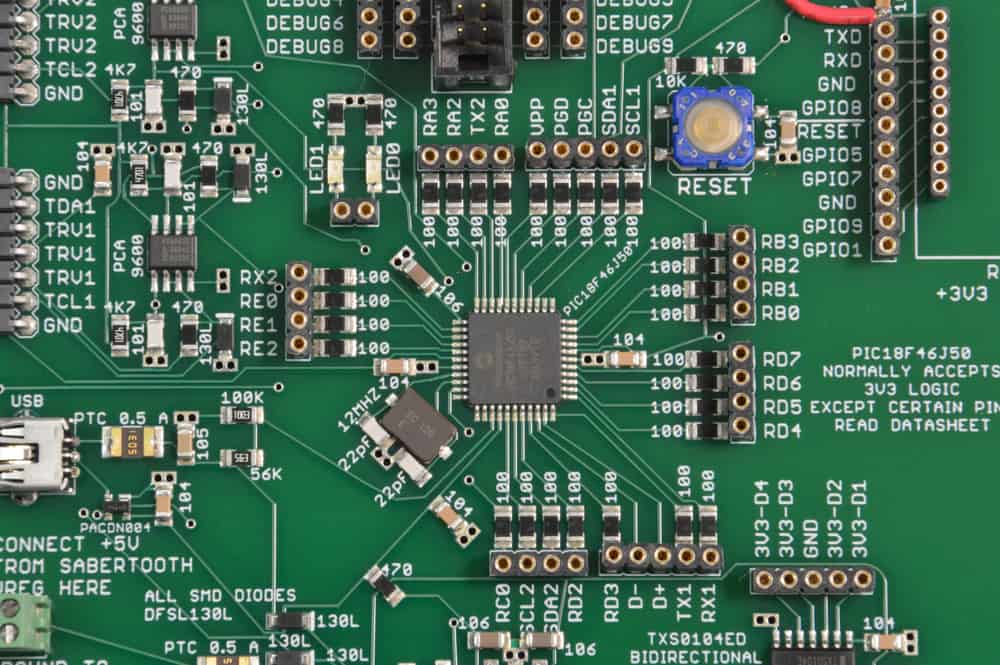

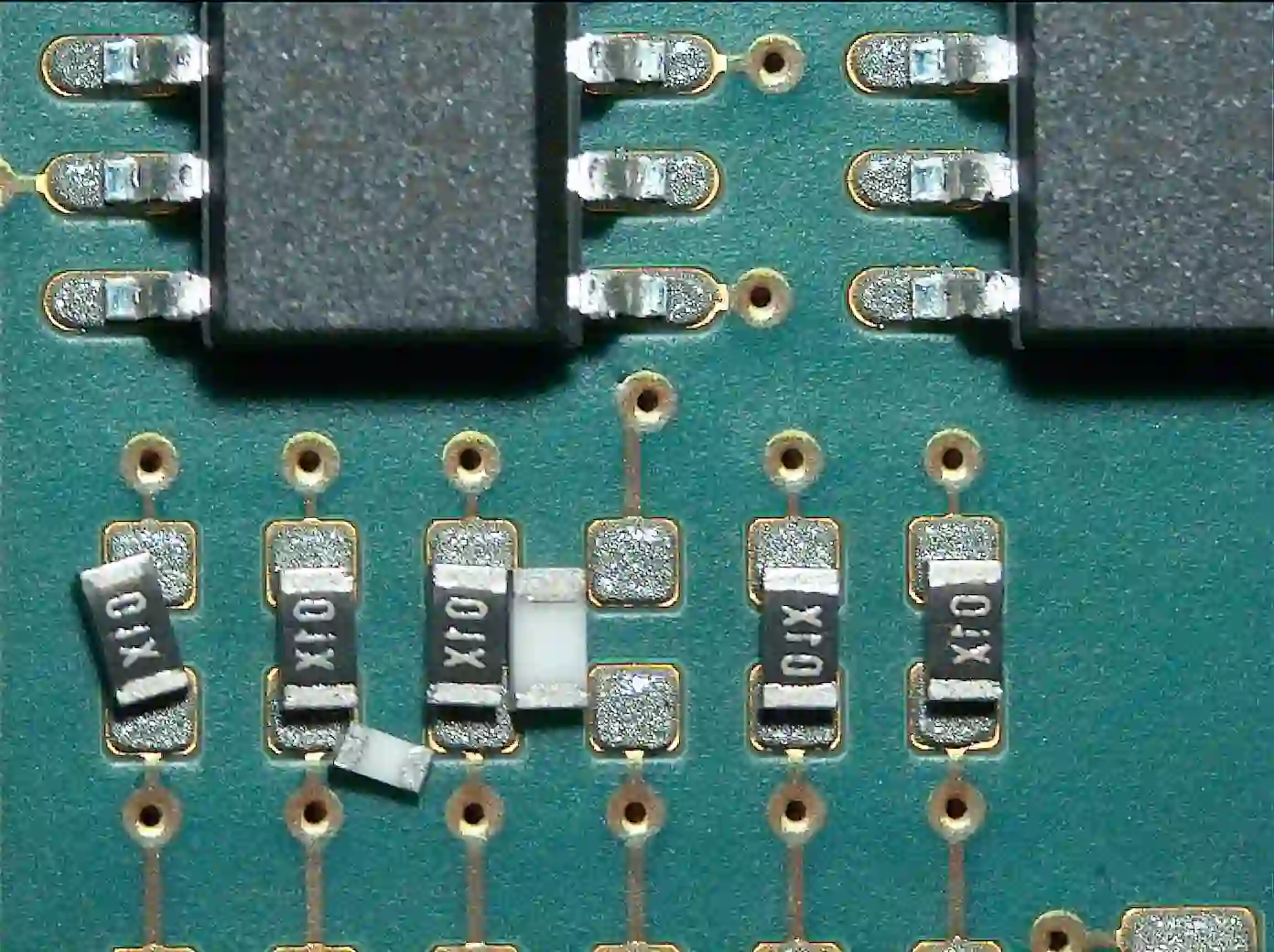

If a misplaced component causes irreversible damage—such as a torn trace or a burned pad—the entire board may need to be scrapped. Scrapping a single board might not seem like a big deal, but in high-volume production, even a 1% scrap rate can translate to thousands of dollars in losses. For instance, if a batch of 10,000 boards costs $10 each to produce, a 1% scrap rate means $1,000 in direct losses, not counting the time and resources spent on those boards.
4. Opportunity Costs and Delays
Beyond direct costs, component misplacement can delay production schedules, leading to missed deadlines and unhappy clients. In the component misplacement automotive industry, where just-in-time manufacturing is common, a delay in delivering functional PCBs can halt an entire assembly line, costing thousands or even millions in lost production time. These opportunity costs are harder to quantify but can be far more damaging than material or labor expenses.
Industry-Specific Impacts: Component Misplacement in the Automotive Sector

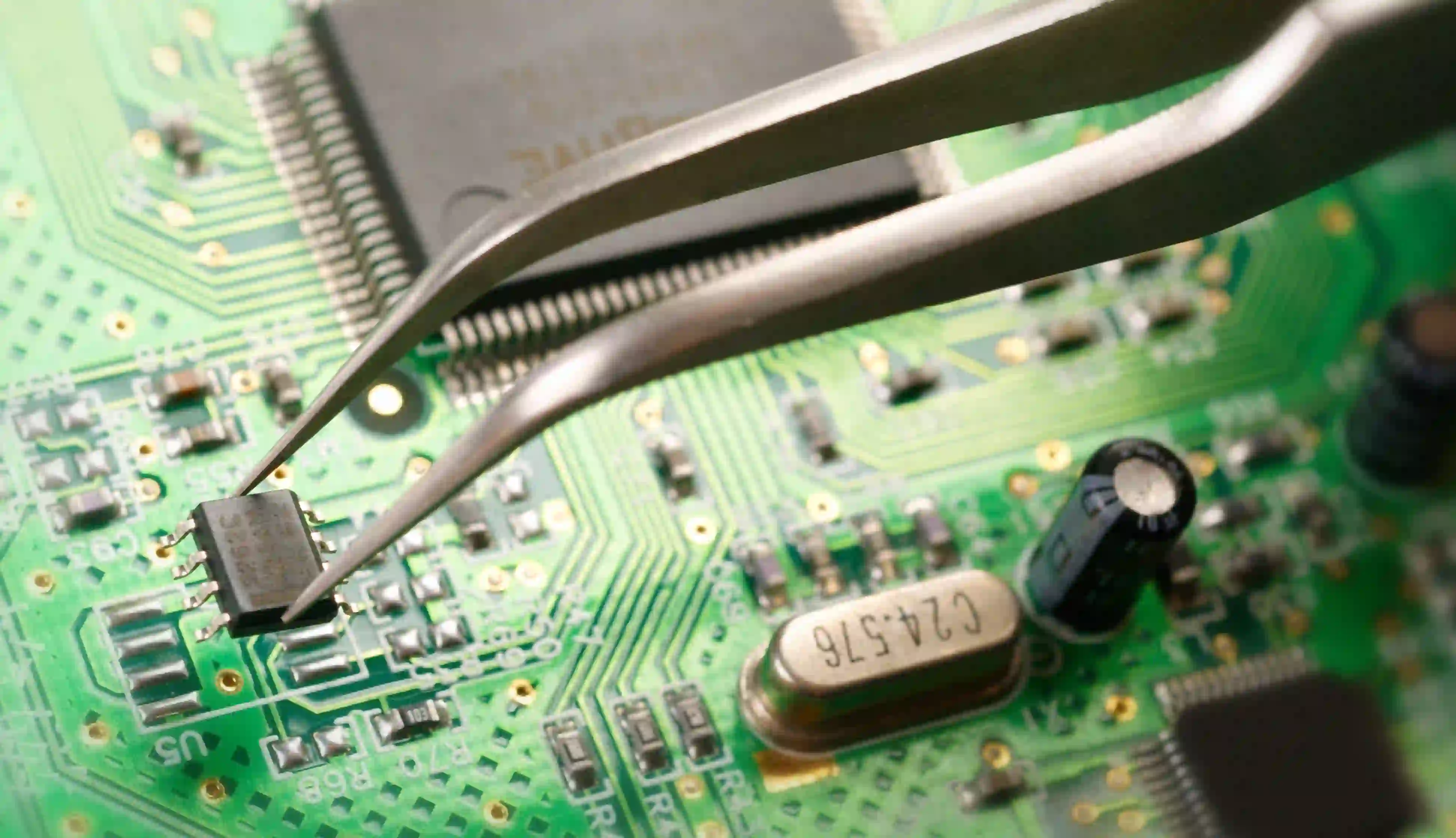

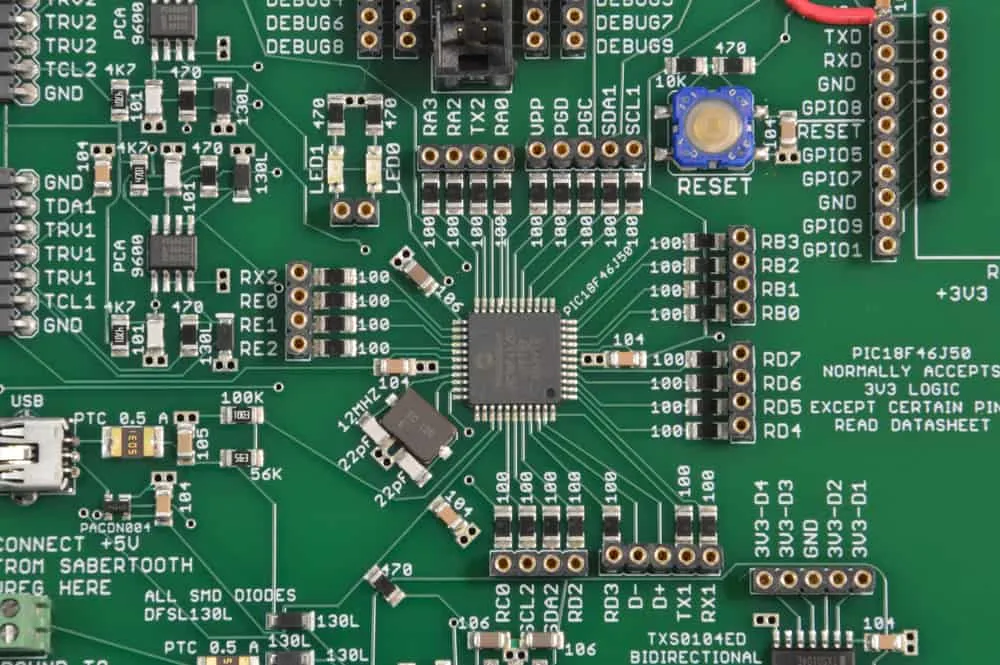

The component misplacement automotive industry faces unique challenges due to the high standards for safety and reliability in vehicles. PCBs in automotive applications control critical systems like engine management, braking, and driver assistance features. A single misplaced component can lead to system failures, posing risks to both manufacturers and end users.
For example, consider a PCB used in an anti-lock braking system (ABS). If a resistor or diode is misplaced, it could cause incorrect sensor readings, potentially leading to brake failure. The cost of such a defect isn’t just financial—it could result in recalls, lawsuits, and damage to a company’s reputation. Automotive manufacturers often face cost of defects in PCB that are amplified by stringent quality control requirements and the need for extensive testing after rework.
Moreover, automotive PCBs often operate in harsh environments with extreme temperatures, vibrations, and moisture. Misplaced components are more likely to fail under these conditions, increasing the likelihood of field failures. The cost of replacing a defective board in a vehicle after it’s been sold can be 10 to 20 times higher than fixing it during production, due to labor, shipping, and customer service expenses.
Strategies to Minimize Component Misplacement and Associated Costs
Reducing the component misplacement cost and associated PCB rework cost requires a proactive approach to design, assembly, and quality control. Here are several strategies that manufacturers can implement to minimize errors and improve efficiency.
1. Invest in Automated Inspection Systems
Automated optical inspection (AOI) systems can detect component misplacement before soldering, significantly reducing the need for SMT rework. These systems use high-resolution cameras and software to compare the assembled board against the design file, identifying misalignments as small as 0.05 mm. While AOI equipment can be expensive (ranging from $20,000 to $100,000), the investment often pays off by reducing scrap rates and rework labor costs.
2. Optimize Design for Manufacturability (DFM)
Designing PCBs with manufacturability in mind can prevent many placement errors. For instance, ensuring adequate spacing between components reduces the risk of misalignment during SMT assembly. Clear markings for component orientation (like polarity indicators for diodes) can also help operators and machines place parts correctly. By following DFM guidelines, manufacturers can lower the cost of defects in PCB production.
3. Calibrate and Maintain Assembly Equipment
Regular calibration of pick-and-place machines is crucial to prevent component misplacement. A machine that’s off by even 0.01 mm can cause consistent errors across thousands of boards. Scheduled maintenance and software updates can ensure that equipment operates at peak accuracy, minimizing the need for costly rework.
4. Train Assembly Staff
For manual assembly or rework processes, well-trained staff are essential. Providing ongoing training on proper soldering techniques, component handling, and error detection can reduce human errors. For instance, teaching technicians to use digital microscopes for inspecting small SMT components can improve accuracy during SMT rework.
Case Study: The Real-World Cost of Component Misplacement
To illustrate the impact of component misplacement, let’s look at a hypothetical scenario based on industry averages. A mid-sized manufacturer produces 50,000 PCBs per month for consumer electronics. Due to a calibration issue in their pick-and-place machine, 1.5% of the boards have misplaced components, resulting in 750 defective units.
- Material Cost: Each board uses components worth $8 on average. At 750 defective units, that’s $6,000 in wasted materials.
- Rework Cost: Reworking each board takes 20 minutes at a labor rate of $30 per hour. That’s $7.50 per board, or $5,625 for 750 boards.
- Scrap Cost: Of the defective boards, 10% (75 units) are irreparable and must be scrapped. At $15 per board (including materials and initial assembly), that’s $1,125 in scrap losses.
- Total Direct Cost: Adding these up, the total cost of this error is $12,750 for a single month.
This doesn’t account for delays, customer dissatisfaction, or potential returns. By investing in better equipment calibration or inspection systems, the manufacturer could reduce the defect rate to 0.5%, saving over $8,000 per month in direct costs alone.
The Long-Term Benefits of Addressing Component Misplacement
While the upfront costs of preventing component misplacement—such as purchasing inspection equipment or training staff—may seem high, the long-term savings are undeniable. Reducing the component misplacement cost and associated PCB rework cost not only improves profitability but also enhances product quality and customer trust. In high-stakes industries like the component misplacement automotive industry, where reliability is paramount, these efforts can be the difference between a successful product launch and a costly recall.
Moreover, minimizing the cost of defects in PCB production contributes to a more sustainable manufacturing process. Less scrap means fewer wasted resources, and efficient rework processes reduce energy consumption and labor hours. For manufacturers aiming to stay competitive in a fast-paced market, addressing component misplacement is not just a cost-saving measure—it’s a strategic necessity.
Conclusion: Taking Control of Component Misplacement Costs
Component misplacement is a pervasive issue in PCB manufacturing, with far-reaching financial and operational consequences. From the direct expenses of materials and labor to the hidden costs of delays and reputation damage, the component misplacement cost can quickly add up. By understanding the root causes of these errors and implementing preventive measures like automated inspection, design optimization, and staff training, manufacturers can significantly reduce the need for SMT rework and lower the overall cost of defects in PCB production.
