In the fast-evolving world of medical technology, flexible PCBs (Printed Circuit Boards) are playing a transformative role, especially in life-saving devices like defibrillators. If you're searching for insights on flexible PCBs for medical devices or their specific applications of flex PCBs in defibrillators, you're in the right place. This blog dives deep into how these innovative circuits are shaping defibrillator technology, their design considerations, materials, and the unique advantages they bring to the table.
At their core, flexible PCBs offer bendability and lightweight construction, making them ideal for compact and wearable medical devices. In defibrillators, they enable smaller, more efficient designs without sacrificing reliability during critical moments. Let's explore this fascinating intersection of electronics and healthcare in detail.
What Are Flexible PCBs and Why Do They Matter in Medical Devices?
Flexible PCBs, often called flex circuits, are thin, lightweight circuit boards made from materials that allow them to bend and fold without breaking. Unlike traditional rigid PCBs, these circuits can conform to unique shapes, making them perfect for the tight spaces and complex designs found in modern medical devices.
In the medical field, where equipment must be portable, durable, and precise, flexible PCBs are a game-changer. They are widely used in devices like pacemakers, hearing aids, and, most notably, defibrillators. Their ability to fit into small, irregular spaces while maintaining high performance is critical for creating devices that save lives.
Applications of Flex PCBs in Defibrillators
Defibrillators are essential medical devices used to restore normal heart rhythms during cardiac emergencies. Whether it's an Automated External Defibrillator (AED) used in public spaces or an implantable cardioverter-defibrillator (ICD) placed inside a patient, the technology must be compact, reliable, and efficient. Here's how applications of flex PCBs in defibrillators are making a difference:
- Space-Saving Design: Flex PCBs allow defibrillator components to be packed into smaller housings. For AEDs, this means lightweight, portable units that can be easily carried or mounted in public areas. For ICDs, it ensures the device fits comfortably within the body.
- Enhanced Durability: The flexible nature of these circuits withstands vibrations and mechanical stress, which is crucial for devices that may be dropped (like AEDs) or subjected to constant movement inside the body (like ICDs).
- Improved Signal Integrity: Flex PCBs can be designed to minimize interference, ensuring that the electrical signals delivering life-saving shocks are precise. For instance, maintaining low impedance levels—often below 50 ohms in critical paths—ensures efficient energy delivery during a shock.

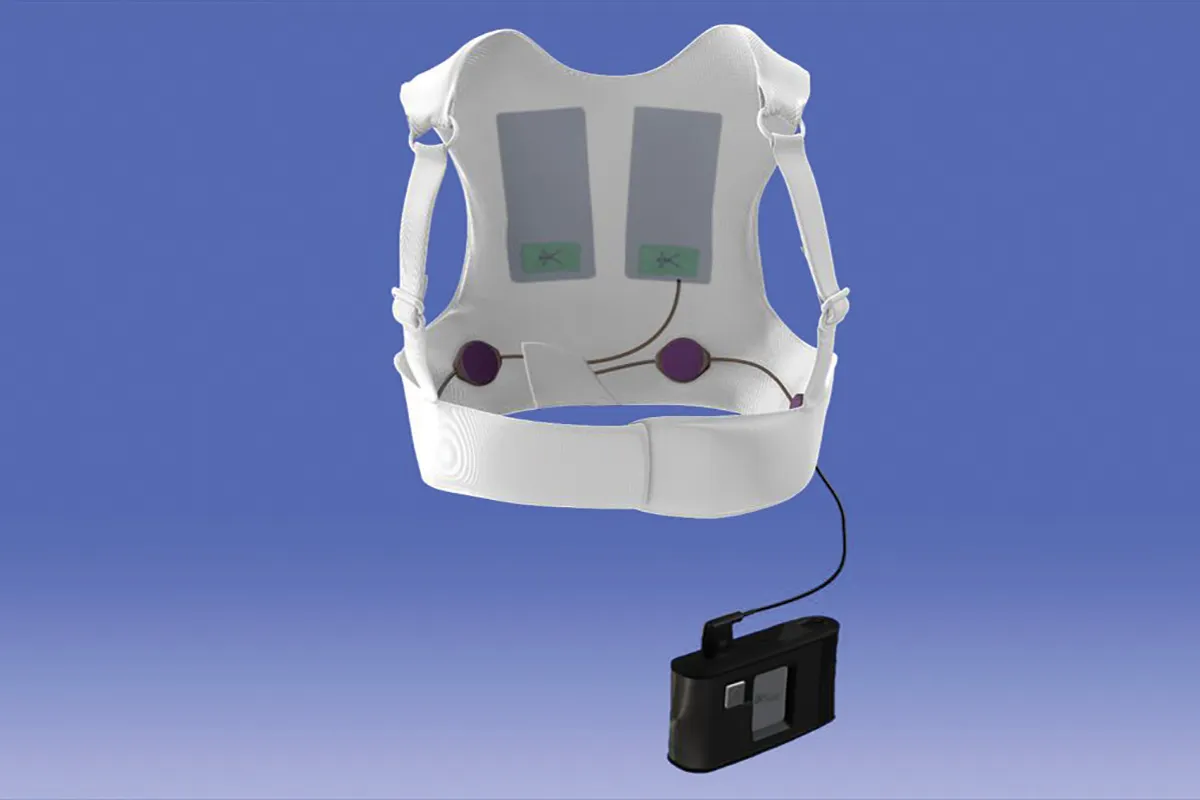

- Wearable Integration: Modern wearable defibrillators, such as vests for high-risk patients, rely on flex PCBs to conform to the body's shape, providing continuous monitoring and immediate response if an arrhythmia is detected.
Flexible PCB Design Considerations for Defibrillators
Designing flexible PCBs for medical devices like defibrillators requires careful planning to meet strict performance and safety standards. Here are the key flexible PCB design considerations that engineers must address:
1. Bend Radius and Flexibility
The bend radius, or the minimum radius a flex PCB can be bent without damage, is critical. For defibrillators, especially implantable ones, the PCB must endure repeated bending without cracking. A typical bend radius for medical flex PCBs is around 6-10 times the thickness of the board (e.g., a 0.1 mm thick board should have a bend radius of 0.6-1 mm).

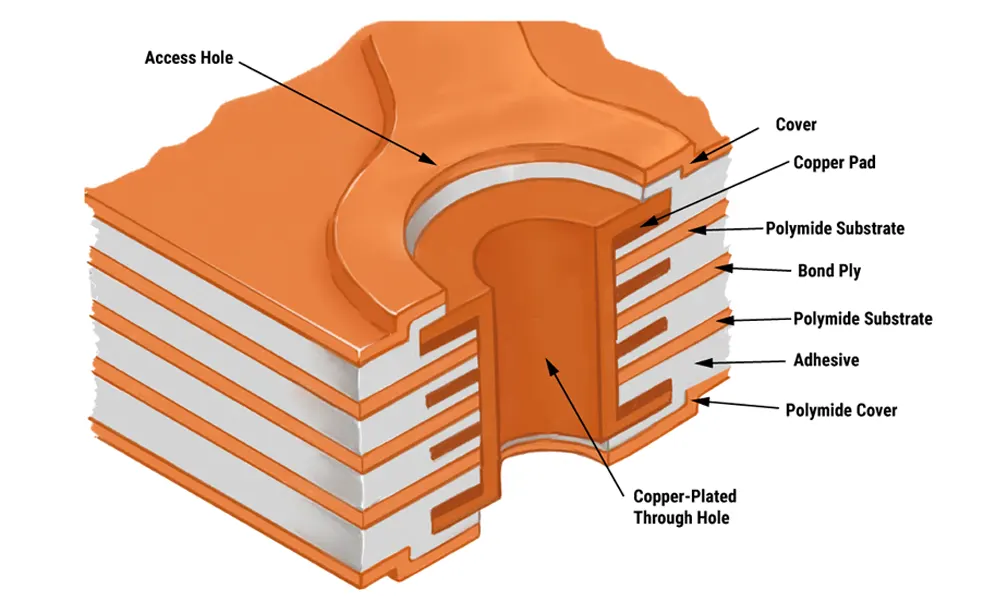

2. Layer Stacking and Trace Routing
Flex PCBs often use multiple layers to accommodate complex circuitry in a small area. Engineers must strategically route traces to avoid stress points during bending. For high-speed signals in defibrillators, maintaining a consistent trace width (e.g., 0.2 mm for signal lines) helps control impedance and prevent signal loss.
3. Thermal Management
Defibrillators generate significant heat during operation, especially when delivering high-voltage shocks (often exceeding 1000 volts). Flex PCBs must be designed with thermal vias or heat-dissipating materials to prevent overheating, which could damage the circuit or harm the patient.
4. Compliance with Medical Standards
Medical devices must adhere to strict regulations like ISO 13485 for quality management and IPC Class 3 standards for high-reliability electronics. Flex PCBs in defibrillators undergo rigorous testing for biocompatibility, electrical safety, and long-term reliability.
Flex PCB Materials: Building Blocks of Reliability
The choice of flex PCB materials directly impacts the performance and safety of defibrillators. These materials must balance flexibility, durability, and electrical properties. Here are the primary materials used and their significance:
- Polyimide (PI): The most common substrate for flex PCBs, polyimide offers excellent thermal stability (up to 260°C) and flexibility. It's ideal for defibrillators, where circuits must withstand heat from high-voltage components and remain flexible for compact designs.
- Copper Foil: Thin copper layers (typically 18-35 micrometers) are used for conductive traces. Rolled annealed copper is preferred in flex PCBs for its superior flexibility compared to electrodeposited copper, reducing the risk of cracking during bending.
- Adhesives and Coverlays: Adhesive layers bond the copper to the substrate, while coverlays protect the circuit from moisture and mechanical damage. In medical applications, these must be biocompatible to prevent adverse reactions, especially in implantable devices.
- Reinforcement Materials: In areas of high stress, materials like fiberglass or additional polyimide layers are added to prevent tearing. This is crucial for defibrillator PCBs that experience constant movement or vibration.
Selecting the right combination of materials ensures that the flex PCB can handle the electrical demands of a defibrillator, such as delivering precise shocks with minimal energy loss, while maintaining structural integrity over years of use.
Advantages of Flex PCBs in Defibrillator Technology
The advantages of flex PCBs make them indispensable in modern defibrillator technology. Here's why they stand out compared to traditional rigid boards:
- Compact Size and Lightweight: Flex PCBs reduce the overall weight and size of defibrillators. For instance, an AED using flex circuits can weigh under 2 kg, making it easier to carry in emergencies.
- Cost-Effective Assembly: By eliminating the need for connectors and cables in some designs, flex PCBs lower assembly costs and reduce points of failure. This is vital for mass-produced AEDs used in public spaces.
- High Reliability: Flex PCBs are less prone to connection failures caused by vibration or shock, ensuring that defibrillators remain operational when they're needed most. Their failure rate in medical applications is often below 0.1%, meeting stringent reliability standards.
- Customization: The ability to shape flex PCBs into 3D configurations allows engineers to tailor designs to specific defibrillator models, whether it's a handheld unit or an implantable device.
- Patient Comfort: In wearable or implantable defibrillators, the flexibility of these circuits minimizes discomfort, as they can conform to the body's natural contours without rigid edges.
Challenges and Future Trends in Flex PCBs for Defibrillators
While flex PCBs offer numerous benefits, there are challenges to overcome. Manufacturing costs for high-quality flex circuits can be higher due to specialized materials and precision requirements. Additionally, ensuring long-term reliability in harsh conditions, such as inside the human body, requires ongoing innovation in materials and testing.
Looking ahead, the future of flex PCBs in defibrillator technology is promising. Advances in biocompatible materials could lead to even safer implantable devices. Integration with wearable tech, like smart fabrics embedded with flex circuits, may revolutionize how defibrillators monitor and respond to cardiac events in real time. Moreover, the push for miniaturization will likely drive the development of thinner, more efficient flex PCBs capable of handling higher voltages with less power loss.
How Flex PCBs Are Shaping the Future of Emergency Care
Defibrillators are often the difference between life and death in cardiac emergencies, and flex PCBs are at the heart of making these devices more accessible and effective. From enabling portable AEDs in schools and airports to supporting life-saving ICDs inside patients, the impact of flexible circuits cannot be overstated.
For engineers and medical device manufacturers, understanding the intricacies of flexible PCB design considerations, selecting the right flex PCB materials, and leveraging the advantages of flex PCBs is key to pushing the boundaries of what's possible in emergency care. As technology continues to advance, we can expect even more innovative applications of flex PCBs in defibrillators and beyond.
Conclusion
Flexible PCBs are redefining the landscape of medical devices, with defibrillator technology being a prime example of their transformative potential. Their ability to save space, enhance reliability, and adapt to complex designs makes them indispensable in creating life-saving equipment that meets the demands of modern healthcare.
Whether you're an engineer designing the next generation of defibrillators or a healthcare professional seeking to understand the technology behind these devices, the role of flexible PCBs for medical devices is clear. By focusing on smart design, quality materials, and innovative applications, we're paving the way for a future where emergency care is more effective and accessible than ever before.
