In the fast-paced world of high-speed communication systems, maintaining signal integrity is a critical challenge for engineers. As data rates climb into the gigabit range, even small disruptions can lead to errors, delays, or system failures. One powerful solution to this problem lies in the use of buried resistors—a lesser-known but highly effective technique for improving signal integrity in high-speed PCB design. By embedding resistors within the internal layers of a printed circuit board (PCB), designers can reduce parasitic effects, minimize signal reflections, and optimize performance for demanding applications.
In this comprehensive guide, we’ll uncover the secrets of using buried resistors to enhance signal integrity. We’ll explore what buried resistors are, why they matter for high-speed PCB design, and how they help in reducing parasitic effects. Whether you’re designing for telecommunications, data centers, or advanced consumer electronics, this post will equip you with actionable insights to elevate your designs.
What Are Buried Resistors and Why Do They Matter?
Buried resistors are resistive elements embedded within the internal layers of a multilayer PCB, as opposed to being placed on the surface. These resistors are typically formed using specialized materials or thin-film technologies during the PCB fabrication process. Unlike surface-mounted resistors, buried resistors are integrated directly into the board’s structure, offering unique advantages for signal integrity in high-speed communication systems.
Signal integrity refers to the quality of an electrical signal as it travels through a circuit. In high-speed designs, where signals switch at frequencies of 1 GHz or higher, maintaining this quality is essential. Issues like signal reflections, crosstalk, and electromagnetic interference (EMI) can degrade performance. Buried resistors play a crucial role in addressing these challenges by providing precise impedance matching and reducing unwanted parasitic effects.
For example, in a high-speed data link operating at 10 Gbps, even a small mismatch in impedance can cause reflections that disrupt signal timing. By placing a buried resistor close to the signal path, designers can achieve better control over impedance, ensuring cleaner and more reliable signal transmission.
The Role of Signal Integrity in High-Speed PCB Design
Before diving deeper into buried resistors, let’s understand why signal integrity is so vital in high-speed PCB design. As signal frequencies increase, the wavelength of the signals becomes shorter, making them more sensitive to the physical layout of the board. A signal traveling at 5 GHz, for instance, has a wavelength of about 60 mm in a typical PCB material. At this scale, even a tiny imperfection in trace length or impedance can cause significant signal distortion.
Common signal integrity issues include:
- Reflections: Caused by impedance mismatches, leading to signal echoes that interfere with the original waveform.
- Crosstalk: Unwanted coupling between adjacent traces, resulting in noise and data errors.
- EMI: Electromagnetic interference that can disrupt signals and affect nearby components.
- Signal Loss: Attenuation due to resistance, dielectric losses, or parasitic effects.
In high-speed communication systems, these issues can lead to bit errors, reduced data throughput, and even complete system failure. Achieving signal integrity improvement requires careful design techniques, and buried resistors offer a unique way to tackle these problems at their source.
How Buried Resistors Enhance Signal Integrity
Buried resistors provide several key benefits for signal integrity improvement in high-speed PCB design. Let’s break down how they work and why they’re effective:
1. Precise Impedance Matching
Impedance matching is critical for minimizing reflections in high-speed signals. A typical transmission line in a PCB might require a characteristic impedance of 50 ohms to match the driver and receiver. Buried resistors can be placed directly in the signal path or as termination resistors within the board’s internal layers, ensuring a near-perfect match. This reduces reflections and maintains signal quality, even at frequencies exceeding 10 GHz.
2. Reducing Parasitic Effects with Buried Resistors

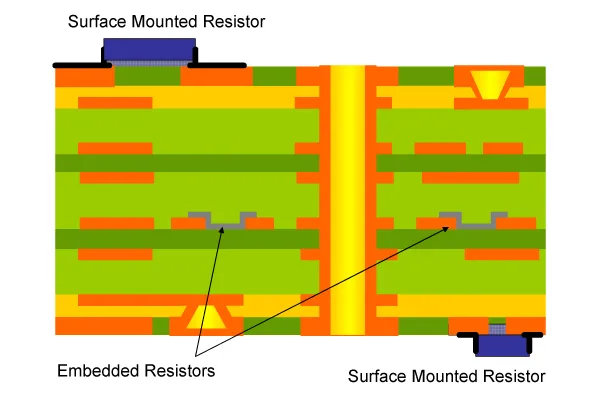

Parasitic effects, such as stray capacitance and inductance, are a major concern in high-speed designs. Surface-mounted resistors, while effective, often introduce parasitic inductance due to their leads and mounting pads. For instance, a surface resistor might add 1-2 nH of inductance, which can distort signals at high frequencies. Buried resistors, on the other hand, have minimal parasitic effects because they’re integrated into the board’s dielectric material, reducing unwanted inductance and capacitance.
3. Shorter Signal Paths
By embedding resistors within the PCB layers, designers can place them closer to the signal source or termination point. This shortens the signal path, reducing the chance of interference and loss. For example, in a DDR4 memory interface running at 3.2 Gbps, a buried resistor placed near the memory controller can provide immediate termination, improving signal timing and reducing jitter.
4. Improved Thermal Management
High-speed systems generate significant heat, which can affect component performance. Buried resistors are less exposed to external temperature fluctuations compared to surface-mounted ones. They also benefit from the thermal mass of the surrounding PCB layers, helping to dissipate heat more effectively and maintain stable resistance values over time.
Applications of Buried Resistors in High-Speed Communication Systems
Buried resistors are particularly valuable in applications where signal integrity is non-negotiable. Here are some key areas where they shine:
1. Telecommunications
In 5G networks, where data rates can reach 20 Gbps, maintaining signal integrity is critical. Buried resistors help achieve the precise impedance control needed for high-frequency RF signals, ensuring minimal loss and interference in base stations and mobile devices.
2. Data Centers
Modern data centers rely on high-speed interconnects, such as PCIe 5.0, which operates at 32 GT/s. Buried resistors are used to terminate differential pairs and reduce crosstalk, enabling reliable data transfer between servers and storage systems.
3. Automotive Electronics
Advanced driver-assistance systems (ADAS) and autonomous vehicles use high-speed communication protocols like CAN FD and Ethernet. Buried resistors help manage signal integrity in these compact, noise-prone environments, ensuring accurate sensor data and control signals.
4. Consumer Electronics
Devices like gaming consoles and high-definition displays require fast, clean signals for seamless performance. Buried resistors support high-speed interfaces like HDMI 2.1, which can handle data rates up to 48 Gbps, by minimizing signal degradation.
Design Considerations for Using Buried Resistors
While buried resistors offer significant advantages for signal integrity, incorporating them into a PCB design requires careful planning. Here are some practical tips to ensure success:
1. Material Selection
The resistive material used for buried resistors must be compatible with the PCB’s dielectric layers. Common materials include thin-film nickel-chromium (NiCr) or tantalum nitride (TaN), which provide stable resistance values (e.g., tolerances as tight as ±5%) at high frequencies.
2. Layer Stackup Design
Position buried resistors in internal layers close to the signal traces they’re meant to terminate or match. This minimizes vias and trace lengths, reducing potential sources of noise. For instance, in a 12-layer PCB, placing a buried resistor on layer 4 near a high-speed signal on layer 3 can optimize performance.
3. Simulation and Testing
Use simulation tools to model the impact of buried resistors on signal integrity. Tools can predict impedance, reflections, and crosstalk before fabrication, saving time and cost. Post-fabrication testing, such as time-domain reflectometry (TDR), can verify that the buried resistors achieve the desired 50-ohm impedance match.
4. Fabrication Constraints
Not all PCB manufacturers can produce boards with buried resistors due to the specialized processes involved. Ensure your fabrication partner supports this technology and can meet the required tolerances for resistance values, typically in the range of 10 to 100 ohms for termination applications.
Challenges and Limitations of Buried Resistors
Despite their benefits, buried resistors come with some challenges that designers must consider:
- Cost: The fabrication process for buried resistors is more complex and expensive than standard surface-mount techniques. This can impact project budgets, especially for low-volume production.
- Design Flexibility: Once buried resistors are embedded, they cannot be modified or replaced without redesigning and refabricating the entire board.
- Limited Availability: Not all PCB materials or manufacturers support buried resistor technology, which may limit design options.
However, for high-speed communication systems where signal integrity is paramount, the performance gains often outweigh these drawbacks.
Future Trends: Buried Resistors in Next-Generation Designs
As data rates continue to rise—think 100 Gbps Ethernet or beyond—the demand for advanced signal integrity solutions will grow. Buried resistors are likely to become even more integral to PCB design, especially as multilayer boards become standard in compact, high-performance devices. Emerging technologies, such as additive manufacturing and advanced thin-film materials, may also reduce the cost and complexity of implementing buried resistors, making them accessible to a wider range of applications.
Additionally, the integration of buried resistors with other embedded components, like capacitors and inductors, could lead to fully integrated passive networks within PCBs. This would further minimize parasitic effects and open new possibilities for signal integrity improvement in high-speed designs.
Conclusion: Unlocking Signal Integrity with Buried Resistors
In the realm of high-speed communication systems, signal integrity is the foundation of reliable performance. Buried resistors offer a powerful tool for engineers looking to tackle the challenges of high-speed PCB design. By providing precise impedance matching, reducing parasitic effects, and enabling shorter signal paths, these embedded components help ensure clean, accurate signals even at multi-gigabit speeds.
Whether you’re working on cutting-edge telecommunications equipment or next-generation consumer gadgets, leveraging buried resistors can give your designs a competitive edge. While they require careful planning and specialized fabrication, the benefits for signal integrity improvement are undeniable. As technology advances, buried resistors will continue to play a key role in shaping the future of high-speed electronics.
