In-circuit testing (ICT) is a critical step in ensuring the quality and reliability of printed circuit boards (PCBs) during manufacturing. However, the costs associated with ICT, particularly in test fixture design, can quickly add up. So, how can you achieve ICT cost optimization without compromising on quality? The key lies in strategic fixture design, including choosing between single-sided vs double-sided fixtures, minimizing probe count, using standard fixture components, and tailoring setups for ICT for high volume production. In this comprehensive guide, we’ll dive into actionable strategies to help engineers and manufacturers reduce costs while maintaining top-notch testing standards.
What is ICT and Why Does Fixture Design Matter?

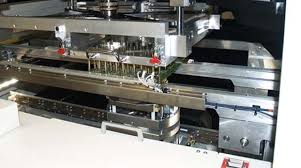

In-circuit testing is a method used to test individual components on a PCB by accessing specific test points through a specialized fixture, often called a "bed-of-nails" setup. This process helps detect issues like short circuits, open circuits, or incorrect component values before the board moves to final assembly. While ICT is highly effective, the design of the test fixture plays a massive role in both the accuracy of the test and the overall cost.
A poorly designed fixture can lead to higher expenses due to frequent maintenance, increased probe counts, or compatibility issues with high-volume production lines. On the other hand, a well-optimized fixture reduces testing time, cuts down on material costs, and ensures consistent results. Let’s explore how to achieve this balance with proven strategies.
Strategy 1: Choosing Between Single-Sided vs Double-Sided Fixtures
One of the first decisions in fixture design is whether to use a single-sided or double-sided fixture. Each option has its pros and cons, and the choice directly impacts cost and efficiency, especially when considering single-sided vs double-sided fixtures.
Single-Sided Fixtures
Single-sided fixtures test only one side of the PCB at a time. They are generally simpler and cheaper to design and build because they require fewer probes and less complex alignment mechanisms. For boards with components primarily on one side or test points that are easily accessible from a single surface, this option is often the most cost-effective. For example, a basic single-sided fixture for a small PCB might cost around 30-50% less than a double-sided one due to reduced material and labor needs.
However, single-sided fixtures may not be ideal for complex boards with components on both sides. If testing requires flipping the board or using multiple setups, this can increase testing time and labor costs, negating the initial savings.
Double-Sided Fixtures
Double-sided fixtures, on the other hand, allow simultaneous testing of both sides of the PCB. They are equipped with probes on the top and bottom, which eliminates the need for flipping the board and speeds up the testing process. This makes them highly suitable for ICT for high volume production, where time savings translate to significant cost reductions. For instance, in a production run of 10,000 units, reducing test time by just 10 seconds per board can save over 27 hours of production time.
The trade-off is the higher upfront cost. Double-sided fixtures often require more probes (increasing costs by $5-10 per probe) and precise alignment mechanisms to ensure accurate contact on both sides. They also demand more maintenance due to wear on dual probe sets.
Which to Choose?
Opt for single-sided fixtures if your PCB design is simple, with test points concentrated on one side, and production volume is low to medium. Choose double-sided fixtures for complex boards or high-volume runs where speed and efficiency outweigh the initial investment. By aligning your fixture choice with your production needs, you can achieve significant ICT cost optimization.
Strategy 2: Minimizing Probe Count for Cost Savings
Probes are one of the most expensive components of an ICT fixture, with costs ranging from $5 to $15 per probe depending on the type and quality. Additionally, each probe adds to maintenance expenses due to wear and tear. Therefore, minimizing probe count is a direct way to reduce costs without sacrificing test coverage.
Optimize Test Point Selection
During the PCB design phase, work closely with your design team to identify critical test points that cover the most essential components and circuits. Avoid placing test points for every single node unless absolutely necessary. For example, if a circuit has multiple resistors in series, testing just one or two strategic points might suffice to verify the entire chain’s integrity, reducing the number of probes needed by 20-30% in some cases.
Use Multiplexing Techniques
Multiplexing allows a single probe to test multiple points by switching between them electronically. This technique can cut probe requirements significantly, especially for boards with dense layouts. While multiplexing adds some complexity to the test system, the reduction in fixture cost often justifies the investment. For instance, a fixture with 100 probes might be reduced to 60 with multiplexing, saving hundreds of dollars in probe costs alone.
Regularly Review Probe Wear
Even with a minimized probe count, wear and tear can lead to frequent replacements. Use high-quality probes with a longer lifespan (rated for 100,000+ cycles) and monitor their performance to replace only those that are worn out, rather than the entire set. This targeted maintenance approach can save up to 15% on long-term fixture upkeep.
Strategy 3: Leveraging Standard Fixture Components
Custom components can drive up the cost of ICT fixtures due to specialized manufacturing and longer lead times. Using standard fixture components is a practical way to keep expenses in check while maintaining reliability.
Standard Probes and Receivers
Opt for widely available probe types and receiver blocks that are compatible with most ICT systems. Standard probes, such as those with a 100-mil spacing, are often available in bulk at lower costs (around $5-8 per probe) compared to custom designs, which can cost double. These components are also easier to replace, reducing downtime during maintenance.
Modular Fixture Designs
Modular fixtures allow you to reuse base plates, frames, and other components across different PCB designs. By standardizing these elements, you can reduce the need for entirely new fixtures for each product, cutting costs by up to 40% per project. For example, a modular base plate might cost $500 upfront but can be reused for dozens of projects, compared to spending $300-400 on a custom base for each new design.
Compatibility with Existing Equipment
Ensure that your fixture components are compatible with your existing test systems. Using parts that integrate seamlessly with your current setup avoids the need for costly upgrades or adapters. Always check specifications like probe impedance (typically around 50 ohms for standard systems) and signal speed compatibility to prevent performance issues.
Suggested Image Placement: Insert an image of a modular ICT fixture setup with labeled standard components. ALT Text: "Modular ICT fixture with standard components for cost-effective testing."
Strategy 4: Tailoring ICT for High Volume Production
When scaling up to ICT for high volume production, efficiency becomes even more critical. Testing thousands or millions of units requires fixtures that prioritize speed, durability, and minimal downtime.
Invest in Durable Materials
For high-volume runs, fixtures must withstand constant use without frequent failures. Use high-grade materials like aluminum or reinforced plastics for fixture frames to ensure they last through hundreds of thousands of test cycles. While durable materials may increase upfront costs by 10-20%, they reduce replacement frequency, saving money over time.
Automate Fixture Handling
In high-volume environments, manual handling of fixtures slows down production and increases labor costs. Automated fixture loading and unloading systems can reduce test cycle times by up to 50%. For instance, an automated system might handle 500 boards per hour compared to 200 with manual operation, significantly boosting throughput.
Parallel Testing Capabilities
Design fixtures to test multiple boards simultaneously if your production volume justifies it. A fixture that tests two or four boards at once can double or quadruple output without a proportional increase in cost. While the fixture might cost 30-50% more, the time savings in a run of 50,000 units can result in thousands of dollars in reduced labor and machine time.
Additional Tips for ICT Cost Optimization
Beyond the core strategies, here are a few more ways to enhance ICT cost optimization:
- Collaborate Early in Design: Involve your test engineers during the PCB layout phase to place test points strategically, reducing fixture complexity and probe needs.
- Simulate Before Building: Use simulation software to predict fixture performance and identify potential issues before manufacturing. This can save 10-15% on rework costs.
- Regular Maintenance Schedules: Set up routine checks for probes and fixture alignment to avoid unexpected failures that halt production and incur repair costs.
Conclusion: Balancing Cost and Quality in ICT Fixture Design
Optimizing test fixture design for in-circuit testing is a powerful way to achieve ICT cost optimization while maintaining high-quality standards. By carefully choosing between single-sided vs double-sided fixtures, focusing on minimizing probe count, utilizing standard fixture components, and tailoring setups for ICT for high volume production, manufacturers can significantly reduce expenses without sacrificing reliability. Implementing these strategies not only cuts costs but also streamlines the testing process, ensuring faster turnaround times and better overall efficiency.
Whether you’re handling small batches or scaling up for mass production, thoughtful fixture design is the foundation of cost-effective ICT. Start by assessing your specific needs, collaborating with your design and test teams, and applying the tips shared in this guide. With the right approach, you can transform ICT from a cost center into a competitive advantage.
