Designing a printed circuit board (PCB) that fits perfectly within its enclosure is a critical step in creating a reliable and functional electronic product. Whether you're an engineer, a hobbyist, or a product designer, understanding PCB size and enclosure design can save you time, money, and frustration. In this comprehensive guide, we’ll explore how to align enclosure dimensions with your PCB, tackle PCB mounting challenges, address PCB design constraints, and consider mechanical design factors for a seamless fit.

Let’s dive into the essentials of designing a PCB and enclosure that work together flawlessly, ensuring durability, functionality, and ease of assembly.

Why PCB Size and Enclosure Design Matter

The relationship between PCB size and enclosure design is foundational to the success of any electronic device. A poorly designed enclosure can lead to issues like improper fit, overheating, or mechanical stress on the board. On the other hand, a well-thought-out design ensures protection from environmental factors, simplifies assembly, and enhances the overall user experience.

Key considerations include matching the PCB dimensions to the enclosure, planning for mounting points, and accounting for components that protrude from the board, such as connectors or heat sinks. By addressing these early in the design process, you can avoid costly redesigns and delays.

Key Factors in PCB Size and Enclosure Design

Creating a perfect fit between your PCB and its enclosure requires attention to several critical factors. Let’s break them down step by step.

1. Determining the Right PCB Dimensions

The first step in PCB size and enclosure design is defining the dimensions of your PCB. This isn’t just about the length and width; it also involves considering the height of components and any cutouts or irregular shapes. For instance, if your PCB includes tall capacitors or heat sinks, the enclosure must provide enough clearance—typically at least 2-3 mm above the tallest component to prevent contact or stress during assembly.

Start by creating a detailed layout of your PCB, noting the placement of every component. Use design software to generate a 3D model if possible, as this helps visualize the spatial requirements. Standard PCB thicknesses range from 0.8 mm to 1.6 mm, but custom boards may vary. Ensure the enclosure accounts for this thickness when planning mounting points or slots.

2. Matching Enclosure Dimensions to PCB Size

Once you have your PCB dimensions, the next step is selecting or designing an enclosure with appropriate enclosure dimensions. A common mistake is choosing an enclosure that’s too tight, leaving no room for cables, connectors, or ventilation. As a rule of thumb, add at least 5-10 mm of extra space around the edges of the PCB to accommodate wiring and assembly tolerances.

For example, if your PCB measures 100 mm by 80 mm, consider an enclosure with internal dimensions of at least 110 mm by 90 mm. Additionally, account for the enclosure wall thickness—typically 1-3 mm for plastic enclosures and 2-5 mm for metal ones—when calculating the external size.

3. Planning for PCB Mounting

PCB mounting is a crucial aspect of enclosure design that ensures the board stays secure during operation. Common mounting methods include screws with standoffs, snap-in clips, and rail systems. Each method has its advantages depending on the application.

• Screws and Standoffs: This is the most common method, providing a secure hold. Use standoffs with a height of 3-6 mm to elevate the PCB from the enclosure base, preventing short circuits. Ensure mounting holes on the PCB (typically 3.2 mm in diameter for M3 screws) align with the enclosure’s mounting points.
• Snap-in Clips: Ideal for quick assembly, these are often used in plastic enclosures. However, they may not be suitable for high-vibration environments.
• Rail Systems: Often used in industrial settings, rail systems like DIN rails allow for easy installation and removal of the PCB.

When designing for mounting, avoid placing components too close to mounting holes, as this can cause mechanical stress. A clearance of 5 mm around each hole is a good practice.

4. Addressing PCB Design Constraints

Every project comes with PCB design constraints that influence both the board and enclosure design. These constraints can include electrical requirements, thermal management, and environmental factors.

• Electrical Constraints: High-speed circuits may require specific trace widths and spacing to maintain signal integrity. For instance, a 50-ohm impedance trace for RF applications might need a width of 0.5 mm on a 1.6 mm thick FR4 board. Ensure the enclosure doesn’t interfere with these traces by avoiding conductive materials too close to sensitive areas.
• Thermal Management: Heat dissipation is critical for high-power components. If your PCB includes a power regulator dissipating 5W of heat, the enclosure should include vents or be made of a heat-conductive material like aluminum. Leave at least 10 mm of space around heat-generating components for airflow.
• Environmental Factors: If the device will be used outdoors, the enclosure must protect against dust and water. Look for enclosures rated IP65 or higher for such applications, and ensure the PCB layout avoids exposed traces that could corrode.

Mechanical Design Considerations for PCB and Enclosure Fit

Beyond electrical and dimensional factors, mechanical design plays a significant role in ensuring a perfect fit. Mechanical design involves planning for physical stresses, assembly ease, and user interaction with the final product.

1. Material Selection for Enclosures

The choice of enclosure material impacts both functionality and cost. Common materials include:

• Plastic: Lightweight and cost-effective, plastic enclosures are ideal for consumer electronics. ABS plastic, for instance, offers good impact resistance and can be easily molded to custom shapes. However, it may not be suitable for high-temperature environments (above 80°C).
• Metal: Aluminum or steel enclosures provide excellent durability and EMI shielding, making them suitable for industrial applications. They are heavier and more expensive but can withstand temperatures up to 150°C or more.

Choose a material based on the mechanical and environmental demands of your project. For example, a handheld device might prioritize a lightweight plastic enclosure, while a factory control unit might need a robust metal one.

2. Designing for Assembly and Maintenance

A well-designed enclosure not only fits the PCB but also makes assembly and maintenance straightforward. Consider the following:

• Access Points: Ensure the enclosure allows easy access to connectors, buttons, or displays on the PCB. Cutouts should align precisely with PCB components—tolerances of ±0.2 mm are often necessary for a professional finish.
• Fastening Mechanisms: Use screws, clips, or hinges that allow the enclosure to be opened without damaging the PCB. Avoid designs that require excessive force to assemble, as this can stress the board.
• Cable Management: Plan for internal space to route cables neatly. A cluttered enclosure can lead to signal interference or mechanical damage over time.

3. Mitigating Mechanical Stress

Mechanical stress from vibration, impact, or improper mounting can damage a PCB. To minimize this, reinforce the enclosure with ribs or thicker walls in high-stress areas. Additionally, use shock-absorbing materials like rubber gaskets between the PCB and mounting points to dampen vibrations, especially in automotive or industrial applications where vibration frequencies can range from 10 Hz to 200 Hz.

Best Practices for Perfect PCB and Enclosure Integration

To wrap up, let’s summarize some best practices that can guide you through the process of aligning PCB size and enclosure design for a perfect fit.

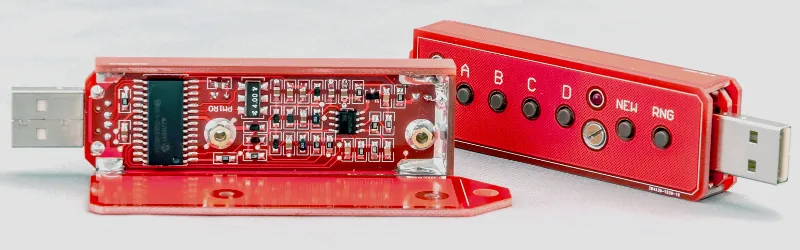

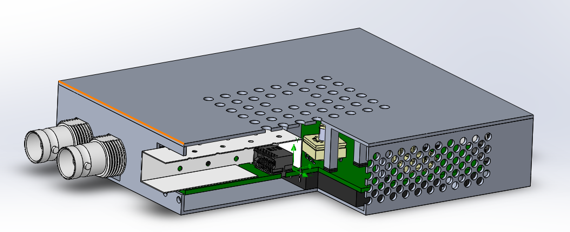

• Use 3D Modeling Tools: Software with integrated electrical and mechanical design capabilities can simulate how your PCB fits within the enclosure, helping you spot issues before manufacturing.
• Prototype and Test: Always create a prototype to test the fit and functionality. Even small misalignments, such as a 0.5 mm offset in mounting holes, can cause significant problems during assembly.
• Account for Tolerances: Manufacturing tolerances for PCBs and enclosures can vary by ±0.1 to ±0.3 mm. Design with these in mind to avoid tight fits that complicate assembly.
• Prioritize Ventilation: If your PCB generates heat, ensure the enclosure has vents or slots positioned to maximize airflow without compromising structural integrity.
• Document Everything: Keep detailed records of dimensions, material choices, and design decisions. This documentation is invaluable for future revisions or troubleshooting.

Conclusion

Designing a PCB and enclosure that fit together perfectly requires careful planning, precise measurements, and an understanding of both electrical and mechanical factors. By focusing on PCB size and enclosure design, optimizing enclosure dimensions, ensuring secure PCB mounting, addressing PCB design constraints, and incorporating solid mechanical design principles, you can create a product that is functional, durable, and professional.

Start with accurate dimensions, choose the right materials, and test your design thoroughly. With these steps, you’ll avoid common pitfalls and ensure your PCB and enclosure work in harmony, delivering a reliable solution for your project’s needs.
