Conformal coatings form a thin protective layer over printed circuit boards, shielding components from moisture, chemicals, dust, and temperature extremes. In demanding applications like aerospace, automotive, and industrial electronics, these coatings ensure long-term reliability and prevent failures such as corrosion or short circuits. Conformal coating certifications validate that materials meet rigorous performance standards, providing engineers with confidence in material selection. Key standards including UL 746E, MIL-I-46058C, and IPC-CC-830B define qualification criteria through environmental, electrical, and mechanical tests. Understanding conformal coating certifications helps electric engineers achieve compliance, reduce risks, and optimize PCB designs for harsh environments. This article explores what these certifications entail and their critical role in quality control.
What Are Conformal Coating Certifications?
Conformal coating certifications refer to formal qualifications that confirm a coating material's ability to protect electronic assemblies under specified conditions. These certifications arise from standardized testing protocols that evaluate insulation properties, adhesion, and resistance to environmental stresses. Electric engineers rely on certified conformal coatings to meet design specifications and avoid field failures in high-reliability applications. Unlike general material specs, certifications focus on end-use performance on printed wiring boards, ensuring the coating maintains dielectric integrity despite aging or contamination. Factory processes benefit from these benchmarks, as they guide procurement and streamline qualification during manufacturing. Overall, conformal coating compliance signals proven durability, essential for sectors demanding uninterrupted operation.
Key Conformal Coating Certifications Explained
IPC-CC-830B stands as the primary industry standard for qualifying electrical insulating compounds used as conformal coatings on printed wiring assemblies. It outlines tests for appearance, flexibility, fungus resistance, flammability, dielectric withstanding voltage, moisture resistance, thermal shock, and temperature-humidity aging. This standard enables self-certification by manufacturers, allowing them to document performance on standardized test vehicles like IPC-B-25A boards. Coatings passing these evaluations receive Type classifications such as AR for acrylics or SR for silicones, aiding selection based on chemistry. Electric engineers value IPC-CC-830B for its commercial focus and alignment with production realities. It serves as a direct successor to older military specs, promoting consistent global application.
MIL-I-46058C represents a military-derived specification for insulating compounds on printed circuit assemblies, emphasizing third-party verification through a Qualified Products List. Similar to IPC-CC-830B, it assesses environmental durability, electrical insulation, and mechanical properties via comparable test sequences. Although declared inactive for new designs, it remains relevant for legacy systems and high-stakes defense projects. Coatings approved under this standard automatically satisfy IPC-CC-830B Type M requirements, simplifying cross-compliance checks. In factory settings, MIL-I-46058C certification underscores rigorous oversight, appealing to engineers prioritizing independent validation. Its legacy influences current practices, ensuring robust protection in vibration-prone or chemically aggressive environments.
UL 746E targets polymeric materials applied to printed wiring boards, with emphasis on electrical safety and flammability after environmental exposure. It includes dielectric tests post-stress, ignition resistance, and surface tracking evaluations to mitigate fire risks in consumer and industrial electronics. This certification harmonizes with standards like UL 94 for flame behavior, providing a safety-focused layer atop performance quals. Engineers specify UL 746E certified conformal coatings to meet regulatory demands and enhance product safety profiles. From a manufacturing viewpoint, it facilitates smoother approvals in end markets sensitive to electrical hazards. Together with IPC and MIL standards, UL 746E completes a triad of conformal coating compliance essential for comprehensive PCB protection.
The Engineering Principles Behind Certification Tests

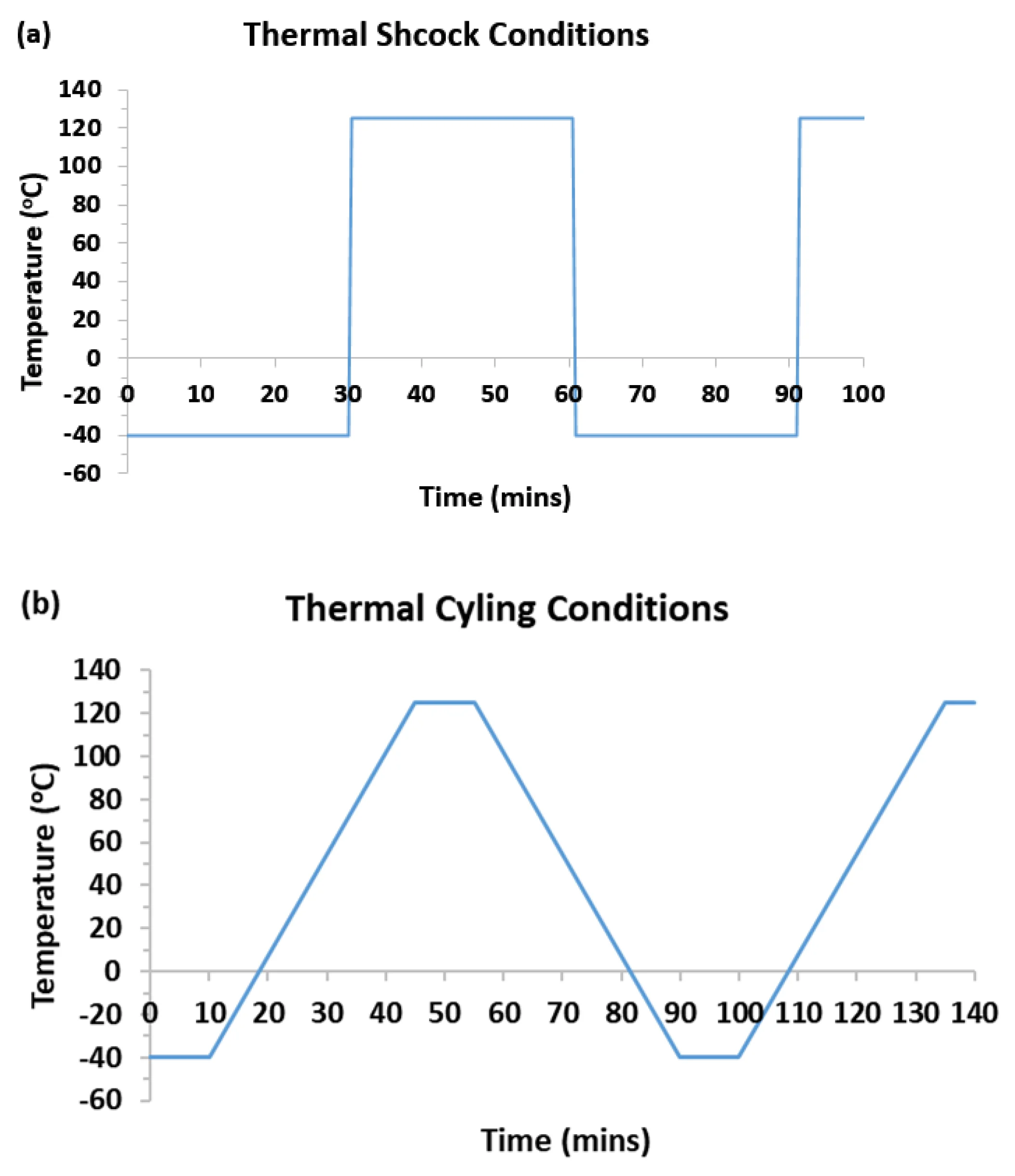

Conformal coating certifications rely on multifaceted testing to simulate real-world stresses, verifying the material's protective envelope remains intact. Electrical tests measure dielectric strength and insulation resistance under biased humidity, ensuring no leakage paths form between traces despite condensation. Mechanical evaluations like flexibility assess cracking resistance during board flexure, critical for vibration-heavy applications. Environmental challenges include thermal shock cycles and prolonged humidity aging, probing adhesion and degradation over time. Fungus resistance confirms suitability in tropical or storage conditions, while flammability checks prevent propagation in fault scenarios. These principles align factory processes with design intent, allowing engineers to predict long-term behavior without empirical failures.
Qualification uses standardized substrates such as glass plates, tin panels, and comb-pattern boards to isolate material performance from application variables. Pass criteria demand no visible defects, sustained electrical metrics, and preserved physical integrity post-stress. Self-certification under IPC-CC-830B contrasts with MIL-I-46058C's external auditing, influencing documentation needs in procurement. Electric engineers interpret these results to match coating types to exposure profiles, like silicones for wide thermal ranges or urethanes for abrasion. Retention and conformance testing maintain batch consistency, vital for scalable manufacturing. Ultimately, these mechanisms translate lab quals into field reliability, minimizing downtime in critical systems.
Practical Best Practices for Conformal Coating Compliance
Electric engineers should begin by mapping environmental threats to coating chemistry, cross-referencing certifications like IPC-CC-830B for baseline quals. Request full test reports from suppliers, verifying recent retention data and FTIR consistency for production lots. In design phases, incorporate IPC-A-610 guidelines for coverage and thickness, avoiding keep-out zones on connectors or heat sinks. Factory application demands controlled viscosity and cure methods, with post-process inspections for voids or dewetting. For compliance audits, prioritize MIL-I-46058C QPL listings in defense bids, while UL 746E suits safety-certified products. Integrating these practices reduces rework and elevates PCB yield.
Troubleshooting non-compliance often traces to application flaws, so validate process controls like spray uniformity or dip withdrawal rates. Collaborate with suppliers on formula stability declarations to preempt aging issues. Engineers can layer certifications, using IPC-CC-830B for performance and UL 746E for safety, ensuring holistic protection. Document chain-of-custody for certs during procurement reviews, facilitating customer approvals. These steps embed conformal coating compliance into workflows, fostering trust in high-volume production. Proactive adherence translates to fewer warranty claims and extended service life.
Why Certifications Drive PCB Reliability in Engineering Applications
Certified conformal coatings mitigate risks in moisture-laden or chemically harsh settings, preserving solder joint integrity and trace isolation. Electric engineers leverage these quals to justify material choices in design reviews, aligning with reliability predictions. Manufacturing insights reveal that compliant materials yield higher first-pass tests, cutting scrap from delamination or arcing. In automotive or medical devices, standards like UL 746E ensure fault tolerance, meeting end-user safety mandates. Compliance also streamlines supply chains, as certified suppliers offer traceable lots. Ultimately, these certifications bridge lab validation to operational excellence, empowering engineers to deliver robust electronics.
Conclusion
Conformal coating certifications such as UL 746E, MIL-I-46058C, and IPC-CC-830B provide essential benchmarks for PCB protection and performance. They encompass rigorous electrical, mechanical, and environmental tests that guarantee reliability under stress. Electric engineers benefit from standardized qualification, enabling informed selections and compliant manufacturing. Prioritizing certified conformal coatings minimizes failures, enhances safety, and supports demanding applications. By understanding these standards, professionals can optimize designs and processes for superior outcomes. Investing in conformal coating compliance proves indispensable for enduring PCB success.
FAQs
Q1: What does IPC-CC-830B mean for conformal coating certifications?
A1: IPC-CC-830B qualifies liquid conformal coatings through tests on appearance, dielectric properties, flexibility, and environmental resistance like moisture and thermal shock. It enables self-certification for printed wiring assemblies, helping electric engineers select reliable materials for harsh conditions. Factory use ensures batch consistency via conformance checks, reducing production risks. This standard replaces older military specs, offering a commercial path to conformal coating compliance.
Q2: Why is MIL-I-46058C still relevant despite being inactive?
A2: MIL-I-46058C provides third-party qualified listings for conformal coatings, verifying insulation and durability akin to IPC-CC-830B tests. Though inactive for new designs, it suits legacy defense systems requiring proven performance. Electric engineers reference it for cross-compatibility, as approved coatings meet modern standards automatically. Manufacturing benefits from its rigorous oversight in high-stakes procurement.
Q3: How does UL 746E contribute to certified conformal coating safety?
A3: UL 746E evaluates polymeric coatings for electrical insulation and flammability post-environmental stress, preventing ignition or tracking on PCBs. It complements performance standards, focusing on safety for consumer electronics. Engineers specify it for regulatory compliance, ensuring fire-resistant protection. Factories integrate it with application controls for verified conformal coating compliance.
Q4: What role do conformal coating certifications play in PCB manufacturing?
A4: Conformal coating certifications like IPC-CC-830B validate material performance, guiding selection and process controls in factories. They minimize defects from environmental exposure, boosting yield and reliability. Electric engineers use them to meet specs, with documentation aiding audits. Compliance reduces field failures, supporting scalable production of durable assemblies.
