If you're looking to achieve flawless Surface Mount Technology (SMT) assembly, understanding the right fiducial mark size and shape is critical. Fiducial marks are small reference points on a printed circuit board (PCB) that help automated machines align components with precision during manufacturing. In this guide, we’ll dive deep into the optimal fiducial mark size, shape, SMT guidelines, component alignment techniques, and PCB manufacturing standards to ensure your production process is seamless and error-free.
Whether you're a seasoned engineer or new to PCB design, this comprehensive resource will provide actionable insights to enhance your SMT process. Let’s explore everything you need to know about panel fiducial marks and how to apply them effectively for perfect results.
What Are Fiducial Marks and Why Are They Essential for SMT?
Fiducial marks are small, often circular, copper features on a PCB that serve as reference points for automated assembly equipment, such as pick-and-place machines. These marks allow machines to determine the exact position and orientation of the board, ensuring that components are placed accurately during SMT assembly. Without properly designed fiducial marks, misalignment can occur, leading to defective products and costly rework.
In SMT, where components are tiny and placement precision is measured in microns, fiducial marks act as the “eyes” for machines. They help correct for any slight deviations in board positioning during production, making them indispensable for high-speed, high-accuracy manufacturing. By adhering to proper fiducial mark size and shape guidelines, you can minimize errors and improve overall production quality.
Understanding Fiducial Mark Size: What’s the Ideal Dimension?
The size of a fiducial mark is one of the most important factors for ensuring accurate component alignment in SMT. If a fiducial mark is too small, machines may struggle to detect it. If it’s too large, it can take up valuable board space or cause confusion during detection.
According to widely accepted PCB manufacturing standards, the ideal diameter for a fiducial mark is typically between 1.0 mm and 3.0 mm. A 1.5 mm diameter is often recommended as a standard size for most SMT applications, as it strikes a balance between visibility and space efficiency. The surrounding clearance area—free of solder mask or other markings—should be at least 1.5 times the diameter of the fiducial mark to ensure clear detection. For a 1.5 mm fiducial, this means a clearance area of at least 2.25 mm in diameter.
These dimensions are not arbitrary; they are based on the capabilities of modern vision systems used in pick-and-place machines, which require a clear, distinct feature to lock onto. Using fiducial marks outside this size range can lead to detection errors, especially in high-density boards where precision is paramount.
Key Tip: Always check with your assembly house for specific requirements, as some machines may have unique constraints or preferences for fiducial mark size based on their vision system capabilities.
Fiducial Mark Shape: Does It Matter?
While size is critical, the shape of a fiducial mark also plays a significant role in ensuring accurate detection during SMT assembly. The most common and recommended shape for fiducial marks is a solid circle. Circular shapes are preferred because they are symmetrical and can be detected from any angle, reducing the risk of misalignment due to board rotation.
Other shapes, such as squares or crosses, are sometimes used, but they are less common and may not be as reliable for automated systems. Non-circular shapes can introduce ambiguity in detection, as edges or corners might be misread by the vision system, especially under varying lighting conditions or if the board surface has imperfections.
For best results, stick to a solid circular fiducial mark with a smooth, exposed copper surface. Avoid adding text, logos, or other markings near the fiducial, as these can interfere with the machine’s ability to recognize the reference point.

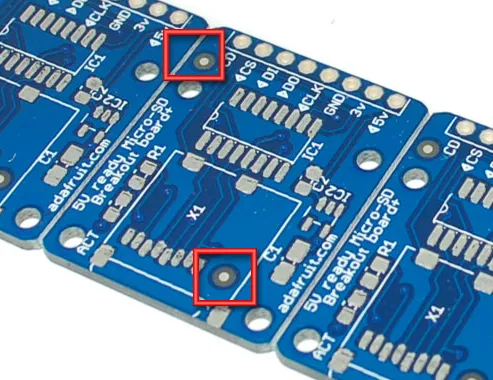

Placement Guidelines for Fiducial Marks in SMT
Even with the correct fiducial mark size and shape, improper placement can lead to alignment issues. SMT guidelines recommend strategic positioning of fiducial marks to maximize their effectiveness during component alignment.
1. Place Fiducials on Opposite Corners: For single PCBs or panels, place at least two fiducial marks on diagonally opposite corners of the board. This allows the machine to calculate the board’s orientation and correct for any rotational errors. For larger panels, three fiducial marks forming a triangle (with one near the center) can provide even greater accuracy.
2. Keep Away from Edges: Position fiducial marks at least 5 mm away from the board edges to avoid interference during handling or fixturing. This also prevents potential damage to the marks during board separation in panelized designs.
3. Avoid High-Density Areas: Don’t place fiducial marks near densely populated component areas or under components. They should be in clear, unobstructed spaces for easy detection.
4. Panel-Level Fiducials: For panelized designs, include global fiducial marks on the panel frame in addition to local fiducials on individual boards. This dual approach ensures alignment at both the panel and individual board levels during SMT assembly.
By following these placement rules, you can ensure that fiducial marks serve their purpose without causing delays or errors in the manufacturing process.
SMT Guidelines for Fiducial Marks: Best Practices
To achieve flawless SMT assembly, it’s essential to follow industry-standard SMT guidelines for fiducial marks. These best practices are designed to optimize machine performance and ensure consistent component alignment across production runs.
1. Use Exposed Copper: Fiducial marks should be made of bare copper without solder mask or silkscreen covering. This ensures maximum contrast for optical detection systems. A polished or plated copper surface can further enhance visibility.
2. Maintain Consistency: Use the same fiducial mark size and shape across all boards in a production run. Inconsistent fiducials can confuse machines and lead to alignment errors.
3. Test with Your Equipment: Before finalizing your design, verify that your chosen fiducial mark size and shape are compatible with the specific SMT equipment used in your assembly process. Different machines may have varying requirements for detection.
4. Document Specifications: Include clear notes about fiducial mark specifications in your PCB design files and assembly instructions. This helps avoid miscommunication with your manufacturing team.
Adhering to these guidelines will streamline your SMT process, reduce errors, and ensure that your boards meet the highest quality standards.
Component Alignment: How Fiducial Marks Impact Precision
Component alignment is the heart of SMT assembly, and fiducial marks are the key to achieving micron-level precision. Modern pick-and-place machines rely on fiducial marks to map the exact coordinates of a PCB before placing components. Here’s how fiducial marks directly impact alignment accuracy:
1. Correcting Board Orientation: Fiducial marks help machines detect if a board is slightly rotated or shifted during loading. The machine uses the marks to adjust its placement algorithm, ensuring components are placed correctly relative to the board’s actual position.
2. Enabling High-Speed Assembly: With accurate fiducial detection, machines can operate at full speed without sacrificing precision. This is especially critical for high-volume production where time efficiency is a priority.
3. Supporting Fine-Pitch Components: For components with fine pitch (e.g., 0.4 mm or smaller), even a slight misalignment can cause shorts or open circuits. Fiducial marks ensure the machine places these components with exact precision, reducing defect rates.
Without well-designed fiducial marks, achieving consistent component alignment becomes a gamble, leading to increased scrap rates and production costs.
PCB Manufacturing Standards for Fiducial Marks
PCB manufacturing standards provide a framework for designing fiducial marks that meet the needs of automated assembly. While there is no single universal standard, several widely recognized guidelines exist to ensure compatibility with most SMT equipment.
1. IPC Standards: The Institute of Printed Circuits (IPC) provides recommendations for fiducial mark design in documents like IPC-7351 (Generic Requirements for Surface Mount Design and Land Pattern Standard). These standards suggest a fiducial mark diameter of 1.0 to 3.0 mm with a clearance area of at least 1.5 times the mark’s diameter.
2. SMEMA Standards: The Surface Mount Equipment Manufacturers Association (SMEMA) also offers guidelines for fiducial mark placement and design to ensure interoperability between different SMT machines. SMEMA recommends placing fiducial marks on opposite corners for optimal alignment.
3. Manufacturer Recommendations: Many SMT equipment manufacturers provide specific fiducial mark requirements based on their machine’s vision system. Always consult these specifications during the design phase to avoid compatibility issues.
By aligning your fiducial mark design with these PCB manufacturing standards, you can ensure a smoother production process and higher-quality end products.
Common Mistakes to Avoid with Fiducial Marks
Even with the best intentions, small oversights in fiducial mark design or placement can lead to big problems in SMT assembly. Here are some common mistakes to watch out for:
1. Incorrect Size: Using fiducial marks that are too small or too large can cause detection failures. Stick to the recommended range of 1.0 to 3.0 mm in diameter.
2. Poor Placement: Placing fiducial marks too close to board edges or in crowded areas can interfere with detection or cause damage during handling.
3. Covered Marks: Applying solder mask or silkscreen over fiducial marks reduces their visibility. Always keep them as bare, exposed copper.
4. Ignoring Equipment Specs: Failing to tailor fiducial mark design to the specific SMT equipment used can result in alignment issues. Always confirm requirements with your assembly partner.
Avoiding these pitfalls will save you time, reduce production errors, and ensure your SMT process runs smoothly.
Conclusion: Mastering Fiducial Marks for SMT Success
Fiducial marks may be small, but their impact on SMT assembly is immense. By optimizing fiducial mark size, shape, and placement, and by adhering to SMT guidelines and PCB manufacturing standards, you can achieve flawless component alignment and high-quality production outcomes. Remember to use a fiducial mark diameter of 1.0 to 3.0 mm, opt for a circular shape, and place marks strategically on your board for the best results.
With the insights and best practices shared in this guide, you’re well-equipped to design PCBs that support efficient, error-free SMT assembly. Apply these principles to your next project, and watch your production process become more reliable and precise.
