In the fast-growing world of fitness trackers and medical wearables, designing a printed circuit board (PCB) for skin contact is a unique challenge. A skin contact PCB must be safe, comfortable, and reliable while ensuring accurate data collection for health monitoring. But how do engineers create biocompatible PCBs that avoid skin irritation and perform well under constant wear? This blog dives deep into the essentials of designing PCBs for skin contact, focusing on biocompatible materials, surface finishes, and best practices to minimize skin irritation in fitness trackers.
At ALLPCB, we understand the importance of precision and safety in wearable technology. Whether you're an engineer or a product designer, this guide will walk you through the critical aspects of skin contact PCB design, helping you create devices that users can trust and wear comfortably. Let’s explore the key considerations for biocompatible PCB design, from material selection to surface finish techniques, tailored for fitness trackers and medical wearables.

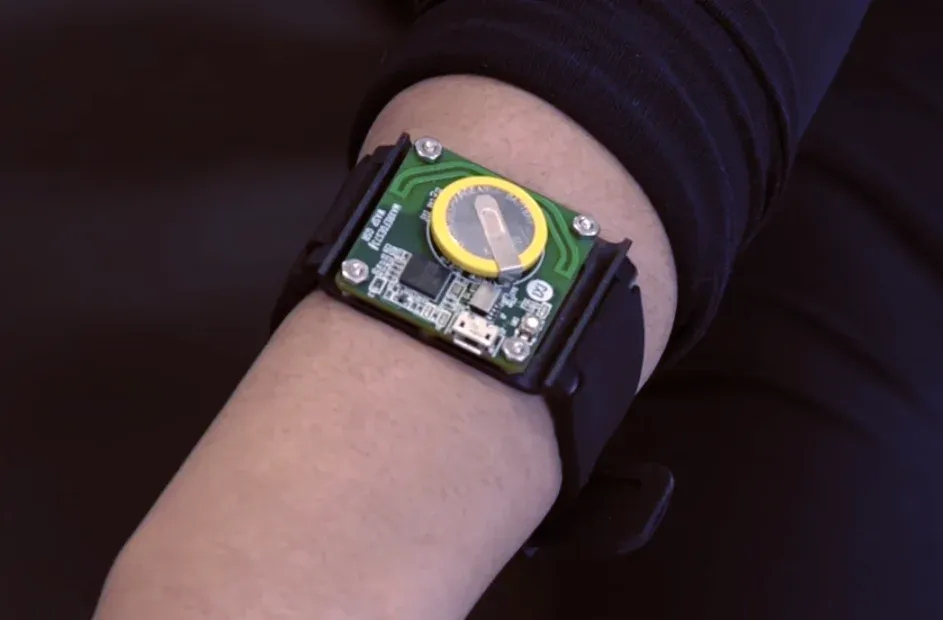

Why Skin Contact PCB Design Matters in Fitness Trackers
Fitness trackers have become an essential part of daily life for millions of people worldwide. These devices monitor heart rate, steps, sleep patterns, and more, often requiring direct skin contact to function effectively. A poorly designed PCB in these wearables can lead to skin irritation, inaccurate readings, or even device failure. That’s why skin contact PCB design is critical—it ensures user safety and device performance.
A biocompatible PCB is engineered to interact safely with the human body. For fitness trackers, this means the PCB must resist corrosion from sweat, avoid triggering allergic reactions, and maintain signal integrity for sensors. With the wearable market expected to grow to over $70 billion by 2025, according to industry reports, the demand for reliable and safe skin contact PCBs is higher than ever. Let’s break down the core elements that make a PCB suitable for skin contact in fitness trackers.
Key Challenges in Designing Skin Contact PCBs
Designing a PCB for skin contact comes with unique hurdles. The device must balance functionality with safety and comfort. Here are the primary challenges engineers face:
- Skin Irritation: Materials or finishes that aren’t biocompatible can cause redness, itching, or allergic reactions, especially during prolonged wear.
- Moisture and Sweat: Fitness trackers are exposed to sweat and humidity, which can corrode PCB components or degrade performance.
- Signal Accuracy: Sensors on the PCB must maintain consistent contact with the skin to deliver accurate data, such as heart rate readings with impedance values typically ranging from 10 kΩ to 100 kΩ depending on skin conditions.
- Durability: The PCB must withstand mechanical stress from daily wear without cracking or losing functionality.
Addressing these challenges starts with understanding the materials and design techniques that ensure a PCB is safe for skin contact. Let’s dive into the solutions for creating biocompatible PCBs for medical wearables and fitness trackers.

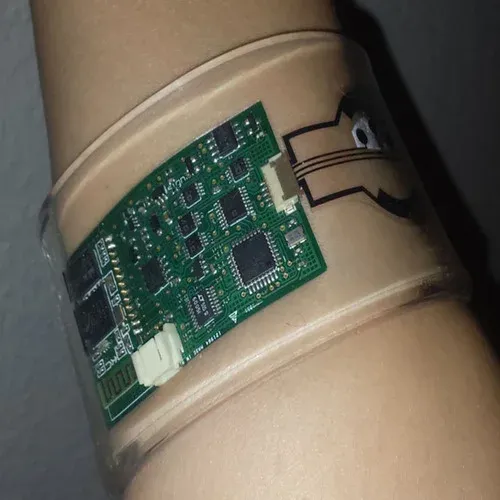

Choosing Biocompatible Materials for Skin Contact PCBs
The foundation of a safe skin contact PCB lies in the materials used. Biocompatible materials are those that don’t cause adverse reactions when in contact with the human body. For fitness trackers, the choice of substrate, conductive materials, and coatings is crucial.
Substrate Materials
Traditional PCB substrates like FR-4 are often unsuitable for skin contact due to their rigidity and potential for chemical leaching. Instead, flexible and biocompatible substrates are preferred:
- Polyimide (PI): This flexible material is widely used in wearables due to its durability and resistance to heat and moisture. It can conform to the body’s shape, reducing discomfort.
- Polyethylene Terephthalate (PET): Lightweight and flexible, PET is another common choice for skin contact PCBs, offering good chemical stability.
- Silicone-Based Substrates: These provide excellent flexibility and biocompatibility, often used in medical wearables for their soft, skin-friendly texture.
Conductive Materials
The conductive traces and electrodes on a skin contact PCB must also be safe. Common choices include:
- Gold: Often used for electrode surfaces due to its excellent conductivity and resistance to corrosion. Gold is hypoallergenic, making it ideal for preventing skin irritation.
- Silver/Silver Chloride (Ag/AgCl): Frequently used in biosensors for heart rate monitoring due to its low noise and stable electrical properties, with typical signal speeds supporting data rates up to 1 MHz for accurate readings.
- Carbon-Based Inks: These are emerging as a cost-effective, biocompatible option for printed electronics in wearables, especially for flexible designs.
Selecting the right materials ensures the PCB remains safe and functional even after hours of wear. However, materials alone aren’t enough—surface finishes play a vital role in protecting the PCB and the user.
PCB Surface Finish Techniques for Skin Safety
The surface finish of a PCB not only protects the board from environmental factors but also determines its interaction with the skin. For fitness trackers, the right PCB surface finish can prevent skin irritation and ensure long-term reliability. Here are the most effective surface finish techniques for skin contact PCBs:
Electroless Nickel Immersion Gold (ENIG)
ENIG is a popular choice for skin contact PCBs due to its smooth, corrosion-resistant surface. The gold layer prevents oxidation and is hypoallergenic, reducing the risk of skin irritation. It’s particularly effective for fitness trackers exposed to sweat, with studies showing ENIG finishes maintaining integrity after over 1,000 hours of salt spray testing.
Immersion Silver
Immersion silver offers good conductivity and is often used in biosensors for its compatibility with skin contact. However, it can tarnish over time if exposed to moisture, so it’s typically paired with protective coatings for fitness trackers.
Organic Solderability Preservative (OSP)
OSP is a thin, organic coating that protects copper traces from oxidation. While not as durable as ENIG, it’s a cost-effective option for low-cost wearables. However, it may not be ideal for direct skin contact unless combined with additional biocompatible layers.
Biocompatible Coatings
For added safety, many skin contact PCBs are coated with medical-grade polymers or silicone layers. These coatings act as a barrier between the PCB and the skin, preventing direct contact with potentially irritating materials. They also enhance flexibility, with some coatings allowing bending radii as low as 1 mm without cracking.
Choosing the right surface finish depends on the specific requirements of the fitness tracker, including cost, durability, and sensor type. At ALLPCB, we prioritize finishes that balance performance with user safety, ensuring your wearable devices meet industry standards.
Design Best Practices for Skin Contact PCBs in Fitness Trackers
Beyond materials and finishes, the overall design of the PCB plays a significant role in its suitability for skin contact. Here are some best practices to follow:
Minimize Sharp Edges and Rough Surfaces
Sharp edges or rough surfaces on a PCB can cause physical irritation or micro-abrasions on the skin. Ensure all components are smoothed out, and consider using conformal coatings to cover any exposed edges. This is especially important for fitness trackers worn during high-movement activities.
Optimize Sensor Placement
For accurate readings, sensors on the PCB must maintain consistent skin contact. Design the PCB layout to position sensors in areas with minimal motion, such as the underside of the wrist. Additionally, ensure the PCB’s flexibility matches the device’s form factor to avoid gaps between the sensor and skin, which can reduce signal accuracy by up to 20% in some cases.
Incorporate Moisture Resistance
Sweat and humidity are unavoidable in fitness trackers. Use moisture-resistant materials and sealants to protect the PCB from corrosion. For example, IP67-rated designs can withstand water immersion up to 1 meter for 30 minutes, ensuring reliability during intense workouts.
Test for Biocompatibility
Before mass production, test the PCB design for biocompatibility using standards like ISO 10993, which evaluates materials for skin irritation and cytotoxicity. This step is critical for medical wearables, where regulatory compliance with bodies like the FDA is mandatory.
Image Placement Suggestion: Add an image here of a PCB design schematic highlighting sensor placement on a fitness tracker. ALT Text: "
"
Preventing Skin Irritation in Fitness Tracker PCBs
Skin irritation is a common concern for users of fitness trackers, especially those with sensitive skin or allergies. Here’s how to minimize the risk through PCB design:
- Avoid Nickel and Other Allergens: Nickel, often used in cheaper finishes, is a known allergen for up to 15% of the population. Opt for gold or silver-based finishes to eliminate this risk.
- Use Hypoallergenic Adhesives: If the PCB is attached to the device with adhesives, ensure they are medical-grade and hypoallergenic to prevent reactions.
- Ensure Proper Ventilation: Design the wearable to allow air circulation around the skin contact area. Trapped moisture can lead to irritation or bacterial growth.
- Limit Chemical Exposure: Avoid using materials that can leach harmful chemicals over time. Rigorous testing for chemical stability under sweat exposure (pH levels of 4.5 to 7.5) is essential.
By prioritizing user comfort in the design phase, manufacturers can build trust and loyalty among customers, ensuring their fitness trackers are both effective and safe for all-day wear.
The Future of Skin Contact PCBs in Medical Wearables
The field of medical wearables is evolving rapidly, with skin contact PCBs at the forefront of innovation. Advances in materials science are leading to even more biocompatible and flexible options, such as stretchable electronics that can mimic the properties of human skin. These new technologies can achieve strain tolerances of up to 30%, allowing for seamless integration into wearables.
Additionally, the integration of smart sensors and artificial intelligence is transforming fitness trackers into comprehensive health monitoring systems. Future skin contact PCBs may include embedded microfluidic channels for sweat analysis, providing real-time data on hydration levels or electrolyte balance with detection sensitivities as low as 0.1 microliters.
As these technologies develop, the role of PCB design in ensuring safety and performance will only grow. Staying ahead of the curve means adopting biocompatible materials, advanced surface finishes, and rigorous testing protocols today.
Conclusion: Crafting Safe and Effective Skin Contact PCBs
Designing PCBs for skin contact in fitness trackers is a delicate balance of safety, comfort, and performance. By choosing biocompatible materials, applying the right PCB surface finish, and following best design practices, engineers can create devices that users can wear confidently for hours on end. Preventing skin irritation and ensuring accurate data collection are not just technical challenges—they’re essential to building trust with consumers in the growing market of medical wearables.
At ALLPCB, we’re committed to supporting innovators in wearable technology with high-quality PCB manufacturing solutions. Whether you’re developing the next big fitness tracker or a cutting-edge medical device, our expertise in biocompatible PCB design can help bring your vision to life. Let’s work together to create wearables that truly connect with the human touch.
