In the fast-evolving world of electronics, reducing power consumption is a top priority for designers, especially in applications like vending machines that often run 24/7. If you're searching for ways to create a low power vending machine PCB design or implement energy efficient vending machine PCB solutions, you're in the right place. This blog will guide you through practical strategies and design techniques to lower energy use while maintaining performance. From component selection to smart power management, we’ve got you covered with actionable tips to help you achieve significant power savings.
Whether you're an engineer working on vending machine electronics or a business owner looking to cut operational costs, optimizing power consumption can lead to longer equipment life, reduced energy bills, and a smaller environmental footprint. Let’s dive into the details of power saving techniques for vending machine PCBs and explore how to reduce power consumption in vending machine electronics.
Why Power Optimization Matters in Vending Machine PCBs
Vending machines are often deployed in remote or off-grid locations, making energy efficiency a critical factor in their design. High power consumption not only increases operational costs but also strains power supplies, shortens component lifespan, and can lead to frequent maintenance. By focusing on reducing power consumption in vending machine electronics, designers can create systems that are cost-effective and sustainable.
Energy-efficient designs are also becoming a requirement due to stricter regulations and consumer demand for greener technologies. A well-optimized PCB can reduce power usage by up to 30-50% in some cases, depending on the techniques applied. This blog will walk you through the best practices to achieve such savings.
Key Factors Affecting Power Consumption in Vending Machine Electronics
Before diving into design techniques, it’s important to understand what drives power consumption in vending machine PCBs. Here are the main contributors:
- Display and Lighting: LED screens and internal lighting for product visibility can consume significant power if not optimized.
- Motors and Actuators: Mechanisms for dispensing products often draw high current during operation.
- Refrigeration Systems: Cooling units in vending machines for perishable goods are major power hogs, sometimes accounting for over 60% of total energy use.
- Always-On Components: Microcontrollers, sensors, and communication modules that remain active even in standby mode can lead to unnecessary power drain.
By targeting these areas with smart design choices, you can create a low power vending machine PCB design that slashes energy use without compromising functionality.
Design Techniques for Energy Efficient Vending Machine PCBs
1. Choose Low-Power Components
The foundation of an energy efficient vending machine PCB lies in selecting components that inherently consume less power. For instance, opt for microcontrollers with low-power modes that can drop current draw to microampere levels during idle states. Look for models with sleep or deep-sleep modes that consume as little as 1-5 μA compared to 1-2 mA in active standby.
Similarly, use low-power voltage regulators with high efficiency ratings (above 90%) to minimize energy loss during power conversion. Switching regulators often outperform linear regulators in this regard, especially for loads above 100 mA.
2. Implement Power Management Circuits

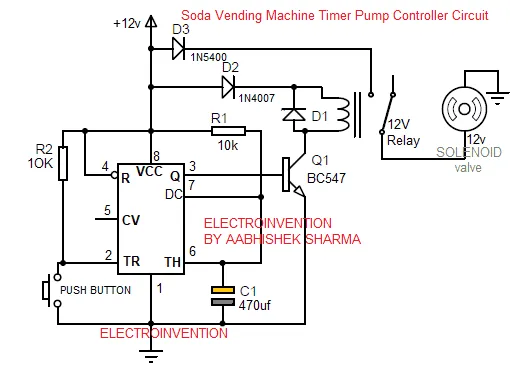

Power management is key to reducing power consumption in vending machine electronics. Integrate circuits that dynamically adjust power delivery based on demand. For example, use a power gating technique to completely shut off power to non-essential components like displays or motors when the machine is idle.
Another effective method is to employ a buck-boost converter to maintain stable voltage output while minimizing energy waste. These converters can achieve efficiencies of 85-95%, compared to traditional regulators that may drop to 60-70% under varying loads.
3. Optimize PCB Layout for Efficiency
A well-thought-out PCB layout can contribute to power savings by reducing parasitic losses. Keep power traces short and wide to minimize resistance, which can otherwise lead to voltage drops and wasted energy. For high-current paths, such as those powering motors, aim for trace widths that support at least 1-2 A per millimeter of width to avoid overheating.
Place decoupling capacitors close to power pins of ICs to stabilize voltage and reduce noise, which can otherwise cause components to draw more current than necessary. A typical value for these capacitors is 0.1 μF for high-frequency noise suppression.
4. Leverage Sleep Modes and Duty Cycling
Modern microcontrollers and sensors often come with sleep or low-power modes that drastically cut energy use when full operation isn’t required. For instance, program the main controller to enter sleep mode after 30 seconds of inactivity, waking up only when a user interacts with the machine. This can reduce power draw from 50 mA in active mode to under 10 μA in sleep mode.
Duty cycling is another powerful strategy. For components like communication modules (e.g., Wi-Fi or Bluetooth for remote monitoring), activate them only periodically—say, every 5 minutes—to check for updates rather than keeping them on continuously.
Power Saving Techniques for Vending Machine PCBs
1. Use Energy-Efficient Displays and Lighting
Displays and lighting are often overlooked in power optimization, but they can make a big difference. Replace traditional LCDs with low-power OLED displays, which can consume up to 40% less power while providing better visibility. For lighting, switch to high-efficiency LEDs with a luminous efficacy of 100-150 lumens per watt, compared to older bulbs that offer only 10-20 lumens per watt.
Additionally, implement ambient light sensors to adjust brightness based on surrounding conditions. Dimming lights by 50% in low-traffic areas or during nighttime can save significant energy without affecting user experience.

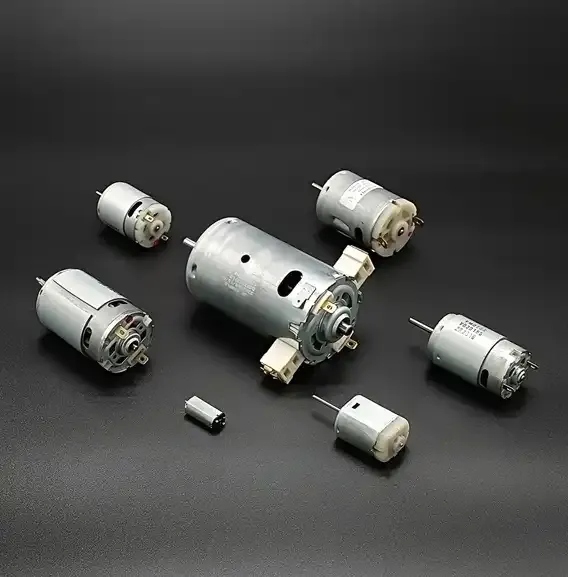

2. Optimize Motor and Actuator Control
Motors used for dispensing products are power-intensive, often drawing 1-3 A during operation. Use pulse-width modulation (PWM) to control motor speed and torque, ensuring they operate at the minimum power needed for the task. For example, reduce PWM duty cycle to 50% for lighter loads, cutting current draw proportionally.
Also, consider using stepper motors over DC motors for precise control, as they can be powered down completely between actions, unlike DC motors that may require continuous current to hold position.
3. Minimize Power in Standby Mode
Standby power, often called "vampire power," can account for 10-20% of a vending machine’s total energy use. Design your PCB to minimize this by disabling unused peripherals and reducing clock speeds of microcontrollers during idle periods. For instance, lowering the clock frequency from 16 MHz to 1 MHz in standby can cut power consumption by a factor of 10 or more.
4. Integrate Renewable Energy Sources
For off-grid vending machines, integrating solar power can drastically reduce reliance on traditional energy sources. Pair a small solar panel (rated at 50-100 W) with a battery backup and a charge controller on your PCB to manage energy storage and distribution. Studies have shown that solar-powered vending machines can cut energy costs by up to 80% in sunny regions.
Software Strategies to Enhance Energy Efficiency
Hardware design is only half the battle; software plays a crucial role in power saving techniques for vending machine PCBs. Write firmware that prioritizes energy efficiency by scheduling tasks to minimize active time. For example, batch sensor readings and data transmissions into short bursts rather than continuous operation.
Use interrupts instead of polling for user inputs or sensor triggers. Polling keeps the processor active, consuming 10-20 mA, while interrupts allow it to remain in sleep mode (under 1 μA) until an event occurs.
Testing and Validation for Power Efficiency
After implementing these techniques, test your PCB under real-world conditions to validate power savings. Use a digital multimeter to measure current draw in different modes—active, standby, and sleep. Aim for a standby current below 100 μA and ensure peak loads (e.g., during motor operation) don’t exceed the rated capacity of your power supply.
Also, simulate long-term operation to identify any thermal issues caused by inefficient power delivery. Excessive heat can indicate energy loss, often due to high resistance in traces or poor component selection.
Challenges in Designing Low Power Vending Machine PCBs
While the benefits of energy efficiency are clear, designers often face challenges like balancing cost with performance. Low-power components can be more expensive, and complex power management circuits may increase design time. However, the long-term savings in energy costs often outweigh the initial investment.
Another challenge is ensuring reliability. Over-optimizing for power can lead to underpowered components, causing system failures. Always prioritize stability by leaving a 20-30% margin in power delivery capacity.
Future Trends in Energy Efficient Vending Machine Electronics
As technology advances, new opportunities for power optimization are emerging. For instance, energy harvesting techniques, such as using piezoelectric materials to convert mechanical vibrations into electricity, could power small sensors on vending machine PCBs. Additionally, advancements in ultra-low-power microcontrollers (with active currents below 100 μA/MHz) are making it easier to design systems with minimal energy footprints.
IoT integration is also shaping the future, allowing vending machines to communicate usage data and adjust power settings remotely based on demand patterns. This can lead to smarter, more adaptive energy management.
Conclusion: Building a Sustainable Future with Low Power Designs
Optimizing power consumption in vending machine PCBs is not just about cutting costs—it’s about creating sustainable, reliable, and user-friendly systems. By adopting low power vending machine PCB design practices and energy efficient vending machine PCB strategies, you can significantly reduce energy use while maintaining top performance. From selecting the right components to fine-tuning software, every step counts in achieving power saving techniques for vending machine PCBs.
Start small by implementing one or two of these tips, such as switching to low-power displays or integrating sleep modes, and scale up as you gain confidence. With the right approach, you can build vending machine electronics that stand out for their efficiency and durability, benefiting both your bottom line and the environment.
