Introduction
Polyimide printed circuit boards stand out in demanding applications due to their exceptional thermal stability, flexibility, and reliability under extreme conditions. These boards, often used in aerospace, medical devices, and high-performance electronics, leverage polyimide's low dielectric constant and minimal signal loss for high-frequency operations. However, as data rates climb into gigabits per second, signal integrity PCB design becomes a make-or-break factor. Poor signal integrity leads to bit errors, system failures, and reduced performance in high speed PCB environments. Engineers must prioritize impedance control and material properties to harness polyimide's advantages fully. This article explores why signal integrity is essential in polyimide PCB design and offers practical strategies for success.
What Is Signal Integrity and Why It Matters in Polyimide PCBs
Signal integrity refers to the preservation of electrical signal quality from transmitter to receiver, free from distortion, noise, or timing errors. In polyimide PCBs, this involves managing reflections, crosstalk, attenuation, and electromagnetic interference across flexible substrates. High speed PCB designs amplify these challenges because signals behave more like transmission lines at frequencies above 1 GHz. Polyimide's flexibility enables compact, dynamic form factors, but bending alters trace geometry and introduces variability in electrical characteristics. Without robust signal integrity PCB design, even premium materials fail to deliver reliable performance. For electric engineers, mastering flexible PCB signal integrity ensures compliance with performance specs in mission-critical systems.
The relevance intensifies in applications like wearables and satellites, where space constraints demand thin, multilayer polyimide stacks. Impedance mismatches cause ringing and overshoot, degrading eye diagrams and increasing jitter. Polyimide's consistent dielectric properties help mitigate losses, yet design oversights can negate these benefits. Engineers focusing on impedance control prevent such issues proactively.
Technical Challenges in Polyimide PCB Signal Integrity

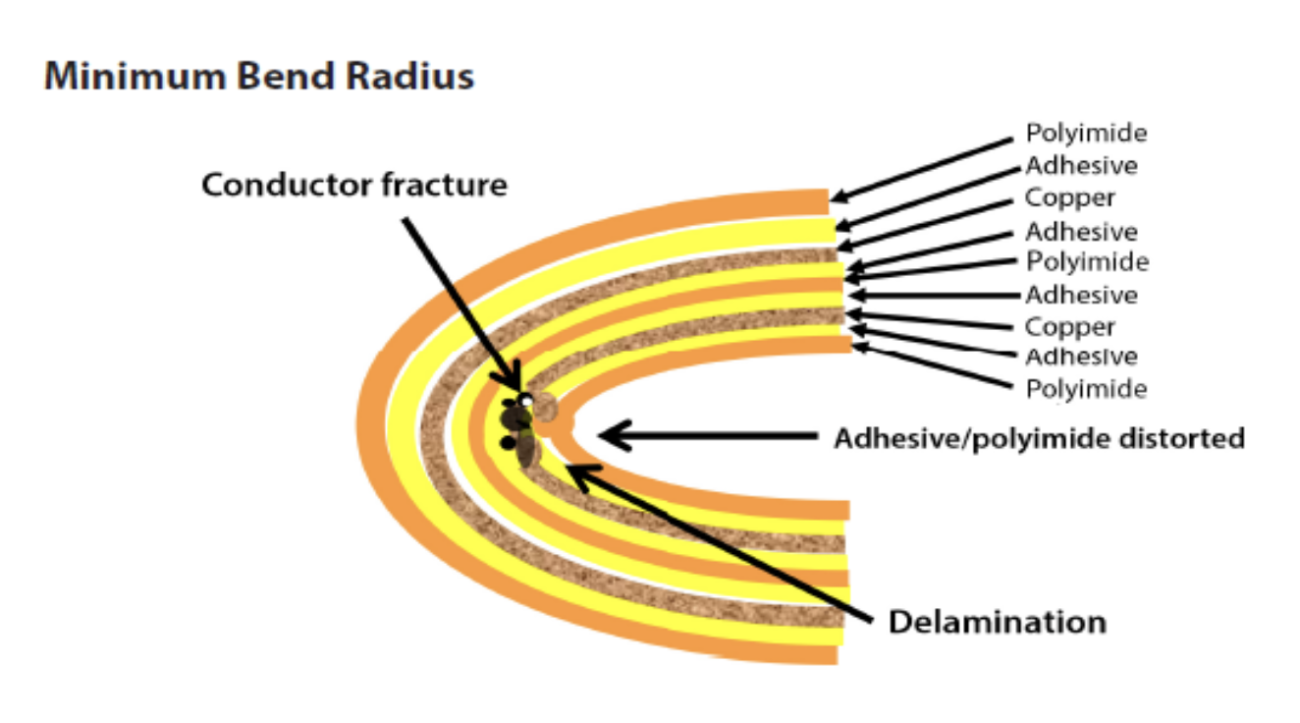

Polyimide PCBs face unique hurdles from their flexible nature and thin constructions. Bending induces mechanical stress that shifts trace dimensions, altering capacitance and inductance, which directly impacts signal propagation. At high speeds, skin effect confines currents to trace surfaces, increasing resistance and attenuation in fine polyimide-embedded conductors. Crosstalk arises from tight trace spacing in dense layouts, coupling noise between adjacent signals. Dielectric absorption in polyimide, though low, accumulates in repeated flex cycles, subtly degrading signals over time.
Material inconsistencies, such as variations in polyimide film thickness, exacerbate impedance discontinuities. Vias and bends create stubs that reflect energy back into the line. Environmental factors like humidity swell the substrate, changing effective dielectric constant. These mechanisms demand precise modeling during signal integrity PCB design. IPC-2223 provides guidelines for sectional design standards in flexible printed boards, helping address flex-specific risks.
Key Principles of Impedance Control in High Speed Polyimide PCBs
Impedance control forms the cornerstone of flexible PCB signal integrity by matching trace characteristic impedance to source and load. The formula Z0 equals square root of inductance over capacitance dictates that trace width, dielectric height, and material epsilon-r govern performance. Polyimide's dielectric constant around 3.2 to 3.5 supports 50-ohm single-ended or 100-ohm differential pairs effectively. Engineers calculate stackups to maintain uniform Z0 across bends and layers. Deviations beyond 10 percent trigger reflections, per industry tolerances.

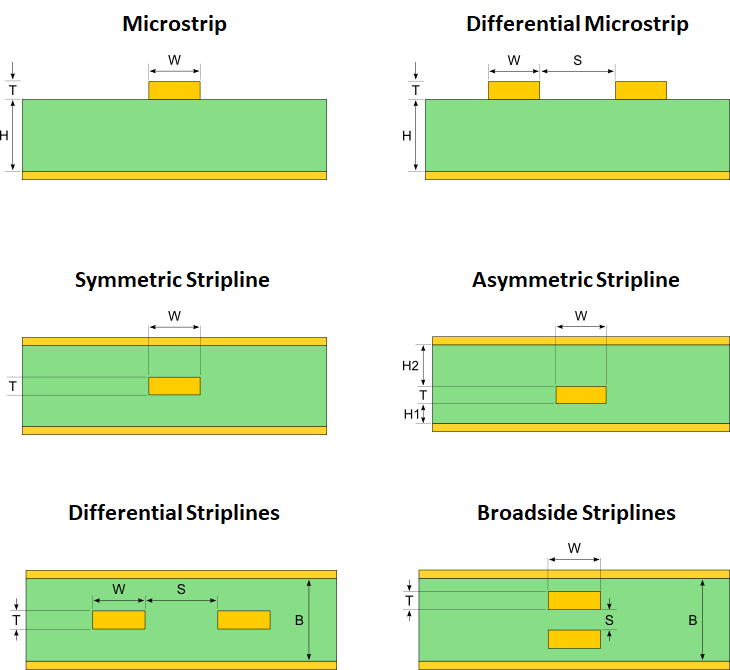

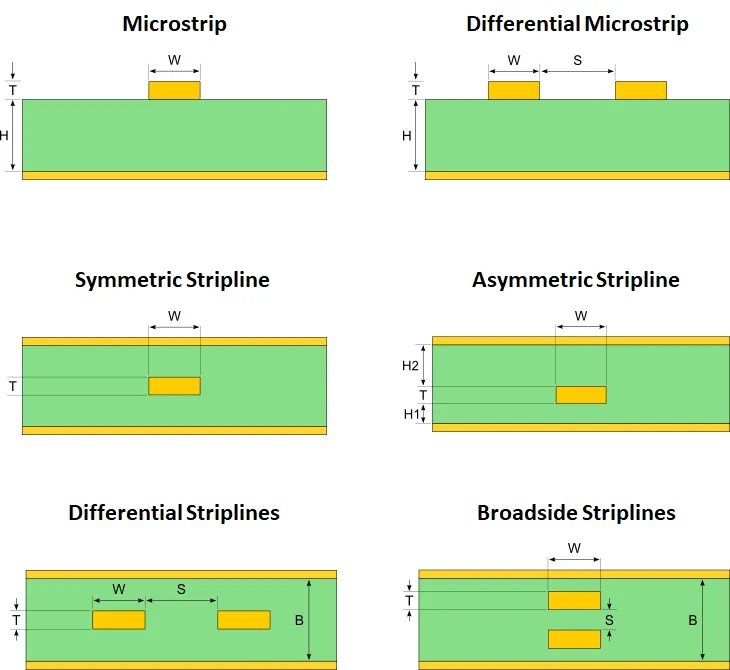

Transmission line theory underscores the need for continuous impedance profiles. Microstrip traces on polyimide surfaces expose fields to air, lowering effective epsilon but increasing radiation losses. Stripline configurations shield better but require symmetric dielectrics. Polyimide's low dissipation factor minimizes insertion loss at microwave frequencies. Simulations verify these principles before fabrication.
IPC-2141 outlines requirements for controlled impedance circuit boards and high speed logic design, ensuring predictable signal behavior. Adhering to such standards prevents common pitfalls in polyimide PCB layouts.
Best Practices for Achieving Signal Integrity in Polyimide PCB Design

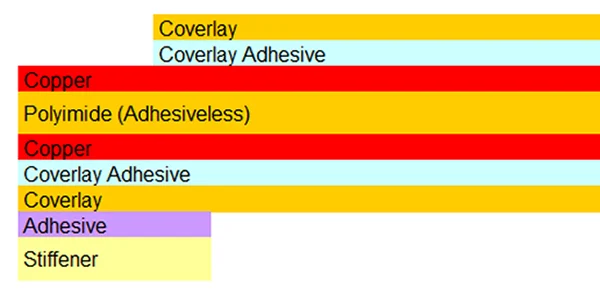

Start with a symmetric stackup to minimize warpage and maintain consistent dielectric spacing in polyimide multilayers. Select copper weights and polyimide coverlay thicknesses that support target impedances without excessive bending radius violations. Route high-speed traces with length matching within 0.5 percent for differential pairs to avoid skew. Avoid sharp 90-degree bends; use 45-degree miters or curves to reduce reflections.
Incorporate ground planes adjacent to signal layers for return path integrity and crosstalk suppression. Shield sensitive nets with guard traces or moats. For vias, use back-drilling or blind vias to eliminate stubs in high speed PCB routing. Test prototypes with time-domain reflectometry for impedance verification.
Material qualification per IPC-6013 ensures polyimide boards meet performance specs for flexible printed boards. This includes thermal cycling and flex endurance tests that correlate to real-world signal integrity.
Advanced Strategies for High-Frequency Polyimide Applications
In gigabit-plus designs, compensate for dielectric losses with wider traces or lower-loss polyimide variants. Model bending effects using 3D field solvers to predict dynamic impedance shifts. Transition zones in rigid-flex hybrids demand tapered traces for smooth impedance ramps. Power integrity couples with signal integrity; decouple planes reduce simultaneous switching noise.
Pre-emphasis and equalization at drivers mitigate inter-symbol interference. Fabrication tolerances tighten to 5 percent for Class 3 boards. These tactics elevate polyimide PCB performance in radar and 5G modules.
Conclusion
Signal integrity PCB design defines the success of polyimide PCBs in high speed environments, where flexibility meets frequency demands. By understanding challenges like geometric variations and losses, engineers implement impedance control and routing best practices effectively. Standards such as IPC-2223, IPC-2141, and IPC-6013 guide these efforts toward reliable outcomes. Prioritizing these principles unlocks polyimide's full potential, ensuring robust flexible PCB signal integrity. Electric engineers equipped with this knowledge deliver superior designs that withstand real-world rigors.
FAQs
Q1: What role does impedance control play in signal integrity PCB design for polyimide boards?
A1: Impedance control maintains consistent characteristic impedance along traces, preventing reflections that distort high-speed signals. In polyimide PCBs, engineers adjust trace width, spacing, and dielectric thickness to achieve 50-ohm or 100-ohm targets. This practice aligns with IPC-2141 guidelines, reducing jitter and bit error rates. Simulations and TDR testing verify compliance during prototyping.
Q2: How does polyimide material influence flexible PCB signal integrity?
A2: Polyimide offers a low dielectric constant and dissipation factor, ideal for minimizing attenuation in high speed PCB applications. Its thermal stability prevents degradation under flexing or heat, preserving signal quality. However, thin films demand precise stackups to avoid crosstalk. Compared to other flex materials, polyimide excels in frequencies above 10 GHz.
Q3: What are common causes of signal degradation in high speed polyimide PCB designs?
A3: Reflections from impedance mismatches, crosstalk from dense routing, and attenuation from skin effect top the list. Bending alters geometry, shifting capacitance in flexible sections. Vias introduce discontinuities if not optimized. Ground bounce from poor plane decoupling amplifies noise. Proactive modeling per design standards mitigates these in polyimide layouts.
Q4: Why is IPC-6013 important for polyimide PCB qualification?
A4: IPC-6013 specifies qualification and performance criteria for flexible printed boards, including electrical tests relevant to signal integrity. It covers continuity, insulation resistance, and environmental endurance that impact high-speed reliability. Compliance ensures polyimide boards withstand flex cycles without performance loss. Engineers use it to validate designs pre-production.
References
IPC-2223 — Sectional Design Standard for Flexible Printed Boards. IPC
IPC-2141 — Controlled Impedance Circuit Boards and High Speed Logic Design. IPC
IPC-6013 — Qualification and Performance Specification for Flexible and Rigid-Flex Printed Boards. IPC
