This article explains how to read motor wiring. There are two common wiring methods.

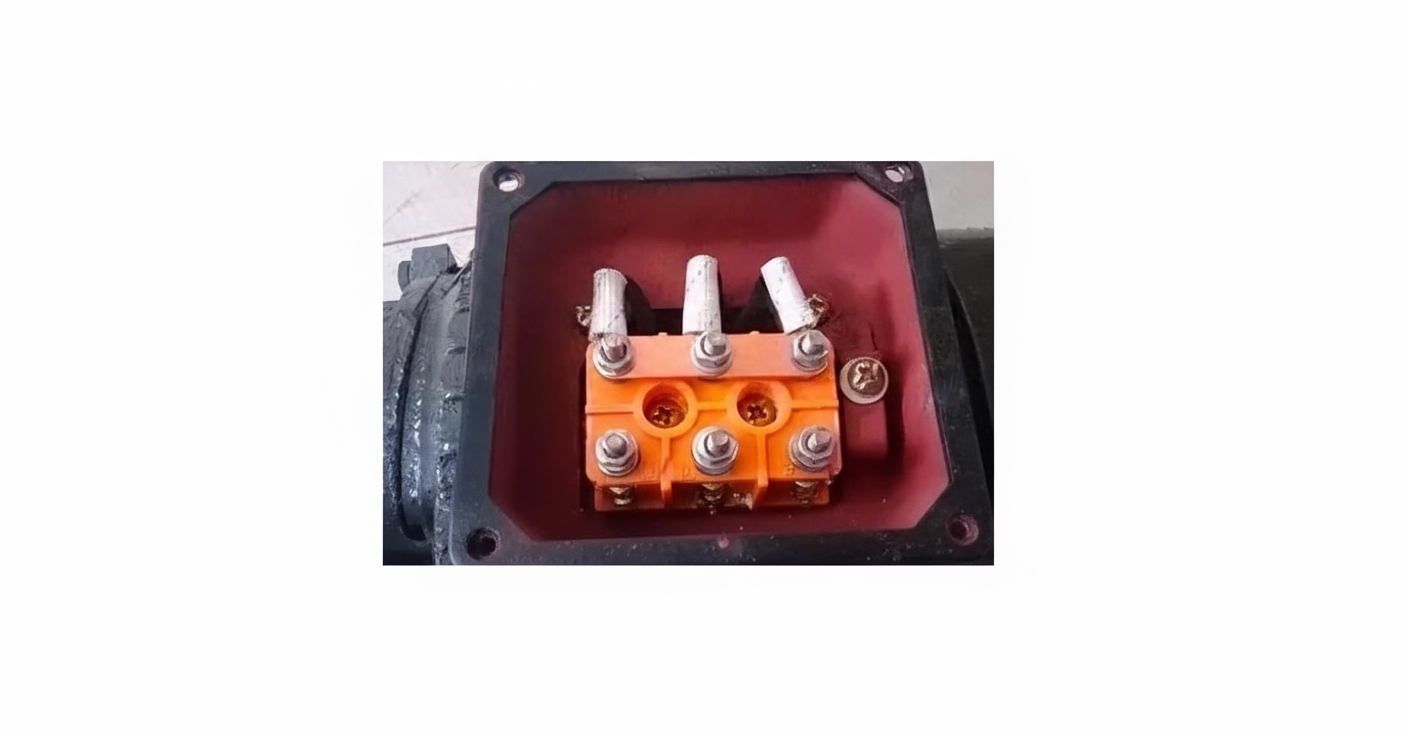

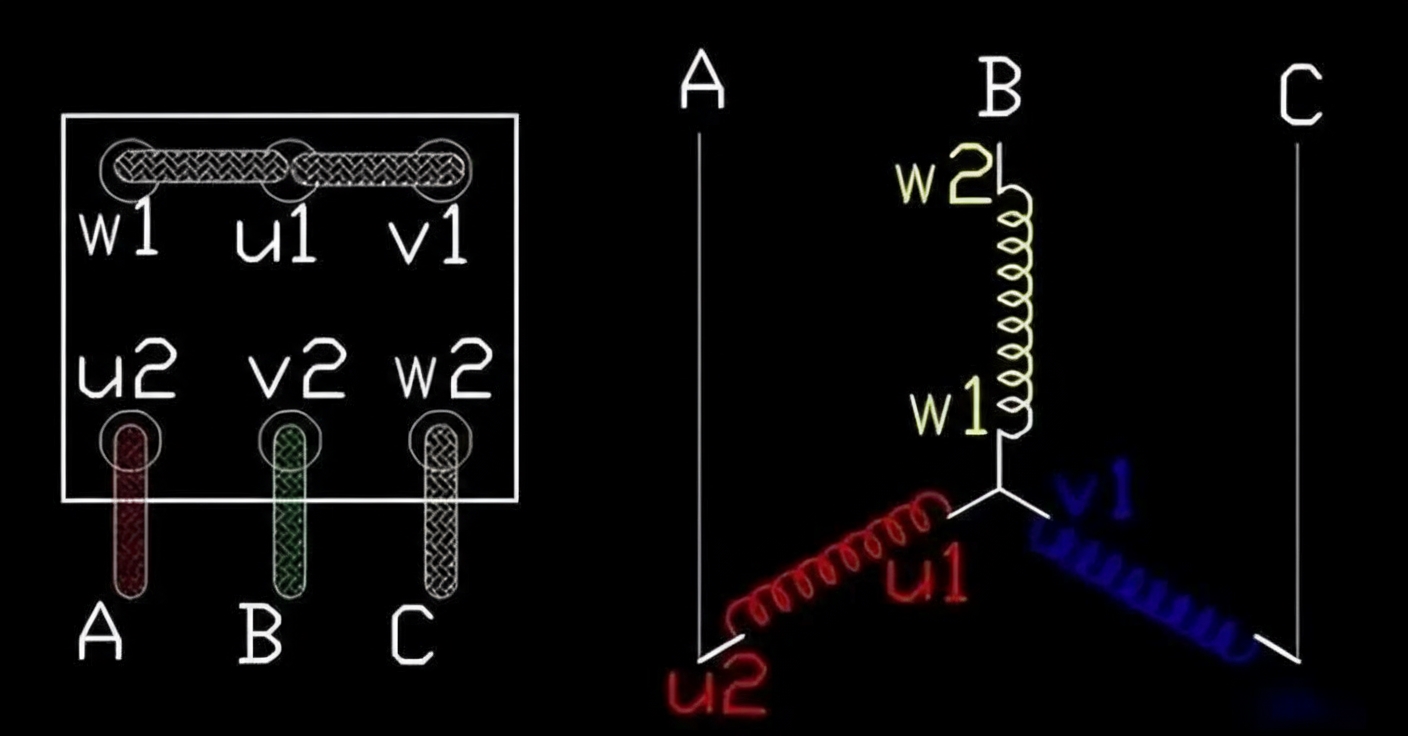

Schematic:

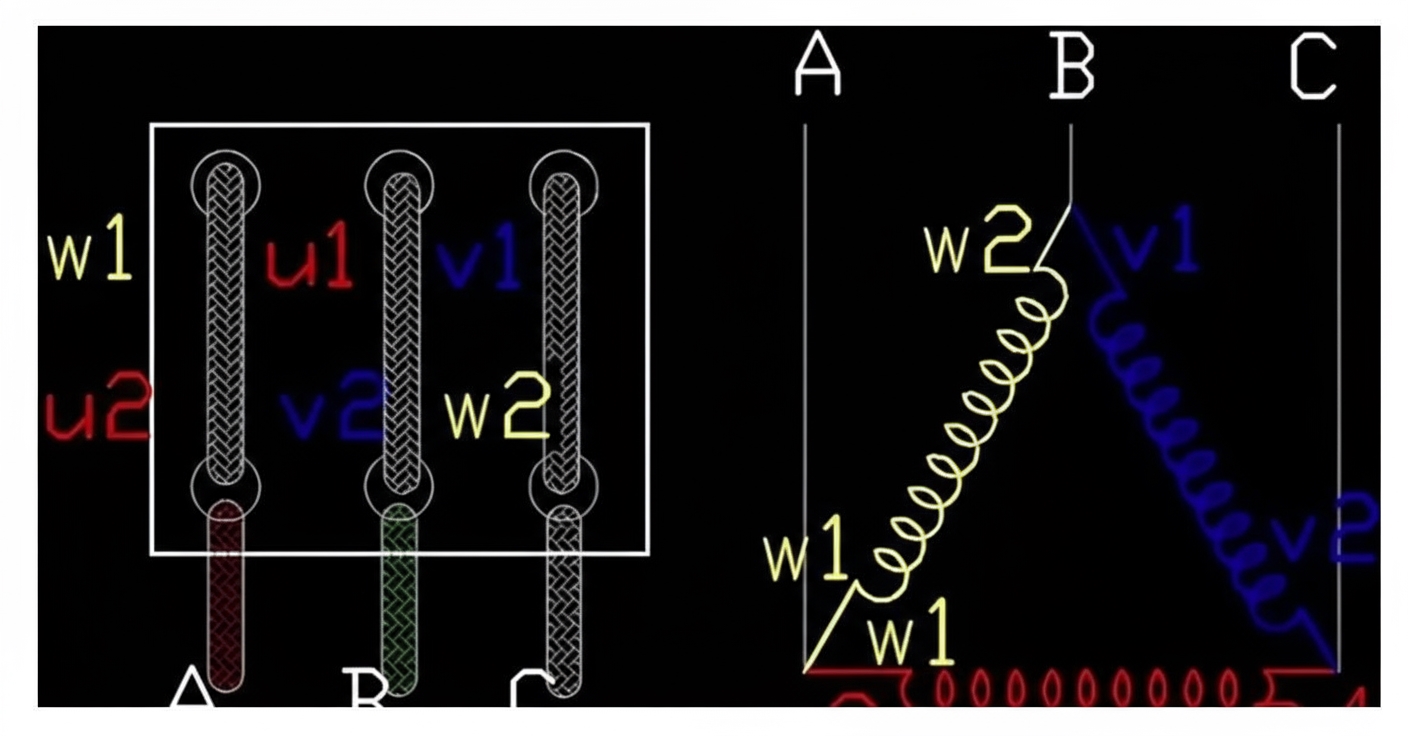

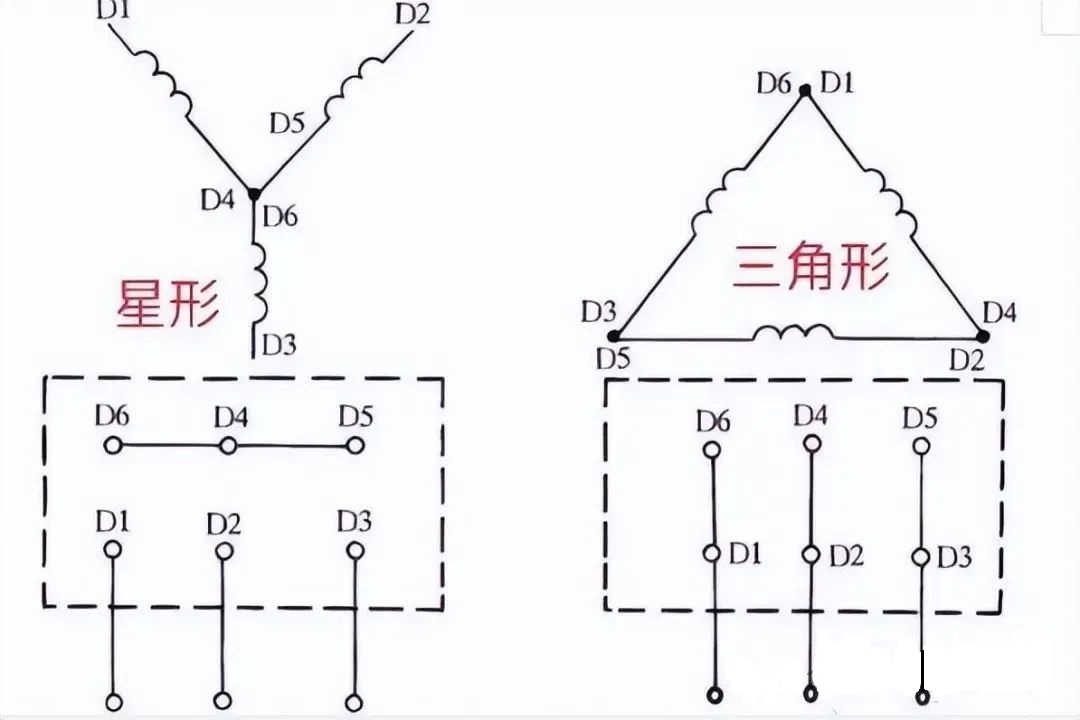

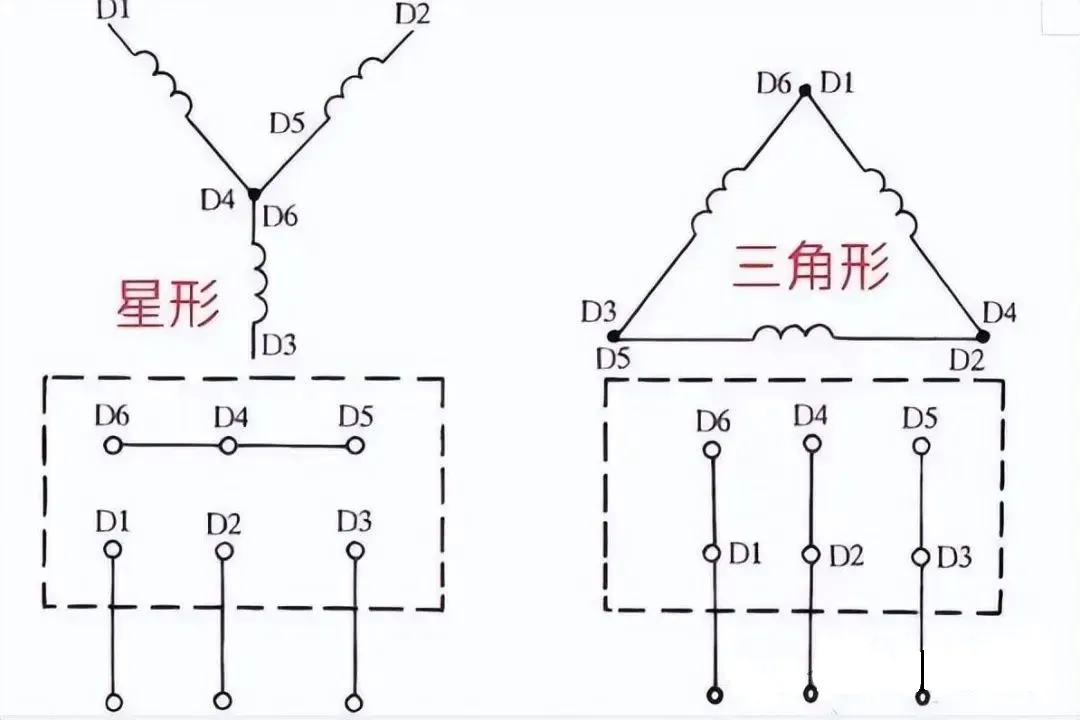

Schematic:
In practice, remember the appearance of the motor terminal: a single horizontal mark indicates a star (Y) connection, while three vertical marks indicate a delta (Δ) connection. Remembering this distinction makes wiring straightforward.
