In the fast-evolving world of electronics, sustainability is becoming a top priority. As environmental concerns grow, the demand for green materials in PCB assembly is on the rise. If you're looking for ways to make your printed circuit boards (PCBs) more eco-friendly, you've come to the right place. This blog dives into biodegradable PCB substrate materials, eco-friendly PCB coatings, and other sustainable options like paper PCB substrate, cellulose PCB substrate, sustainable PCB laminates, and water-based PCB inks. We'll explore what these materials are, how they work, and why they matter for a greener future in electronics manufacturing.
Whether you're an engineer, designer, or manufacturer, this guide will help you understand the latest advancements in green PCB technology and how to integrate them into your projects. Let's get started on this journey toward sustainable electronics!
Why Green Materials Matter in PCB Assembly
The electronics industry produces millions of tons of electronic waste (e-waste) each year. Traditional PCB materials, like fiberglass and epoxy resins, are not biodegradable and often end up in landfills, releasing harmful chemicals into the environment. This has pushed the industry to explore sustainable alternatives that reduce environmental impact without compromising performance.
Green materials in PCB assembly offer a solution by minimizing waste, reducing toxic emissions, and promoting recyclability. By adopting biodegradable PCB substrate materials and eco-friendly PCB coatings, manufacturers can lower their carbon footprint while meeting the growing demand for sustainable products. Plus, many of these materials are now comparable in durability and performance to conventional options, making them a practical choice for modern electronics.
What Are Biodegradable PCB Substrate Materials?
A PCB substrate is the base material that supports the circuitry in a printed circuit board. Traditional substrates, such as FR-4 (a fiberglass-epoxy composite), are durable but not environmentally friendly. Biodegradable PCB substrate materials are designed to break down naturally over time, reducing long-term waste.
One exciting development in this area is the use of natural fibers and bio-based composites. For instance, some biodegradable substrates are made from plant-based materials that decompose under specific conditions, such as exposure to water or soil. A notable innovation is a fully recyclable and biodegradable laminate that dissolves in hot water, leaving behind organic residue that can be composted. Such materials are a game-changer for reducing e-waste.
These substrates are still in the early stages of widespread adoption, but they show promise for applications where disposability is key, such as in single-use sensors or temporary electronics. While mechanical strength and thermal stability may not yet match traditional materials (with tensile strengths often below 50 MPa compared to FR-4's 300 MPa), ongoing research is closing the gap.
Paper PCB Substrate: A Lightweight Alternative
One specific type of biodegradable substrate gaining attention is the paper PCB substrate. Made from compressed paper or cardboard, this material is lightweight, low-cost, and fully recyclable. Paper substrates are often treated with protective layers to improve moisture resistance and durability, making them suitable for low-power or disposable electronics.
While paper substrates can't handle high-frequency signals (typically limited to below 1 GHz compared to FR-4's 10 GHz capability) or extreme temperatures, they are ideal for educational projects, prototypes, or eco-friendly consumer products. Their dielectric constant, around 2.5-3.0, is also lower than FR-4's 4.5, which can affect signal speed in high-performance applications. Still, for many simple designs, this trade-off is acceptable for the environmental benefits.
Cellulose PCB Substrate: Harnessing Nature’s Strength
Another promising material is the cellulose PCB substrate, derived from plant fibers. Cellulose, a key component of plant cell walls, can be processed into nanofibrils to create strong, lightweight substrates. Recent studies have shown that lignocellulose nanofibrils (LCNF), made from lignin-rich cellulose pulp, offer good mechanical properties with flexural strengths reaching up to 100 MPa after thermal and pressure treatments.
These substrates are not only biodegradable but also provide decent electrical insulation, with dielectric strengths comparable to some traditional materials (around 10-15 kV/mm). They are particularly suited for flexible electronics, such as wearable devices, due to their bendability. While moisture sensitivity remains a challenge, advancements in protective coatings are making cellulose substrates more viable for real-world applications.
Sustainable PCB Laminates: Building a Greener Foundation
Laminates are critical to PCB construction, providing structural support and insulation between conductive layers. Traditional laminates often contain harmful chemicals like brominated flame retardants, which can release toxins when disposed of. Sustainable PCB laminates aim to replace these with bio-based or halogen-free alternatives.
Bio-based laminates, made from renewable resources like polylactic acid (PLA) or bio-epoxy, offer a reduced environmental impact. These materials can achieve thermal stability up to 150°C, though they fall short of FR-4's 180°C rating. They also tend to have lower glass transition temperatures (Tg), around 60-80°C compared to FR-4's 130-140°C, which limits their use in high-heat environments. However, for many low- to medium-power applications, sustainable laminates provide a viable, eco-friendly option.
In addition, some sustainable laminates are designed to be fully recyclable, breaking down into non-toxic components at the end of their lifecycle. This aligns with the principles of a circular economy, where materials are reused or safely returned to the environment.
Eco-Friendly PCB Coatings: Protecting Boards and the Planet
PCB coatings, or conformal coatings, protect boards from moisture, dust, and chemical exposure. Traditional coatings often use solvent-based chemicals that release volatile organic compounds (VOCs), harming both the environment and human health. Eco-friendly PCB coatings offer a safer alternative by using water-based or bio-derived formulas with minimal VOC emissions.
Water-based coatings, for example, provide good protection with dielectric strengths of 50-60 kV/mm, comparable to solvent-based options. They are easier to apply and clean up, reducing hazardous waste during manufacturing. Bio-derived coatings, made from natural resins or plant oils, are also gaining traction for their biodegradability and low toxicity.
While eco-friendly coatings may have slightly lower resistance to extreme temperatures (often maxing out at 120°C compared to 150°C for traditional coatings), they are suitable for most consumer electronics and IoT devices. Their adoption helps manufacturers meet stricter environmental regulations while maintaining board reliability.

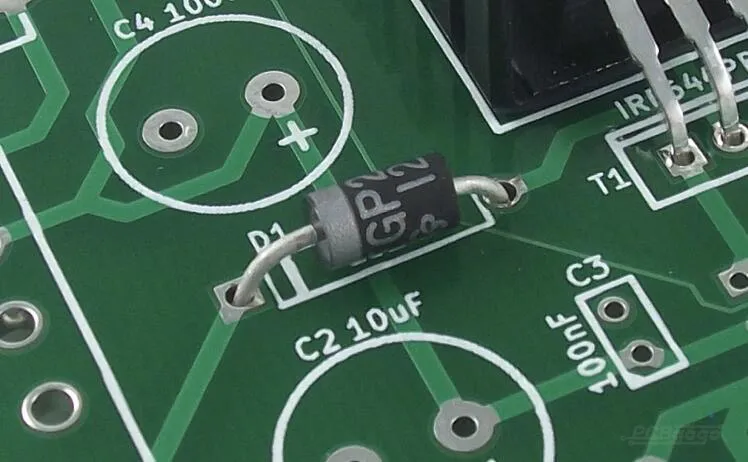

Water-Based PCB Inks: A Cleaner Printing Solution
In PCB manufacturing, inks are used for marking components, creating solder masks, and printing conductive traces. Traditional inks often contain toxic solvents that contribute to pollution. Water-based PCB inks provide a cleaner alternative, using water as the primary solvent to reduce VOC emissions.
These inks offer similar performance to solvent-based options, with drying times of around 10-15 minutes at 80°C and adhesion strength meeting industry standards (typically passing the 3M tape test). They are compatible with various printing methods, including screen printing and inkjet, making them easy to integrate into existing workflows. By switching to water-based inks, manufacturers can significantly cut down on harmful emissions without sacrificing quality.
Challenges and Future of Green Materials in PCB Assembly
While green materials like biodegradable PCB substrate materials, cellulose PCB substrate, and eco-friendly PCB coatings hold immense potential, they come with challenges. Performance limitations, such as lower thermal resistance and mechanical strength, can restrict their use in high-end applications. For instance, many biodegradable substrates struggle with impedance control, often showing variations of ±10% compared to FR-4's ±5%, which can impact signal integrity in high-speed designs.
Cost is another hurdle. Sustainable materials often carry a higher upfront price due to limited production scale and specialized processing. However, as demand grows and technology advances, prices are expected to drop. Research is also underway to improve the durability and performance of these materials, with some studies showing that hybrid composites (combining bio-based and synthetic elements) can achieve tensile strengths closer to 200 MPa.
Looking ahead, the future of green PCB assembly is bright. Innovations in material science are paving the way for substrates and coatings that rival traditional options. Governments and industries worldwide are also pushing for stricter e-waste regulations, which will likely accelerate the adoption of sustainable solutions. By staying ahead of the curve, manufacturers can position themselves as leaders in the shift toward eco-friendly electronics.
Benefits of Adopting Green Materials in PCB Assembly
Switching to green materials offers several advantages beyond environmental impact. First, it helps companies comply with regulations like RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals), avoiding potential fines. Second, it enhances brand reputation, as consumers increasingly favor eco-conscious businesses.
From a practical standpoint, many green materials reduce manufacturing hazards. For example, water-based PCB inks and eco-friendly PCB coatings minimize worker exposure to toxic fumes, improving workplace safety. Additionally, recyclable materials like sustainable PCB laminates can lower disposal costs by enabling material recovery at the end of a product’s life.
How to Start Using Green Materials in Your PCB Projects
Ready to go green with your PCB assembly? Here are some steps to get started:
- Evaluate Your Needs: Determine if your project can use biodegradable or sustainable materials based on performance requirements like thermal stability and signal speed.
- Research Suppliers: Look for providers offering biodegradable PCB substrate materials, paper PCB substrate, or cellulose PCB substrate options tailored to your specifications.
- Test Prototypes: Build and test prototypes using green materials to ensure they meet your design goals. Measure key metrics like impedance (targeting ±5% variation) and dielectric strength (aim for at least 10 kV/mm).
- Scale Gradually: Start with low-risk projects before transitioning high-volume production to sustainable materials.
By taking small, informed steps, you can integrate green materials into your workflow while minimizing disruptions.
Conclusion: Building a Sustainable Future with Green PCB Materials
The shift to green materials in PCB assembly is no longer just a trend—it's a necessity. With options like biodegradable PCB substrate materials, eco-friendly PCB coatings, paper PCB substrate, cellulose PCB substrate, sustainable PCB laminates, and water-based PCB inks, manufacturers have the tools to reduce their environmental impact while maintaining quality. Though challenges like cost and performance remain, ongoing advancements are making sustainable materials more accessible and effective.
By embracing these innovations, you can contribute to a cleaner planet and meet the growing demand for eco-friendly electronics. Start exploring green materials for your next PCB project and be part of the movement toward a sustainable future in technology.
