If you're wondering how silkscreen ink material affects the durability and readability of printed circuit boards (PCBs), the answer lies in the type of ink used and its properties. The right ink, such as epoxy-based or UV curable options, can enhance a PCB's resistance to harsh environments and ensure markings remain clear over time. Factors like adhesion strength, chemical resistance, and color contrast play a significant role. In this blog, we'll dive deep into how different silkscreen ink materials impact PCB performance, explore the best options like epoxy and UV curable inks, and discuss testing methods to ensure quality.
Introduction to PCB Silkscreen and Its Importance

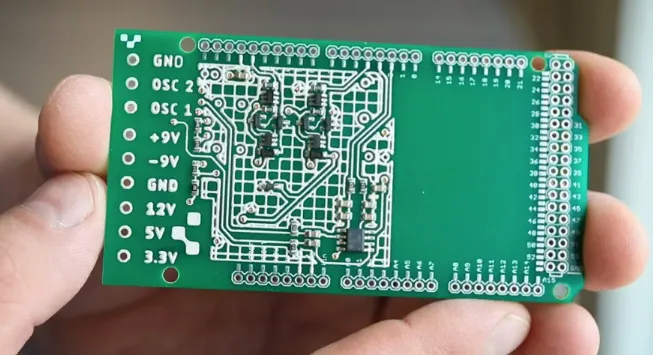

Silkscreen printing on PCBs is more than just adding labels or markings; it’s a critical step in manufacturing that aids in assembly, testing, and maintenance. The silkscreen layer, often seen as white, black, or yellow text and symbols on the board, provides essential information like component placement, polarity indicators, and identification codes. However, the material used for this ink directly influences how well the PCB withstands environmental stress and how legible the markings remain over time.
Choosing the right silkscreen ink material can mean the difference between a board that fails under heat or chemical exposure and one that lasts for years with clear, readable markings. In this post, we’ll cover the types of inks used, their impact on durability and readability, and how to select the best option for your needs.
What Is Silkscreen Ink and Why Does It Matter?
Silkscreen ink is a non-conductive material applied to the surface of a PCB to create visible markings. Unlike conductive traces or solder masks, this ink serves no electrical purpose. Instead, it acts as a visual guide for engineers, technicians, and automated assembly machines. The ink must adhere well to the PCB surface, resist wear from handling, and withstand environmental factors like temperature fluctuations, humidity, and chemical exposure.
The material composition of the ink determines its performance. Poor-quality ink can fade, crack, or peel off, leading to unreadable markings and potential errors during assembly or repair. On the other hand, high-quality ink ensures long-term durability and clarity, reducing the risk of mistakes and extending the board’s usable life.

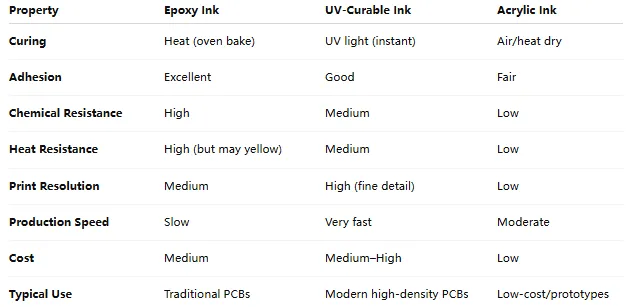

Types of Silkscreen Ink Materials for PCBs
Several types of silkscreen inks are used in PCB manufacturing, each with unique properties that affect durability and readability. Let’s explore the most common options and their characteristics.
1. Epoxy-Based Ink: The Industry Standard
Epoxy-based ink is widely regarded as one of the best choices for PCB silkscreen due to its excellent adhesion and resistance properties. This type of ink forms a strong bond with the PCB surface, making it less likely to peel or wear off during handling or exposure to harsh conditions. Epoxy inks are also highly resistant to chemicals, moisture, and temperature extremes, often enduring conditions up to 150°C without degrading.
For engineers searching for the best epoxy ink for PCB silkscreen, look for formulations specifically designed for electronics. These inks typically offer a high contrast against common solder mask colors like green or blue, ensuring readability. Their durability makes them ideal for industrial applications where PCBs face rigorous conditions.
2. UV Curable Ink: Fast and Reliable
For those exploring UV curable ink for silkscreen, this option stands out for its quick curing time and environmental benefits. UV curable inks harden almost instantly when exposed to ultraviolet light, reducing production time compared to traditional epoxy inks that require thermal curing. They also emit fewer volatile organic compounds (VOCs), making them a more eco-friendly choice.
UV curable inks offer good adhesion and resistance to abrasion, though they may not match epoxy inks in extreme chemical or thermal resistance. Their readability is excellent due to sharp, precise printing capabilities, and they work well in high-volume production environments where speed is critical.
3. Acrylic-Based Ink: A Cost-Effective Alternative
Acrylic-based inks are less common but still used in some PCB applications due to their lower cost. While they provide decent adhesion and readability, they fall short in durability compared to epoxy or UV curable options. Acrylic inks are more prone to fading or cracking under prolonged exposure to heat or chemicals, making them better suited for low-stress environments or prototype boards.
How Silkscreen Ink Material Impacts PCB Durability
The durability of a PCB is influenced by how well the silkscreen ink withstands physical and environmental stress. Here’s a closer look at the key factors:
Adhesion Strength
Adhesion is critical for ensuring the ink stays on the PCB surface during manufacturing processes like soldering, cleaning, or mechanical handling. Poor adhesion can lead to peeling or flaking, which compromises both durability and readability. Epoxy inks, for instance, are known for superior adhesion, often passing rigorous silkscreen ink adhesion tests with minimal loss of material even after exposure to solvents or abrasion.
Testing adhesion typically involves methods like the tape test, where adhesive tape is applied to the ink and then removed to check for residue. High-quality inks show no transfer of material, indicating strong bonding to the PCB substrate.
Chemical and Thermal Resistance
PCBs are often exposed to chemicals during cleaning or operation in industrial settings. Inks with low chemical resistance can dissolve or degrade, leading to faded markings. Similarly, thermal stress from soldering or high operating temperatures can cause cracking or discoloration. Epoxy inks often excel here, maintaining integrity at temperatures as high as 150-200°C, while some UV curable inks may start to degrade above 120°C.
Mechanical Wear Resistance
During assembly or repair, PCBs are handled frequently, which can cause scratches or wear on the silkscreen layer. Durable inks resist abrasion, ensuring markings remain intact. This is particularly important for boards used in high-vibration environments, where mechanical stress is a constant factor.

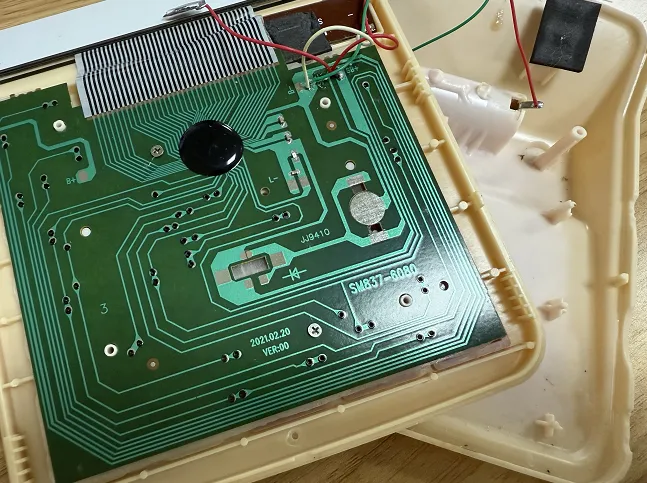

The Role of Silkscreen Ink in PCB Readability
Readability is just as important as durability because unclear markings can lead to assembly errors or delays in troubleshooting. The ink material affects readability through the following aspects:
Color Contrast
The contrast between the silkscreen ink and the PCB’s solder mask is vital for visibility. White ink on a green or blue mask is the most common combination due to its high contrast. However, the ink material must maintain its color over time. Some lower-quality inks may yellow or fade, reducing readability. Epoxy and UV curable inks are formulated to retain their color, ensuring markings remain legible even after years of use.
Precision and Line Clarity
The ability of the ink to form sharp, clean lines during printing affects how readable small text or symbols are. UV curable inks, due to their fast curing process, often produce finer details compared to other types. This is especially important for densely populated boards where space for markings is limited.
Resistance to Fading
Exposure to UV light, heat, or chemicals can cause ink to fade over time. For outdoor or high-exposure applications, selecting an ink with strong fade resistance is essential. Epoxy-based inks typically offer the best performance in this area, maintaining readability under prolonged stress.
Testing Silkscreen Ink Quality: Focus on Adhesion
For manufacturers and engineers looking to ensure the quality of silkscreen ink, conducting a silkscreen ink adhesion test is a standard practice. These tests evaluate how well the ink bonds to the PCB surface and resists removal under stress. Common methods include:
- Tape Test: A piece of adhesive tape is pressed onto the silkscreen layer and pulled off. The amount of ink transferred to the tape indicates adhesion strength. High-quality inks show no transfer.
- Cross-Hatch Test: A grid pattern is cut into the ink layer, and tape is applied and removed. This test assesses adhesion in more detail, especially for thicker ink layers.
- Solvent Rub Test: A cloth soaked in a solvent like isopropyl alcohol is rubbed against the ink to check for removal or fading. This simulates chemical exposure during cleaning.
Passing these tests ensures the ink will hold up during manufacturing and throughout the PCB’s lifecycle. For critical applications, consider requesting test data from ink suppliers or conducting in-house evaluations.
Choosing the Best Silkscreen Ink for Your PCB
Selecting the right silkscreen ink depends on your specific application and performance requirements. Here are some tips to guide your decision:
- For Harsh Environments: Opt for epoxy-based inks due to their superior chemical and thermal resistance. They are often the best epoxy ink for PCB silkscreen in industrial or automotive applications.
- For High-Speed Production: Choose UV curable ink for silkscreen to reduce curing time and improve throughput without sacrificing quality.
- For Cost-Sensitive Projects: Acrylic inks may suffice for low-stress or prototype boards, though they lack the durability of other options.
Additionally, consider the color of the ink and its contrast with your PCB’s solder mask. White is the most common choice for readability, but black or yellow may be better suited for specific designs or lighting conditions.
Conclusion: Balancing Durability and Readability with the Right Ink
The material used for silkscreen ink plays a pivotal role in determining the durability and readability of a PCB. Epoxy-based inks stand out as a top choice for their robust adhesion and resistance to environmental stress, making them ideal for demanding applications. UV curable inks offer a fast, eco-friendly alternative with excellent clarity, while acrylic inks serve as a budget-friendly option for less critical uses.
By understanding the properties of each ink type and conducting proper tests like the silkscreen ink adhesion test, you can ensure your PCBs remain functional and legible throughout their lifecycle. Whether you're prioritizing durability for industrial use or readability for complex designs, selecting the right silkscreen ink material is a decision that pays off in performance and reliability.
