In the world of electronics manufacturing, sustainability is no longer just a buzzword—it’s a necessity. As environmental regulations tighten and consumer demand for eco-friendly products grows, the shift to lead-free soldering in PCB assembly has become a critical focus. If you’re searching for ways to make your PCB assembly process more sustainable, lead-free solder is the answer. It complies with regulations like RoHS, reduces health risks, and minimizes environmental impact. In this comprehensive guide, we’ll explore lead-free solder composition, high-temperature options, cost-effective solutions, and much more to help you make informed decisions for eco-friendly PCB assembly.
Why Choose Lead-Free Soldering for PCB Assembly?

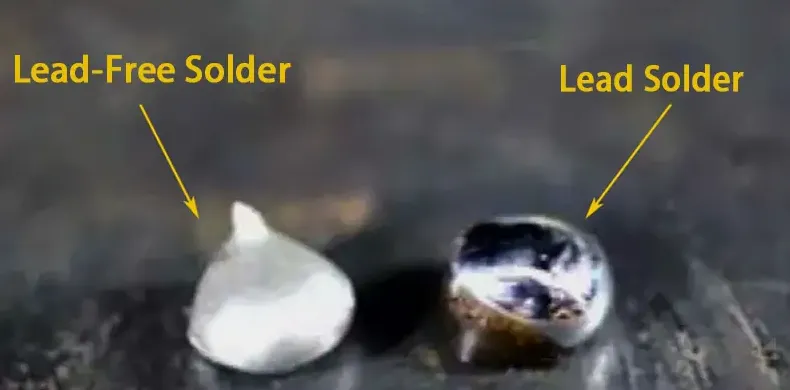

The electronics industry has relied on lead-based solder for decades due to its low melting point and excellent conductivity. However, lead is toxic, posing risks to human health and the environment. This led to the introduction of the Restriction of Hazardous Substances (RoHS) directive in 2006, which bans the use of lead and other harmful substances in electronics sold in the European Union. Today, lead-free soldering isn’t just about compliance—it’s about creating safer workplaces and reducing electronic waste’s environmental footprint.
Lead-free soldering offers several benefits beyond compliance. It aligns with global sustainability goals, improves brand reputation, and caters to the growing demand for green electronics. Whether you’re a small-scale manufacturer or a large enterprise, adopting lead-free alternatives is a step toward a more responsible and future-proof production process.

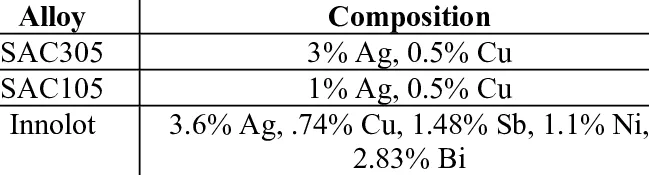

Understanding Lead-Free Solder Composition
Lead-free solder is typically made from a combination of metals that replace the traditional tin-lead (Sn-Pb) alloy. The most common lead-free solder composition is a mix of tin (Sn), silver (Ag), and copper (Cu), often referred to as SAC (SnAgCu) solder. A typical SAC alloy might consist of 96.5% tin, 3% silver, and 0.5% copper. This composition provides a good balance of melting temperature, mechanical strength, and electrical conductivity.
Other lead-free solder compositions include:
- Tin-Copper (SnCu): Often used for cost-sensitive applications, with a higher melting point of around 227°C compared to SAC’s 217°C.
- Tin-Bismuth (SnBi): Offers a lower melting point (around 138°C), making it suitable for temperature-sensitive components, though it’s less durable.
- Tin-Silver (SnAg): Provides good thermal and mechanical properties but is more expensive due to higher silver content.
Choosing the right composition depends on your specific application, budget, and performance requirements. SAC alloys are often the go-to choice for general-purpose PCB assembly due to their reliability and compliance with industry standards.
Lead-Free Solder for High-Temperature Applications
One challenge with lead-free soldering is its higher melting point compared to traditional tin-lead solder (183°C). For high-temperature applications, such as automotive or industrial electronics, you need a solder that can withstand extreme conditions without degrading. This is where specific lead-free alloys shine.
Lead-free solder for high-temperature environments often includes alloys with higher melting points or enhanced thermal stability. SAC alloys, for instance, can handle temperatures up to 217°C during reflow soldering, making them suitable for many high-temperature applications. For even harsher conditions, alloys like SnCu or specialized high-temperature solders with additives can be used, offering melting points above 230°C.
High-temperature lead-free solders are critical for components exposed to thermal cycling or elevated operating temperatures. They ensure reliable joints that won’t crack or fail under stress, extending the lifespan of your PCBs in demanding environments.
SnAgCu Solder Advantages for PCB Assembly
Among the many lead-free solder options, SnAgCu (SAC) alloys stand out for their versatility and performance. Here are some key SnAgCu solder advantages:
- Reliability: SAC solders form strong, durable joints with excellent resistance to thermal fatigue, making them ideal for long-term use in electronics.
- Compatibility: These alloys work well with most PCB surface finishes, including HASL (Hot Air Solder Leveling) and ENIG (Electroless Nickel Immersion Gold).
- Thermal Performance: With a melting point of around 217°C, SAC solders can handle the heat profiles required for modern reflow soldering processes.
- RoHS Compliance: SAC alloys meet RoHS standards, ensuring your products are safe for international markets.
While SAC solders may cost more than other options due to silver content, their performance often justifies the investment, especially for high-reliability applications like medical devices or aerospace electronics.
Cost-Effective Lead-Free Solder Options
Cost is a significant concern for many manufacturers transitioning to lead-free soldering. While SAC alloys offer excellent performance, they can be expensive due to the inclusion of silver. If you’re looking for cost-effective lead-free solder, consider alternatives like SnCu alloys, which contain no silver and are more budget-friendly.
SnCu solder, often composed of 99.3% tin and 0.7% copper, has a melting point of 227°C. While it’s slightly harder to work with due to the higher temperature, it provides acceptable performance for many standard applications. Additionally, optimizing your soldering process—such as using precise temperature control or investing in training for technicians—can reduce material waste and lower overall costs.
Another way to achieve cost-effective lead-free soldering is by sourcing materials in bulk or partnering with suppliers who offer competitive pricing without compromising quality. Balancing cost and performance ensures you maintain profitability while meeting sustainability goals.

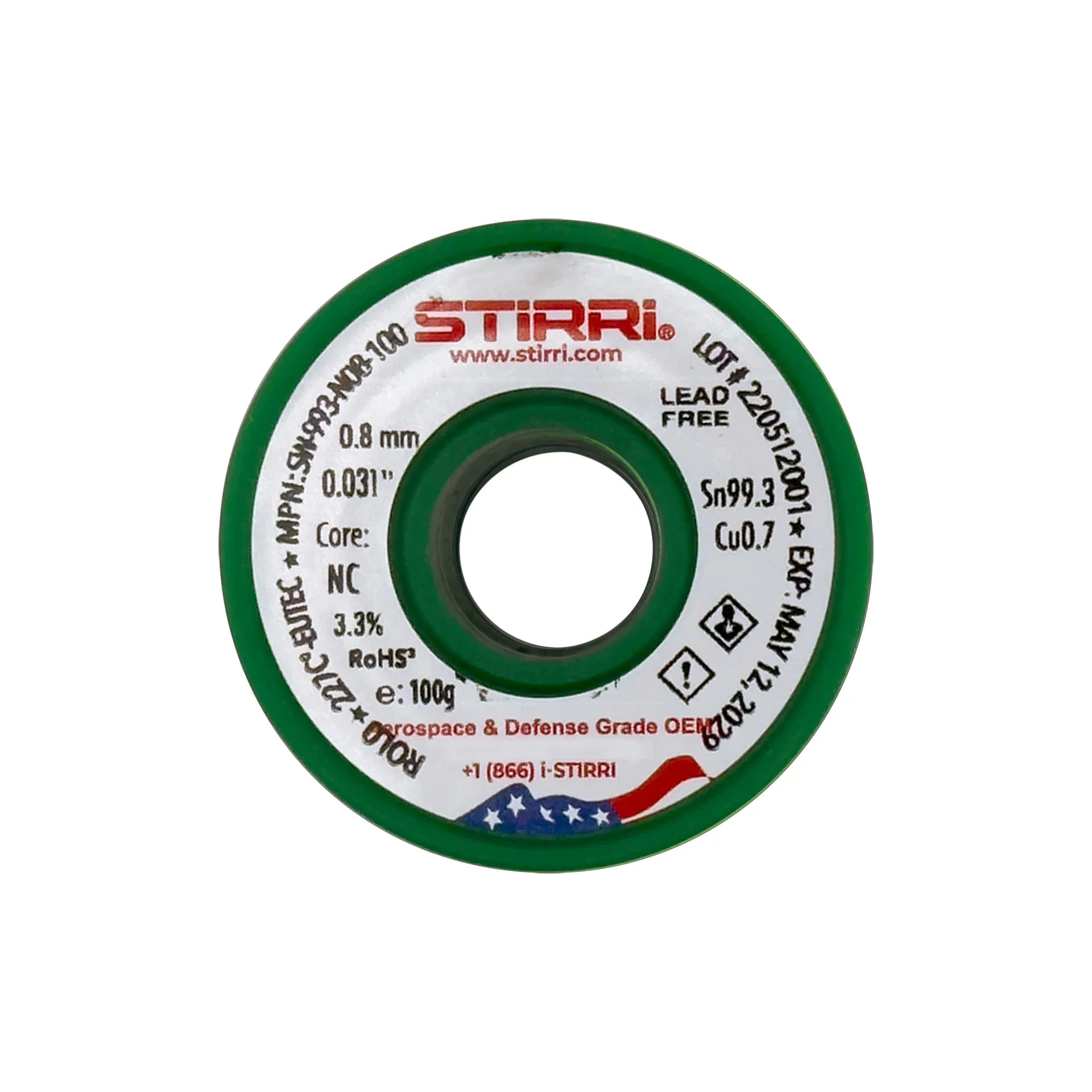

Lead-Free Solder RoHS Compliance: What You Need to Know
RoHS compliance is a cornerstone of modern electronics manufacturing. The directive restricts the use of six hazardous materials, including lead, in electrical and electronic equipment. Lead-free solder RoHS compliance means your products can be sold in regions like the EU without legal or market barriers.
To ensure compliance, always verify that your solder materials meet RoHS standards. Most lead-free solders, including SAC, SnCu, and SnBi alloys, are RoHS-compliant, but it’s crucial to check certifications from your supplier. Additionally, maintain detailed records of your materials and processes to demonstrate compliance during audits or inspections.
Non-compliance can result in fines, product recalls, or restricted market access. By prioritizing lead-free solder RoHS compliance, you protect your business and contribute to a safer, more sustainable electronics industry.
Alternatives for Lead-Free Soldering in PCB Assembly
While lead-free solder is the most common solution for eco-friendly PCB assembly, there are alternatives for lead-free soldering worth exploring. These options can complement or, in some cases, replace traditional soldering techniques, depending on your needs.
- Conductive Adhesives: These are epoxy-based materials infused with conductive particles like silver. They’re used in low-temperature applications and are ideal for flexible or heat-sensitive substrates. However, they lack the mechanical strength of solder joints.
- Laser Soldering: This technique uses a focused laser to heat and melt solder, offering precision for small or delicate components. It’s more expensive but reduces thermal stress on the PCB.
- Ultrasonic Soldering: This method uses ultrasonic vibrations to create strong bonds without flux, minimizing chemical waste. It’s less common but useful for specific applications.
While these alternatives may not fully replace lead-free soldering, they can be valuable in niche scenarios or as part of a hybrid assembly process. Evaluate their feasibility based on your production volume, budget, and technical requirements.
Challenges of Transitioning to Lead-Free Soldering
Switching to lead-free soldering isn’t without challenges. Higher melting temperatures can stress components or require adjustments to your reflow profiles. For instance, a typical lead-free SAC alloy melts at 217°C, compared to 183°C for tin-lead solder, necessitating equipment upgrades or recalibration.
Additionally, lead-free solders can be more prone to issues like tin whiskers—tiny metal filaments that grow from the solder and cause short circuits. Proper storage, handling, and process control can mitigate this risk. Training your team to handle lead-free materials and investing in compatible PCB finishes (like lead-free HASL or ENIG) also smooths the transition.
Despite these hurdles, the long-term benefits of sustainability, safety, and market access outweigh the initial difficulties. With careful planning, you can minimize disruptions and achieve consistent, high-quality results.

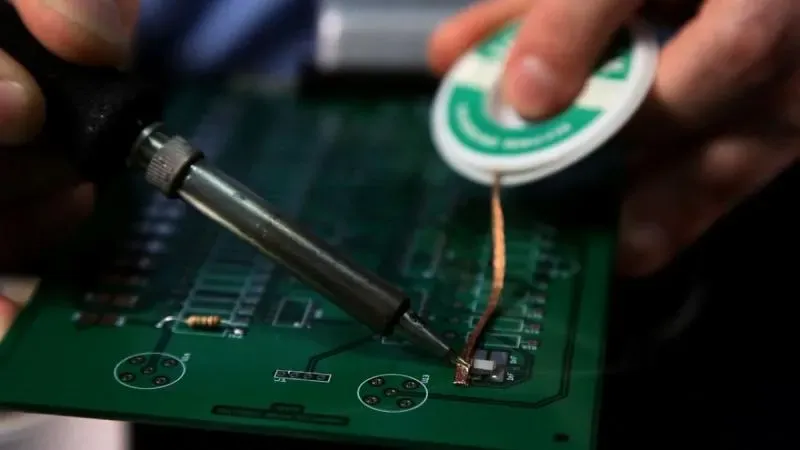

Tips for Successful Lead-Free Soldering in PCB Assembly
To ensure a seamless shift to lead-free soldering, follow these practical tips:
- Choose the Right Alloy: Match the solder composition to your application. Use SAC for reliability, SnCu for cost savings, or SnBi for low-temperature needs.
- Optimize Reflow Profiles: Adjust your soldering equipment to accommodate higher melting points, ensuring even heat distribution to avoid cold joints.
- Use Compatible Materials: Pair lead-free solder with appropriate fluxes and PCB finishes to prevent compatibility issues.
- Train Your Team: Equip your technicians with the knowledge and skills to handle lead-free materials, focusing on precision and safety.
- Test and Validate: Conduct thorough testing of your soldered joints to ensure they meet performance and reliability standards, using methods like X-ray inspection or thermal cycling tests.
By following these steps, you’ll achieve consistent, high-quality results while maintaining an eco-friendly approach to PCB assembly.
Conclusion: Building a Sustainable Future with Lead-Free Soldering
The move to lead-free soldering is more than a regulatory requirement—it’s a commitment to sustainability, safety, and innovation in PCB assembly. By understanding lead-free solder composition, exploring options like SnAgCu for high-temperature applications, and adopting cost-effective solutions, you can create eco-friendly electronics without sacrificing quality or performance. Lead-free solder RoHS compliance ensures your products meet global standards, while alternatives for lead-free soldering offer additional flexibility for specialized needs.
At every stage of your PCB assembly process, prioritizing sustainability sets you apart in a competitive market. Whether you’re just starting your transition or looking to optimize an existing lead-free workflow, the insights and tips in this guide provide a roadmap for success. Embrace lead-free soldering today and contribute to a greener, safer future for the electronics industry.
