In the world of electronics, printed circuit boards (PCBs) are the backbone of nearly every device. Traditionally, materials like FR-4 have dominated the industry due to their durability and cost-effectiveness. However, with growing concerns about electronic waste and environmental sustainability, the question arises: can biodegradable PCB materials be a viable option for high-volume manufacturing? The short answer is yes, but with caveats. While biodegradable PCB materials show promise for reducing e-waste, challenges in cost, scalability, and performance must be addressed for mass production.
In this blog, we’ll dive deep into the potential of biodegradable PCB materials, exploring their benefits, limitations, and readiness for biodegradable PCB mass production. We’ll also discuss how cost-effective biodegradable PCBs can fit into modern manufacturing and the hurdles in achieving biodegradable PCB scalability. Let’s explore this green frontier of electronics manufacturing.
Why Move Beyond FR-4? The Need for Sustainable PCB Materials
FR-4, a composite of fiberglass and epoxy resin, has been the go-to material for PCBs for decades. It offers excellent mechanical strength, thermal stability, and electrical insulation, making it ideal for a wide range of applications. However, FR-4 is not biodegradable. With millions of electronic devices discarded each year, the accumulation of non-degradable PCB waste poses a significant environmental challenge. According to the United Nations, global e-waste reached 57.4 million metric tons in 2021, with only a fraction being recycled properly.
Biodegradable PCB materials aim to address this issue by breaking down naturally over time, reducing the long-term environmental impact. These materials could revolutionize industries by aligning with stricter regulations on waste management and sustainability goals. But are they ready to replace traditional materials like FR-4 in high-volume production? Let’s break down the current landscape.
What Are Biodegradable PCB Materials?

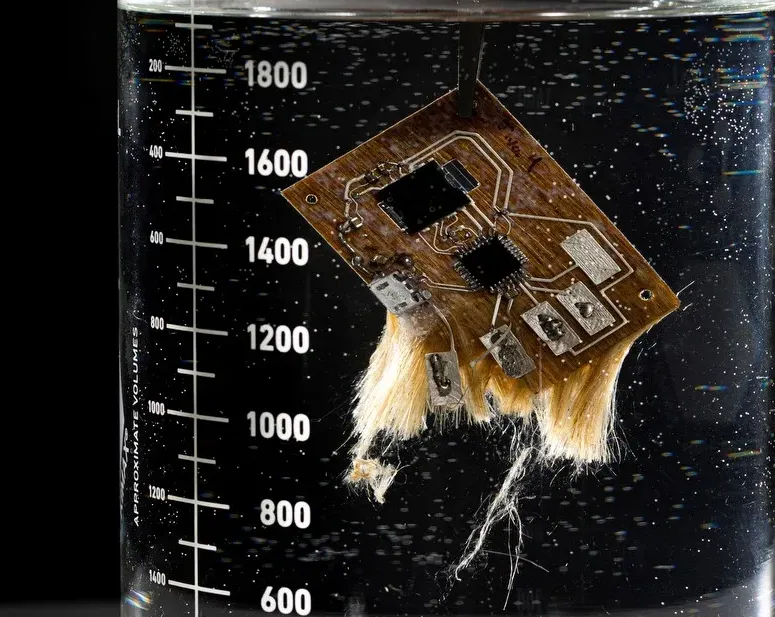

Biodegradable PCB substrates are made from organic or bio-based materials that can decompose naturally through microbial action. Unlike FR-4, which relies on synthetic resins and fiberglass, biodegradable options use materials like cellulose, polylactic acid (PLA), or other natural fibers. Some innovative substrates even incorporate recycled paper or plant-based composites to create a fully recyclable or compostable board.
These materials are designed to maintain the core functionalities of a PCB—such as providing a stable base for components and ensuring proper electrical insulation—while offering an eco-friendly end-of-life solution. However, their mechanical and thermal properties often fall short of FR-4, which limits their use in demanding applications. For instance, FR-4 can withstand temperatures up to 130°C without deforming, while many biodegradable materials start to degrade at much lower thresholds, sometimes as low as 60°C.
Despite these limitations, advancements are being made. Research into hybrid materials that combine biodegradable elements with durable coatings shows promise for improving performance without sacrificing sustainability.
Benefits of Biodegradable PCBs in Mass Production
Adopting biodegradable materials for biodegradable PCB mass production offers several advantages, especially as industries face pressure to adopt greener practices. Here are some key benefits:
- Reduced Environmental Impact: Biodegradable PCBs can decompose naturally, cutting down on landfill waste and the release of toxic chemicals during disposal.
- Compliance with Regulations: Many regions are implementing stricter e-waste laws. Using biodegradable materials helps manufacturers stay ahead of compliance requirements.
- Brand Appeal: Companies that prioritize sustainability can attract environmentally conscious customers, boosting their market reputation.
- Resource Efficiency: Some biodegradable materials are made from renewable resources, reducing reliance on non-renewable materials like petroleum-based resins.
Challenges in Achieving Cost-Effective Biodegradable PCBs
While the benefits are clear, creating cost-effective biodegradable PCBs remains a significant hurdle. Here are some of the primary challenges:
1. Higher Material Costs
Biodegradable materials often cost more to produce than FR-4. For example, while FR-4 substrates can cost as little as $0.10 per square inch for bulk orders, some biodegradable alternatives can be two to three times more expensive due to limited production scale and specialized processing requirements.
2. Performance Limitations
As mentioned earlier, biodegradable materials often lack the thermal and mechanical stability of FR-4. This makes them unsuitable for high-performance applications like aerospace or automotive electronics, where PCBs must endure extreme conditions. For instance, signal integrity—a critical factor in high-speed circuits—can be compromised in biodegradable substrates due to higher dielectric losses compared to FR-4’s typical dielectric constant of 4.5.
3. Manufacturing Compatibility
Current PCB manufacturing processes are optimized for FR-4 and similar materials. Switching to biodegradable substrates may require retooling equipment or adjusting soldering temperatures, which can increase production costs and downtime. For high-volume manufacturing, these adjustments must be seamless to avoid bottlenecks.
Scalability Issues: Is Biodegradable PCB Scalability Possible?
Achieving biodegradable PCB scalability is another critical factor in determining whether these materials can compete with traditional options. Scalability depends on several elements:
1. Supply Chain Readiness
The supply chain for biodegradable materials is not yet as robust as that for FR-4. Sourcing large quantities of high-quality bio-based substrates can be challenging, especially for manufacturers producing millions of units annually. Building a reliable supply chain will be essential for mass production.
2. Production Volume and Efficiency
High-volume manufacturing demands speed and consistency. While FR-4 can be produced and processed rapidly, biodegradable materials often require longer curing times or specialized handling, slowing down production lines. Innovations in material processing are needed to close this gap.
3. Testing and Standards
Biodegradable PCBs must meet industry standards for reliability and safety, such as those set by the Institute of Printed Circuits (IPC). Extensive testing is required to ensure these materials can handle real-world conditions, especially in critical applications. This testing phase can delay widespread adoption and add to costs.
Current Innovations in Biodegradable PCB Materials
Despite the challenges, significant progress is being made in the development of biodegradable PCB materials suitable for mass production. Researchers and companies are exploring various approaches to improve performance and reduce costs:
- Hybrid Substrates: Combining biodegradable materials with small amounts of synthetic reinforcements can enhance durability while maintaining eco-friendliness. For example, adding a thin layer of protective coating can improve thermal resistance.
- Natural Fiber Composites: Materials like flax or hemp fibers are being tested as reinforcements in biodegradable substrates, offering a balance of strength and sustainability.

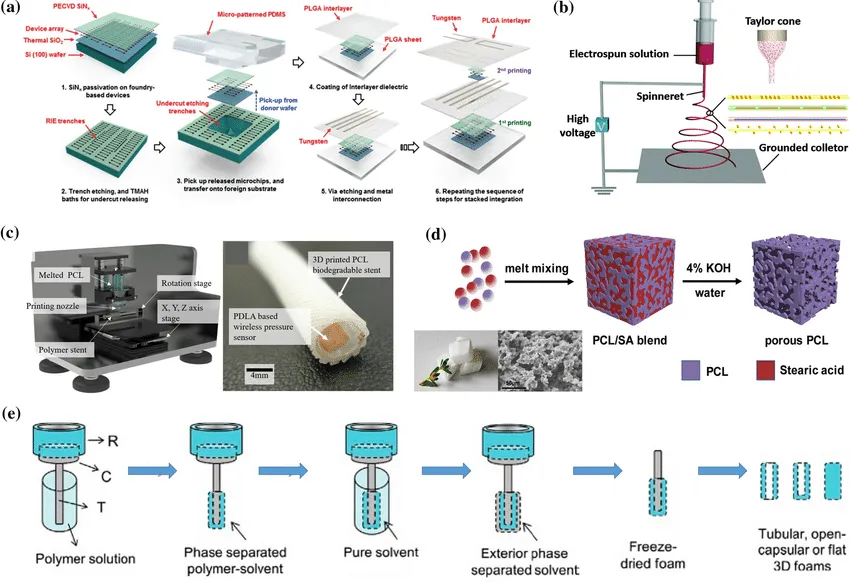

- Advanced Processing Techniques: New methods, such as low-temperature lamination, are being developed to make biodegradable materials more compatible with existing manufacturing equipment.
These innovations suggest that biodegradable PCBs could soon become a practical option for specific applications, such as consumer electronics with shorter lifecycles, where high durability is less critical.
Applications Suited for Biodegradable PCBs
Not all electronics require the robustness of FR-4. Biodegradable PCBs are particularly well-suited for certain use cases in high-volume manufacturing:
- Disposable Electronics: Products like single-use sensors or temporary IoT devices can benefit from biodegradable materials, as they are designed for short-term use and disposal.
- Consumer Gadgets: Low-power devices, such as wearable fitness trackers or smart tags, may not require extreme durability, making biodegradable substrates a feasible choice.
- Prototyping: Early-stage product development often involves frequent iterations. Using biodegradable materials for prototypes can reduce waste during testing phases.
For these applications, the focus on sustainability can outweigh the need for long-term durability, paving the way for broader adoption.
Steps Toward Cost-Effective and Scalable Biodegradable PCBs
To make biodegradable PCBs a viable option for high-volume manufacturing, the industry must take several steps:
- Invest in Research: Continued funding for material science can help develop biodegradable substrates with better thermal and mechanical properties.
- Optimize Manufacturing: Adapting production processes to handle biodegradable materials without significant cost increases is crucial for scalability.
- Build Partnerships: Collaboration between material suppliers, manufacturers, and end-users can streamline the supply chain and drive down costs.
- Educate the Market: Raising awareness about the benefits of biodegradable PCBs can create demand, encouraging more investment in sustainable solutions.
The Future of Biodegradable PCBs in High-Volume Manufacturing
The journey toward widespread adoption of biodegradable PCB materials is just beginning. While current limitations in cost, performance, and scalability pose challenges, the potential for reducing e-waste and meeting sustainability goals makes this an exciting area of innovation. As technology advances, we can expect to see more cost-effective biodegradable PCBs that rival traditional materials in performance.
For now, biodegradable PCBs are best suited for niche applications where sustainability is a priority over extreme durability. However, with ongoing research and industry collaboration, the day may come when biodegradable PCB mass production becomes the norm rather than the exception. The key lies in balancing environmental benefits with practical manufacturing needs, ensuring that biodegradable PCB scalability is achievable without compromising quality or affordability.
Conclusion: A Green Path Forward for PCB Manufacturing
Moving beyond FR-4 to embrace biodegradable PCB materials is a bold step toward a more sustainable electronics industry. While challenges remain, the progress made so far offers hope for a future where high-volume manufacturing and environmental responsibility go hand in hand. By investing in innovation and optimizing production processes, manufacturers can pave the way for greener solutions that benefit both the planet and their bottom line.
