In today’s fast-paced electronics industry, manufacturers face the challenge of producing high-quality printed circuit boards (PCBs) at scale while keeping costs low and turnaround times short. The answer lies in automation. By leveraging technologies like automated PCB assembly lines, robotic PCB assembly, and SMT automation for mass production, companies can achieve unprecedented efficiency and precision. In this blog, we’ll explore how automation is revolutionizing PCB assembly, diving deep into key components like pick and place machines for PCBs and reflow oven automation. Whether you’re an engineer, a procurement specialist, or a business owner, this guide will help you understand how to harness automation for high-volume output.
Why Automation Matters in PCB Assembly
The demand for electronic devices continues to soar, from smartphones to IoT gadgets and automotive systems. To keep up, manufacturers must produce PCBs in large quantities without sacrificing quality. Manual assembly processes are slow, error-prone, and costly when scaled. Automation addresses these pain points by streamlining workflows, reducing human error, and ensuring consistency across thousands—or even millions—of units.
Automated PCB assembly lines use advanced machinery and software to handle repetitive tasks with speed and accuracy. For instance, robotic systems can place components at a rate of tens of thousands per hour, far surpassing human capabilities. This not only boosts output but also cuts down on labor costs and production time. Let’s dive into the core elements of this transformation and see how they work together to optimize high-volume production.

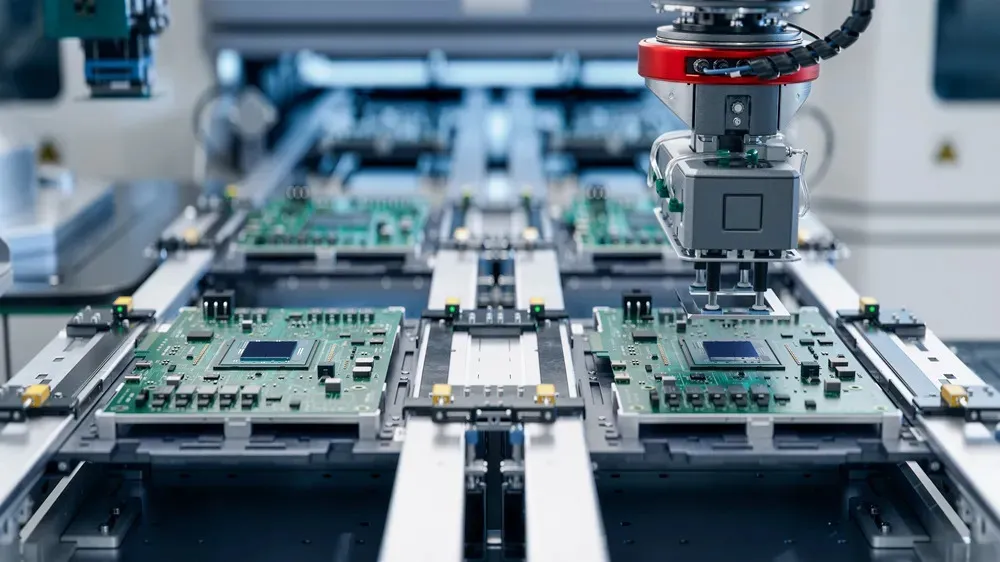

The Core of Automation: Automated PCB Assembly Lines
An automated PCB assembly line is the backbone of modern electronics manufacturing. It integrates multiple machines and processes into a seamless workflow, from applying solder paste to inspecting finished boards. These lines are designed to handle high-volume production with minimal human intervention, ensuring consistent results even during 24/7 operation.
A typical automated line starts with a stencil printer that applies solder paste to the PCB. The board then moves to a pick and place machine, which positions components with pinpoint accuracy. From there, it passes through a reflow oven to solidify the connections. Each step is synchronized using conveyor systems and controlled by software that monitors performance and flags issues in real time.
The benefits are clear: automated lines can process thousands of boards per day, with error rates often below 0.1%. This level of efficiency is critical for industries like consumer electronics, where tight deadlines and high demand are the norm. By investing in an automated PCB assembly line, manufacturers can scale operations without compromising on quality.

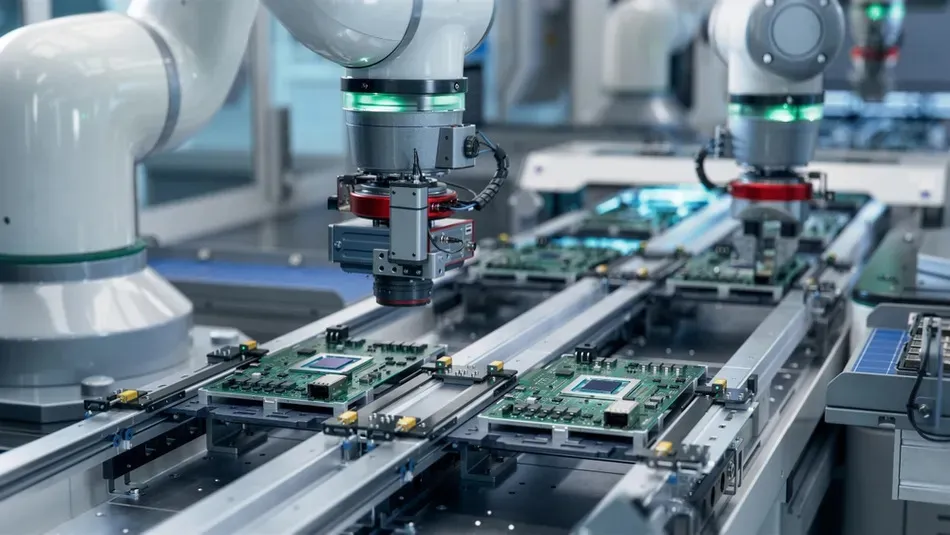

Robotic PCB Assembly: Precision at Scale
Robotic PCB assembly takes automation to the next level by using advanced robots to handle complex tasks. These systems are equipped with vision systems and programmable arms that can place components as small as 0.4mm x 0.2mm with micron-level precision. This capability is essential for modern PCBs, which often feature densely packed components and intricate designs.
Unlike traditional assembly methods, robotic systems can work continuously without fatigue. They can also adapt to different board designs through software updates, making them ideal for manufacturers who produce a variety of products. For example, a robotic system might handle 50,000 component placements per hour, compared to a human operator’s limit of a few hundred. This speed and accuracy make robotic PCB assembly a game-changer for high-volume output.
SMT Automation for Mass Production: Speed and Consistency
Surface Mount Technology (SMT) automation is a cornerstone of mass production in PCB assembly. SMT allows components to be mounted directly onto the surface of a board, enabling smaller, lighter, and more efficient designs. When paired with automation, SMT becomes a powerhouse for high-volume manufacturing.
SMT automation for mass production involves a series of machines working in tandem. First, a solder paste printer applies paste to specific areas of the board. Then, a pick and place machine positions surface mount devices (SMDs) at speeds of up to 100,000 components per hour. Finally, the board passes through a reflow oven to melt the solder and secure the components. The entire process is monitored by automated inspection systems that detect defects like misaligned components or insufficient solder.
The impact of SMT automation is staggering. It reduces production time by up to 70% compared to through-hole technology, while also improving reliability. For manufacturers aiming to produce millions of units annually, SMT automation is non-negotiable.

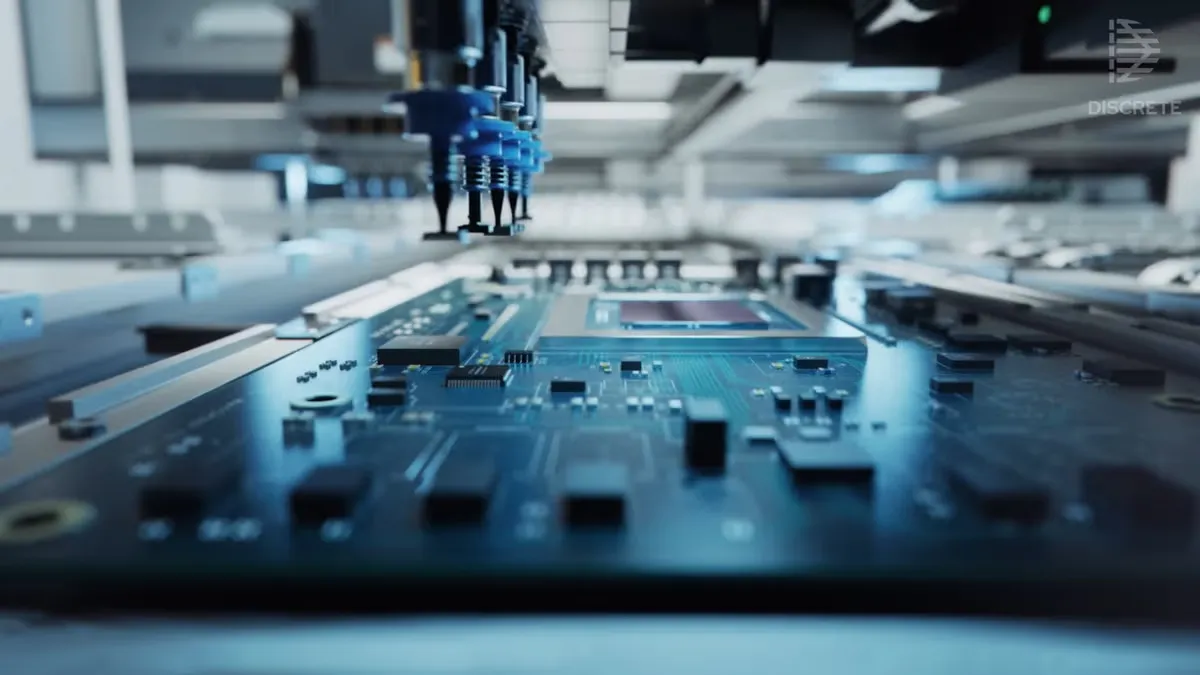

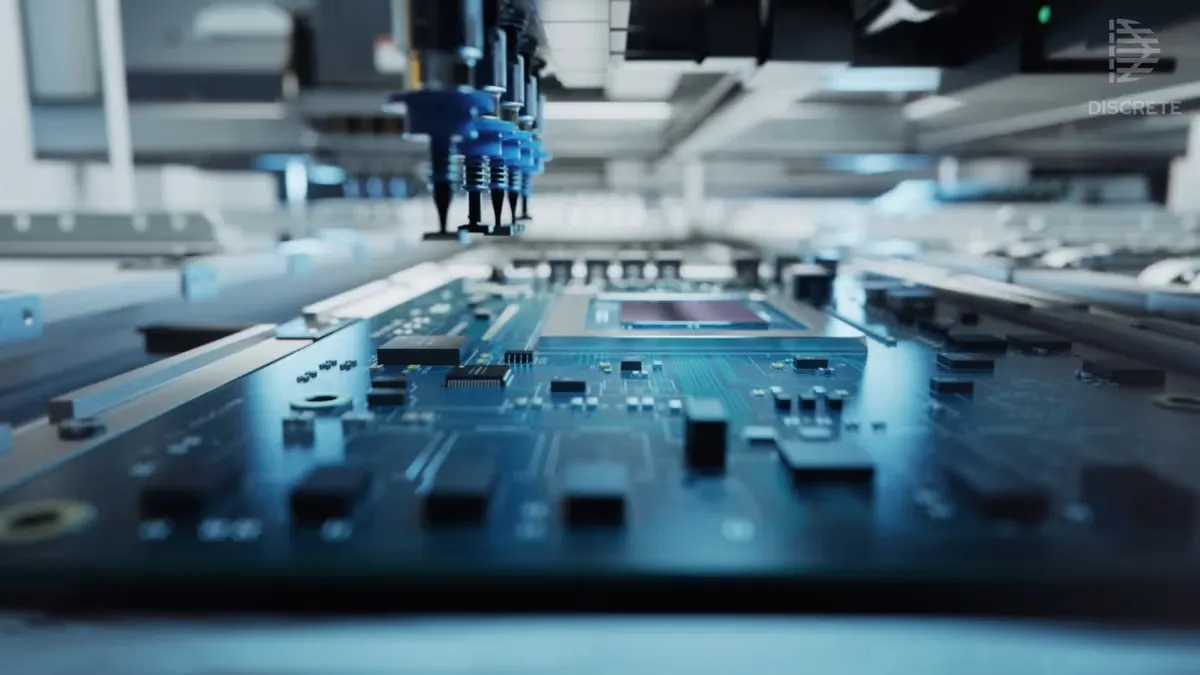

Pick and Place Machine for PCB: The Heart of Automation
At the center of any automated PCB assembly line is the pick and place machine. This equipment is responsible for placing components onto the board with speed and precision, making it a critical factor in achieving high-volume output. Modern pick and place machines for PCBs are equipped with multiple heads and advanced vision systems, allowing them to handle a wide range of component sizes and shapes.
For instance, high-end machines can achieve placement rates of 150,000 components per hour with an accuracy of ±0.01mm. This level of performance ensures that even the most complex boards, such as those used in 5G devices with hundreds of tiny components, are assembled flawlessly. Additionally, these machines can store thousands of component profiles, enabling quick changeovers between different production runs.
By optimizing the pick and place process, manufacturers can significantly reduce bottlenecks in their assembly lines. This not only boosts output but also minimizes waste, as fewer components are misplaced or damaged during assembly.
Reflow Oven Automation for PCB: Ensuring Strong Connections
Once components are placed on a PCB, they need to be securely attached using solder. This is where reflow oven automation for PCB assembly comes into play. A reflow oven heats the board to a precise temperature, melting the solder paste and forming strong electrical connections between components and the board.
Automated reflow ovens are designed for consistency and efficiency. They use multiple heating zones to gradually raise and lower the temperature, preventing thermal shock to delicate components. Advanced models also feature real-time monitoring systems that adjust settings based on the board’s thermal profile, ensuring optimal results for every batch.
For high-volume production, reflow oven automation is essential. It can process hundreds of boards per hour, with temperature control accurate to within ±1°C. This precision reduces defects like cold solder joints, which can cause failures in the field. By integrating automated reflow ovens into their lines, manufacturers can achieve higher yields and better product reliability.
Benefits of Automation for High-Volume PCB Production
The shift to automation in PCB assembly offers a range of benefits that directly impact a manufacturer’s bottom line and market competitiveness. Here are some of the most significant advantages:
- Increased Output: Automated systems can operate continuously, producing thousands of boards per day. This scalability is crucial for meeting large orders on tight schedules.
- Improved Quality: With error rates often below 0.05%, automation ensures consistent results across every unit, reducing returns and warranty claims.
- Cost Efficiency: While the initial investment in automation is high, the long-term savings on labor, materials, and rework make it a cost-effective choice.
- Faster Turnaround: Automation cuts production time by up to 80% compared to manual methods, allowing manufacturers to respond quickly to market demands.
- Flexibility: Modern automated systems can handle a variety of board designs and component types, making them suitable for diverse product portfolios.
These benefits make automation an indispensable tool for any manufacturer looking to stay ahead in the competitive electronics industry.
Challenges and Solutions in Implementing Automation
While the advantages of automation are undeniable, implementing it comes with challenges. High upfront costs can be a barrier, especially for smaller manufacturers. A single automated line with robotic systems and advanced machinery can cost hundreds of thousands of dollars. However, financing options and modular systems allow companies to start small and scale over time.
Another challenge is the need for skilled technicians to operate and maintain automated equipment. Training programs and partnerships with equipment suppliers can bridge this gap, ensuring that staff are equipped to handle complex systems. Additionally, integrating automation into existing workflows may require redesigning production floors, but careful planning and simulation software can minimize disruptions.
By addressing these challenges head-on, manufacturers can unlock the full potential of automation and position themselves for long-term success in high-volume PCB production.
The Future of PCB Assembly Automation
As technology continues to evolve, so does the landscape of PCB assembly automation. Industry 4.0 principles, such as the Internet of Things (IoT) and smart manufacturing, are already making their mark. Connected machines can communicate with each other, optimizing workflows in real time. For example, a pick and place machine might automatically adjust its speed based on data from the reflow oven downstream, reducing bottlenecks.
Artificial intelligence (AI) is also playing a growing role. AI algorithms can predict maintenance needs, detect defects before they occur, and even optimize component placement for better signal integrity. These advancements promise to make automated PCB assembly lines even more efficient, pushing the boundaries of what’s possible in high-volume production.
Conclusion: Embracing Automation for Competitive Advantage
Automation has unleashed a new era in PCB assembly, transforming how manufacturers achieve high-volume output. From automated PCB assembly lines and robotic PCB assembly to SMT automation for mass production, every aspect of the process is being optimized for speed, precision, and cost efficiency. Key technologies like pick and place machines for PCBs and reflow oven automation are at the heart of this revolution, enabling manufacturers to meet the growing demands of the electronics industry.
By embracing these innovations, companies can scale their operations, improve product quality, and stay ahead of the competition. Whether you’re producing consumer gadgets or industrial equipment, automation is the key to unlocking your full potential. As technology continues to advance, the possibilities for PCB assembly are limitless, and now is the time to invest in the future of manufacturing.
