Microchip dsPIC33F Features and PLM Solution

Overview

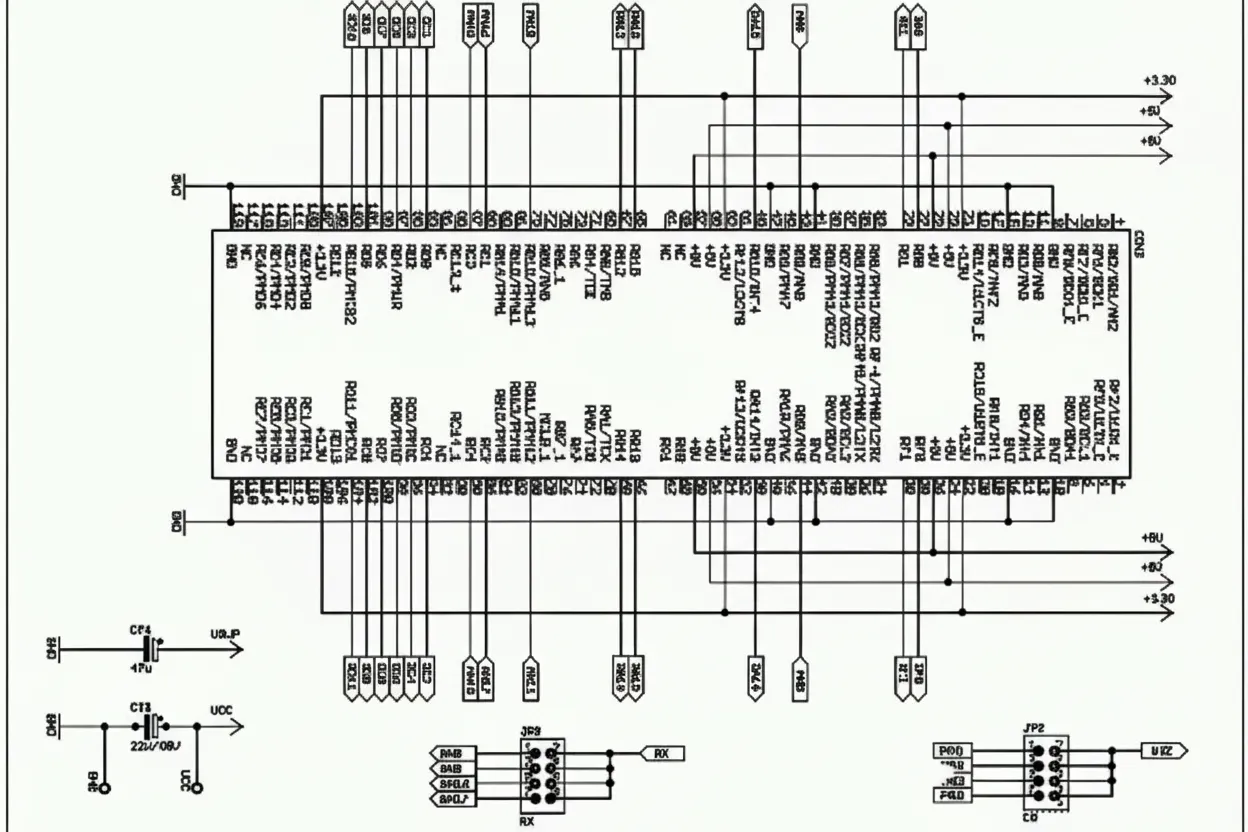

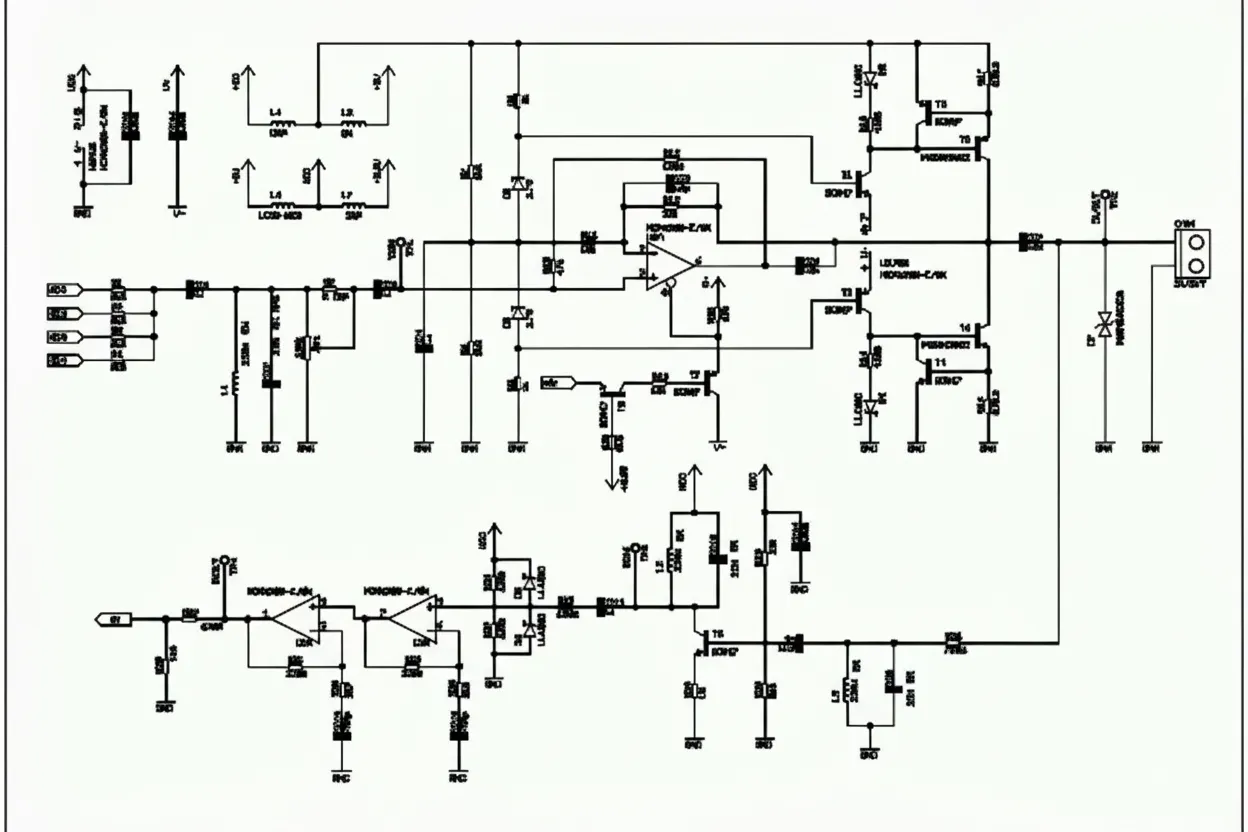

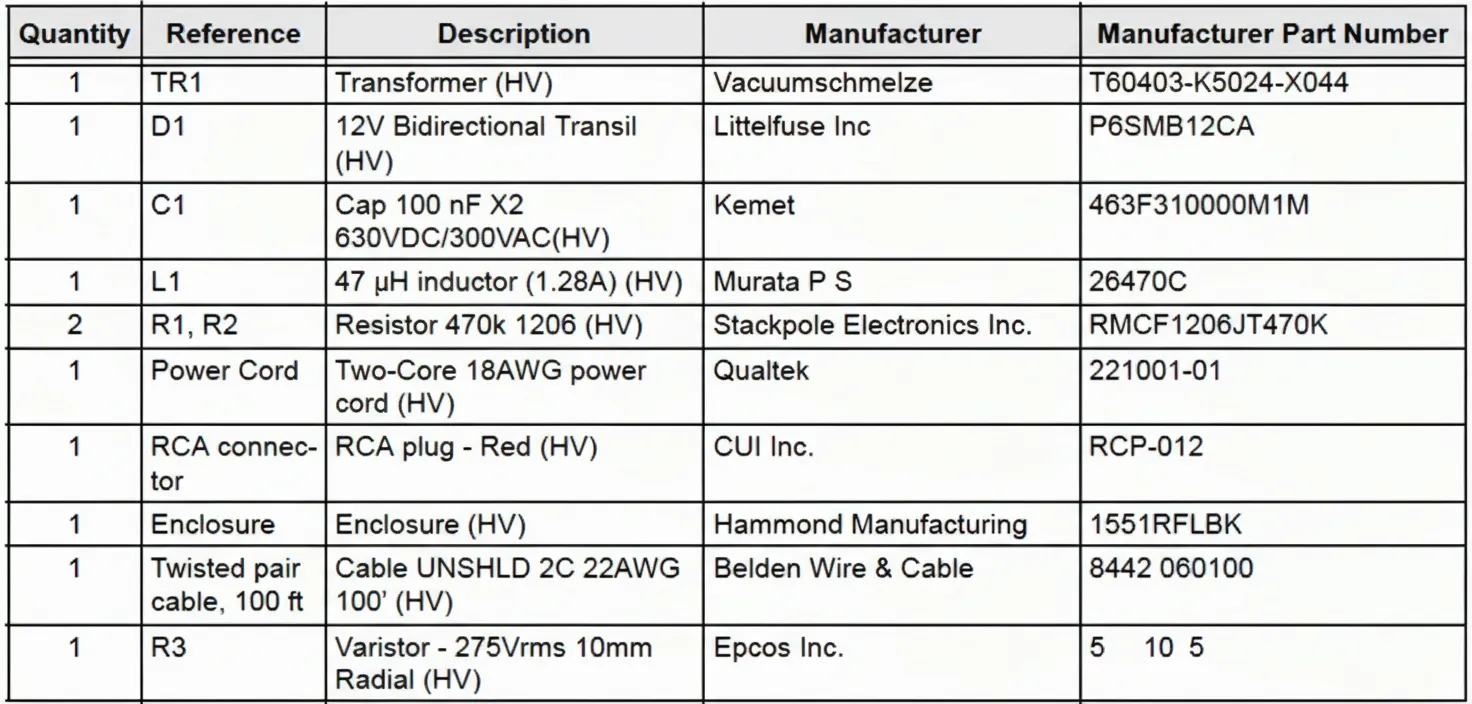

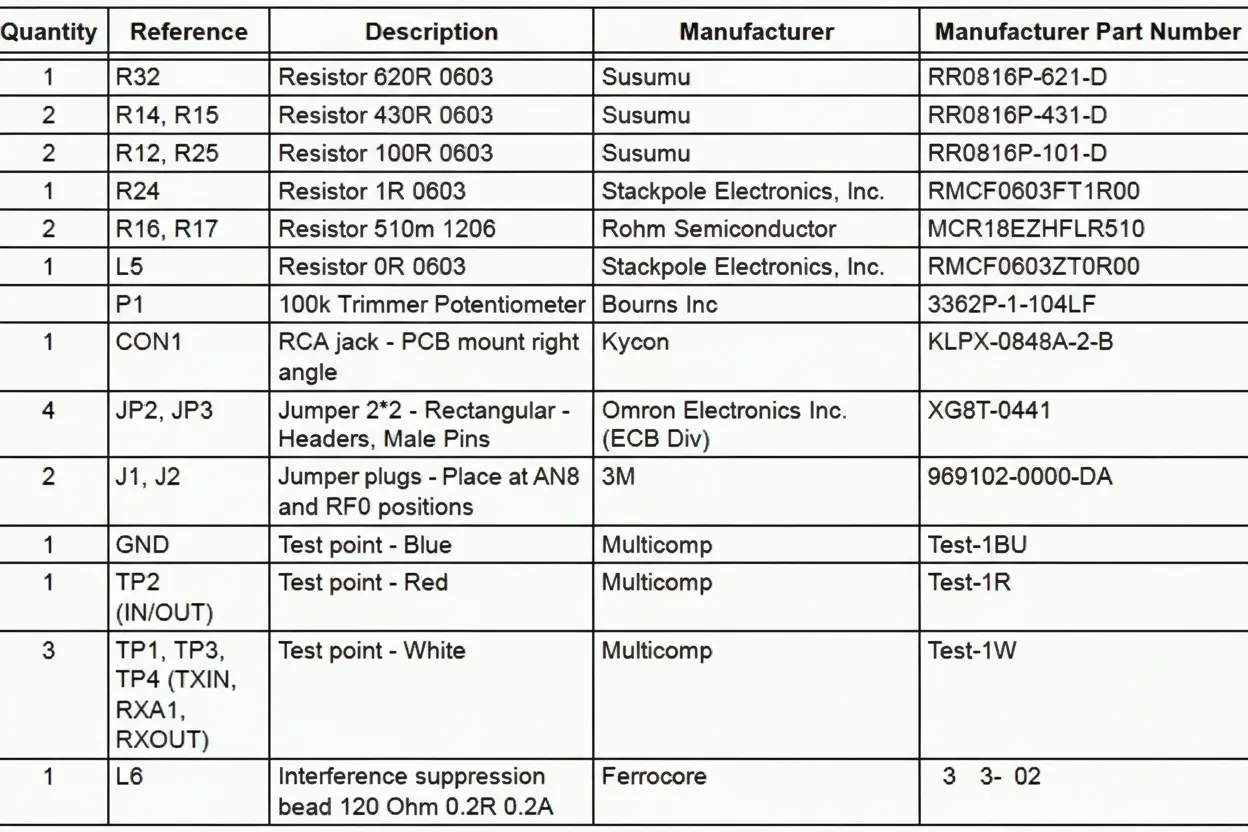

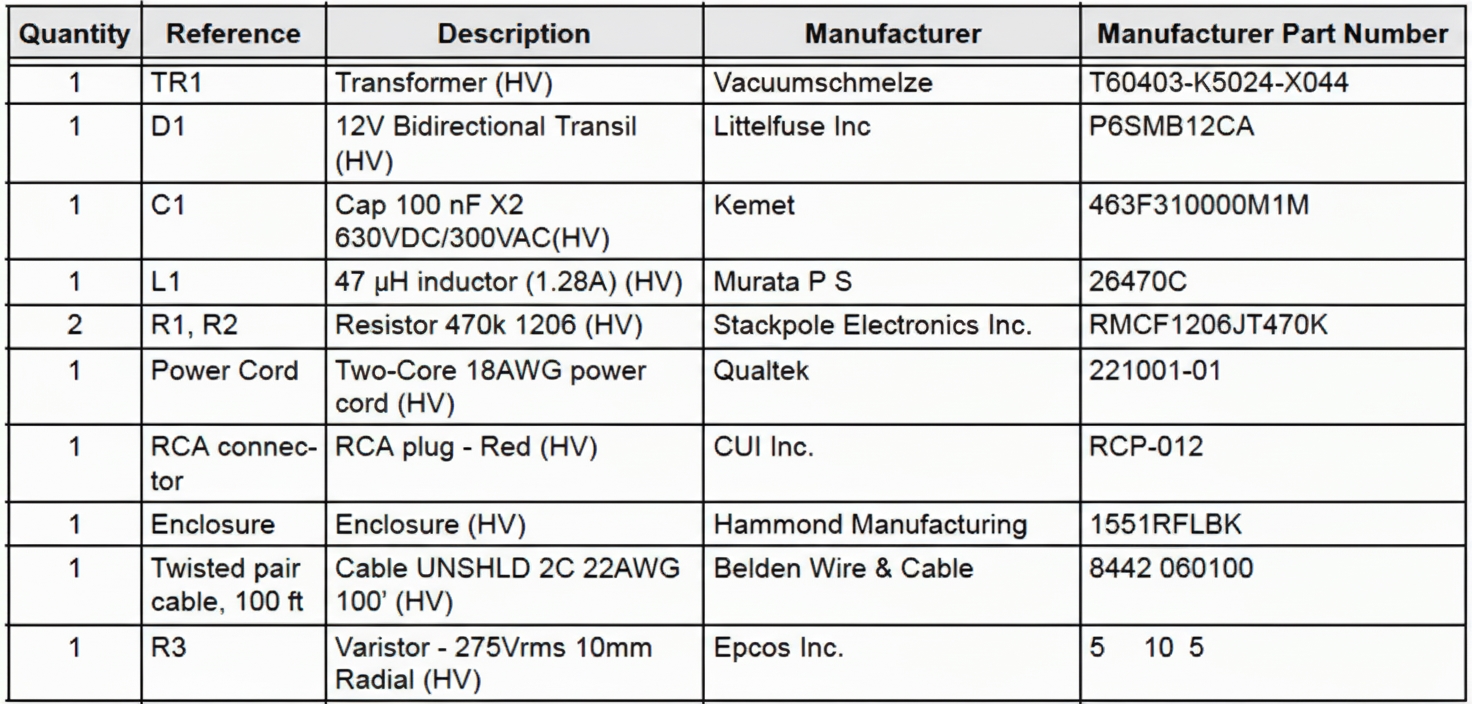

Microchip dsPIC33FJ06GS101/X02 and dsPIC33FJ16GSX02/X04 combine DSP functionality with a high-performance 16-bit microcontroller architecture. They can reach up to 40 MIPS at 3.0–3.6 V, provide about 35 programmable digital I/O pins, and include 16 KB of flash. The dsPIC33F family integrates high-speed PWM, an interrupt controller, high-speed comparators, a 10-bit ADC, and a range of peripherals. Typical applications include power line communication for electricity meters, home energy monitoring, and smart grid systems. The power-line modem (PLM) PICtail Plus daughtercard provides schematics, a bill of materials, and PCB component placement for a PLM front end.

Devices and DSP/MCU Capabilities

The dsPIC33FJ06GS101/X02 and dsPIC33FJ16GSX02/X04 devices offer extensive digital signal controller (DSC) features along with a high-performance 16-bit microcontroller architecture.

Key Features

Operating range:
- Up to 40 MIPS operation (at 3.0–3.6 V)
- Industrial temperature range: -40 C to +85 C
- Extended temperature range: -40 C to +125 C
High-performance DSC CPU:
- Improved Harvard architecture
- C-compiler optimized instruction set
- 16-bit data path
- 24-bit instruction width; linear program memory addressing up to 4M instructions
- Linear data memory addressing up to 64 KB
- 83 basic instructions: mostly 1 word/1 cycle
- Two 40-bit accumulators with rounding and saturation options
- Flexible addressing modes: indirect, modulo, bit-reverse
- Software stack
- 16x16 fractional/integer multiply
- 32/16 and 16/16 divide operations
- Single-cycle multiply-and-accumulate with accumulator writeback and dual data fetch
- Shift capability up to 40 bits with +/-16-bit shift amount

Digital I/O

Peripheral pin select functionality
Up to 35 programmable digital I/O pins
Wake-on-change interrupts on up to 30 pins
Output pins driven from 3.0 V to 3.6 V
5 V-tolerant outputs with open-drain configuration
5 V-tolerant digital inputs (except RB5)
16 mA source/sink on all PWM pins

Memory

Flash program memory up to 16 KB
Data SRAM up to 2 KB
Flash program memories with appropriate protection

Timers and Peripherals

Timers/counters: up to three 16-bit timers, which can be paired to form a 32-bit timer
Input capture: up to two channels, capture on rising, falling, or both edges; 16-bit capture input with 4-deep FIFO per capture
Output compare: up to two channels; single or dual 16-bit compare; 16-bit center-aligned PWM mode
4-wire SPI:
- Frame support for simple codec I/O interface
- 1-deep FIFO buffer
- Supports 8-bit and 16-bit data
- Supports all serial clock formats and sampling modes
I2C:
- Full multi-master and slave support
- 7-bit and 10-bit addressing
- Bus collision detection and arbitration
- Integrated signal conditioning
- Slave address masking
UART:
- Address bit detection
- Error interrupts for UART
- Wake from sleep using start bit
- 4-character TX and RX FIFO buffers
- LIN bus support
- IrDA encoding/decoding in hardware
- High-speed baud rate mode
- Hardware CTS and RTS support

Interrupt Controller

5-cycle latency
Up to 35 interrupt sources
Up to 3 external interrupts
Seven programmable priority levels
Four processor exceptions

High-speed PWM Module

Up to 4 PWM generators with 4 to 8 outputs
Each of 8 PWM outputs has its own time base and duty cycle
Dead time for rising and falling edges
Duty-cycle resolution: 1.04 ns
Dead-time resolution: 1.04 ns
Phase-shift resolution: 1.04 ns
Frequency resolution: 1.04 ns
Supported PWM modes:
- Standard edge-aligned
- Truly independent outputs
- Complementary
- Center-aligned
- Push-pull
- Multi-phase
- Variable phase
- Fixed off-time
- Current reset
- Current limiting
Independent fault/current-limit inputs for each of the 8 PWM outputs
Output commutation control
Special event triggers
PWM capture capability
Prescaler for input clock
Dual trigger from PWM to ADC
PWMxL/PWMxH output swapping
PWM4H/PWM4L remappable
Dynamic changes to PWM frequency, duty cycle, and phase
Disable individual PWM generators
Leading-edge blanking (LEB) functionality

Analog Comparators and ADC

High-speed analog comparators:
- Up to four comparators with 20 ns response time
- Each comparator has a 10-bit DAC; DAC outputs available on DACOUT pins
- Programmable output polarity and selectable inputs
- ADC sampling and conversion capability
- PWM module interface for duty-cycle and period control and fault detection
High-speed 10-bit ADC:
- 10-bit resolution
- Up to 12 input channels divided into 6 conversion pairs
- Two internal reference voltage monitor inputs in pairs
- Successive approximation register (SAR) converters for parallel conversion of analog pairs:
  - 4 Msps for devices with two SARs
  - 2 Msps for devices with one SAR
- Dedicated result buffers per analog channel
- Independent trigger sources per analog input conversion pair

Power and System Management

On-chip 2.5 V regulator
Real-time switching between clock sources with fast wake-up
CMOS flash technology with idle, sleep, and standby modes:
- Low-power, high-speed flash
- Full-static design
- 3.3 V (±10%) operating voltage
- Industrial and extended temperature options
Flexible clock options:
- External, crystal, resonator, internal RC
- Phase-locked loop (PLL) with 120 MHz VCO
- Main crystal oscillator range: 3 MHz to 40 MHz
- Internal low-power RC (LPRC) at 32 kHz
- Internal fast RC (FRC) at 7.37 MHz
Power-on reset (POR) and brown-out reset (BOR)
Power-up timer (PWRT) and oscillator start-up timer (OST)
Watchdog timer with RC oscillator
Fail-safe clock monitor (FSCM)
Reset from multiple sources
In-circuit serial programming (ICSP)
Reference oscillator output

Applications

AC-to-DC converters
Automotive HID
Battery chargers
DC-DC converters
Digital lighting
Induction cooking
LED ballasts
Renewable power and pure sine-wave inverters
Uninterruptible power supplies (UPS)

Packages

18-pin SOIC
28-pin SPDIP / SOIC / QFN
44-pin TQFP / QFN

Figures

dsPIC33F side view

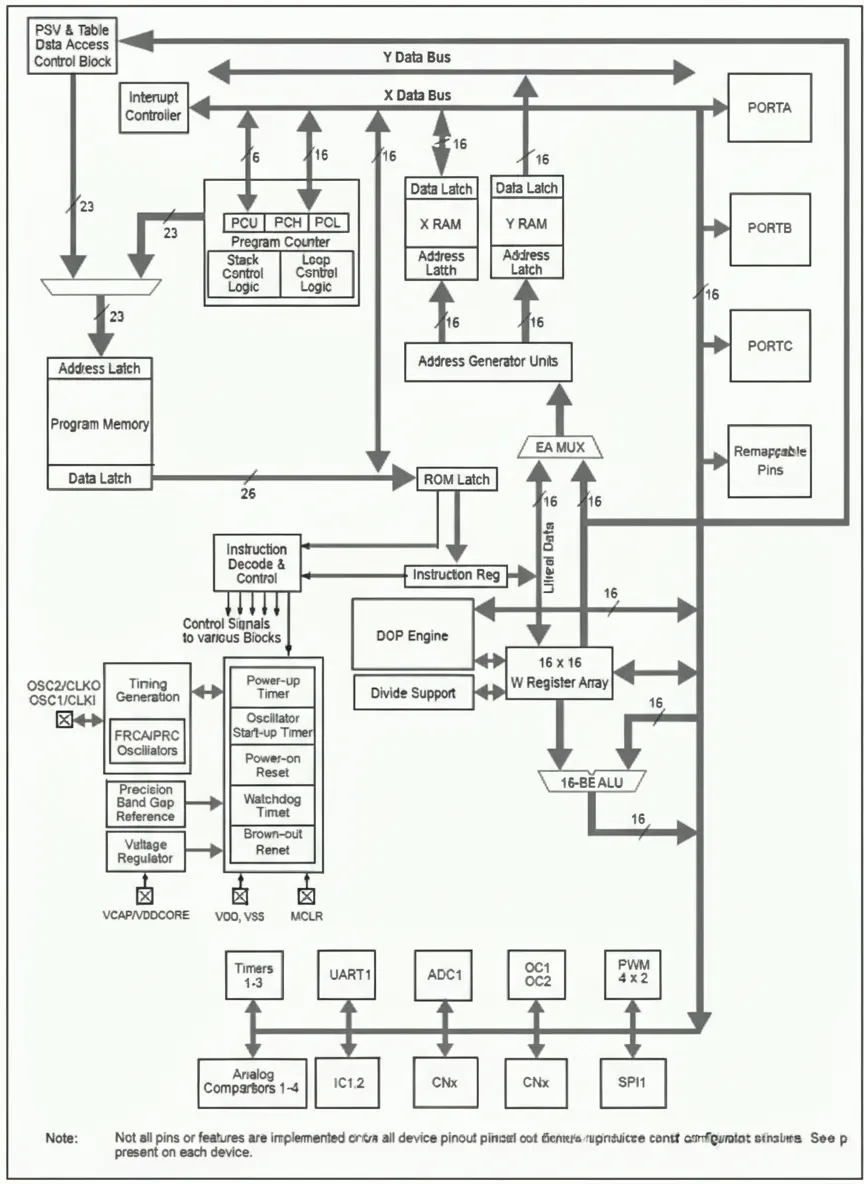

Figure 1. dsPIC33F side view

dsPIC33F recommended minimum connections

Figure 2. Recommended minimum connections for dsPIC33F

Power-line Modem (PLM) Overview

The power-line modem (PLM), also known as power-line communication (PLC) modem, uses existing power lines as a cost-effective communication medium. This technology supports a wide range of applications including automatic meter reading (AMR), per-device energy monitoring, and lighting, heating, and solar applications. The data rate and robustness of the PLC link determine the suitable application range.

BPSK 6.0 kbps PLM PICtail Plus Daughtercard

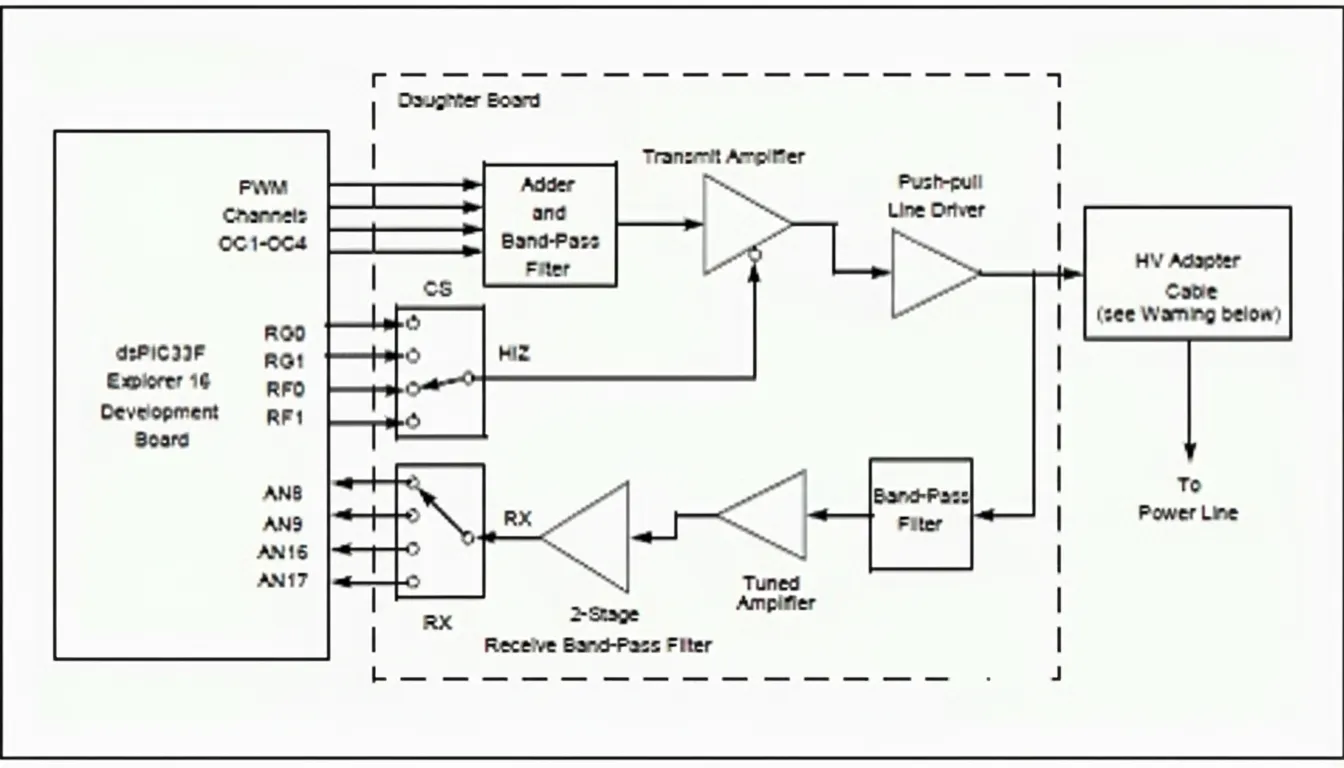

The BPSK 6.0 kbps PLM PICtail Plus daughtercard integrates the analog front-end (AFE) required for a software-based modem implemented on a dsPIC33F digital signal controller (DSC) on an Explorer 16 development board. The daughtercard plugs into an expansion socket on the Explorer 16. The HV adapter cable included in the kit connects the daughtercard to the power line and includes the circuits needed for noise filtering and isolation. The daughtercard and HV adapter cable are designed to operate at 72 kHz (CENELEC-A band).

The daughtercard does not implement any particular modulation method in hardware. The dsPIC33F DSC generates four PWM channels in software. When summed and properly filtered by the daughtercard circuitry, these PWM outputs approximate a sine wave. BPSK modulation is implemented in software by controlling the PWM channels. On the receive path, the modulated signal on the power line is filtered and amplified by the daughtercard before being presented to the ADC input of the dsPIC33F DSC. The ADC module converts the received signal to the digital domain, where additional software filtering and demodulation recover the data.

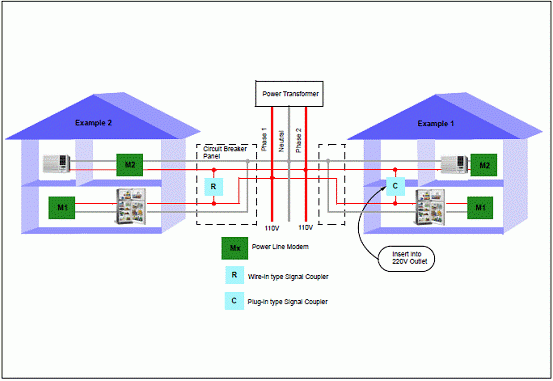

Power line BPSK application example
