Overview

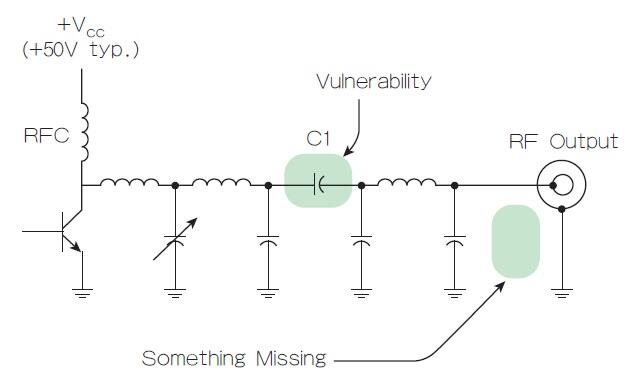

RF power amplifiers are a key component of wireless transmitters. In a transmitter's front-end circuitry, the RF signal produced by the modulator or oscillator typically has very low power and must be amplified through one or more power-amplifier stages to reach sufficient RF power for antenna radiation. RF power amplifiers play an essential role in wireless communication systems.
Key specifications
- Output power and 1 dB compression point (P1dB): When input power exceeds a certain level, the transistor gain begins to drop and the output approaches saturation. The 1 dB compression point is the output power at which the amplifier's gain is reduced by 1 dB relative to the small-signal gain.
- Gain: Operating gain is the primary metric of an amplifier's amplification capability. Gain flatness is the range of gain variation across the operating bandwidth at a given temperature.
- Operating frequency range: The linear frequency range over which the amplifier can operate normally.
- Efficiency: The ratio of RF output power to the DC power supplied to the transistor, which affects overall system power consumption.
- Intermodulation distortion (IMD): The mixing products generated when two or more input tones pass through a nonlinear amplifier; IMD degrades signal quality.
- Third-order intercept point (IP3): A measure of linearity; a higher IP3 indicates better linearity and lower intermodulation relative to the desired signals.
- Harmonic distortion: Higher-order harmonics produced by the amplifier must be reduced, typically with filtering, to meet spectral emission requirements.
- Dynamic range: The difference between the smallest detectable signal and the maximum input power for linear operation.
- Input and output standing wave ratio (SWR): Indicates the matching quality of the amplifier with the system; mismatches can affect gain stability and group delay.
Design and selection considerations
The performance and stability of an RF power amplifier in a wireless system are directly affected by these specifications. When designing or selecting an RF power amplifier, evaluate these parameters together to ensure they meet the requirements of the specific application.
