Unlocking PCB Aesthetics: The Definitive Guide to Glossy Solder Masks

If you're looking to elevate your PCB design appearance, a glossy solder mask might be the perfect choice. This finish not only enhances the visual appeal of your printed circuit board but also offers practical benefits like improved readability of markings and a professional look. In this comprehensive guide, we'll dive deep into the world of glossy solder masks, exploring their impact on PCB aesthetics, the differences compared to matte finishes, and how to choose the right finish for your project.

What Is a Glossy Solder Mask and Why Does It Matter for PCB Aesthetics?

A solder mask is a thin layer of polymer applied to the surface of a printed circuit board (PCB) to protect the copper traces from oxidation, prevent short circuits, and provide insulation. While its primary role is functional, the solder mask also plays a significant role in the PCB design appearance. A glossy solder mask, as the name suggests, has a shiny, reflective finish that gives the board a sleek and polished look.

The visual appeal of a glossy finish can make a big difference, especially for consumer electronics or products where the PCB is visible to the end user. A glossy solder mask can make colors appear more vibrant and markings more legible under various lighting conditions. This finish can transform a standard board into a visually striking component that reflects quality and attention to detail.

Glossy vs. Matte Solder Mask: Key Differences in Appearance and Function

When choosing a solder mask finish for your PCB, the decision often comes down to glossy versus matte. Each finish has its own unique characteristics that affect both the aesthetics and functionality of the board. Let's break down the differences to help you make an informed choice.

Visual Appeal

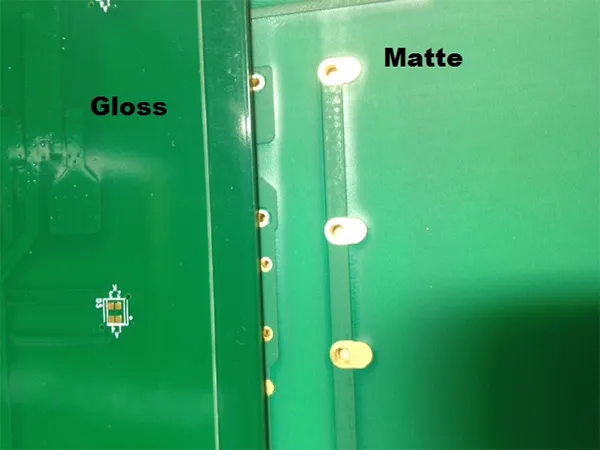

A glossy solder mask offers a shiny, mirror-like surface that reflects light, making the board look modern and high-end. This finish enhances the vibrancy of colors, such as deep greens, blues, or reds, and makes silkscreen markings stand out more clearly. On the other hand, a matte solder mask has a non-reflective, flat finish that can look more subtle and understated. While matte finishes are less prone to showing fingerprints or smudges, they may dull the vibrancy of colors and markings.

Light Reflection and Readability

One of the standout features of a glossy finish is its ability to reflect light. While this can enhance readability of text and symbols under direct lighting, it may cause glare in certain environments, making it harder to inspect the board. Matte finishes, by contrast, diffuse light and reduce glare, which can be beneficial during manual inspections or in bright workspaces.

Durability and Maintenance

Glossy solder masks are often more susceptible to showing scratches, fingerprints, and dust compared to matte finishes. If your PCB will be handled frequently or exposed to harsh conditions, a glossy finish might require more care to maintain its pristine look. Matte finishes are generally more forgiving in this regard, hiding minor imperfections better.

Benefits of Choosing a Glossy Solder Mask for PCB Design Appearance

Opting for a glossy solder mask can bring several advantages, particularly when aesthetics are a priority. Here are some key benefits to consider:

• Enhanced Visual Appeal: The shiny finish gives your PCB a premium, polished look that can impress clients or end users, especially in consumer-facing products like gaming hardware or smart devices.
• Better Color Saturation: Glossy finishes tend to make solder mask colors pop, whether you choose a classic green, a bold red, or a sleek black. This can be a critical factor in branding or design consistency.
• Improved Legibility: Silkscreen markings, such as component labels or logos, often appear sharper and more readable on a glossy surface, especially under good lighting conditions.
• Professional Presentation: A glossy solder mask can convey a sense of quality and precision, making it ideal for prototypes or products showcased at trade shows and exhibitions.

Potential Drawbacks of Glossy Solder Masks

While glossy solder masks excel in visual appeal, they aren't without their challenges. Being aware of these potential drawbacks can help you decide if this finish aligns with your project needs.

• Glare Issues: The reflective nature of glossy finishes can create glare under certain lighting, which might hinder inspection or readability in specific environments.
• Visible Imperfections: Fingerprints, dust, and minor scratches are more noticeable on a glossy surface, requiring extra care during handling and assembly.
• Limited Durability in Harsh Conditions: If your PCB will be exposed to frequent handling or abrasive environments, a glossy finish might lose its luster over time.

How Glossy Solder Masks Impact PCB Manufacturing and Assembly

The choice of solder mask finish doesn't just affect aesthetics; it can also influence the manufacturing and assembly process. During production, the application of a glossy solder mask requires precise control to achieve a uniform, smooth finish without defects like bubbles or uneven coating. Manufacturers often use liquid photoimageable (LPI) solder masks for glossy finishes, which are cured under UV light to create a consistent, shiny surface.

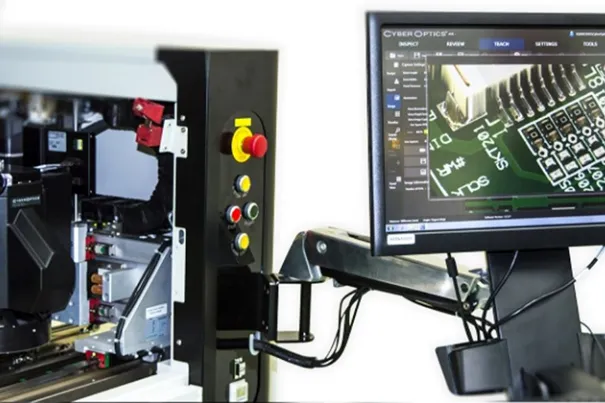

In terms of assembly, a glossy finish can make automated optical inspection (AOI) more challenging due to light reflection. Engineers may need to adjust inspection equipment settings or lighting angles to ensure accurate detection of defects. However, the enhanced visibility of markings on a glossy surface can aid in manual assembly, reducing errors when placing components.

Choosing the Right Solder Mask Color for Maximum Visual Appeal

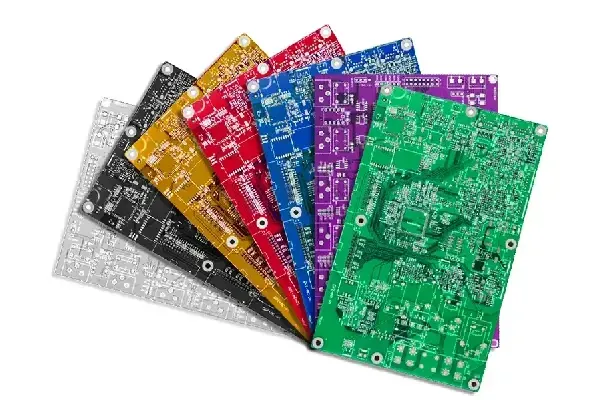

The color of your solder mask works hand-in-hand with the finish to define the overall PCB aesthetics. While green is the traditional choice due to its historical use and good contrast with white silkscreen, other colors like black, blue, red, and white are increasingly popular for their unique visual impact. Here's how a glossy finish can enhance specific colors:

• Green: A glossy green solder mask maintains the classic PCB look while adding a modern, shiny twist that makes the board stand out.
• Black: Glossy black creates a sleek, sophisticated appearance, ideal for high-end electronics. However, it may show dust and scratches more prominently.
• Blue: A glossy blue finish offers a vibrant, eye-catching look that works well for creative or branded designs.
• Red: Glossy red is bold and striking, perfect for making a statement in consumer products or promotional prototypes.
• White: A glossy white solder mask provides a clean, minimalist aesthetic but requires careful handling to avoid visible smudges.

When selecting a color, consider the environment in which the PCB will be used and the impression you want to create. A glossy finish will amplify the color's intensity, so choose a shade that aligns with your design goals.

Tips for Designing PCBs with Glossy Solder Masks

To make the most of a glossy solder mask in your PCB design, consider the following practical tips:

1. Prioritize Silkscreen Contrast: Ensure that your silkscreen markings (text, logos, or symbols) contrast well with the solder mask color. For example, white silkscreen on a glossy black or blue mask offers excellent readability.
2. Minimize Handling During Assembly: To preserve the glossy finish, limit direct contact with the board during manufacturing and assembly. Use gloves or automated processes when possible.
3. Test Under Different Lighting: Before finalizing your design, inspect the PCB under various lighting conditions to ensure that glare won't interfere with readability or inspection.
4. Consider Protective Coatings: If durability is a concern, explore additional protective coatings or conformal coatings that can be applied over the glossy solder mask to reduce wear and tear.
5. Work Closely with Your Manufacturer: Communicate your aesthetic goals and functional requirements to ensure the glossy finish is applied evenly and meets your expectations.

Applications Where Glossy Solder Masks Shine

Glossy solder masks are particularly well-suited for specific applications where PCB aesthetics play a crucial role. Some common use cases include:

• Consumer Electronics: Devices like smartphones, gaming consoles, and wearables often feature visible PCBs where a glossy finish can enhance the product's perceived value.
• Prototypes and Exhibitions: For prototypes showcased to investors or at trade shows, a glossy solder mask can create a professional, polished impression.
• Custom or Branded Designs: If your PCB design incorporates branding elements like logos or unique color schemes, a glossy finish can make these features stand out.
• High-End Products: Luxury or premium electronics benefit from the sophisticated look of a glossy solder mask, reinforcing the product's high-quality image.

How to Maintain the Visual Appeal of Glossy Solder Masks

Once your PCB is manufactured with a glossy solder mask, maintaining its appearance is essential to ensure it continues to look its best. Here are some practical steps to follow:

• Handle with Care: Always use gloves or tools when handling the PCB to avoid leaving fingerprints or smudges on the glossy surface.
• Clean Gently: If cleaning is necessary, use a soft, lint-free cloth and a mild, non-abrasive cleaner to wipe the surface without scratching it.
• Store Properly: Keep PCBs in protective packaging or anti-static bags when not in use to prevent dust accumulation and accidental scratches.
• Avoid Harsh Environments: Limit exposure to extreme temperatures, humidity, or abrasive materials that could degrade the glossy finish over time.

Conclusion: Elevate Your PCB Aesthetics with a Glossy Solder Mask

A glossy solder mask is a powerful tool for unlocking the full potential of PCB aesthetics. Its shiny, reflective finish can transform a standard circuit board into a visually stunning component that exudes quality and professionalism. By enhancing color vibrancy and improving the legibility of markings, a glossy finish adds significant solder mask visual appeal, making it an excellent choice for consumer electronics, prototypes, and high-end products.

However, it's important to weigh the benefits against potential challenges like glare and susceptibility to scratches. By understanding the unique characteristics of glossy solder masks and following best practices for design and maintenance, you can create PCBs that not only function flawlessly but also captivate with their appearance. Whether you're aiming to impress clients or elevate a product's design, a glossy solder mask could be the key to achieving your vision.
