When it comes to designing high-frequency flexible PCBs, choosing the right surface finish is critical for performance, reliability, and durability. A surface finish protects the copper traces on a PCB from oxidation, ensures good solderability, and maintains signal integrity, especially in high-frequency applications where even small losses can impact performance. For engineers working on bendable PCB designs or flexible circuit board assembly, the surface finish can make or break the project. In this comprehensive guide, we’ll explore how to select the best surface finish for high-frequency flex PCBs, diving into material selection, design considerations, and practical tips to optimize your flexible PCB surface finish.



Why Surface Finish Matters for High-Frequency Flexible PCBs

The surface finish on a flexible PCB serves multiple purposes. It acts as a protective layer for the copper traces, prevents corrosion, and ensures a reliable connection during assembly. For high-frequency flex PCBs, the stakes are even higher. High-frequency signals, often in the range of 1 GHz to over 40 GHz, are highly sensitive to signal loss, impedance mismatches, and interference. A poorly chosen surface finish can introduce unwanted resistance, degrade signal integrity, or fail under the mechanical stress of bending in a flexible design.

In bendable PCB designs, the surface finish must also withstand repeated flexing without cracking or peeling. This makes the decision a balancing act between electrical performance, mechanical durability, and cost. Let’s break down the key factors to consider when selecting a flexible PCB surface finish for high-frequency applications.

Key Factors in Choosing a Surface Finish for High-Frequency Flex PCBs

Before diving into specific surface finish options, it’s important to understand the main factors that influence your choice:

  • Signal Integrity: High-frequency signals require low signal loss and minimal interference. The surface finish should have low skin effect resistance and avoid introducing parasitic capacitance or inductance.
  • Mechanical Durability: Since flexible PCBs are often bent or folded during use, the finish must resist cracking or delamination under stress.
  • Solderability: A good surface finish ensures reliable soldering during flexible circuit board assembly, even for fine-pitch components common in high-frequency designs.
  • Environmental Resistance: The finish should protect against oxidation, moisture, and temperature fluctuations, especially in demanding applications like automotive or aerospace.
  • Cost and Manufacturability: Some finishes are more expensive or harder to apply on flexible substrates, so budget and production constraints play a role.

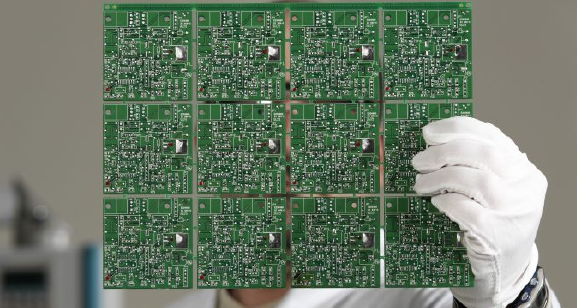

Close-up of flexible PCB surface finish for high-frequency applications

Common Surface Finishes for High-Frequency Flexible PCBs

There are several surface finish options available for flexible PCBs, each with its own strengths and weaknesses. Below, we’ll explore the most common choices and their suitability for high-frequency flex PCB designs.

1. Electroless Nickel Immersion Gold (ENIG)

ENIG is one of the most popular surface finishes for both rigid and flexible PCBs, especially in high-frequency applications. It consists of a thin layer of gold over a nickel base, providing excellent corrosion resistance and solderability.

  • Advantages for High-Frequency Flex PCBs: ENIG offers a smooth, flat surface that minimizes signal loss due to skin effect at frequencies up to 10 GHz and beyond. The gold layer ensures low contact resistance, which is crucial for maintaining signal integrity.
  • Mechanical Performance: While ENIG is durable for moderate bending, it may develop micro-cracks under extreme or repeated flexing. It’s best for applications with limited dynamic bending.
  • Cost: ENIG is more expensive than some alternatives due to the use of gold, but its performance often justifies the cost in high-frequency designs.

2. Immersion Silver

Immersion Silver is another viable option for high-frequency flexible PCBs. It involves depositing a thin layer of silver directly onto the copper traces, offering good electrical properties.

  • Advantages for High-Frequency Flex PCBs: Silver has excellent conductivity, often outperforming other finishes in terms of signal integrity at frequencies above 5 GHz. It also provides a flat surface for fine-pitch soldering.
  • Mechanical Performance: Silver is less durable under repeated bending compared to ENIG and may tarnish over time if not properly protected, affecting long-term reliability.
  • Cost: Immersion Silver is generally more affordable than ENIG, making it a cost-effective choice for some projects.

3. Immersion Tin

Immersion Tin applies a thin layer of tin over the copper, providing a cost-effective finish with decent performance for certain applications.

  • Advantages for High-Frequency Flex PCBs: Tin offers good solderability and is suitable for frequencies up to about 3 GHz. However, it introduces higher signal loss compared to ENIG or Silver at higher frequencies.
  • Mechanical Performance: Tin is prone to whisker growth (tiny metallic filaments that can cause shorts) and is less durable under flexing, making it less ideal for dynamic bendable PCB designs.
  • Cost: This is one of the most affordable options, but its limitations often outweigh the savings in high-frequency applications.

4. Organic Solderability Preservative (OSP)

OSP is a thin organic coating applied to copper traces to prevent oxidation. It’s a simpler and more environmentally friendly option compared to metal-based finishes.

  • Advantages for High-Frequency Flex PCBs: OSP can work for lower-frequency applications (up to 1 GHz), but it’s not ideal for high-frequency designs due to potential signal degradation and inconsistent performance.
  • Mechanical Performance: OSP is not well-suited for repeated bending, as the organic layer can wear off, exposing copper to oxidation.
  • Cost: OSP is very cost-effective, but its use in high-frequency flex PCBs is limited.

Comparison of surface finishes for high-frequency flexible PCBs.

PCB Material Selection for High-Frequency Flexible Designs

While the surface finish is crucial, the underlying material of the flexible PCB also plays a significant role in performance, especially for high-frequency applications. The substrate material affects signal speed, dielectric loss, and flexibility, all of which interact with the surface finish.

Common Materials for High-Frequency Flex PCBs

  • Polyimide (PI): The most common material for flexible PCBs, polyimide offers excellent thermal stability and flexibility. It supports frequencies up to 10 GHz with low dielectric loss (Dk around 3.5), making it compatible with most surface finishes like ENIG or Immersion Silver.
  • Liquid Crystal Polymer (LCP): LCP is a premium material for ultra-high-frequency applications (up to 40 GHz). It has a lower dielectric constant (Dk around 2.9) and better moisture resistance than polyimide, but it’s more expensive and harder to process. Surface finishes must be carefully chosen to avoid adhesion issues with LCP.
  • PTFE-Based Materials: Polytetrafluoroethylene (PTFE) laminates are often used in hybrid rigid-flex designs for high-frequency signals. They offer very low dielectric loss (Dk around 2.1) but are less flexible, so surface finishes must prioritize mechanical adhesion.

When selecting a material, consider how it pairs with the surface finish. For example, ENIG adheres well to polyimide and LCP, ensuring both electrical performance and mechanical reliability in bendable PCB designs.



Design Considerations for High-Frequency Flex PCBs

Beyond surface finish and material selection, several design factors influence the performance of high-frequency flexible PCBs. These considerations ensure that the chosen finish works effectively in the context of the overall design.

1. Impedance Control

High-frequency signals require precise impedance matching to prevent reflections and signal loss. The surface finish impacts the effective dielectric constant and trace resistance. For instance, a thicker finish like ENIG might slightly alter impedance compared to a thinner layer like Immersion Silver. Designers should simulate impedance values (typically targeting 50 ohms for RF applications) and adjust trace widths accordingly.

2. Bend Radius and Flexibility

In flexible circuit board assembly, the bend radius determines how much stress the surface finish will endure. A minimum bend radius of 6-10 times the PCB thickness is often recommended for dynamic flexing. Finishes like ENIG can handle moderate bending, but for tight bends (e.g., less than 1 mm radius), additional protective layers or alternative finishes might be needed.

3. Thermal Management

High-frequency components often generate heat, and flexible PCBs have limited thermal dissipation compared to rigid boards. The surface finish should withstand temperature cycling (e.g., -40°C to 85°C in automotive applications) without degrading. ENIG is particularly robust in this regard due to its nickel underlayer.

igh-frequency flex PCB with tight bend radius for bendable design.

Tips for Flexible Circuit Board Assembly with High-Frequency Designs

Assembly techniques also influence the effectiveness of the surface finish in high-frequency flex PCBs. Here are some practical tips to ensure success during assembly:

  • Use Low-Heat Soldering: Flexible substrates and surface finishes are sensitive to high temperatures. Use reflow soldering with controlled profiles (peak temperatures below 260°C) to avoid damaging the finish or substrate.
  • Reinforce High-Stress Areas: Add stiffeners or adhesives in areas prone to bending to protect the surface finish from cracking. This is especially important for finishes like Immersion Tin or OSP.
  • Handle with Care: Flexible PCBs are delicate. Use fixtures during assembly to minimize handling damage to the surface finish and traces.



Conclusion: Making the Right Choice for Your High-Frequency Flex PCB

Selecting the right surface finish for high-frequency flexible PCBs is a critical step in ensuring optimal performance, reliability, and durability. Options like ENIG and Immersion Silver stand out for their excellent signal integrity and compatibility with high-frequency applications, while considerations like cost and mechanical stress may guide you toward more budget-friendly choices like Immersion Tin for less demanding projects. Pairing the finish with the right PCB material selection, such as polyimide or LCP, further enhances performance.

By focusing on factors like impedance control, bend radius, and assembly techniques, you can create a bendable PCB design that meets the stringent requirements of high-frequency applications. Whether you’re working on telecommunications, automotive, or wearable tech, a well-chosen flexible PCB surface finish is the foundation of a successful project. At ALLPCB, we’re committed to helping engineers navigate these complex decisions with expert guidance and high-quality manufacturing solutions tailored to your needs.

High-frequency flex PCB in a wearable device application
