Hard Gold vs. Soft Gold Plating: Choosing the Right Finish for Your Electronic Components

When it comes to selecting the right finish for electronic components, the choice between hard gold plating and soft gold plating can significantly impact performance, durability, and cost. For engineers and designers working on printed circuit boards (PCBs) and connectors, understanding the differences is critical. In short, hard gold plating is ideal for high-wear applications due to its durability and hardness, while soft gold plating excels in applications requiring high conductivity and corrosion resistance, such as wire bonding. This blog dives deep into the specifics of hard gold plating vs. soft gold plating, exploring their advantages, disadvantages, applications, and key properties like hardness to help you make an informed decision for your projects.

What Is Gold Plating and Why Is It Used in Electronics?

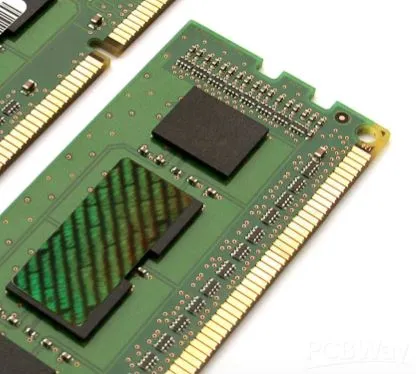

Gold plating is a process where a thin layer of gold is deposited onto the surface of electronic components, typically using electroplating. Gold is a preferred material in electronics due to its excellent electrical conductivity, resistance to corrosion, and ability to maintain signal integrity over time. Whether it's for connectors, contact points, or bonding pads on PCBs, gold plating ensures reliable performance in demanding environments.

However, not all gold plating is the same. The two primary types—hard gold and soft gold—differ in composition, properties, and ideal use cases. Hard gold is alloyed with other metals like cobalt or nickel to increase its durability, while soft gold is nearly pure, offering superior conductivity. Let's break down these differences to see how they apply to your electronic components.

Hard Gold Plating: Advantages and Key Features

Hard gold plating, often alloyed with small amounts of cobalt or nickel (typically 0.1% to 0.3%), is designed for durability. Its primary characteristic is its hardness, measuring between 120 and 300 Knoop on the hardness scale, making it resistant to wear and tear. This makes it a popular choice for applications where components experience frequent mechanical stress.

Advantages of Hard Gold Plating

• High Durability: Thanks to its hardness, hard gold plating withstands repeated insertions and removals in connectors, such as edge connectors on PCBs. It can endure thousands of mating cycles—often up to 10,000 or more—without significant wear.
• Wear Resistance: The alloyed composition reduces the risk of scratching or abrasion, which is critical in high-contact environments.
• Longevity: Hard gold maintains its integrity over time, even in harsh conditions with high friction, making it suitable for industrial and military applications.
• Cost-Effective for High-Wear Areas: While thicker layers of hard gold can be expensive, its durability often justifies the cost in areas prone to mechanical stress.

Disadvantages of Hard Gold Plating

• Lower Conductivity: Due to the alloying elements, hard gold has slightly lower electrical conductivity compared to soft gold. This can lead to minor signal loss in high-frequency applications, though the impact is often negligible for most designs (typically less than a 5% reduction in conductivity).
• Higher Cost for Thickness: Achieving optimal durability often requires a thicker layer (0.75 to 1.25 microns), which increases production costs.
• Not Ideal for Bonding: Hard gold is less suitable for wire bonding or soldering due to its harder surface and alloyed composition, which can interfere with adhesion.

Applications of Hard Gold Plating

Hard gold plating shines in scenarios where durability is paramount. Common applications include:

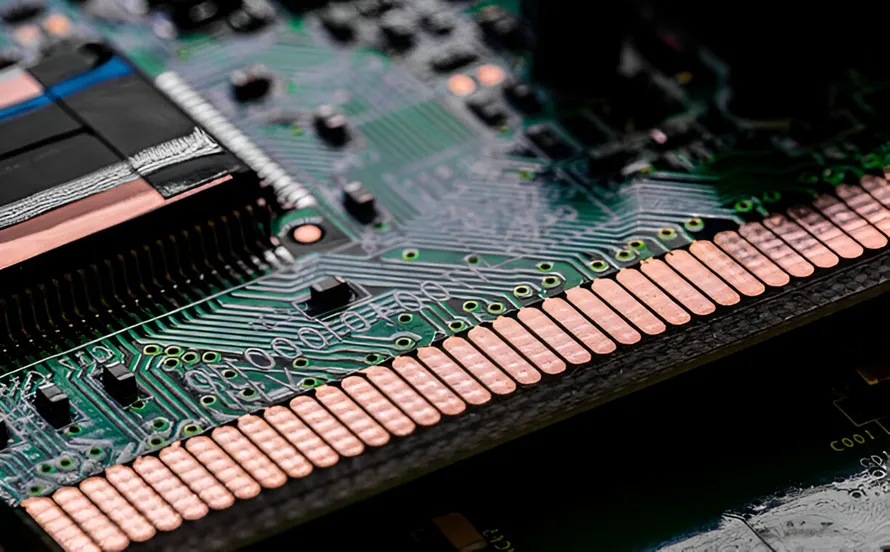

• Edge Connectors: Used on PCBs for frequent plugging and unplugging, such as in computer hardware or test equipment.
• Switches and Relays: Ideal for components that endure repeated mechanical contact.
• High-Wear Environments: Found in industrial electronics and military devices where reliability under stress is critical.

Soft Gold Plating: Advantages and Key Features

Soft gold plating, often referred to as pure gold plating, consists of nearly 99.9% gold with minimal alloying elements. Its hardness is much lower, ranging from 60 to 85 Knoop, which makes it less durable but offers other critical benefits for electronic components. Soft gold is prized for its excellent conductivity and compatibility with specific manufacturing processes.

Advantages of Soft Gold Plating

• Superior Conductivity: With minimal impurities, soft gold provides excellent electrical conductivity, ensuring minimal signal loss. This is vital for high-frequency or high-speed circuits where impedance must be kept low (often below 50 ohms for RF applications).
• Corrosion Resistance: Soft gold offers outstanding protection against oxidation, ensuring long-term reliability in humid or corrosive environments.
• Ideal for Bonding: Its softer surface and purity make it perfect for wire bonding and soldering, commonly used in semiconductor packaging and microelectronics.
• Cost-Effective for Thin Layers: Soft gold can be applied in thinner layers (0.1 to 0.3 microns) for bonding applications, reducing material costs.

Disadvantages of Soft Gold Plating

• Lower Durability: Due to its softness, soft gold wears out quickly under mechanical stress. It’s not suitable for high-contact or frequent mating applications, often failing after just a few hundred cycles.
• Prone to Scratching: The low hardness makes soft gold susceptible to damage during handling or assembly, which can compromise performance.
• Limited Wear Resistance: In environments with friction or vibration, soft gold can degrade, leading to potential connection issues over time.

Applications of Soft Gold Plating

Soft gold plating is best suited for applications where conductivity and bonding are priorities over mechanical durability. Common uses include:

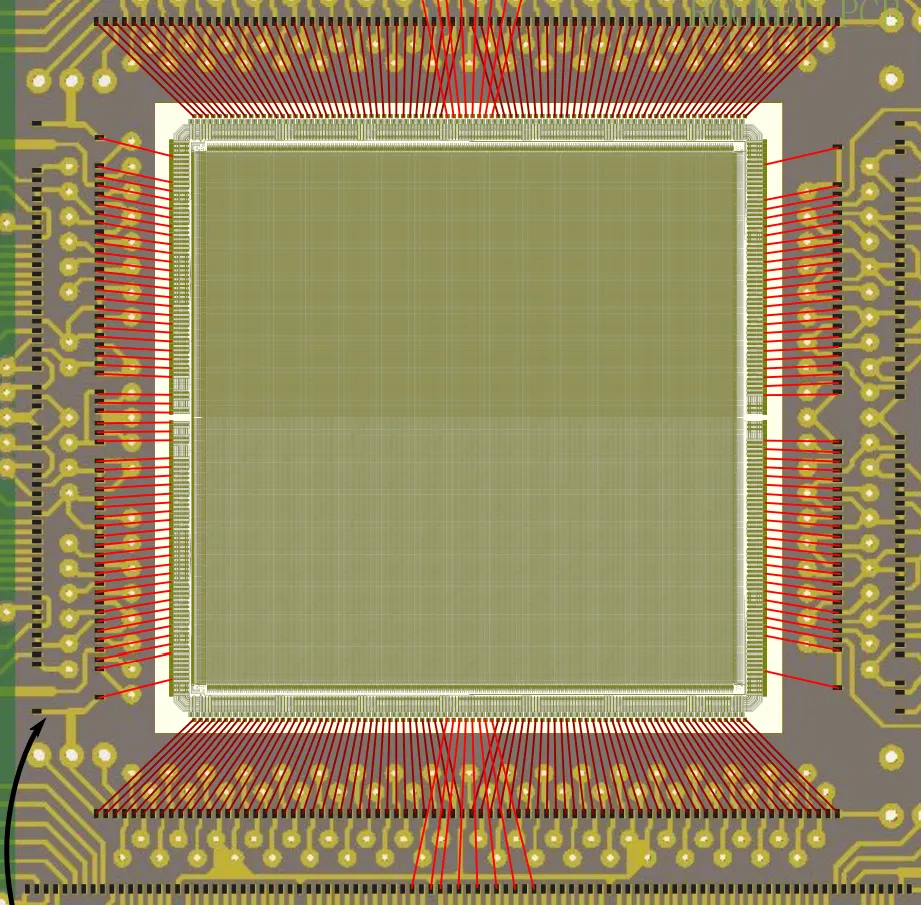

• Wire Bonding: Essential for connecting semiconductor chips to substrates in integrated circuits (ICs).
• High-Frequency Circuits: Used in RF and microwave components where signal integrity is critical.
• Corrosion-Sensitive Areas: Applied in environments where oxidation is a concern, such as in medical or aerospace electronics.

Gold Plating Hardness: A Key Differentiator

One of the most significant differences between hard gold and soft gold plating is hardness, which directly affects their suitability for various applications. Hardness is measured using the Knoop scale, a microhardness test that evaluates a material’s resistance to indentation.

• Hard Gold Hardness: Ranges from 120 to 300 Knoop, making it much more resistant to wear. This is achieved by alloying gold with harder metals, which slightly reduces its purity but enhances its mechanical strength.
• Soft Gold Hardness: Ranges from 60 to 85 Knoop, reflecting its near-pure gold composition. While this results in better conductivity, it also means the material is more prone to deformation and scratching.

For engineers, hardness is a critical factor when deciding between these finishes. If your component will face frequent physical contact, hard gold is the better choice. However, if the focus is on electrical performance or bonding, soft gold’s lower hardness is advantageous despite its fragility.

Hard Gold Plating vs. Soft Gold Plating: A Side-by-Side Comparison

To make the decision-making process easier, here’s a detailed comparison of hard gold plating vs. soft gold plating across key parameters:

This table highlights how each type of gold plating serves distinct needs. For instance, if you’re designing a PCB for a device with frequent connector use, hard gold’s durability outweighs its cost. Conversely, for microelectronics requiring precise bonding, soft gold’s conductivity and compatibility are unmatched.

How to Choose Between Hard Gold and Soft Gold Plating

Selecting the right gold plating for your electronic components depends on several factors specific to your project. Here are key considerations to guide your decision:

• Application Type: Determine whether your component will experience high mechanical stress or if electrical performance is the priority. For connectors and switches, choose hard gold. For bonding pads or high-speed circuits, opt for soft gold.
• Environment: Assess the operating environment. If corrosion is a major concern (e.g., high humidity or chemical exposure), soft gold’s superior resistance might be beneficial. For rugged conditions with vibration or friction, hard gold is better.
• Budget: Consider the cost implications of plating thickness. Hard gold often requires thicker layers for durability, increasing expenses, while soft gold can be applied thinly for bonding, saving costs.
• Manufacturing Process: Evaluate compatibility with assembly processes. If wire bonding or soldering is involved, soft gold is essential. For components assembled with frequent handling, hard gold prevents damage.

By aligning these factors with your project requirements, you can ensure optimal performance and reliability. For mixed needs, some designs even combine both finishes on a single PCB—hard gold for connectors and soft gold for bonding areas.

Conclusion: Making the Right Choice for Your Electronic Components

Choosing between hard gold plating and soft gold plating is a balance of durability, conductivity, and application-specific needs. Hard gold plating offers unmatched wear resistance, making it ideal for connectors and high-stress components, while soft gold plating provides superior electrical performance and bonding capabilities for delicate, high-precision electronics. Understanding properties like gold plating hardness, along with the advantages and disadvantages of each type, empowers you to select the finish that best suits your design.
