In the fast-paced world of industrial automation, designing efficient and reliable printed circuit boards (PCBs) is crucial. One innovative approach gaining traction is the use of embedded components in PCBs. This technique involves placing passive components like resistors, capacitors, and inductors within the layers of the PCB substrate rather than mounting them on the surface. But what are the key benefits of embedding components in PCBs for industrial applications, and what design techniques ensure success? In short, embedded components offer advantages like miniaturization, improved performance, and better thermal management, while specific design rules and strategies help overcome fabrication challenges.
In this comprehensive guide, we’ll explore the advantages of embedding components in PCBs, dive into miniaturization with embedded components, discuss thermal management strategies, and outline essential PCB design rules for embedded components. Whether you’re an engineer or a designer working on industrial automation projects, this blog will provide actionable insights to optimize your PCB designs.
What Are Embedded Components in PCBs?
Embedded components refer to passive electronic parts such as resistors, capacitors, and inductors that are integrated directly into the inner layers of a PCB during the manufacturing process. Unlike traditional surface-mounted components, these are placed within the substrate, often in cavities or laminated layers, reducing the need for external mounting. This technology is particularly valuable in industrial automation, where space constraints, reliability, and performance are critical.
In industrial settings, embedded component PCB design for industry applications can revolutionize how control systems, sensors, and actuators are built. By integrating components inside the board, designers can achieve compact designs and enhance the durability of systems exposed to harsh environments like high temperatures or vibrations.
Advantages of Embedding Components in PCBs for Industrial Automation
The benefits of using embedded components in industrial automation PCBs are numerous, addressing key challenges faced by engineers in this field. Let’s break down the most significant advantages:
1. Miniaturization with Embedded Components
One of the standout advantages of embedding components in PCBs is the ability to significantly reduce the size of the board. In industrial automation, where equipment often needs to fit into tight spaces, miniaturization with embedded components is a game-changer. By placing components inside the PCB layers, surface area is freed up, allowing for smaller, lighter designs without sacrificing functionality.
For example, a typical industrial sensor module might require dozens of passive components. Embedding these components can reduce the board size by up to 30-40%, depending on the design complexity. This not only saves space but also lowers material costs and simplifies assembly in confined setups like robotic arms or compact control panels.
2. Improved Signal Integrity and Performance
Embedding components reduces the length of interconnections between parts, minimizing parasitic inductance and capacitance. In industrial automation, where high-speed data processing is often required, this leads to better signal integrity. For instance, in a PCB controlling a high-speed motor, embedded capacitors can stabilize voltage with minimal noise, ensuring precise operation. Tests have shown that embedded components can reduce signal delay by as much as 10-15% compared to surface-mounted designs in high-frequency applications.
3. Enhanced Reliability in Harsh Environments
Industrial automation systems often operate in tough conditions, including extreme temperatures, humidity, and mechanical stress. Embedded components are protected within the PCB layers, shielding them from environmental factors and reducing the risk of damage or failure. This added durability translates to longer lifespans for automation equipment, cutting down on maintenance costs.
4. Cost Efficiency in High-Volume Production
While the initial setup for embedding components may involve higher design and fabrication costs, it often becomes cost-effective in large-scale production. Fewer external components mean reduced assembly steps and lower chances of defects during soldering. For industrial automation manufacturers producing thousands of units, this can lead to significant savings over time.
Thermal Management of Embedded Components in Industrial PCBs
Thermal management is a critical concern in industrial automation, where systems often run continuously under high loads. Embedding components can both help and challenge thermal dissipation, so careful design is essential. Here’s how to address the thermal management of embedded components effectively:
Why Thermal Management Matters
When components are embedded within PCB layers, heat dissipation becomes more complex since they are not exposed to air for natural cooling. In industrial automation, overheating can lead to system failures or reduced performance. For example, a power module in a factory automation system might generate significant heat, risking damage if not managed properly.
Techniques for Effective Thermal Management
1. Use of Thermal Vias: Placing thermal vias near embedded components helps transfer heat to outer layers or heat sinks. These vias, often filled with conductive materials, can improve heat dissipation by up to 20% in multilayer PCBs.
2. Material Selection: Choosing PCB substrates with high thermal conductivity, such as metal-core materials, can enhance heat distribution. For instance, aluminum-backed PCBs are often used in industrial designs to manage temperatures effectively.
3. Embedding Copper Blocks: Some designs incorporate copper blocks near embedded components to act as heat spreaders. This method can reduce hotspot temperatures by 15-25°C, depending on the power load, ensuring stable operation in high-demand applications.
4. Simulation and Testing: Before fabrication, use thermal simulation tools to predict heat distribution in the PCB. This step helps identify potential issues early, saving time and resources during prototyping.
By focusing on the thermal management of embedded components, designers can ensure that industrial automation systems remain reliable even under continuous operation.
PCB Design Rules for Embedded Components
Designing PCBs with embedded components requires adherence to specific guidelines to ensure functionality and manufacturability. Below are key PCB design rules for embedded components tailored for industrial automation projects:
1. Layer Planning and Component Placement

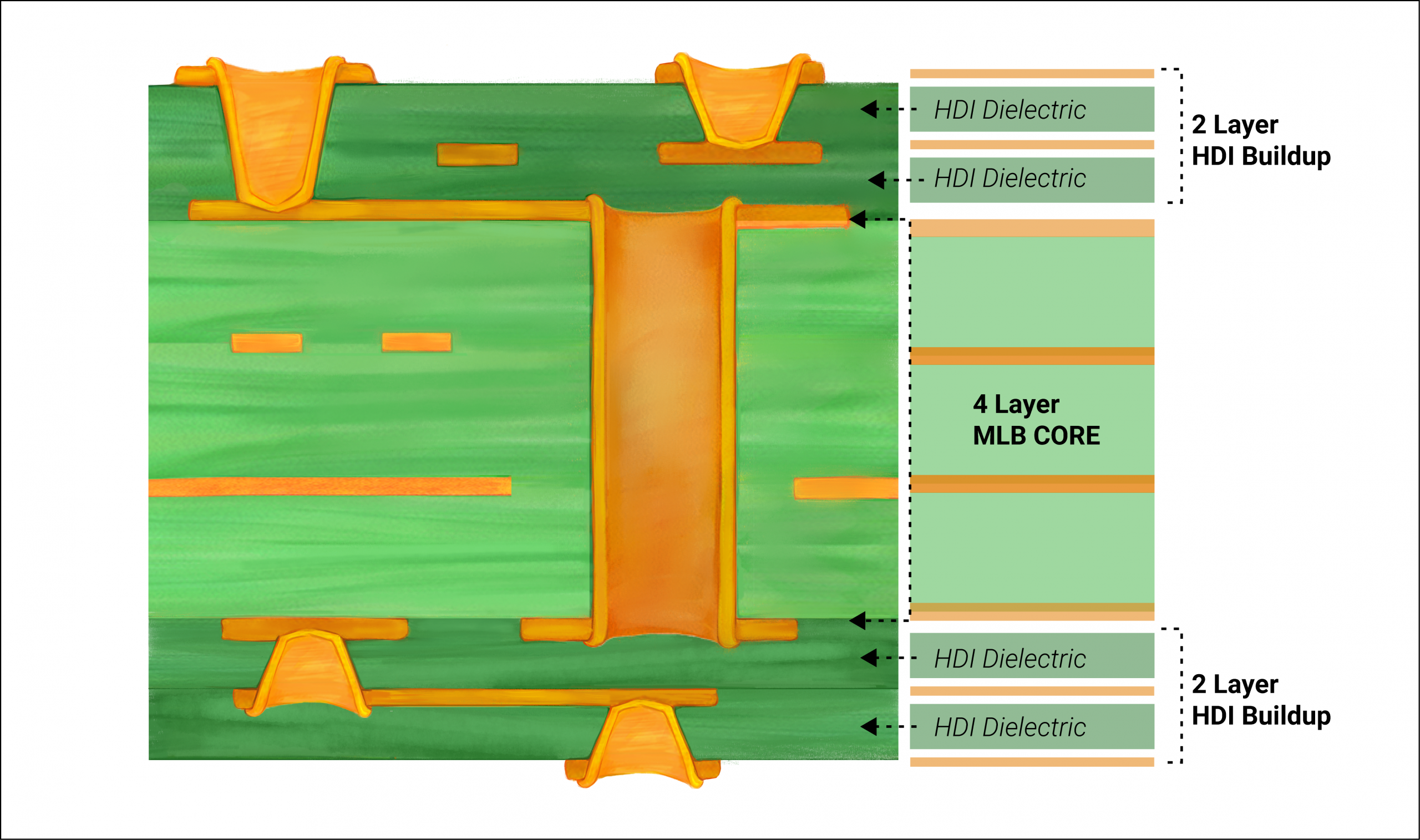

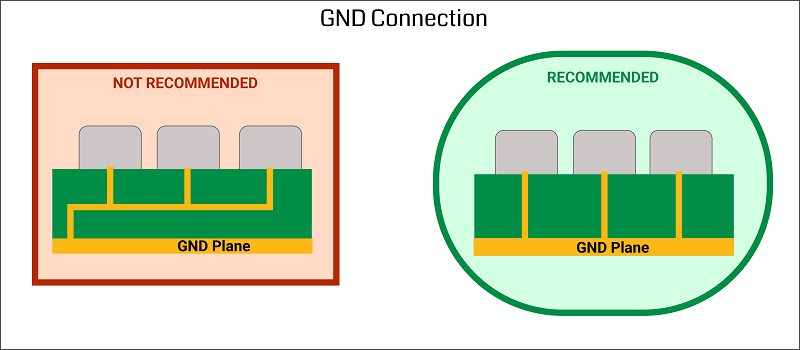

Carefully plan the PCB stack-up to accommodate embedded components. Typically, components are placed in inner layers, with cavities or cutouts created during lamination. Ensure that the placement does not interfere with signal routing or power planes. For example, in a 6-layer PCB, embedding capacitors in layer 3 can optimize space while maintaining signal integrity.
2. Cavity Design and Tolerances
When embedding components, cavities must be precisely sized to fit the parts without stress. A tolerance of ±0.1 mm is often recommended to prevent misalignment during lamination. Misaligned components can lead to connection failures, especially in high-vibration industrial environments.
3. Material Compatibility
Select materials that can withstand the embedding process, including high-temperature lamination. Standard FR-4 materials may not be suitable for complex designs, so consider high-Tg (glass transition temperature) laminates for industrial automation PCBs to ensure durability.
4. Electrical Considerations
Embedded components must be tested for electrical performance after integration. For instance, an embedded resistor should maintain its specified resistance value (e.g., 10 kΩ ±1%) post-lamination. Use design software to simulate electrical behavior and avoid issues like crosstalk or impedance mismatch in high-speed industrial circuits.
5. Manufacturing Collaboration
Work closely with your PCB fabrication partner to ensure they support embedded component technology. Provide detailed documentation, including layer stack-up, cavity dimensions, and component specifications, to avoid production errors. Clear communication can reduce lead times by 10-15% in complex projects.
Following these PCB design rules for embedded components ensures that your industrial automation boards are both functional and reliable, even in demanding applications.
Challenges of Embedded Component PCB Design for Industry
While the benefits are clear, embedded component PCB design for industry applications comes with challenges that designers must address:
1. Higher Initial Costs: The specialized materials and processes required for embedding components can increase upfront costs. However, these are often offset by long-term savings in high-volume production.
2. Complex Fabrication: Not all manufacturers have the capability to produce PCBs with embedded components. Finding a reliable partner with advanced lamination and cavity-forming technology is essential.
3. Limited Component Options: Only certain passive components are suitable for embedding. Active components like ICs are typically not embedded due to size and heat dissipation challenges.
By understanding these challenges, engineers can plan accordingly and mitigate risks during the design phase.
Applications of Embedded Components in Industrial Automation
Embedded components are finding their way into various industrial automation applications, enhancing performance and efficiency. Some notable uses include:
- Control Systems: Embedded capacitors and resistors in control unit PCBs improve response times and reduce noise, ensuring precise operation of machinery.
- Sensors: Miniaturized sensor modules with embedded components are ideal for tight spaces in automated assembly lines, offering reliable data collection.
- Power Modules: Embedding inductors in power supply boards helps manage heat and space, critical for uninterrupted operation in industrial environments.
These applications highlight how embedded components can transform industrial automation designs, delivering compact, durable, and high-performing solutions.
Conclusion: The Future of Embedded Components in Industrial Automation
Embedded components in industrial automation PCBs offer a powerful way to address modern design challenges like space constraints, thermal issues, and performance demands. The advantages of embedding components in PCBs—ranging from miniaturization with embedded components to enhanced reliability—make this technology a valuable tool for engineers. By following PCB design rules for embedded components and prioritizing thermal management of embedded components, designers can create robust solutions tailored to industrial needs.
As manufacturing techniques advance, the adoption of embedded component PCB design for industry applications will likely grow, paving the way for even smaller, smarter, and more efficient automation systems. Whether you’re working on a new sensor module or a complex control system, integrating embedded components into your PCB design can provide the competitive edge your project needs.
