Open-source Framework Zorb for Bare-Metal Microcontrollers

Introduction

Many times, when developing microcontroller projects, performance and memory constraints prevent running large general-purpose frameworks. Lightweight software frameworks become especially important. This article introduces an open-source software framework suitable for bare-metal microcontrollers: Zorb.

Zorb Overview

The Zorb Framework is a lightweight embedded framework built with object-oriented design principles.

Zorb was created to enable rapid application development on chips that cannot run Linux, avoiding repeated reimplementation of common functions.

Initial Design Features

Time system: zf_time
Ring buffer: zf_buffer
List utilities: zf_list
State machine: zf_fsm
Event system: zf_event
Timer: zf_timer
Task: zf_task

The first six features enable a purely event-driven program and can generally meet the needs of small to medium embedded applications. The task feature is added to meet higher real-time requirements in some applications.

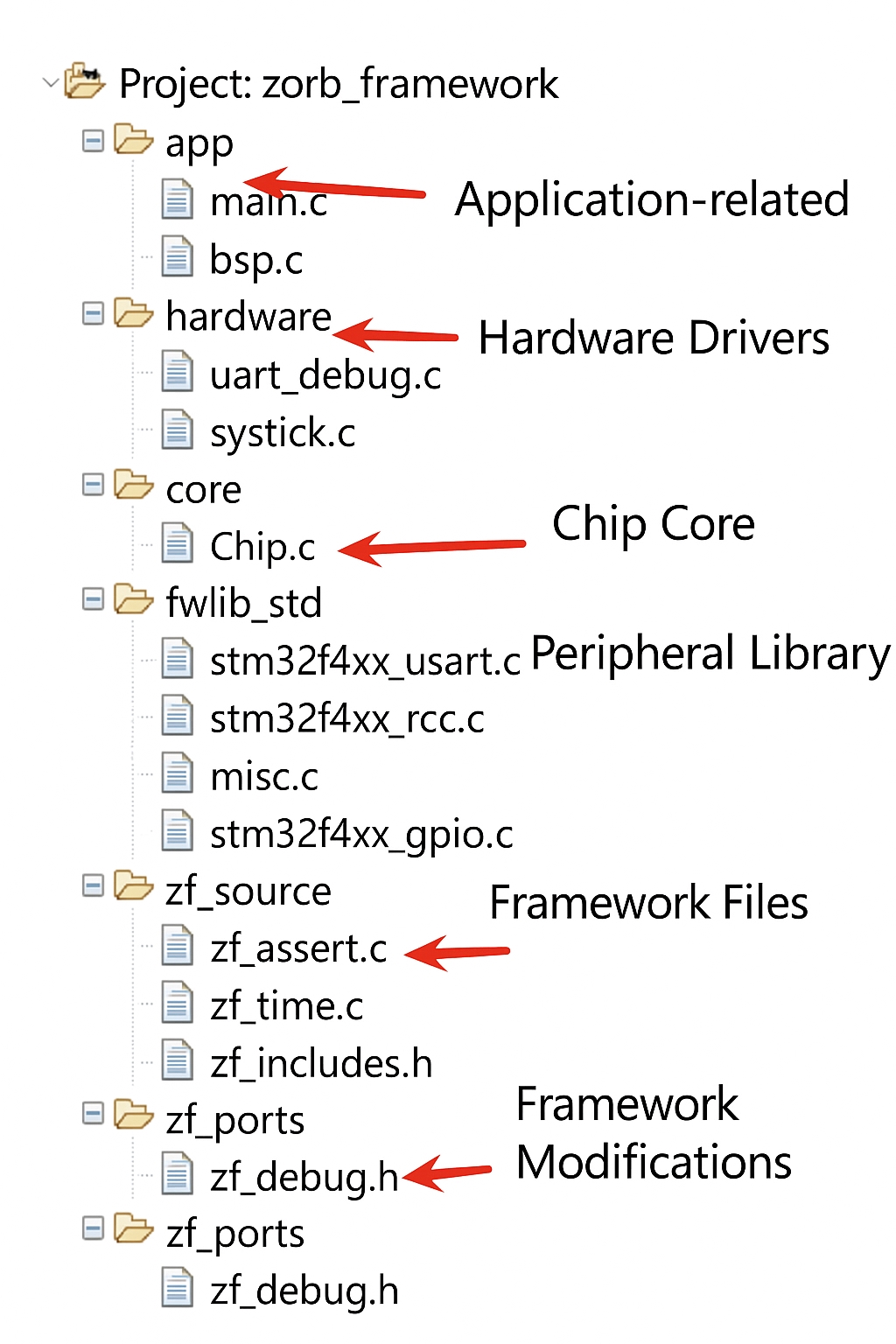

Development Environment

An STM32 F429 development board is used as the hardware platform. The hardware resources used are serial port 1 (USART1) and SysTick; serial port 1 provides debug printing, and SysTick provides system time counting.

Hardware environment

Hardware setup is not described in detail here; refer to the development board examples. Board-level initialization completes the debug serial port and SysTick initialization.

/******************************************************************************
 * Description : Hardware environment initialization
 * Parameters  : none
 * Return      : none
******************************************************************************/
void BSP_init(void)
{
    /* Nested Vectored Interrupt Controller priority group selection */
    NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);
    /* Initialize debug serial port */
    Debug_USART_init();
    /* Initialize SysTick */
    SystemTick_init();
}

Debugging

When developing a program, the first and most important step is setting up the debug environment. We use serial port 1 as debug output (printf mapping). Debug messages are divided into three levels; a host tool can later highlight messages by level.

/******************************************************************************
 * Description : Debug output header file
 * Parameters  : none
 * Return      : none
******************************************************************************/
#ifndef __ZF_DEBUG_H__
#define __ZF_DEBUG_H__
#ifdef __cplusplus
extern "C" {
#endif
#include "stdio.h"
#include "stdbool.h"
#define LOG_D 0; /* Log level: normal */
#define LOG_W 1; /* Log level: warning */
#define LOG_E 2; /* Log level: error */
#define _ZF_DEBUG             /* Define debug feature */
#define ZF_DEBUG_ON true      /* Enable debug feature */
#ifdef _ZF_DEBUG
    #if ZF_DEBUG_ON
        #define ZF_DEBUG(rank, x...) do
        {
            char code[10] = "[rank=0]";
            code[6] = '0' + (char)rank;
            if (code[6] != '0')
            {
                printf("%s", code);
            }
            printf(x);
        } while(0)
    #else
        #define ZF_DEBUG(rank, x...)
    #endif /* ZF_DEBUG_ON */
#endif /* _ZF_DEBUG */
#ifdef __cplusplus
}
#endif
#endif /* __ZF_DEBUG_H__ */

Assertions

During development, placing assertions at key locations helps locate bugs.

/******************************************************************************
 * Description : Assertion header file
 * Parameters  : none
 * Return      : none
******************************************************************************/
#ifndef __ZF_ASSERT_H__
#define __ZF_ASSERT_H__
#ifdef __cplusplus
extern "C" {
#endif
#include "stdint.h"
#define _ZF_ASSERT              /* Define assertion feature */
#define ZF_ASSERT_ON true       /* Enable assertions */
#ifdef _ZF_ASSERT
    #if ZF_ASSERT_ON
         #define ZF_ASSERT(expression_) ((expression_) ?
            (void)0 : ZF_assertHandle((uint8_t*)__FILE__, (int)__LINE__));
    #else
         #define ZF_ASSERT(expression_)
    #endif /* ZF_ASSERT_ON */
#endif /* _ZF_ASSERT */
/* Handler when an assertion occurs */
void ZF_assertHandle(uint8_t *pFileName, int line);
#ifdef __cplusplus
}
#endif
#endif /* __ZF_ASSERT_H__ */

The assertion handler is simple: it reports the file and line where the assertion failed. Implementation follows.

/******************************************************************************
 * Description : Assertion implementation
 * Parameters  : none
 * Return      : none
******************************************************************************/
#include "zf_assert.h"
#include "zf_debug.h"
/*****************************************************************************/
void ZF_assertHandle(uint8_t *pFileName, int line)
{
    ZF_DEBUG(LOG_E, "file:%s line:%d:asserted\n", pFileName, line);
    while (1);
}

Scheduling Timing

To reduce resource consumption, the framework's base timing period is initially set to 1 ms. Therefore, SysTick is configured with a 1 ms period, and each interrupt increments the framework's timing counter.

/******************************************************************************
 * Description : SysTick interrupt service routine
 * Parameters  : none
 * Return      : none
******************************************************************************/
void SysTick_Handler(void)
{
    /* Provide timing for Zorb framework */
    ZF_timeTick();
}

The current time system provides only basic functions: system tick counting and busy-wait delays. The time system will be extended when implementing timer and task features.
