When it comes to oil rig monitoring systems, the reliability of printed circuit boards (PCBs) is critical. These systems operate in some of the harshest environments on Earth, facing extreme temperatures, constant vibrations, corrosive saltwater, and high moisture levels. At the heart of ensuring consistent performance are ruggedized connectors for PCBs. These specialized components are designed to withstand tough conditions while maintaining secure and reliable connections. In this blog, we’ll explore the importance of ruggedized connectors for oil rig monitoring PCBs and dive into the key design considerations like waterproofing, vibration resistance, high-temperature tolerance, and corrosion protection.
Whether you’re an engineer designing monitoring systems or a project manager overseeing oil rig operations, understanding how to choose and implement the right connectors can make all the difference in preventing downtime and ensuring safety. Let’s break down the essentials of designing and selecting ruggedized connectors for oil rig applications, focusing on durability and performance.
Why Ruggedized Connectors Matter for Oil Rig Monitoring PCBs
Oil rigs are complex environments where monitoring systems play a vital role in safety and efficiency. These systems rely on PCBs to process data from sensors tracking pressure, temperature, and equipment status. However, the connectors linking these PCBs to other components are often the weakest link if not properly designed. A single failure in a connector due to moisture, vibration, or corrosion can lead to system downtime, costly repairs, or even safety hazards.
Ruggedized connectors for PCBs are engineered to combat these challenges. Unlike standard connectors, they are built with reinforced materials, enhanced sealing, and specialized coatings to endure the brutal conditions of offshore environments. For instance, a ruggedized connector might be rated for temperatures up to 150°C (302°F) or have an IP67 rating for complete dust and water resistance. These features ensure that the oil rig connector PCB remains operational, no matter the external stressors.
Key Challenges in Oil Rig Environments for PCB Connectors
Before diving into design solutions, it’s important to understand the specific challenges that connectors face in oil rig settings. These conditions test the limits of any electronic component, and connectors must be tailored to handle them effectively.
1. Extreme Moisture and Water Exposure
Oil rigs are constantly exposed to saltwater spray, rain, and high humidity. Standard connectors can allow water ingress, leading to short circuits or signal loss. Waterproof connectors are essential to prevent these issues, often featuring sealed designs with gaskets or O-rings to block moisture.
2. Constant Vibration and Mechanical Stress
The heavy machinery on oil rigs generates powerful vibrations that can loosen or damage connectors over time. Vibration-proof connectors use locking mechanisms or reinforced housings to maintain a secure connection even under continuous shaking or impact.
3. High Temperatures and Thermal Cycling
Temperatures on oil rigs can swing from freezing cold to scorching heat, sometimes exceeding 100°C (212°F) near equipment. High-temperature connectors are made from materials like polyamide or ceramics that resist thermal expansion and degradation, ensuring stable performance.
4. Corrosion from Saltwater and Chemicals
Saltwater and harsh chemicals used in drilling operations can corrode metal contacts, leading to signal failure. Corrosion-resistant connectors often use stainless steel, gold plating, or specialized coatings to protect against rust and chemical damage.
By addressing these challenges, ruggedized connectors ensure that oil rig monitoring systems remain reliable, reducing the risk of unexpected failures.
Design Considerations for Ruggedized Connectors in Oil Rig Monitoring PCBs
Designing or selecting the right connectors for oil rig monitoring PCBs requires careful attention to several factors. Below, we’ll explore the critical aspects that engineers must consider to ensure durability and performance.

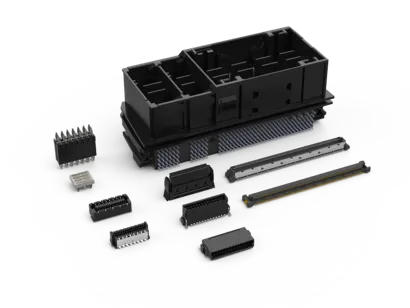

1. Material Selection for Durability
The choice of materials directly impacts a connector’s ability to withstand harsh conditions. For instance, housings made from high-grade plastics or metals like aluminum can resist physical damage and corrosion. Contact pins often use gold or nickel plating to prevent rust and maintain low contact resistance, even after prolonged exposure to saltwater. When designing an oil rig connector PCB, prioritize materials that meet industry standards like MIL-SPEC for military-grade durability.
2. Waterproofing and IP Ratings
Waterproof connectors are a must for oil rig applications. Look for connectors with an Ingress Protection (IP) rating of IP67 or higher, which indicates complete protection against dust and immersion in water up to 1 meter for 30 minutes. Sealing techniques, such as silicone gaskets or overmolding, prevent moisture from reaching internal components. For example, a properly sealed connector can maintain signal integrity even after being submerged during a storm.
3. Vibration Resistance and Secure Locking Mechanisms
Vibration-proof connectors are designed to stay in place under mechanical stress. Features like screw-lock or bayonet coupling mechanisms ensure that connectors don’t loosen over time. Some designs also include shock-absorbing materials to dampen the impact of vibrations. Testing connectors under conditions mimicking oil rig vibrations—often up to 10G of force—can confirm their reliability for real-world use.
4. High-Temperature Performance
High-temperature connectors must handle thermal extremes without deforming or losing conductivity. Materials with high melting points and low thermal expansion coefficients are ideal. For instance, connectors rated for 125°C to 150°C can operate near hot machinery without failure. Additionally, thermal cycling tests—where connectors are exposed to rapid temperature changes—help ensure they won’t crack or degrade over time.
5. Corrosion Resistance for Longevity
Corrosion-resistant connectors are vital in salty, chemical-heavy environments. Stainless steel or titanium housings resist rust, while specialized coatings like passivation layers add extra protection. Gold-plated contacts also prevent oxidation, maintaining low impedance values (often below 10 milliohms) for reliable signal transmission. When designing a PCB for oil rig monitoring, ensure that every connector is tested for salt spray exposure per standards like ASTM B117.
Testing and Standards for Ruggedized Connectors
To guarantee performance, ruggedized connectors must undergo rigorous testing and meet specific industry standards. These tests simulate the harsh conditions of oil rig environments, ensuring connectors can handle real-world challenges.
- Environmental Testing: Connectors are exposed to humidity, salt spray, and temperature extremes to verify their durability. For example, a salt spray test might run for 96 hours to mimic years of exposure.
- Vibration and Shock Testing: Connectors are subjected to forces up to 20G to ensure they remain secure during heavy machinery operation.
- IP Rating Certification: Waterproof connectors are tested for water and dust ingress, with ratings like IP68 indicating suitability for submersion.
- Thermal Cycling: Connectors are cycled between -40°C and 150°C to confirm they won’t fail under temperature swings.
Adhering to standards like MIL-STD-810 for environmental durability or IEC 60529 for IP ratings ensures that connectors meet the needs of oil rig applications. Engineers should always verify that connectors are certified for the specific conditions they’ll face.
Best Practices for Integrating Ruggedized Connectors into PCB Designs
Choosing the right connector is only part of the equation. Proper integration into the PCB design is equally important for ensuring reliable connections. Here are some practical tips for engineers working on oil rig monitoring systems:
- Match Connector Specs to PCB Requirements: Ensure the connector’s current and voltage ratings align with the PCB’s needs. For example, a monitoring system might require connectors handling 5A at 24V for sensor data transmission.
- Optimize Layout for Stress Points: Place connectors away from areas of high mechanical stress on the PCB to avoid cracking or delamination.
- Use Strain Relief Features: Incorporate strain relief in cable assemblies to prevent pulling forces from damaging the connector or PCB solder joints.
- Plan for Maintenance Access: Design the PCB layout so connectors are easily accessible for inspection or replacement without disassembling the entire system.
- Test the Entire Assembly: After integration, test the PCB and connector assembly under simulated oil rig conditions to identify potential weak points before deployment.
By following these practices, you can maximize the lifespan and reliability of your oil rig monitoring systems.
Benefits of Using Ruggedized Connectors for Oil Rig Monitoring
Investing in high-quality ruggedized connectors offers several advantages for oil rig operations:
- Reduced Downtime: Reliable connectors prevent unexpected failures, keeping monitoring systems online and minimizing costly interruptions.
- Enhanced Safety: Stable connections ensure accurate data from sensors, helping to detect hazards like pressure spikes or equipment malfunctions.
- Long-Term Cost Savings: Durable connectors last longer in harsh environments, reducing the need for frequent replacements.
- Improved Data Integrity: Low-impedance, secure connections maintain signal quality, ensuring precise monitoring of critical parameters.
These benefits highlight why ruggedized connectors are not just an option but a necessity for oil rig monitoring PCBs.
Conclusion: Building Reliability with Ruggedized Connectors
Designing and selecting ruggedized connectors for oil rig monitoring PCBs is a critical step in ensuring reliable connections in extreme environments. By focusing on waterproofing, vibration resistance, high-temperature tolerance, and corrosion protection, engineers can create systems that withstand the toughest conditions. From material selection to rigorous testing, every aspect of connector design plays a role in maintaining performance and safety on oil rigs.
Whether you’re tackling moisture with IP67-rated waterproof connectors or combating corrosion with gold-plated contacts, the right choices can significantly impact the success of your monitoring systems. As technology advances, staying updated on the latest connector innovations will help you build even more robust solutions for oil rig applications. Prioritizing durability and reliability ensures that your systems keep running smoothly, no matter the challenges they face.
