Navigating the world of medical printed circuit boards (PCBs) can be complex, especially when it comes to certifications and compliance. If you're looking for clarity on medical PCB ISO 13485 certification, medical PCB IEC 60601 compliance, FDA regulations for medical PCBs, medical PCB UL certification, or understanding medical PCB standards, you're in the right place. This guide will break down these critical certifications and standards, explaining their importance and how they impact the design and manufacturing of medical PCBs.
At its core, medical PCB certifications ensure that devices are safe, reliable, and effective for use in healthcare settings. Whether you're an engineer, a manufacturer, or a project manager, understanding these standards is essential for bringing medical devices to market. Let's dive into the details of each certification and regulation, providing you with actionable insights to achieve compliance and maintain high-quality standards.
Why Medical PCB Certifications Matter
Medical PCBs are the backbone of life-saving devices like heart monitors, imaging systems, and wearable health trackers. Unlike consumer electronics, these devices must meet stringent safety and performance requirements because they directly impact patient health. Certifications and standards act as a framework to ensure that every component, including the PCB, functions reliably under critical conditions.
Non-compliance can lead to severe consequences, including device failures, regulatory penalties, or even harm to patients. By adhering to recognized standards, manufacturers can minimize risks, gain market trust, and ensure their products meet global expectations. Let’s explore the key certifications and regulations that govern medical PCBs.
Medical PCB ISO 13485 Certification: The Quality Management Standard
ISO 13485 is an internationally recognized standard for quality management systems (QMS) specific to the medical device industry. It focuses on ensuring that manufacturers consistently meet customer and regulatory requirements through effective processes.
For medical PCBs, ISO 13485 certification means that every stage of production—from design to delivery—follows strict quality controls. This includes documentation, risk management, and traceability of materials. For example, if a PCB is used in a defibrillator, ISO 13485 ensures that the board’s assembly process minimizes the risk of defects that could fail during an emergency.
Key aspects of ISO 13485 include:
- Risk Management: Identifying and mitigating risks throughout the product lifecycle.
- Process Validation: Ensuring that manufacturing processes consistently produce reliable results.
- Traceability: Maintaining detailed records of materials and components for accountability.
Obtaining ISO 13485 certification demonstrates a commitment to quality, which is often a prerequisite for entering markets in Europe, Canada, and other regions. For engineers and manufacturers, aligning with this standard early in the design phase can save time and resources during regulatory reviews.
Medical PCB IEC 60601 Compliance: Ensuring Safety and Performance
IEC 60601 is a series of technical standards for the safety and effectiveness of medical electrical equipment. For medical PCBs, compliance with IEC 60601-1, the core standard, is critical as it addresses risks like electrical shock, mechanical hazards, and electromagnetic interference (EMI).

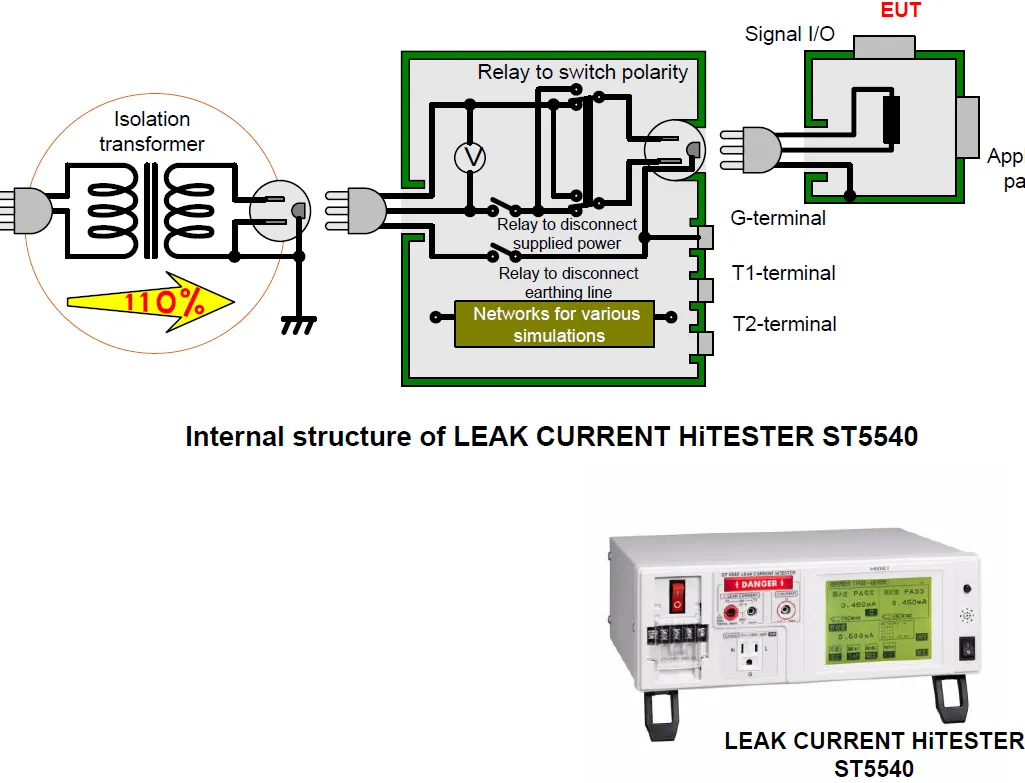

Medical devices often operate in environments with strict electrical safety requirements. For instance, a PCB in an ultrasound machine must maintain signal integrity without generating harmful interference. IEC 60601 sets specific limits for leakage currents (typically below 0.5 mA for patient-connected devices) and insulation resistance to protect users and patients.
Key requirements of IEC 60601 for PCBs include:
- Dielectric Strength: Ensuring the PCB can withstand high voltages without breakdown, often tested at 1500V or higher depending on the device class.
- Creepage and Clearance: Maintaining minimum distances between conductive parts to prevent electrical arcing, often 4 mm or more for patient safety.
- EMI Control: Designing PCBs to minimize electromagnetic emissions that could disrupt other medical equipment.
Compliance with IEC 60601 often involves rigorous testing during the design phase. Engineers must select materials and layouts that meet these standards, ensuring the final product passes certification tests. This standard is widely accepted globally and is often harmonized with regional regulations.

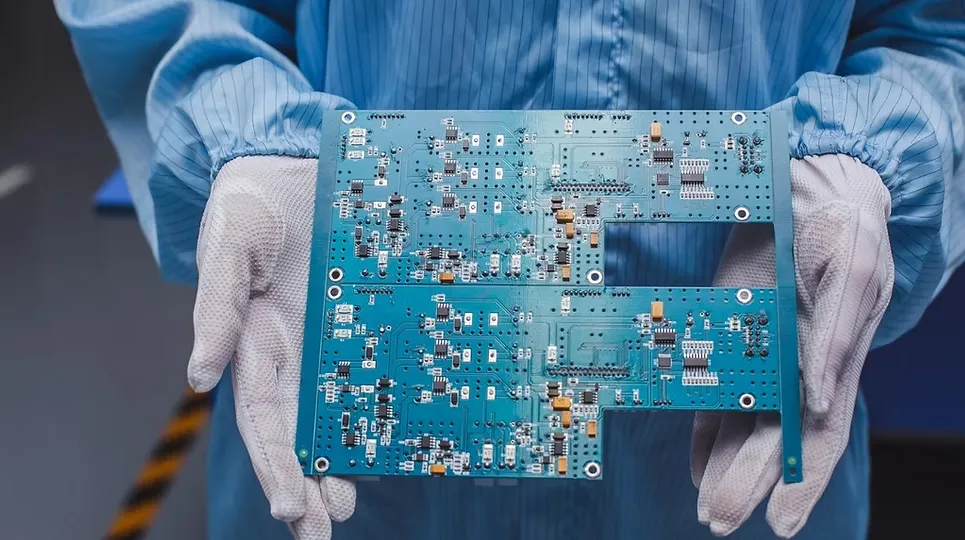

FDA Regulations for Medical PCBs: Navigating U.S. Compliance
In the United States, the Food and Drug Administration (FDA) oversees the approval of medical devices, including the PCBs within them. FDA regulations for medical PCBs fall under the broader framework of the Quality System Regulation (QSR), outlined in 21 CFR Part 820, which shares similarities with ISO 13485 but includes additional requirements.
The FDA classifies medical devices into three categories—Class I, II, and III—based on risk level. For example, a PCB in a Class III device like a pacemaker requires premarket approval (PMA), involving extensive documentation and clinical data. In contrast, a PCB in a Class II device, such as a blood pressure monitor, may only need a 510(k) submission to demonstrate equivalence to an existing device.
Key FDA requirements for medical PCBs include:
- Design Controls: Documenting every step of the design process to ensure the PCB meets intended use specifications.
- Material Safety: Using biocompatible materials that do not pose toxicity risks, especially for implantable devices.
- Labeling and Traceability: Ensuring that each PCB batch can be traced back to its manufacturing records for recall purposes.
Non-compliance with FDA regulations can result in delays, fines, or product recalls. Manufacturers must also stay updated on evolving guidelines, such as those related to cybersecurity for connected medical devices. Early collaboration with regulatory experts can streamline the approval process.
Medical PCB UL Certification: A Mark of Safety
UL (Underwriters Laboratories) certification is another critical standard for medical PCBs, focusing on safety and reliability. While not mandatory in all regions, UL certification is often required by hospitals and healthcare providers as a mark of trust. It ensures that the PCB meets specific safety criteria, reducing risks like fire hazards or electrical failures.
For medical PCBs, UL 60601-1 is the relevant standard, aligning closely with IEC 60601. It covers aspects like flammability of materials (often requiring FR-4 or higher-grade laminates with a UL 94 V-0 rating) and thermal management to prevent overheating. For instance, a PCB in a portable ventilator must dissipate heat effectively to avoid malfunctions during extended use.
Benefits of UL certification include:
- Market Acceptance: Many buyers and end-users prefer UL-certified products for added assurance.
- Risk Reduction: Minimizing the likelihood of safety incidents that could damage reputation or lead to lawsuits.
- Global Recognition: UL standards are widely respected, facilitating entry into multiple markets.
Engineers should work with certified testing labs to validate their designs against UL requirements. Incorporating UL-compliant materials and design practices from the start can prevent costly redesigns later.
Understanding Medical PCB Standards: Bringing It All Together
While each certification and regulation has its unique focus, they collectively aim to ensure that medical PCBs are safe, reliable, and fit for purpose. Understanding medical PCB standards requires recognizing how these frameworks overlap and complement each other. For instance, ISO 13485 focuses on quality management, while IEC 60601 and UL address technical safety. Meanwhile, FDA regulations provide a regional lens with specific compliance pathways.
To navigate these standards effectively, consider the following steps:
- Identify Applicable Standards: Determine which certifications apply based on your target market and device classification. For example, a wearable glucose monitor sold in the U.S. and Europe must comply with both FDA and ISO 13485 requirements.
- Integrate Compliance Early: Incorporate design for compliance during the initial PCB layout phase to avoid costly revisions. This includes selecting materials with appropriate dielectric constants (often 4.5 or lower for high-frequency medical signals) and ensuring trace widths support required current loads (e.g., 0.5 mm for 1A currents).
- Partner with Experts: Collaborate with regulatory consultants and certified testing facilities to validate designs and streamline approvals.
- Maintain Documentation: Keep detailed records of design decisions, material selections, and testing results to support audits and submissions.
By aligning with these standards, manufacturers can build trust with regulators, healthcare providers, and patients. This not only ensures compliance but also enhances the overall quality of medical devices.
Challenges in Achieving Medical PCB Compliance
Meeting medical PCB certification requirements is no small feat. Engineers often face challenges like balancing performance with safety, managing tight timelines, and keeping costs under control. For instance, achieving IEC 60601 compliance may require additional PCB layers to improve EMI shielding, increasing production costs by 20-30% in some cases.
Another common hurdle is staying updated on evolving standards. Regulatory bodies frequently update guidelines to address emerging technologies like IoT-enabled medical devices. Manufacturers must adapt quickly to avoid delays in product launches.
To overcome these challenges, leveraging advanced design tools and simulation software can help predict compliance issues before prototyping. Additionally, building strong relationships with suppliers who understand medical standards ensures access to compliant materials and components.
How ALLPCB Supports Medical PCB Compliance
At ALLPCB, we understand the complexities of medical PCB certifications and are committed to supporting our clients through every step of the process. Our manufacturing facilities adhere to strict quality controls aligned with ISO 13485 principles, ensuring that your PCBs meet the highest standards. We also offer guidance on material selection and design optimization to achieve compliance with IEC 60601, UL, and other regulations.
Our team is equipped to handle the unique demands of medical device production, from prototype to mass manufacturing. With rigorous testing and detailed documentation, we help streamline the path to regulatory approval, saving you time and resources.
Conclusion: Mastering Medical PCB Certifications
Decoding medical PCB certifications is essential for anyone involved in the design, manufacturing, or distribution of medical devices. From ISO 13485 certification for quality management to IEC 60601 compliance for safety, FDA regulations for U.S. market entry, and UL certification for added trust, each standard plays a vital role in ensuring patient safety and device reliability.
By understanding medical PCB standards and integrating compliance into every stage of development, manufacturers can avoid pitfalls and deliver products that meet global expectations. Whether you're working on a simple diagnostic tool or a complex implantable device, staying informed about these certifications is the key to success.
