Overview

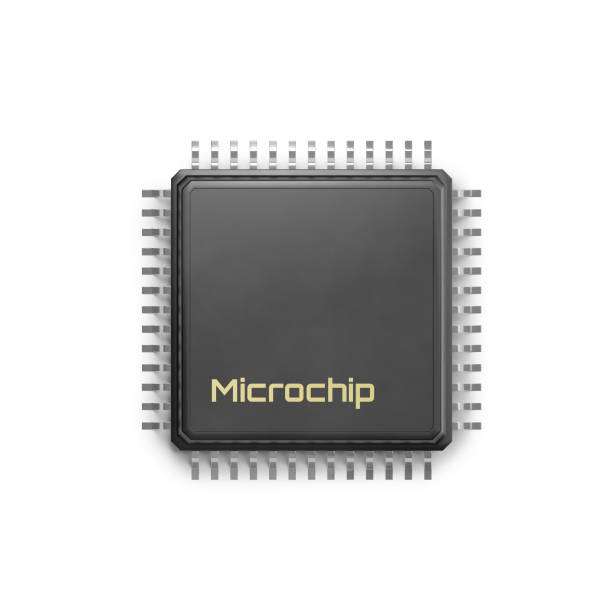

The Microchip PIC18F8585 microcontroller includes a CAN interface. It is a high-performance 8-bit microcontroller suitable for industrial control and embedded applications. The device supports various programmer interfaces, standard C programming, and offers a range of peripherals, communication interfaces, and debugging features.
The MCU uses a Harvard architecture, with a maximum operating frequency of 40 MHz, 96 KB of flash memory, and 4 KB of RAM. It also provides multiple analog and digital peripheral interfaces, including an analog-to-digital converter, comparators, PWM generators, timers, UART, SPI, and I2C communication interfaces.
The PIC18F8585 also includes advanced features such as 8-bit and 16-bit fixed-point adders, an I2S port, encoder interface, and multiple timer modes for efficient data handling. Safety and reliability features include configurable pull-ups/pull-downs, fail-safe reset, calendar/timer functions, and an independent watchdog.
Key Features
- Full CAN 2.0B support
- Five 10-bit PWM modules
- Three transmit buffers and eight receive buffers
- 16 acceptance filters and two filter masks
- 1024-byte EEPROM
- Two analog comparators
- Five capture/compare modules
- Parallel Slave Port (PSP)
- Programmable brown-out reset (BOR)
Common Features of PIC18F6585, PIC18F8585, PIC18F6680, and PIC18F8680
- High-performance RISC CPU
- Source-code compatible with PIC16 and PIC17 instruction sets
- Linear program memory addressing up to 2 megabytes
- Linear data memory addressing of 4096 bytes
- 1-byte data EEPROM
- Operation up to 10 MIPS
- Oscillator/clock input: DC to 40 MHz
- 4 MHz to 10 MHz oscillator/clock input with PLL
- 16-bit-wide instructions, 8-bit-wide data path
- Interrupt priority levels
- 31-level hardware stack, software-accessible
- 8x8 single-cycle hardware multiplier
Peripheral Features
- High sink/source current: 25 mA
- Four external interrupt pins
- Timer0 module: 8-bit/16-bit timer/counter
- Timer1 module: 16-bit timer/counter
- Timer2 module: 8-bit timer/counter
- Timer3 module: 16-bit timer/counter
- Auxiliary oscillator clock option
- One Capture/Compare/PWM (CCP) module:
- Capture: 16-bit, maximum resolution 6.25 ns (TCY/16)
- Compare: 16-bit, maximum resolution 100 ns (TCY)
- PWM output: PWM resolution from 1 to 10 bits
- Enhanced CCP module:
- Same capture/compare functions as CCP
- 1, 2, or 4 PWM outputs
- Selectable polarity
- Programmable dead time
- Auto-shutdown on external events
- Auto-restart
- Master Synchronous Serial Port (MSSP) module:
- 3-wire SPI (supports all 4 SPI modes)
- I2C Master and Slave modes
- Enhanced Addressable USART module:
- Supports RS-232, RS-485, and LIN 1.2
- Programmable wake-up start bit
- Auto baud rate detection
- Parallel Slave Port (PSP) module
Analog Features
- Up to 16-channel, 10-bit analog-to-digital converter:
- Fast sampling rate
- Programmable acquisition time
- Conversions available in sleep mode
- 16-level programmable low-voltage detect (LVD) module:
- Supports low-voltage detect interrupt
- Programmable brown-out reset (BOR)
- Dual analog comparators with programmable input/output configuration
