If you're new to PCB layout and wondering about minimum trace spacing, here's the simple answer: Trace spacing is the distance between two conductive paths on a printed circuit board (PCB), and it must be wide enough to prevent electrical interference, shorts, or breakdowns. For beginners, a common rule of thumb is to maintain at least 6 mils (0.006 inches) of spacing between traces for low-voltage designs (under 50V). However, this can vary based on voltage, signal type, and manufacturing capabilities. In this guide, we'll break down the easy rules and practical tips for trace spacing to help you design a functional and reliable PCB layout as a beginner.
Introduction to PCB Trace Spacing for Beginners

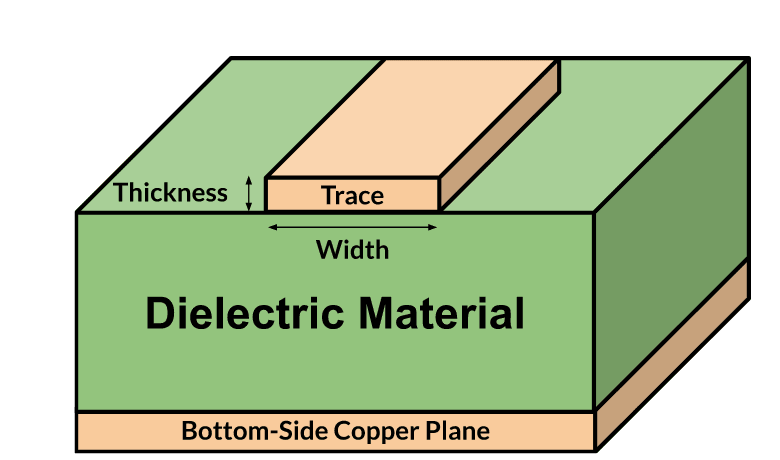

Designing a PCB can feel overwhelming when you're just starting out, especially with technical terms like "trace spacing" thrown around. But don't worry—trace spacing is a fundamental concept that you can master with a few simple guidelines. In a PCB layout, traces are the thin copper lines that connect components, carrying electrical signals or power. The spacing between these traces is critical to avoid issues like crosstalk, short circuits, or even board failure.
In this blog post, we'll walk you through the basics of minimum trace spacing, why it matters, and how to apply easy rules to your PCB designs. Whether you're a hobbyist or an aspiring engineer, this guide is tailored to help you understand trace spacing in a straightforward way. We'll cover the factors that influence spacing, provide beginner-friendly rules, and share tips to ensure your PCB layout is both functional and manufacturable.
Why Trace Spacing Matters in PCB Layout
Trace spacing isn't just a random number you pick; it directly impacts the performance and safety of your PCB. Here are the main reasons why it’s so important, explained in simple terms:
- Preventing Short Circuits: If traces are too close, there's a risk of unintended connections, especially during manufacturing or if debris gets on the board. Proper spacing keeps traces isolated.
- Avoiding Crosstalk: When traces are too close, electrical signals can interfere with each other, causing noise or data errors. This is especially critical for high-speed digital signals.
- Ensuring Voltage Safety: Higher voltages require more spacing to prevent arcing (electricity jumping between traces), which could damage the board or create a safety hazard.
- Manufacturing Limits: PCB manufacturers have minimum spacing capabilities based on their equipment. If your spacing is too tight, the board might not be producible, leading to costly redesigns.
For beginners, understanding these risks helps you see why trace spacing isn’t something to overlook. A small mistake in spacing can turn a great design into a useless board.
Factors That Influence Minimum Trace Spacing
Before diving into specific rules, let’s look at the factors that determine how much space you need between traces. These are the key things to consider in your PCB layout:
1. Voltage Levels
The voltage running through your traces plays a big role in spacing. Higher voltages need more space to prevent electrical breakdown or arcing. For example:
- For voltages under 50V (common in low-power electronics), a spacing of 6 mils is often enough.
- For voltages between 50V and 100V, you might need 12 mils or more.
- For high-voltage designs above 500V, spacing can jump to 50 mils or higher, depending on safety standards.
2. Signal Type
The type of signal your traces carry also matters. Analog signals, digital signals, and high-frequency signals have different needs:
- Analog Signals: These are sensitive to noise, so spacing them away from noisy traces (like power lines) is important.
- Digital Signals: High-speed digital signals (e.g., USB or HDMI) need consistent spacing to maintain signal integrity and avoid crosstalk.
- Power Traces: These often carry higher currents, so they may need wider spacing to handle heat and avoid interference.
3. Manufacturing Capabilities
Every PCB manufacturer has limits on how close traces can be. For standard, low-cost production, a minimum spacing of 6-8 mils is common. If you’re working with advanced designs or tighter spacing (e.g., 3 mils), expect higher costs or the need for specialized manufacturers.
4. Environmental Factors
If your PCB will be used in harsh conditions (high humidity, dust, or temperature extremes), you may need extra spacing to reduce the risk of shorts or corrosion. For example, outdoor electronics might require 10-15 mils of spacing even for low-voltage designs.
Simple Rules for Minimum Trace Spacing in PCB Layout
Now that you understand why trace spacing matters and what influences it, let’s get into some easy-to-follow rules. These are tailored for beginners and focus on practical, safe values for most hobbyist or simple professional designs.
Rule 1: Start with a Minimum of 6 Mils for Low Voltage
For most beginner projects using voltages below 50V (like 5V or 12V circuits), a trace spacing of 6 mils (0.006 inches) is a safe starting point. This is a common standard for many PCB manufacturers and works well for general-purpose designs like Arduino projects or simple LED circuits.
Rule 2: Increase Spacing for Higher Voltages
If your design involves higher voltages, use this basic guide:
- 50V-100V: Minimum 12 mils (0.012 inches)
- 100V-300V: Minimum 20 mils (0.020 inches)
- Above 300V: Minimum 30 mils (0.030 inches) or consult safety standards like IPC-2221.
These values provide a buffer to prevent arcing and ensure safety. Always double-check with your project requirements or local electrical standards if dealing with high voltage.
Rule 3: Separate Signal Types
Keep different types of signals apart to avoid interference. A good rule is to maintain at least 10-15 mils of spacing between:
- Power traces and signal traces.
- High-speed digital traces and analog traces.
This extra space reduces crosstalk and noise, ensuring your circuit works as intended.
Rule 4: Check Manufacturer Guidelines
Before finalizing your design, always confirm the minimum trace spacing your manufacturer can handle. Most standard services support 6-8 mils, but if your design is below that, you’ll need to adjust or find a manufacturer with finer capabilities. Ignoring this can lead to production issues or rejected designs.
Rule 5: Use Design Software Rules
Most PCB design tools allow you to set design rules for trace spacing. For beginners, setting a global minimum spacing of 6-8 mils ensures you don’t accidentally place traces too close. These tools often highlight errors in real-time, making it easier to follow spacing rules without manual checks.
Common Mistakes Beginners Make with Trace Spacing
As a beginner, it’s easy to make mistakes when dealing with trace spacing in PCB layout. Here are some common pitfalls and how to avoid them:
Mistake 1: Ignoring Voltage Requirements
Many new designers use the same spacing for all traces, regardless of voltage. This can lead to dangerous arcing in high-voltage areas. Always match spacing to the highest voltage in that section of the board.
Mistake 2: Overcrowding the Board
Trying to fit too many components or traces into a small space often results in insufficient spacing. If your board looks cramped, consider using a larger board size or a multi-layer design to spread out the traces.
Mistake 3: Forgetting About Signal Integrity
Beginners often focus on physical spacing but forget about signal interference. If you’re working with high-speed signals (like a 100 MHz clock), maintain consistent spacing and avoid running sensitive traces near noisy ones.
Mistake 4: Not Checking Manufacturer Specs
Designing with a 4-mil spacing might look fine on your screen, but if your manufacturer only supports 6 mils, your board won’t be made. Always design within the manufacturer’s limits to avoid delays.
Tips for Better PCB Layout with Proper Trace Spacing
Beyond the basic rules, here are some extra tips to help you create a clean, reliable PCB layout with proper trace spacing:
- Plan Your Layout First: Before routing traces, sketch out where major components and traces will go. This helps you avoid tight spots where spacing might be compromised.
- Use a Grid in Design Software: Setting a grid (e.g., 10 mils) in your design tool helps align traces neatly and maintain consistent spacing.
- Group Similar Signals: Keep power, ground, and signal traces in separate areas of the board to minimize interference and simplify spacing rules.
- Add Ground Planes: A solid ground plane can reduce noise and allow tighter spacing for signals without risking crosstalk. For beginners, this is an easy way to improve design reliability.
- Test Your Design: Use the design rule check (DRC) feature in your software to catch spacing errors before sending your design for manufacturing.
How to Calculate Trace Spacing for Specific Needs
For most beginner projects, the rules above are enough. But if you’re curious about calculating exact spacing for your design (especially for higher voltages), you can refer to industry standards like IPC-2221. This standard provides a formula and tables for spacing based on voltage, altitude, and other factors.
A simplified approach for voltage-based spacing is to use this rough estimate: For every 100V, add 10 mils of spacing. So, for a 200V circuit, start with at least 20 mils. Keep in mind that this is a starting point—always cross-check with standards or manufacturer recommendations for safety-critical designs.
If you’re dealing with high-frequency signals, impedance control becomes important. For example, a 50-ohm impedance trace (common for RF designs) might require specific spacing and width based on the board material and layer stack-up. Beginners can use online calculators or design tool features to estimate these values without deep math.
Conclusion: Mastering Trace Spacing as a Beginner
Trace spacing is a crucial part of PCB layout, but it doesn’t have to be complicated. By starting with a minimum spacing of 6 mils for low-voltage designs, adjusting for higher voltages, and following simple rules like separating signal types, you can create reliable and manufacturable PCBs even as a beginner. Remember to always check your manufacturer’s capabilities and use design software to enforce spacing rules automatically.
As you gain experience, you’ll get a better feel for balancing spacing with board size, signal needs, and cost. For now, focus on these easy guidelines to avoid common mistakes and ensure your PCB works as intended. With practice, designing with proper trace spacing will become second nature, setting a strong foundation for more complex projects in the future.
By following these simple rules for PCB layout, you’re on your way to creating functional and professional designs. Keep learning, experimenting, and refining your skills, and you’ll master the art of trace spacing in no time.
