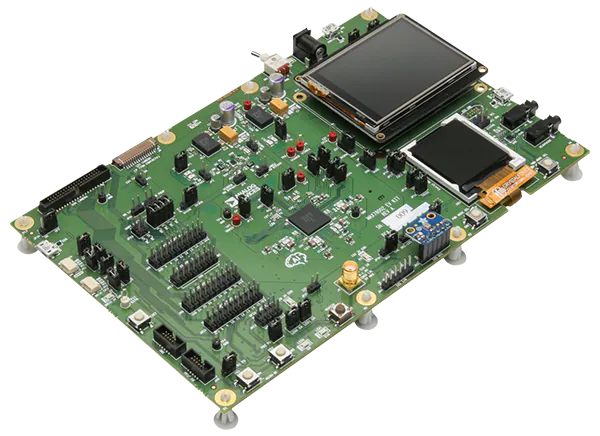

The Analog Devices MAX78002 evaluation kit is intended to assess the device's capabilities for building artificial intelligence (AI) products. The kit uses a modular peripheral architecture to provide flexible I/O placement and supports a variety of input and output devices. Supported interfaces include DVP and CSI cameras, I2S audio peripherals, I2S digital microphones, and analog sensors. A pair of industry-standard QWIIC connectors supports a range of aftermarket development boards.
Features
- Power meter with a dedicated display for tracking device power consumption
- I2S digital microphone connection
- Stereo audio codec with 3.5 mm line input/output jacks
- USB 2.0 high-speed
- SWD JTAG 10-pin header
- RISC-V processor JTAG 10-pin header
- 8 MB QSPI SRAM
- microSD flash card connector
- All device GPIO accessible via 0.1" headers
- Eight ADC inputs
- 2.4", 320 x 240 color TFT display with touch support
- UART accessible via USB bridge
- Dual industry-standard QWIIC connectors
- All IC power rails are isolatable for separate current measurement
- Two general-purpose LEDs and two general-purpose push-button switches
Kit Contents
- Evaluation kit board with MAX78002 directly soldered
- MAX32625 PICO debugger (with cable)
- Olimex ARM-USB-OCD-H
- Olimex ARM-JTAG 20-to-10 adapter
- 5 V, 3 A wall power adapter
- SPH0645-based I2S digital microphone
- DVP and CSI camera modules
- Two USB Standard-A to Micro-B cables
- One USB Standard-A to Standard-B cable
- Additional shunt
