In the world of electronics manufacturing, lead-free PCB assembly has become a standard due to environmental and health concerns. But what does lead-free material analysis mean, and how does it relate to RoHS compliant FR4 material? Simply put, lead-free material analysis involves evaluating the components and materials used in printed circuit boards (PCBs) to ensure they meet strict regulations like the Restriction of Hazardous Substances (RoHS) directive, while FR4, a common PCB substrate, must be compatible with lead-free processes. This blog dives deep into the importance of material analysis, the role of RoHS compliance, and the specifics of using FR4 in lead-free PCB assembly. Whether you're an engineer, designer, or manufacturer, this guide will help you navigate the complexities of lead-free materials with practical insights and detailed information.

Why Lead-Free PCB Assembly Matters

The shift to lead-free PCB assembly started with growing awareness of the harmful effects of lead on human health and the environment. Traditional soldering processes used lead-based alloys because of their low melting points and reliability. However, lead is toxic, and its use in electronics posed risks during manufacturing, usage, and disposal. In 2006, the European Union introduced the RoHS directive, which restricts the use of hazardous substances, including lead, in electrical and electronic equipment. This regulation pushed the industry toward lead-free alternatives, making material analysis a critical step in ensuring compliance and maintaining product quality.

Lead-free assembly isn’t just about meeting legal requirements. It also aligns with global sustainability goals and builds trust with customers who prioritize eco-friendly products. However, switching to lead-free materials comes with challenges like higher soldering temperatures and potential reliability issues, which is why thorough material analysis is essential.

Comparison of lead-based vs. lead-free solder joints on a PCB.

What Is Lead-Free Material Analysis?

Lead-free material analysis refers to the process of examining and testing the materials used in PCB manufacturing to ensure they contain no restricted substances like lead, mercury, or cadmium, as outlined by RoHS standards. This analysis covers everything from the substrate (like FR4) to the solder, components, and surface finishes. The goal is to confirm that the materials are safe, compliant, and suitable for the high-temperature processes required in lead-free soldering.

Material analysis typically involves several steps:

Chemical Composition Testing: Using techniques like X-ray fluorescence (XRF) to detect the presence of restricted substances. For instance, a typical test might reveal less than 0.1% lead content by weight to meet RoHS standards.
Thermal Property Evaluation: Assessing how materials withstand the higher temperatures (often 30-40°C above lead-based soldering, reaching up to 260°C) used in lead-free processes.
Mechanical Testing: Checking for durability and stress resistance, as lead-free solders can be more brittle, leading to potential cracking under thermal cycling.

By conducting these tests, manufacturers ensure that their PCBs are not only compliant but also reliable for applications ranging from consumer electronics to industrial systems.

The Role of RoHS Compliance in PCB Manufacturing

RoHS compliance is at the heart of lead-free PCB assembly. The directive, updated over the years to include more substances and stricter limits, mandates that electrical and electronic products sold in the EU contain minimal levels of hazardous materials. For PCB manufacturers, this means sourcing RoHS compliant materials and adopting lead-free soldering techniques, such as using SAC305 (a common lead-free solder alloy made of tin, silver, and copper).

RoHS compliance affects every aspect of PCB production:

Material Selection: Choosing substrates, solders, and finishes that meet RoHS thresholds. For example, surface finishes like ENIG (Electroless Nickel Immersion Gold) are often preferred over older, lead-containing options.
Supply Chain Management: Ensuring suppliers provide documentation, such as Certificates of Compliance (CoC), to verify material safety.
Testing and Verification: Regular audits and material analysis to maintain compliance across production batches.

Non-compliance can result in hefty fines, product recalls, and damage to a company’s reputation. More importantly, adhering to RoHS standards shows a commitment to safety and sustainability, which is a key concern for modern businesses and consumers.

RoHS compliance testing for lead-free PCB materials.

Understanding RoHS Compliant FR4 Material

FR4 is the most widely used material for PCB substrates due to its affordability, electrical insulation properties, and mechanical strength. But what makes FR4 suitable for lead-free assembly, and how does it tie into RoHS compliance? RoHS compliant FR4 material is specifically formulated to be free of restricted substances like lead and halogenated flame retardants, while also being able to endure the higher temperatures of lead-free soldering processes.

Here are some key characteristics of RoHS compliant FR4 material:

Thermal Stability: Standard FR4 has a glass transition temperature (Tg) of around 130-140°C, but for lead-free assembly, high-Tg FR4 (170-180°C) is often used to handle soldering temperatures up to 260°C without delaminating or degrading.
Dielectric Constant: FR4 typically has a dielectric constant of 4.2-4.5 at 1 MHz, ensuring reliable signal integrity in high-frequency applications, which remains unaffected by lead-free processes.
Moisture Absorption: RoHS compliant FR4 is designed with low moisture absorption rates (around 0.1-0.2%) to prevent issues like popcorn cracking during high-temperature soldering.

Choosing the right FR4 material is crucial because lead-free soldering can stress the substrate more than traditional methods. For instance, during reflow soldering, temperatures might peak at 245-260°C for 20-40 seconds, which can cause thermal expansion mismatches if the material isn’t up to standard. Manufacturers often rely on material datasheets and thermal cycling tests to confirm the suitability of FR4 for lead-free applications.

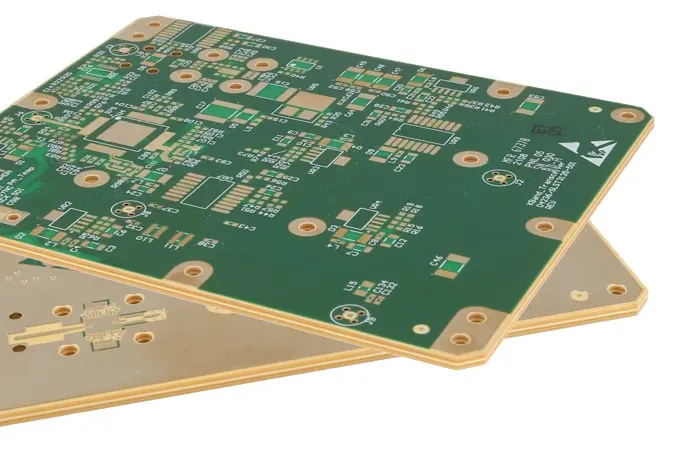

Close-up of RoHS compliant FR4 material for PCB assembly.

Challenges in Lead-Free PCB Assembly and Material Analysis

While lead-free PCB assembly offers environmental benefits, it introduces several challenges that material analysis helps address. Understanding these challenges can guide better design and manufacturing decisions.

Higher Soldering Temperatures

Lead-free solders like SAC305 have a melting point of around 217-221°C, compared to 183°C for traditional lead-tin solder. This 30-40°C increase means that materials must withstand greater thermal stress. Material analysis ensures that the chosen FR4 substrate and components can handle these conditions without warping or degrading.

Solder Joint Reliability

Lead-free solders are often more brittle, leading to potential issues like cracking under mechanical stress or thermal cycling. Material analysis includes testing solder joint strength and fatigue resistance to predict long-term reliability. For example, thermal cycling tests might simulate temperature swings from -40°C to 85°C over 1000 cycles to assess performance.

Compatibility Issues

Not all components and materials are designed for lead-free processes. Older components might contain lead in their terminations, requiring careful analysis to ensure compatibility. Techniques like XRF scanning can detect lead content in component leads, helping manufacturers avoid non-compliant parts.

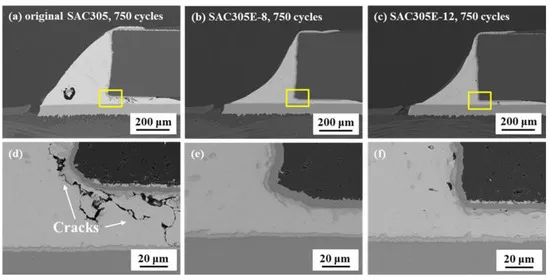

Thermal stress testing for lead-free PCB solder joints.

Best Practices for Lead-Free Material Analysis

To ensure successful lead-free PCB assembly, manufacturers must follow best practices in material analysis. These steps help maintain compliance, improve product quality, and reduce production risks.

Source Certified Materials: Always select RoHS compliant materials from trusted suppliers who provide detailed documentation and test reports. Verify that FR4 substrates meet high-Tg standards if needed for your application.
Conduct Regular Testing: Use tools like XRF and thermal analyzers to test incoming materials for restricted substances and thermal properties. For instance, ensure lead content is below 1000 ppm (0.1%) to meet RoHS limits.
Optimize PCB Design: Design PCBs with lead-free assembly in mind by increasing pad sizes and spacing to accommodate potential solder flow differences. Use simulation tools to predict thermal behavior during soldering.
Train Staff: Ensure that production teams are trained in lead-free soldering techniques and material handling to minimize errors like overheating or improper storage of moisture-sensitive components.

Benefits of Lead-Free PCB Assembly with Proper Material Analysis

Investing in thorough lead-free material analysis brings several advantages to manufacturers and end-users alike. Beyond regulatory compliance, it enhances product reliability and market competitiveness.

Environmental Responsibility: Using lead-free and RoHS compliant materials reduces the environmental footprint of electronic products, aligning with global sustainability efforts.
Improved Product Longevity: Rigorous material testing ensures that PCBs can withstand harsh conditions, extending their lifespan in applications like automotive or industrial systems.
Global Market Access: Compliance with RoHS and similar regulations opens doors to international markets, especially in regions with strict environmental laws like the EU.

Conclusion: Navigating Lead-Free PCB Assembly with Confidence

Lead-free PCB assembly is no longer just an option—it’s a necessity in today’s electronics industry. Understanding lead-free material analysis and the importance of RoHS compliant FR4 material is key to producing safe, reliable, and compliant products. From thermal stability to solder joint reliability, every aspect of material selection and testing plays a role in ensuring success. By following best practices and leveraging detailed material analysis, manufacturers can overcome the challenges of lead-free processes and deliver high-quality PCBs for a wide range of applications. At ALLPCB, we’re committed to supporting your journey with expertise and resources tailored to lead-free assembly needs. Let’s build a safer, more sustainable future together.
