Ensuring Biocompatibility in Pacemaker PCBs: A Material Science Perspective

In the world of medical technology, ensuring biocompatibility in pacemaker PCBs (Printed Circuit Boards) is crucial for patient safety and device performance. Biocompatibility refers to the ability of materials to interact safely with the human body without causing harmful reactions. For implantable devices like pacemakers, the choice of PCB materials and design directly impacts their success. This blog dives deep into the material science behind biocompatible PCBs, exploring medical PCB materials, design considerations for implantable PCBs, and the specific needs of pacemaker PCBs. Whether you're an engineer or a medical device designer, you'll find actionable insights to guide your work in PCB material science.

Why Biocompatibility Matters in Pacemaker PCBs

Biocompatibility is a non-negotiable factor when designing PCBs for pacemakers. These devices are implanted in the body for years, delivering life-saving electrical signals to regulate heart rhythms. If the materials in the PCB trigger inflammation, toxicity, or corrosion, it can lead to serious health risks or device failure. From a material science perspective, biocompatibility ensures that the PCB materials do not react negatively with bodily fluids or tissues, maintaining both safety and functionality over time.

In this post, we'll break down the key aspects of creating biocompatible PCBs for pacemakers, including material selection, design standards, and testing methods. Let's explore how material science plays a vital role in this process.

Understanding Biocompatibility in PCB Design

Biocompatibility in PCB design means selecting materials and coatings that are safe for long-term contact with the human body. For pacemaker PCBs, this involves considering several factors such as chemical stability, resistance to corrosion, and minimal risk of allergic reactions. The materials used must withstand the harsh environment inside the body, including exposure to blood, saline-like fluids, and varying temperatures, without degrading or releasing harmful substances.

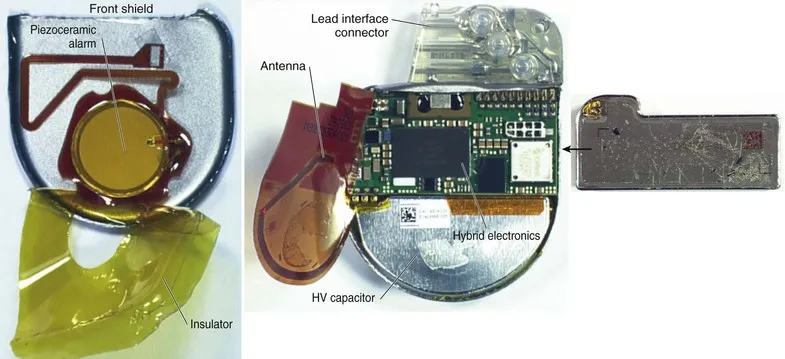

Implantable PCBs, like those in pacemakers, are often encapsulated in protective casings made of titanium or other biocompatible metals. However, the PCB itself—comprising substrates, conductive traces, and solder masks—must also meet strict biocompatibility standards. This is where material science becomes essential, guiding the selection of substrates and coatings that align with medical regulations such as ISO 10993, which outlines biocompatibility testing for medical devices.

Key Medical PCB Materials for Biocompatibility

Choosing the right materials for medical PCBs is the foundation of biocompatibility. Let's look at some commonly used materials in pacemaker PCBs and why they are selected from a material science perspective.

1. Substrate Materials

The substrate is the base layer of a PCB, providing structural support. For implantable PCBs, substrates must be durable, non-toxic, and resistant to moisture. Two popular choices include:

• Polyimide: Known for its flexibility and thermal stability, polyimide is often used in flexible PCBs for pacemakers. It can withstand temperatures up to 260°C and resists chemical degradation, making it ideal for long-term implantation.
• FR-4 with Biocompatible Coatings: While standard FR-4 (a fiberglass-epoxy laminate) isn’t inherently biocompatible, it can be coated with medical-grade materials to prevent direct contact with bodily fluids. Its mechanical strength and cost-effectiveness make it a viable option when properly treated.

2. Conductive Materials

Conductive traces in pacemaker PCBs carry electrical signals critical for heart regulation. These traces must maintain low impedance (typically below 100 ohms for signal integrity) to ensure accurate performance. Common materials include:

• Gold: Gold is highly biocompatible and resistant to corrosion, making it a top choice for conductive traces and contact points in implantable PCBs. Its excellent conductivity ensures reliable signal transmission over time.
• Copper with Protective Layers: While copper is prone to oxidation, it can be used when coated with biocompatible materials like gold or parylene to prevent direct exposure to bodily fluids.

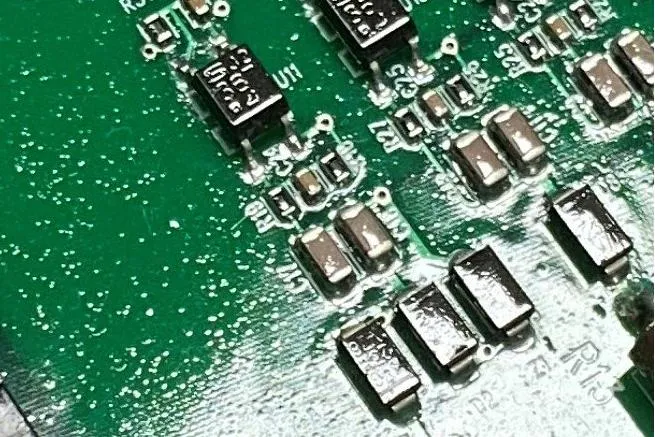

3. Protective Coatings and Encapsulations

Coatings are critical for shielding PCB components from moisture and biological interactions. Some widely used biocompatible coatings include:

• Parylene: This conformal coating provides a thin, uniform layer that protects against moisture and chemical exposure. Parylene is biocompatible and can be applied with thicknesses as low as 0.1 micrometers, ensuring minimal added bulk to the device.
• Silicone: Medical-grade silicone is often used as an encapsulant for pacemaker PCBs due to its flexibility, durability, and biocompatibility. It forms a barrier against fluids while maintaining the device’s compactness.

Design Considerations for Implantable PCBs in Pacemakers

Beyond material selection, the design of pacemaker PCBs must address biocompatibility and functionality. Here are key considerations from a material science and engineering standpoint.

1. Miniaturization and Flexibility

Pacemakers are small devices, often less than 50 cubic centimeters in volume, requiring compact PCB designs. Flexible PCBs made from materials like polyimide allow for bending and folding to fit within tight spaces without compromising performance. This flexibility also reduces stress on the device during implantation or body movement, minimizing the risk of material fatigue.

2. Signal Integrity and Low Power Consumption

Pacemaker PCBs must deliver precise electrical signals with minimal power usage to extend battery life, which can last up to 10-15 years in modern devices. Material science plays a role by selecting low-loss dielectrics for substrates to reduce signal attenuation. For example, high-frequency signals in pacemakers (often in the range of 1-5 Hz for heart pacing) require materials with dielectric constants below 4.0 to maintain efficiency.

3. Thermal Management

Heat dissipation is a concern in implantable devices, as excessive heat can damage surrounding tissues. Materials with high thermal conductivity, such as certain ceramics or metal-core PCBs, can help manage heat, though they must still meet biocompatibility standards. Designers often balance thermal performance with insulation to protect the body from temperature fluctuations.

Regulatory Standards for Biocompatible PCBs

Compliance with medical standards is mandatory for pacemaker PCBs. These standards ensure that materials and designs are safe for implantation. Key regulations include:

• ISO 10993: This international standard provides guidelines for biocompatibility testing, covering aspects like cytotoxicity, sensitization, and irritation. Materials used in pacemaker PCBs must pass these tests to be deemed safe.
• FDA Guidelines: In the United States, the Food and Drug Administration (FDA) sets strict requirements for implantable medical devices, including material safety and long-term performance data.
• IPC Class 3 Standards: These standards focus on high-reliability electronics, which are critical for medical devices. Pacemaker PCBs must meet Class 3 requirements for manufacturing precision and durability.

By adhering to these standards, manufacturers can ensure that their implantable PCBs are both biocompatible and reliable for long-term use.

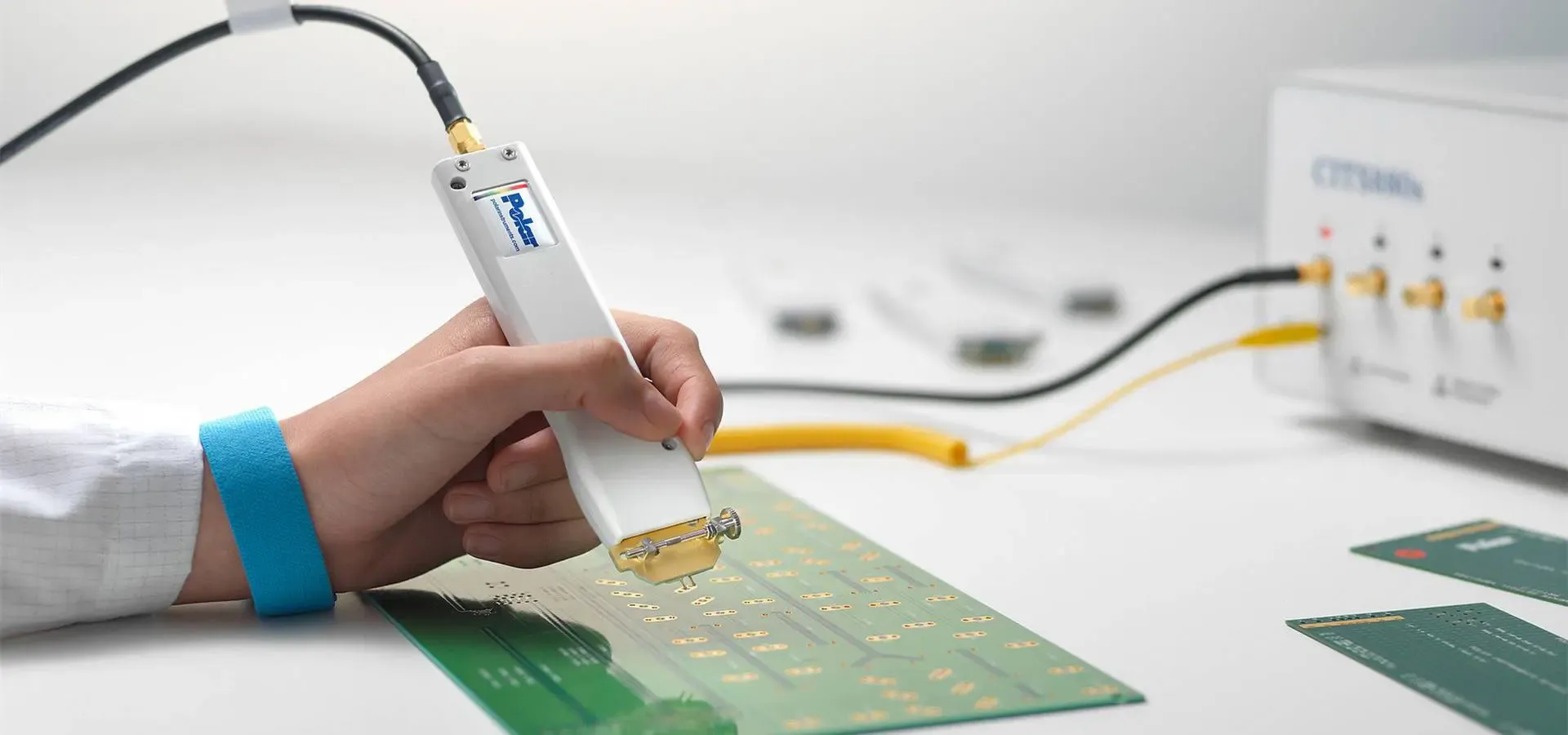

Testing Biocompatibility in Pacemaker PCBs

Testing is a critical step in confirming the biocompatibility of PCB materials. Material science experts use a variety of tests to evaluate how materials interact with the body. Common methods include:

• In Vitro Testing: This involves exposing PCB materials to simulated bodily fluids to assess corrosion resistance and chemical stability. For example, materials are tested in saline solutions at 37°C (body temperature) for weeks to mimic long-term exposure.
• In Vivo Testing: Animal studies are conducted to observe how implantable PCBs behave in a living organism. These tests help identify potential inflammatory responses or tissue damage caused by the materials.
• Cytotoxicity Tests: These assess whether materials release toxic substances that could harm cells. Cell cultures are exposed to extracts from PCB materials to check for adverse reactions.

Passing these tests ensures that pacemaker PCBs are safe for human implantation, providing peace of mind for both manufacturers and patients.

Challenges in Achieving Biocompatibility for Pacemaker PCBs

Despite advancements in material science, achieving biocompatibility in pacemaker PCBs comes with challenges. Some common hurdles include:

• Material Degradation: Over time, even biocompatible materials can degrade due to constant exposure to bodily fluids. This can affect the PCB’s performance and safety, requiring ongoing research into more durable options.
• Cost Constraints: High-quality biocompatible materials like gold and parylene are expensive, increasing production costs. Balancing cost with safety is a constant concern for manufacturers.
• Complex Manufacturing: Applying biocompatible coatings and ensuring uniform encapsulation require precision manufacturing techniques, which can be time-consuming and technically demanding.

Addressing these challenges requires collaboration between material scientists, engineers, and medical professionals to innovate and refine PCB designs for pacemakers.

Future Trends in Biocompatible PCB Materials

The field of medical PCB materials is evolving rapidly, driven by advances in material science. Some exciting trends to watch include:

• Bioabsorbable Materials: Researchers are exploring materials that can safely dissolve in the body over time, reducing the need for surgical removal of temporary implants.
• Nanomaterials: Nanotechnology offers the potential for ultra-thin, highly conductive coatings that enhance biocompatibility while reducing device size.
• Smart Materials: Materials that can adapt to changes in the body’s environment, such as temperature or pH, could improve the performance and safety of implantable PCBs in the future.

These innovations promise to make pacemaker PCBs even safer and more efficient, pushing the boundaries of what’s possible in medical technology.

Conclusion: Building Safer Pacemaker PCBs with Material Science

Ensuring biocompatibility in pacemaker PCBs is a complex but essential task that relies heavily on material science. From selecting the right medical PCB materials like polyimide and gold to applying biocompatible coatings like parylene, every step in the design and manufacturing process must prioritize patient safety. By adhering to strict regulatory standards and conducting thorough testing, engineers can create implantable PCBs that perform reliably for years inside the body.

At the heart of this process is a deep understanding of PCB material science, which guides the development of innovative solutions for challenges like corrosion and cost. As technology advances, the future of biocompatible PCBs looks promising, with new materials and techniques on the horizon to enhance the safety and effectiveness of pacemakers.

If you're working on a medical device project, consider partnering with experts who understand the intricacies of biocompatibility and high-reliability PCB design. With the right materials and approach, you can build devices that save lives while meeting the highest standards of safety and performance.
