When it comes to designing printed circuit boards (PCBs) for defense applications, standard materials like FR-4 often fall short. Defense PCBs must withstand extreme conditions such as high temperatures, intense vibrations, and even radiation exposure. Choosing the right high-performance materials is critical for ensuring reliability and durability in military and aerospace environments. In this comprehensive guide, we’ll explore advanced options beyond FR-4, focusing on defense PCB materials, high Tg laminates, thermal management PCBs, radiation-hardened PCBs, and military-grade PCB substrates.
At ALLPCB, we understand the unique challenges of defense electronics. This blog will dive into the properties, benefits, and applications of these specialized materials to help engineers make informed decisions for their projects.
Why FR-4 Isn’t Enough for Defense PCBs
FR-4, a widely used PCB material made of woven fiberglass and epoxy resin, is a go-to choice for many commercial applications due to its affordability and decent electrical properties. However, defense systems demand far more than what FR-4 can offer. For instance, FR-4 has a glass transition temperature (Tg) of around 130-140°C, which is insufficient for environments where temperatures can exceed 150°C or more during operation or testing. Additionally, FR-4 lacks the thermal conductivity needed for effective heat dissipation in high-power defense electronics and offers limited resistance to harsh environmental factors like humidity and radiation.
Defense PCBs are often deployed in mission-critical systems such as radar, communication devices, and missile guidance systems. These applications require materials that can handle mechanical stress, thermal cycling, and long-term reliability under extreme conditions. Let’s explore the high-performance alternatives that meet these stringent requirements.
Key Requirements for Defense PCB Materials
Before diving into specific materials, it’s important to understand the key properties that defense PCB substrates must possess:
- High Thermal Stability: Materials must maintain structural integrity and electrical performance at elevated temperatures, often above 150°C.
- Excellent Thermal Management: High thermal conductivity is essential to dissipate heat from power-dense components, preventing failures.
- Mechanical Durability: Defense PCBs face intense vibrations and shocks, so materials must resist cracking or delamination.
- Radiation Resistance: For aerospace and space applications, materials must withstand radiation without degrading.
- Low Dielectric Loss: To ensure signal integrity in high-frequency applications like radar, materials need low dielectric constants and loss tangents.
With these requirements in mind, let’s look at the advanced materials that are tailored for defense applications.
High Tg Laminates: Enhanced Thermal Stability
High Tg laminates are a step above standard FR-4 in terms of thermal performance. The glass transition temperature (Tg) indicates the point at which a material shifts from a rigid to a more flexible state, risking structural failure. High Tg laminates typically offer Tg values ranging from 170°C to over 200°C, making them suitable for defense applications where thermal cycling is common.
For example, in military vehicles or aircraft, electronic systems are exposed to rapid temperature changes. A high Tg laminate ensures that the PCB maintains its mechanical strength and electrical properties even under such stress. Additionally, these laminates often have improved moisture resistance, reducing the risk of delamination in humid environments.
Common high Tg materials include modified epoxy blends and polyimide-based laminates. These materials can handle soldering processes at higher temperatures, such as those required for lead-free soldering, without warping or degrading. For defense engineers, selecting a high Tg laminate is often the first step in ensuring reliability in harsh conditions.

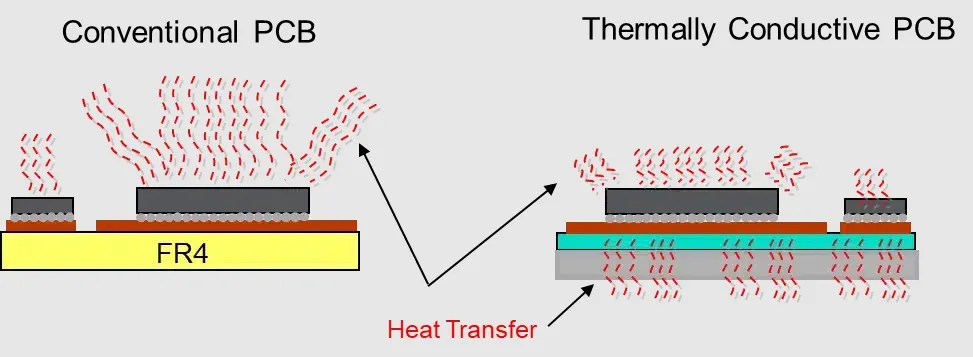

Thermal Management PCBs: Keeping Cool Under Pressure
Thermal management is a critical concern for defense electronics, where components often operate at high power levels in confined spaces. Overheating can lead to performance degradation or catastrophic failure, which is unacceptable in mission-critical systems. Thermal management PCBs are designed with materials that have high thermal conductivity to efficiently transfer heat away from sensitive components.
Materials like metal-core PCBs (MCPCBs) with aluminum or copper cores are popular for thermal management. These cores can achieve thermal conductivity values of 1-2 W/mK or higher, compared to FR-4’s meager 0.3 W/mK. Another option is ceramic-based substrates, such as aluminum nitride (AlN), which offer thermal conductivity as high as 170 W/mK, ideal for high-power radar systems or laser equipment used in defense.
In a practical scenario, consider a military communication device operating in a desert environment. The PCB must dissipate heat from power amplifiers to prevent signal distortion. Using a material with high thermal conductivity ensures that heat is spread evenly across the board or transferred to a heat sink, maintaining operational stability.

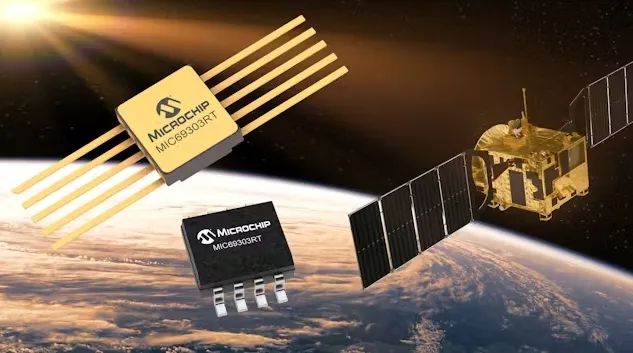

Radiation-Hardened PCBs: Built for Space and Beyond
In aerospace and space defense applications, PCBs are exposed to ionizing radiation that can disrupt electronic performance or cause permanent damage. Radiation-hardened PCBs are engineered to resist these effects, ensuring reliability in environments like satellite systems or high-altitude aircraft.
Materials for radiation-hardened PCBs are selected for their ability to minimize single-event upsets (SEUs) and total ionizing dose (TID) effects. Polyimide-based laminates are often used due to their inherent resistance to radiation-induced degradation. Additionally, these materials are paired with specialized design techniques, such as shielding layers or redundant circuitry, to further enhance durability.
For instance, a PCB in a military satellite must operate flawlessly for years in orbit, where it faces constant exposure to cosmic rays. Radiation-hardened materials help maintain signal integrity and prevent data corruption, ensuring uninterrupted communication or surveillance capabilities.

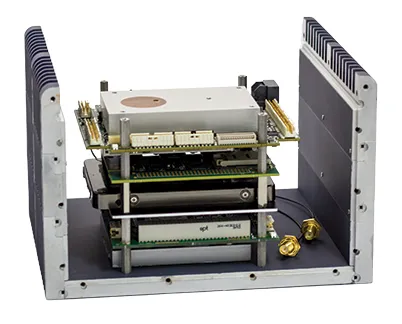

Military-Grade PCB Substrates: Meeting Stringent Standards
Military-grade PCB substrates are designed to comply with strict standards such as MIL-PRF-31032 or MIL-P-55110, which define performance criteria for defense electronics. These substrates prioritize durability, reliability, and performance under extreme conditions, often combining properties like high Tg, thermal conductivity, and chemical resistance.
Popular military-grade substrates include advanced composites like cyanate ester and bismaleimide triazine (BT) resin systems. These materials offer low dielectric constants (typically around 3.0-3.5) and loss tangents (below 0.005), making them ideal for high-frequency applications such as radar or electronic warfare systems. They also resist moisture and chemicals, which is crucial for PCBs deployed in naval or ground operations where exposure to salt spray or corrosive agents is common.
In a real-world example, consider a PCB in a missile guidance system. The substrate must maintain signal integrity at frequencies above 10 GHz while enduring mechanical shocks during launch. Military-grade materials ensure that the board performs consistently, even under such demanding conditions.
How to Choose the Right Material for Your Defense PCB
Selecting the appropriate material for a defense PCB involves balancing performance requirements with cost and manufacturability. Here are key factors to consider:
- Operating Environment: Assess the temperature range, humidity, and potential exposure to radiation or chemicals. For high-temperature environments, prioritize high Tg laminates or polyimide materials.
- Thermal Demands: If heat dissipation is a concern, opt for metal-core or ceramic substrates to manage thermal loads effectively.
- Signal Requirements: For high-frequency applications, choose materials with low dielectric loss to maintain signal integrity.
- Compliance Needs: Ensure the material meets relevant military standards and certifications for your specific application.
- Budget Constraints: While high-performance materials are more expensive than FR-4, their reliability in critical systems often justifies the cost.
Working with a trusted PCB provider can simplify this process. At ALLPCB, we offer a range of advanced materials and expert guidance to help you select the best substrate for your defense project, ensuring both performance and compliance.

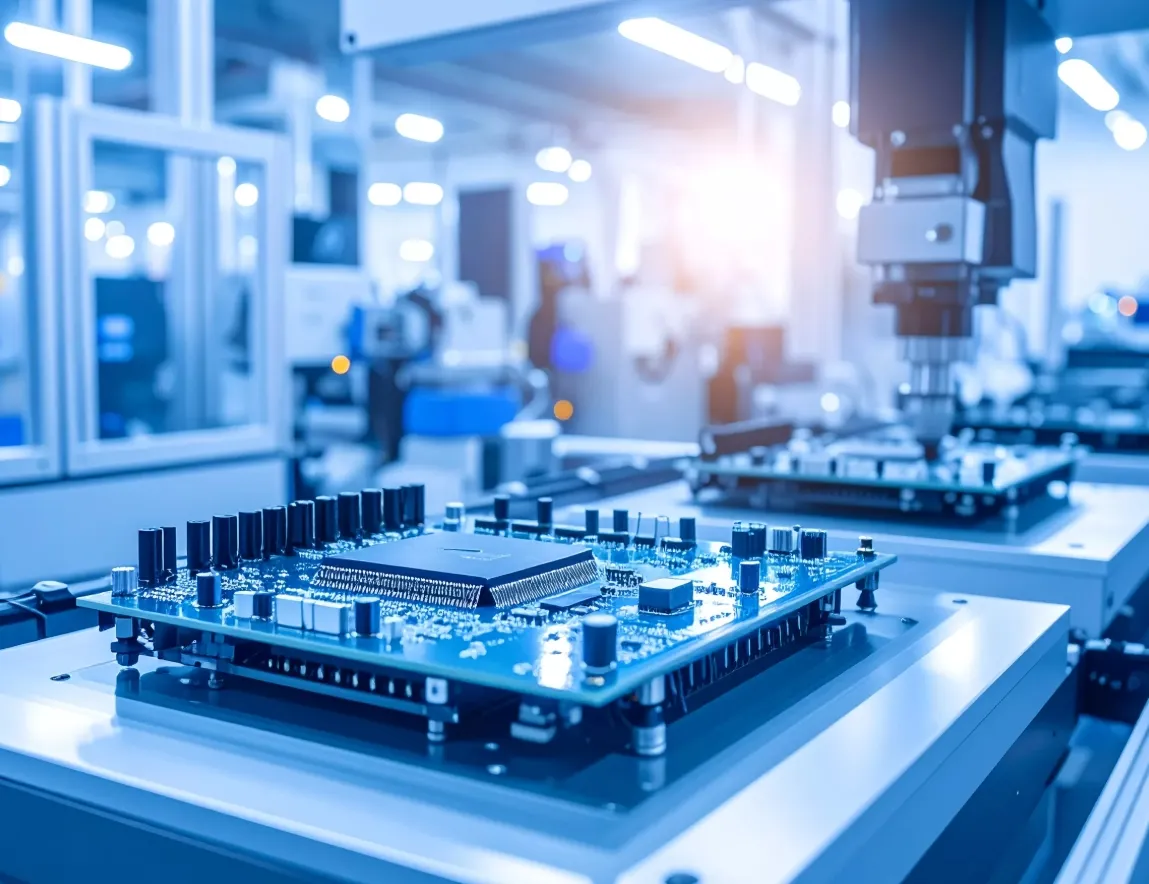

Manufacturing Challenges with High-Performance Materials
While high-performance materials offer superior properties, they also present manufacturing challenges. For instance, high Tg laminates and ceramic substrates often require specialized drilling and lamination processes due to their hardness or brittleness. Additionally, radiation-hardened materials may need specific handling to avoid contamination or damage during fabrication.
Thermal management materials like metal-core PCBs require precise control during assembly to ensure proper bonding between layers. Engineers must also account for differences in the coefficient of thermal expansion (CTE) between the substrate and components to prevent stress during temperature changes. A CTE mismatch can lead to solder joint failures or board warping, especially in defense systems exposed to thermal cycling.
Partnering with an experienced manufacturer is essential to overcome these challenges. Advanced fabrication techniques and rigorous quality control can ensure that the final PCB meets the exacting standards of defense applications.
Future Trends in Defense PCB Materials
The field of defense PCB materials is evolving rapidly, driven by the need for smaller, faster, and more reliable electronics. Emerging trends include the development of hybrid substrates that combine the benefits of multiple materials, such as polyimide with ceramic fillers for enhanced thermal and radiation resistance. Additionally, research into lightweight composites is gaining traction for aerospace applications, where reducing weight without sacrificing performance is a priority.
Another area of innovation is in sustainable materials that maintain high performance while reducing environmental impact. While still in early stages, these advancements could reshape how defense PCBs are designed and manufactured in the coming years.
Conclusion: Building Reliable Defense Systems with the Right Materials
Designing PCBs for defense applications requires moving beyond standard materials like FR-4 to high-performance options that can withstand the harshest conditions. Whether it’s high Tg laminates for thermal stability, thermal management PCBs for heat dissipation, radiation-hardened substrates for space environments, or military-grade materials for compliance and durability, the right choice can make all the difference in ensuring mission success.
At ALLPCB, we’re committed to supporting engineers in navigating these complex requirements. Our expertise in advanced materials and precision manufacturing helps bring reliable, high-quality defense PCBs to life. By understanding the unique properties and applications of these materials, you can confidently select the best substrate for your next project.
