In the fast-evolving world of autonomous vehicles, every component counts when it comes to ensuring safety and performance. One often overlooked but critical factor is the PCB surface finish. The type of finish applied to a printed circuit board (PCB) can significantly affect the reliability of electronic systems in self-driving cars. Whether it’s an ENIG PCB, an OSP PCB, or exploring HASL alternatives, choosing the right automotive PCB finish is vital for durability and functionality under harsh conditions. In this blog, we’ll dive deep into how PCB surface finish impacts autonomous vehicle reliability and explore the best options for automotive applications.
Why PCB Surface Finish Matters in Autonomous Vehicles
Autonomous vehicles rely on complex electronic systems for navigation, sensor integration, and real-time decision-making. These systems are built on PCBs that must withstand extreme temperatures, vibrations, and humidity. The surface finish of a PCB plays a key role in protecting the board from corrosion, ensuring proper soldering, and maintaining signal integrity. A poor choice of PCB surface finish can lead to failures in critical systems, risking safety and performance.
For instance, a finish that doesn’t resist oxidation well can cause connection issues over time, especially in humid environments. Similarly, finishes that aren’t compatible with high-frequency signals—common in autonomous vehicle radar and LiDAR systems—can degrade performance. With reliability being non-negotiable in automotive applications, selecting the right automotive PCB finish is a decision that engineers must prioritize.

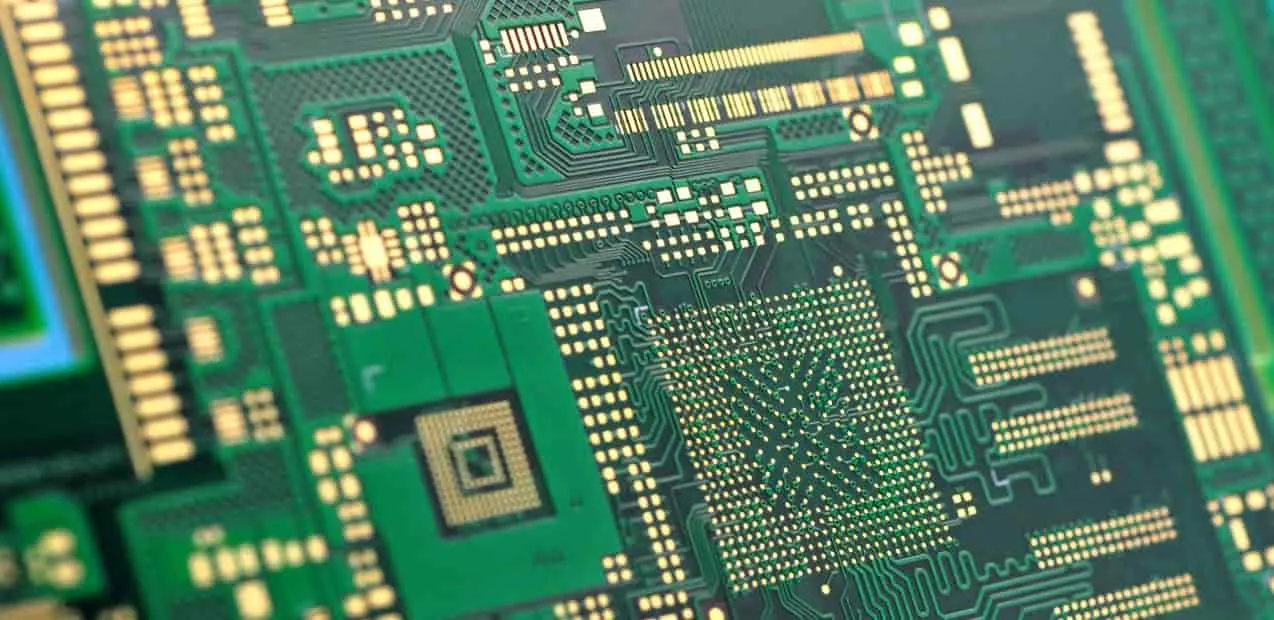

Common PCB Surface Finishes and Their Role in Reliability
Let’s explore the most widely used PCB surface finishes and how they impact reliability in autonomous vehicles. Each finish has unique properties that make it suitable—or unsuitable—for automotive environments. We’ll focus on ENIG PCB, OSP PCB, and HASL alternatives, along with their pros and cons.

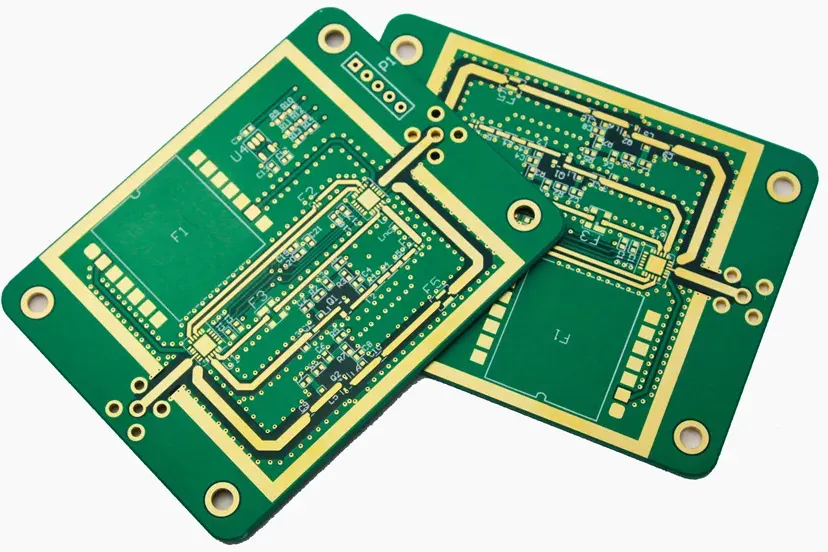

ENIG PCB: A Premium Choice for Reliability
Electroless Nickel Immersion Gold (ENIG) is a popular choice for high-reliability applications, including autonomous vehicles. This ENIG PCB finish consists of a thin layer of gold over a nickel base, providing excellent corrosion resistance and solderability. Its flat surface is ideal for fine-pitch components, which are common in compact automotive electronics.
In terms of reliability, ENIG excels in harsh environments. The gold layer protects against oxidation, ensuring long-term performance even in high-humidity conditions often encountered in vehicles. Additionally, ENIG supports high-frequency signals with minimal loss, making it suitable for radar and communication systems in self-driving cars. Studies suggest that ENIG-finished PCBs can maintain signal integrity at frequencies up to 10 GHz, a critical range for many autonomous vehicle sensors.
However, ENIG comes with a higher cost compared to other finishes. For budget-conscious projects, this might be a drawback, but the trade-off is worth it for applications where failure is not an option. Another concern is the potential for “black pad” issues, a defect caused by improper nickel plating, which can weaken solder joints. Still, with proper manufacturing controls, ENIG remains a top contender for automotive PCB finish.

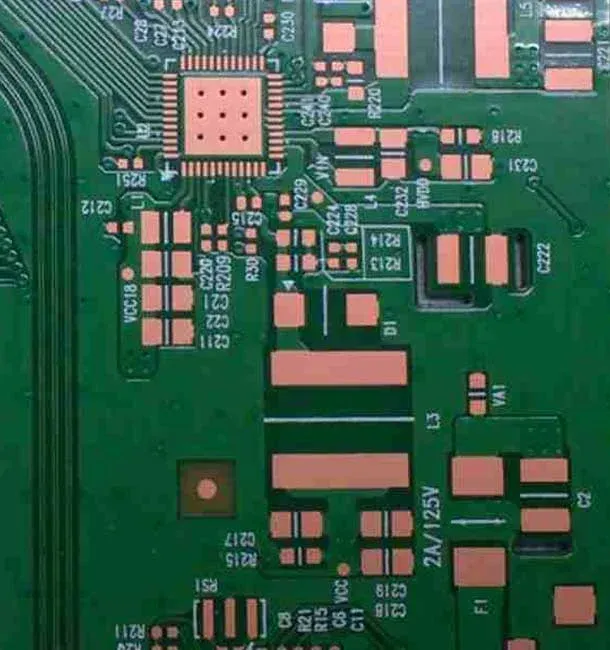

OSP PCB: An Eco-Friendly and Cost-Effective Option
Organic Solderability Preservative (OSP) is another common PCB surface finish gaining traction in automotive applications. An OSP PCB is coated with a thin organic layer that protects the copper from oxidation until soldering. This finish is environmentally friendly since it avoids heavy metals and is often more affordable than options like ENIG.
For autonomous vehicles, OSP offers decent reliability in controlled environments. It provides good solderability for lead-free processes, which are standard in modern automotive manufacturing due to regulatory requirements. OSP-finished PCBs can handle moderate temperature ranges (typically up to 85°C), making them suitable for less demanding components like interior control systems.
However, OSP has limitations in harsh conditions. The organic coating is less durable than metallic finishes, and it can degrade under prolonged exposure to moisture or thermal stress—common in under-hood applications. Its shelf life is also shorter, meaning PCBs must be assembled relatively quickly after manufacturing to avoid oxidation. For critical systems in autonomous vehicles, OSP might be better as a secondary choice rather than the primary automotive PCB finish.
HASL and Its Alternatives: Balancing Cost and Performance
Hot Air Solder Leveling (HASL) is one of the oldest and most cost-effective PCB surface finishes. It involves coating the PCB with a layer of solder, which is then leveled using hot air. While HASL is widely used in less demanding applications, its uneven surface makes it less ideal for fine-pitch components and high-frequency signals in autonomous vehicles.
In terms of reliability, HASL offers good solderability but struggles with thermal shock and corrosion resistance over time. For automotive systems exposed to temperature swings (from -40°C to 125°C in some cases), HASL may not hold up as well as other finishes. Additionally, the thicker solder layer can lead to inconsistent impedance control, which is problematic for high-speed data transmission in self-driving car electronics.
This is why many engineers look for HASL alternatives in automotive applications. Options like Immersion Silver and Immersion Tin are often considered. Immersion Silver provides a flatter surface than HASL and supports high-frequency signals better, with signal loss reductions of up to 20% compared to HASL at frequencies above 5 GHz. However, it is prone to tarnishing and requires careful handling. Immersion Tin, on the other hand, offers good solderability but can suffer from whisker growth—a phenomenon where tiny metal filaments form and cause short circuits over time.
For autonomous vehicles, HASL alternatives like Immersion Silver might work for non-critical systems, but they often fall short of the durability needed for safety-critical components compared to an ENIG PCB.
How PCB Surface Finish Affects Key Autonomous Vehicle Systems
The choice of PCB surface finish directly impacts the performance of critical systems in autonomous vehicles. Let’s break down how it affects specific areas like sensors, communication, and power management.
Sensor Systems: Signal Integrity and Durability
Autonomous vehicles rely on sensors like radar, LiDAR, and cameras for navigation and obstacle detection. These systems operate at high frequencies and require PCBs with excellent signal integrity. Finishes like ENIG are preferred here because they minimize signal loss and provide a stable surface for fine-pitch components. For instance, a radar system operating at 77 GHz can experience up to 15% less signal degradation with ENIG compared to HASL.
Durability is also crucial since sensors are often exposed to external conditions. A corrosion-resistant finish like ENIG ensures that connections remain reliable even after years of exposure to moisture and temperature extremes.
Communication Systems: High-Speed Data Transfer
Self-driving cars need seamless communication between internal systems and external networks (like V2X communication). High-speed data transfer demands low impedance mismatch and minimal signal interference. An ENIG PCB finish supports this by offering a uniform surface and low dielectric loss, ensuring data rates of up to 10 Gbps or higher without significant degradation.
In contrast, finishes like OSP or HASL may introduce variability in impedance, leading to data errors. For communication systems, investing in a high-quality automotive PCB finish is a must to maintain reliability.
Power Management: Thermal and Mechanical Stress
Power management systems in autonomous vehicles handle high currents and must endure thermal and mechanical stress. A finish like ENIG or even certain HASL alternatives can provide the necessary robustness. These systems often operate at temperatures exceeding 100°C, and a durable finish prevents solder joint failures under such conditions.
OSP, while cost-effective, may not be the best choice for power management PCBs due to its limited thermal resistance. Engineers must weigh cost against performance when selecting a finish for these applications.
Factors to Consider When Choosing an Automotive PCB Finish
Selecting the right automotive PCB finish involves balancing several factors. Here are the key considerations for engineers working on autonomous vehicle projects:
- Environmental Conditions: Will the PCB be exposed to high humidity, extreme temperatures, or vibrations? Finishes like ENIG offer superior protection in harsh environments.
- Signal Requirements: High-frequency and high-speed systems need finishes with minimal signal loss, such as ENIG or Immersion Silver.
- Cost Constraints: While ENIG provides top-tier reliability, budget limitations might push for more affordable options like OSP for less critical components.
- Manufacturing Compatibility: Ensure the finish supports lead-free soldering and other automotive manufacturing standards.
- Longevity: Autonomous vehicles are expected to operate for 10-15 years or more. Choose a finish that resists degradation over time.
Future Trends in PCB Finishes for Autonomous Vehicles
As autonomous vehicle technology advances, so do the demands on PCB reliability. Emerging finishes like ENEPIG (Electroless Nickel Electroless Palladium Immersion Gold) are gaining attention for their enhanced durability and compatibility with wire bonding—a technique sometimes used in automotive electronics. ENEPIG combines the benefits of ENIG with added resistance to wear, making it a potential future standard for automotive PCB finish.
Additionally, the push for sustainability is driving interest in eco-friendly finishes like OSP. Improvements in OSP formulations could make it more viable for harsher conditions, offering a balance of cost and environmental impact.
Conclusion: Making the Right Choice for Reliability
The PCB surface finish is a small but mighty factor in the reliability of autonomous vehicles. Whether you opt for the premium performance of an ENIG PCB, the cost-effectiveness of an OSP PCB, or explore HASL alternatives, your choice can make or break the performance of critical systems. For safety-critical applications like sensors and communication, investing in a high-quality automotive PCB finish like ENIG is often the safest bet. For less demanding components, options like OSP can provide a budget-friendly solution without sacrificing too much reliability.
At ALLPCB, we understand the unique challenges of designing electronics for autonomous vehicles. Our expertise in PCB manufacturing ensures that you get the right finish for your specific needs, balancing performance, cost, and durability. By prioritizing the right PCB surface finish, you’re taking a crucial step toward building safer, more reliable self-driving cars.
