When you think of a printed circuit board (PCB), the first image that often comes to mind is a vibrant green surface crisscrossed with copper traces. But have you ever stopped to wonder why green is the go-to color for solder masks? The answer lies in a mix of history, science, and practicality. In this blog, we’ll dive deep into the reasons behind the iconic green solder mask, exploring its history, visibility benefits, contrast advantages, and even its impact on eye strain during PCB manufacturing. Whether you're a seasoned engineer or a curious hobbyist, this guide will uncover the fascinating story of “why green solder mask” and much more.
What Is a Solder Mask and Why Does Color Matter?

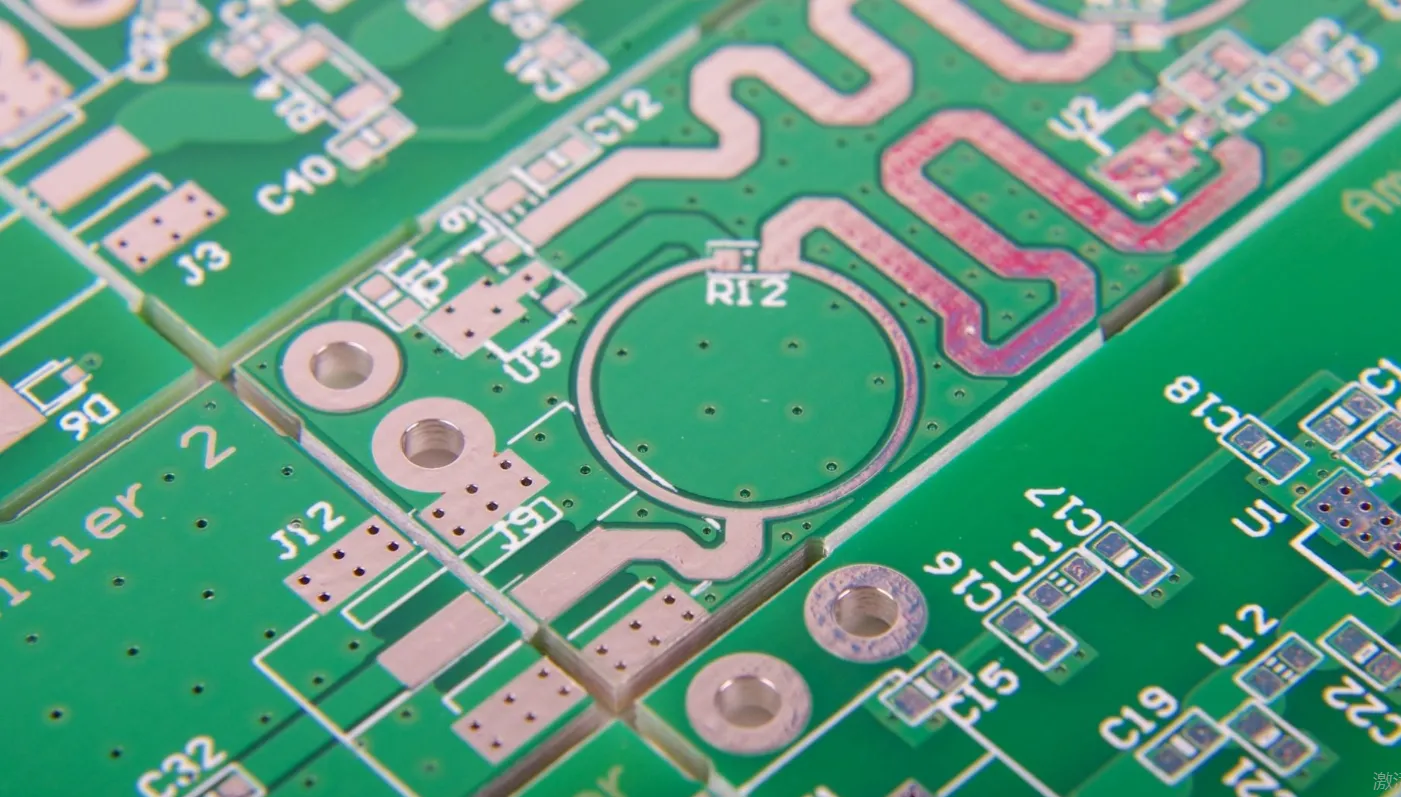

Before we explore the reasons behind the green color, let’s start with the basics. A solder mask, also known as solder resist, is a thin protective layer applied to a PCB. It covers the copper traces, preventing oxidation, protecting against environmental damage, and avoiding unintended solder bridges during assembly. This layer not only ensures the board’s functionality but also plays a role in the manufacturing and inspection processes.
While the solder mask’s primary function isn’t tied to its color, the choice of hue can impact several practical aspects, such as visibility during inspection, contrast with markings, and even comfort for workers handling the boards. So, why green? Let’s break it down step by step, starting with a look at the history behind this iconic shade.
The History of Green Solder Mask: Why It Became the Standard

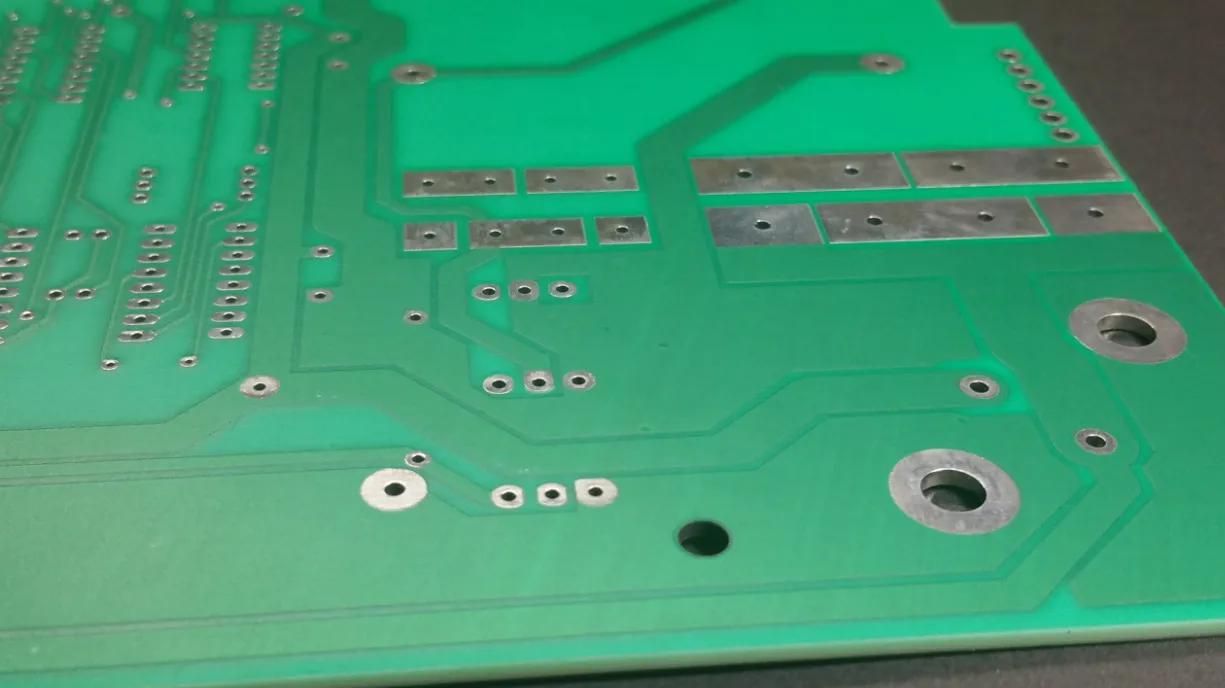

The story of the green solder mask dates back to the early days of PCB manufacturing. In the mid-20th century, as electronics became more widespread, manufacturers needed a reliable way to protect circuit boards. The earliest solder masks were made from epoxy-based materials, and green pigments were often used due to their availability and cost-effectiveness. During this era, glass epoxy—a common base material for PCBs—had a natural greenish tint, and manufacturers found that a matching green solder mask blended well with the board’s appearance.
Over time, green became the industry standard not just for aesthetic reasons but also for practical ones. Manufacturing equipment, such as Automated Optical Inspection (AOI) systems, was calibrated to work optimally with green surfaces. These systems often use red light for scanning, and green provides a strong contrast, making it easier to detect defects or misalignments. As the industry grew, sticking with green reduced costs and simplified processes, cementing its place as the default choice.
While other colors like red, blue, and black are available today, green remains dominant due to this historical precedent and its proven reliability. The legacy of “green solder mask history” continues to influence modern PCB design, even as new technologies emerge.
Green Solder Mask Visibility: A Key Advantage in Manufacturing

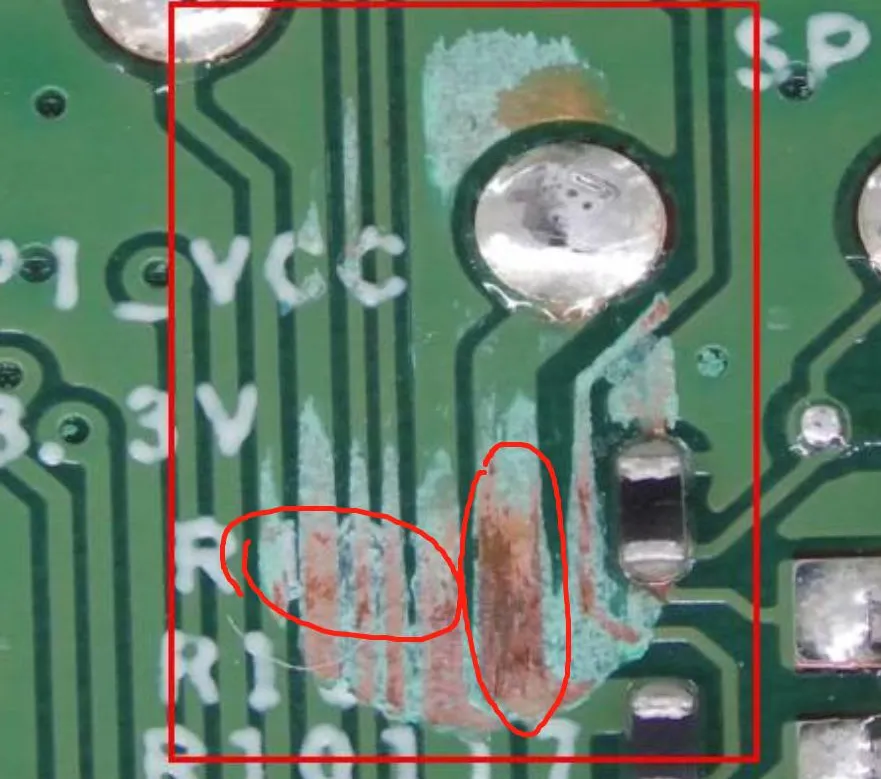

One of the most significant reasons green remains popular is its superior visibility during PCB manufacturing and inspection. In a production environment, workers and machines must quickly identify traces, pads, and potential defects on the board. The green solder mask offers excellent contrast against the shiny copper traces and white silkscreen markings, making it easier to spot issues like cracks, misprints, or incomplete solder coverage.
For instance, during manual inspection, a green background helps highlight small imperfections that might be missed on darker colors like black or blue. Similarly, in automated systems, the contrast between green and other elements ensures accurate scanning. Studies in manufacturing efficiency suggest that high-contrast surfaces can reduce error rates by up to 15% during visual inspections, though exact figures depend on lighting conditions and equipment.
This “green solder mask visibility” isn’t just about defect detection. It also aids in assembly, where technicians need to align components precisely. A clear, contrasting background simplifies the process, saving time and reducing mistakes. For engineers and manufacturers, this practical benefit keeps green as a top choice.
Green Solder Mask Contrast: Enhancing Readability and Accuracy
Contrast plays a critical role in PCB design and manufacturing, and the green solder mask excels in this area. The color green sits in the middle of the visible spectrum, making it a balanced backdrop that doesn’t overpower other hues. When paired with white silkscreen text or markings, green provides a sharp, readable contrast that’s easy to interpret, even in varying lighting conditions.
This “green solder mask contrast” is especially important for laser barcode scanning, a common practice for tracking PCBs during production. Green offers a neutral base that doesn’t interfere with the laser’s ability to read codes, unlike darker colors that might absorb too much light or lighter colors that might reflect it excessively. This compatibility with scanning technology is another reason manufacturers favor green over alternatives.
Additionally, green contrasts well with the metallic sheen of solder and copper, helping assemblers ensure proper soldering without bridges or gaps. This clarity can improve assembly accuracy by a notable margin, contributing to higher yield rates in high-volume production runs.
Green Solder Mask Eye Strain: Comfort for Workers
Another often-overlooked benefit of green solder masks is their impact on eye strain. In manufacturing facilities, workers spend hours inspecting and assembling PCBs under bright lights or magnifying lenses. Colors at the extreme ends of the spectrum, such as bright white or deep black, can cause fatigue over time due to their intensity or lack of contrast.
Green, however, is a soothing color for the human eye. It falls in a wavelength range (approximately 495-570 nanometers) that is less harsh compared to blues or reds. This characteristic reduces “green solder mask eye strain,” allowing workers to maintain focus for longer periods without discomfort. While there’s no universal data on exact reductions in fatigue, anecdotal evidence from industry professionals suggests that green is less taxing during extended shifts.
For engineers and technicians working on intricate designs or repairs, this comfort factor can indirectly boost productivity. A color that’s easy on the eyes ensures fewer breaks and better concentration, which is a subtle but meaningful advantage in a detail-oriented field like electronics.
Are There Drawbacks to Green Solder Masks?
While green solder masks have clear advantages, they’re not without limitations. One potential downside is that green can sometimes mask certain defects under specific lighting conditions. For example, if a board is inspected under green-tinted light, small cracks or discoloration might blend into the background. However, modern inspection systems and standardized lighting have largely mitigated this issue.
Additionally, as PCB designs become more complex and aesthetics play a larger role in consumer electronics, some manufacturers opt for other colors to differentiate their products or align with branding. Colors like black or white might be chosen for high-end devices, even if they don’t offer the same practical benefits as green. Despite this trend, green remains the most widely used due to its proven track record and cost-effectiveness.
Exploring Alternatives: Other Solder Mask Colors and Their Uses
Although green dominates the industry, other solder mask colors are available, each with unique properties. Here’s a quick look at some alternatives and their applications:
- Blue: Often used in prototypes or for aesthetic appeal, blue offers decent contrast but isn’t as widely supported by inspection systems.
- Red: Popular for branding or warning indicators, red can interfere with AOI systems that use red light, making it less practical for mass production.
- Black: Provides a sleek look for premium products but offers poor contrast with silkscreen markings, complicating inspection.
- White: Used in LED applications to reflect light, though it can be prone to showing dirt or defects more visibly.
While these colors have niche uses, they often come at a higher cost and may require adjustments in manufacturing processes. Green, with its balance of functionality and affordability, continues to be the default for most applications.
Why Green Remains the King of Solder Masks
From its historical roots to its practical benefits, the green solder mask has earned its place as the industry standard in PCB manufacturing. Its excellent visibility, strong contrast, and minimal impact on eye strain make it a reliable choice for engineers and manufacturers alike. While other colors offer unique advantages for specific applications, green strikes a perfect balance between cost, functionality, and compatibility with existing technologies.
At ALLPCB, we understand the importance of choosing the right solder mask for your project. Whether you stick with the tried-and-true green or explore other hues for aesthetic or functional reasons, we’re here to support your PCB needs with high-quality manufacturing solutions. The science behind “why green solder mask” reveals a fascinating blend of tradition and innovation—a testament to how even the smallest details in electronics design can have a big impact.
