In the fast-paced world of printed circuit board (PCB) manufacturing, achieving high-quality surface finishes is critical for performance and reliability. One of the most popular finishes, Electroless Nickel Immersion Gold (ENIG), offers excellent corrosion resistance and solderability. However, to ensure consistent quality, manufacturers must adhere to specific guidelines like the ENIG IPC 4552 standard. This blog dives deep into ENIG IPC standards, focusing on plating quality, thickness specifications, and compliance requirements. Whether you're an engineer or a procurement specialist, you'll find practical insights to ensure your PCBs meet industry benchmarks.
What Are IPC Standards for ENIG and Why Do They Matter?
IPC standards are globally recognized guidelines developed by the Institute of Printed Circuits (now known as IPC) to ensure quality, reliability, and consistency in electronics manufacturing. For ENIG, a widely used surface finish in PCB production, the primary standard is IPC-4552. This specification outlines the requirements for electroless nickel and immersion gold plating, ensuring the finish can withstand soldering processes and environmental stresses.
Following ENIG IPC standards is crucial for several reasons. First, it guarantees that the PCB finish will perform reliably during assembly and in the final product. Second, compliance with IPC-4552 helps manufacturers avoid issues like nickel corrosion or "black pad" defects, which can lead to solder joint failures. Lastly, adhering to these standards builds trust with clients by demonstrating a commitment to quality.
In the sections below, we'll explore the specifics of ENIG IPC 4552, including plating quality, thickness specifications, and tips for ensuring compliance in your manufacturing process.
Breaking Down ENIG IPC 4552: The Core Standard for Quality
The IPC-4552 standard, first introduced in 2002, has evolved over the years with revisions like IPC-4552B to address modern challenges in PCB manufacturing. This standard specifically covers the requirements for ENIG plating, focusing on the thickness of nickel and gold layers, corrosion resistance, and overall performance under various conditions.
One of the key updates in IPC-4552B, released in recent years, is the emphasis on nickel corrosion prevention. Earlier versions focused mainly on thickness, but the latest revision provides detailed guidelines on evaluating and mitigating corrosion risks. This is critical because excessive corrosion can weaken the nickel layer, leading to poor solderability and potential failures in high-reliability applications like aerospace or medical devices.
The standard also provides a framework for manufacturers to test and validate their ENIG processes. By following IPC-4552, suppliers can ensure their finishes are robust enough to handle diverse manufacturing environments and meet customer expectations.
Key Requirements of ENIG IPC 4552
- Nickel Layer Thickness: Typically specified between 3 to 6 micrometers (μm) to provide a strong barrier against corrosion and ensure durability during soldering.
- Gold Layer Thickness: Recommended to be between 0.05 to 0.1 μm. The gold layer must be thin enough to avoid excessive cost but thick enough to protect the nickel underneath. IPC cautions that gold thickness above 0.125 μm can increase the risk of nickel corrosion due to process variability.
- Corrosion Resistance: The finish must resist degradation under thermal and environmental stress, ensuring long-term reliability.
- Solderability: The ENIG finish must support robust solder joints, even after multiple reflow cycles during lead-free soldering processes.
By adhering to these specifications, manufacturers can produce ENIG finishes that balance cost, performance, and reliability.

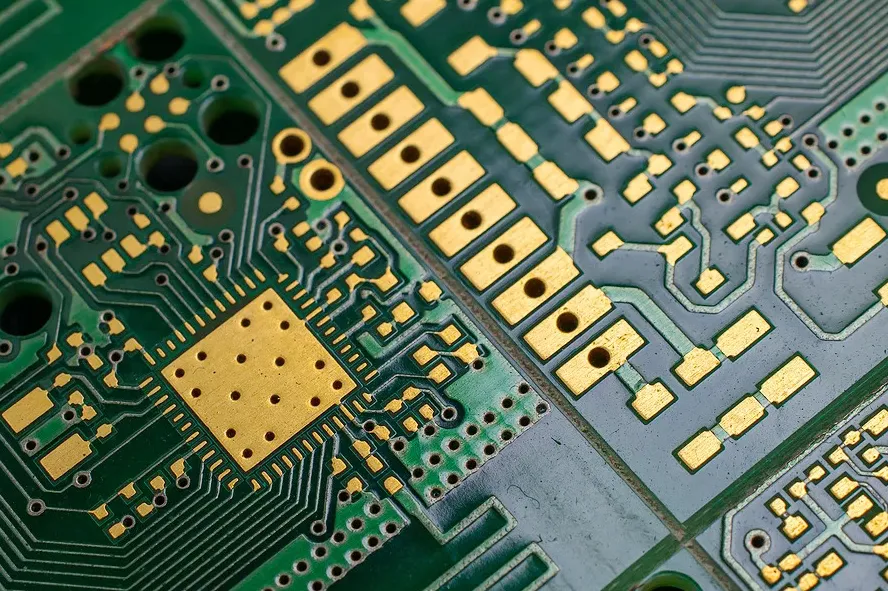

ENIG Plating Quality: What to Look For
ENIG plating quality directly impacts the performance and lifespan of a PCB. Poor-quality plating can lead to defects like black pad syndrome, where nickel corrosion prevents proper soldering, resulting in weak or failed connections. To ensure high ENIG plating quality, manufacturers must focus on process control, material selection, and regular testing.
Factors Affecting ENIG Plating Quality
- Process Consistency: The electroless nickel and immersion gold processes must be tightly controlled. Variations in bath chemistry, temperature, or immersion time can lead to uneven plating or defects.
- Material Purity: High-purity chemicals for nickel and gold deposition are essential to avoid contamination that could compromise the finish.
- Corrosion Prevention: As highlighted in IPC-4552B, preventing nickel corrosion is critical. This often involves optimizing the gold deposition process to minimize porosity, which can expose the nickel layer to oxidation.

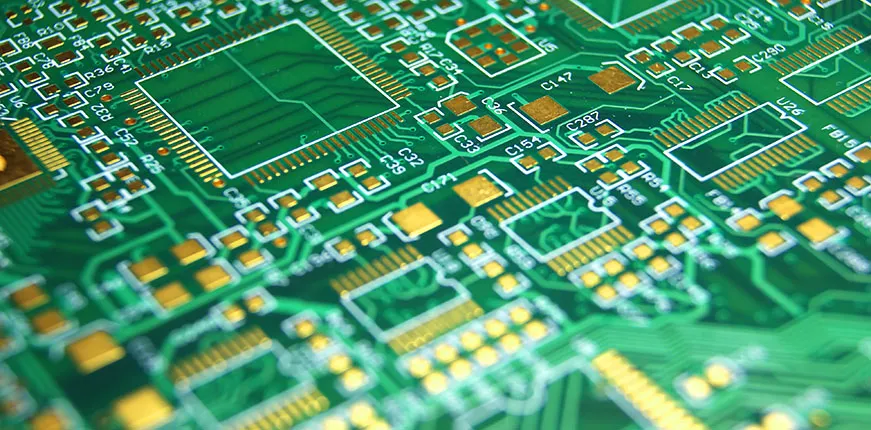

- Testing and Validation: Regular testing, such as X-ray fluorescence (XRF) for thickness measurement and solderability tests, ensures the plating meets IPC standards.
High-quality ENIG plating not only improves solderability but also enhances the PCB's ability to withstand harsh environments, making it ideal for applications in automotive, industrial, and consumer electronics.
ENIG Thickness Specifications: Striking the Right Balance
One of the most critical aspects of ENIG compliance is meeting the thickness specifications outlined in IPC-4552. The thickness of both the nickel and gold layers plays a significant role in the finish's performance.
Nickel Thickness Specifications
The nickel layer acts as a barrier between the copper substrate and the gold layer, preventing diffusion and corrosion. IPC-4552 recommends a nickel thickness of 3 to 6 μm for most applications. A thickness below 3 μm may not provide adequate protection, while exceeding 6 μm can increase costs without significant benefits. For high-reliability applications, manufacturers might target the higher end of this range to ensure durability.
Gold Thickness Specifications
The gold layer, while much thinner, is equally important. IPC-4552 specifies a gold thickness of 0.05 to 0.1 μm to protect the nickel from oxidation while maintaining cost-effectiveness. However, exceeding 0.125 μm can introduce risks, as excessive gold deposition may cause nickel corrosion due to process inconsistencies. Manufacturers must carefully calibrate their immersion gold processes to stay within this narrow window.
Balancing these thicknesses is essential for achieving a finish that meets both performance and economic goals. Advanced measurement tools like XRF are often used to verify compliance with these specifications during production.
Ensuring ENIG Compliance in PCB Manufacturing
Achieving ENIG compliance with IPC standards requires a combination of robust processes, skilled personnel, and rigorous quality control. Below are actionable steps manufacturers can take to ensure their ENIG finishes meet IPC-4552 requirements.
1. Implement Strict Process Controls
Maintain consistent control over plating bath chemistry, temperature, and immersion times. Automated systems can help monitor these parameters in real-time, reducing the risk of human error and ensuring uniform plating across batches.
2. Conduct Regular Testing
Use non-destructive testing methods like XRF to measure layer thicknesses and ensure they fall within IPC-4552 specifications. Additionally, perform solderability and corrosion resistance tests to validate the finish's performance under simulated conditions.
3. Train Personnel
Ensure that staff involved in the ENIG plating process are well-trained in IPC standards and best practices. Knowledge of potential defects like black pad syndrome and how to prevent them is essential for maintaining quality.
4. Partner with Reliable Suppliers
Work with trusted suppliers for plating chemicals and materials. High-quality inputs are the foundation of a compliant ENIG finish, and substandard materials can lead to costly rework or failures.
5. Stay Updated on Revisions
IPC standards evolve to address new challenges in electronics manufacturing. Keep abreast of updates to IPC-4552, such as the latest revision (IPC-4552B), to ensure your processes remain compliant with current guidelines.
By following these steps, manufacturers can consistently produce ENIG-finished PCBs that meet industry standards and customer expectations.
Benefits of Adhering to ENIG IPC Standards
Compliance with ENIG IPC standards offers numerous advantages for both manufacturers and end-users. Here are some key benefits:
- Enhanced Reliability: PCBs with compliant ENIG finishes are less prone to failures, even in demanding applications like automotive or medical devices.
- Improved Solderability: Proper ENIG plating ensures strong, reliable solder joints, reducing the risk of defects during assembly.
- Cost Efficiency: By avoiding defects and rework, manufacturers can save on production costs and maintain competitive pricing.
- Customer Trust: Adhering to recognized standards like IPC-4552 demonstrates a commitment to quality, fostering confidence among clients and partners.
Ultimately, compliance with ENIG IPC standards is not just a regulatory requirement but a strategic advantage in the competitive PCB industry.
Common Challenges in Meeting ENIG IPC Standards and How to Overcome Them
While the benefits of compliance are clear, achieving consistent adherence to ENIG IPC standards can be challenging. Below are some common issues and practical solutions:
Challenge 1: Nickel Corrosion (Black Pad)
Nickel corrosion, often manifesting as black pad, is a notorious issue in ENIG plating. It occurs when the gold layer fails to adequately protect the nickel, leading to oxidation and poor solderability.
Solution: Optimize the immersion gold process to minimize porosity and ensure uniform coverage. Regular bath maintenance and monitoring can also prevent contamination that contributes to corrosion.
Challenge 2: Thickness Variability
Inconsistent plating thicknesses can result in non-compliance with IPC-4552 specifications, affecting both performance and cost.
Solution: Use automated plating systems to control deposition rates and employ precise measurement tools like XRF for real-time monitoring.
Challenge 3: Adapting to Lead-Free Soldering
Lead-free soldering processes, which often involve higher temperatures, can stress ENIG finishes and expose weaknesses in plating quality.
Solution: Test ENIG finishes under simulated lead-free soldering conditions to ensure they can withstand thermal stress without degrading.
By proactively addressing these challenges, manufacturers can maintain high standards of quality and compliance in their ENIG processes.
Conclusion: Prioritizing Quality with ENIG IPC Standards
In the competitive world of PCB manufacturing, adhering to ENIG IPC standards like IPC-4552 is essential for ensuring quality, reliability, and customer satisfaction. By focusing on plating quality, meeting thickness specifications, and implementing robust compliance strategies, manufacturers can produce ENIG-finished PCBs that excel in performance and durability. Whether you're designing for consumer electronics or high-reliability applications, understanding and applying these standards will help you stay ahead in the industry.
