In the rapidly evolving field of medical technology, flexible PCBs (Printed Circuit Boards) have become a game-changer, especially in the design of modern pacemakers. If you're wondering how a flexible PCB for pacemakers can improve device performance and patient outcomes, the answer lies in their ability to adapt to compact designs, withstand bending stress, and ensure reliability in implantable devices. This blog dives deep into the critical role of flexible PCBs in pacemaker design, exploring their advantages, applications, and the innovative materials and techniques that make them indispensable.
At ALLPCB, we understand the importance of cutting-edge technology in healthcare. In this post, we'll break down the specifics of how flexible and flex-rigid PCBs contribute to pacemaker innovation, focusing on reliability, biocompatibility, and design flexibility. Let's explore this fascinating intersection of electronics and medicine.
What Are Flexible PCBs and Why Are They Crucial for Pacemakers?

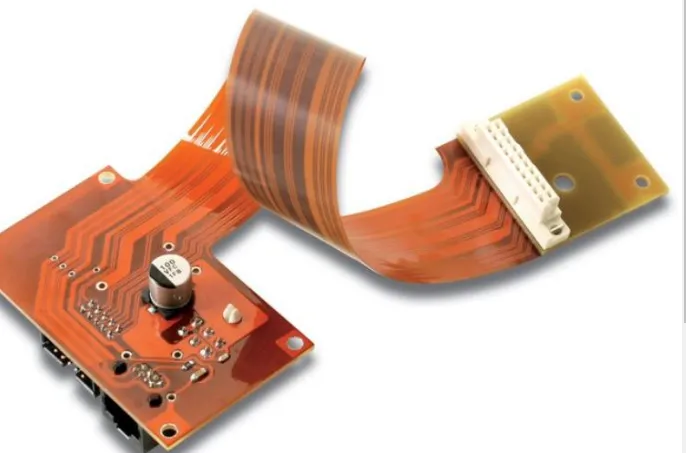

Flexible PCBs are thin, lightweight circuit boards made from materials like polyimide or polyester that allow them to bend and conform to various shapes without breaking. Unlike traditional rigid PCBs, these circuits can adapt to the tight, curved spaces inside medical devices like pacemakers, which are implanted in the chest to regulate heart rhythms.
In pacemaker design, space is at a premium. A typical pacemaker is about the size of a small matchbox, measuring roughly 40 mm x 50 mm x 6 mm, and every component must fit within this confined area while maintaining flawless performance. A flexible PCB for pacemakers offers the adaptability needed to wrap around other components or fit into irregular shapes, optimizing space usage and ensuring the device remains compact and comfortable for the patient.
Advantages of Flexible PCBs in Pacemaker Design
Flexible PCBs bring a host of benefits to modern pacemaker design. Below, we explore the key advantages that make them a preferred choice for engineers and medical device manufacturers.
1. Space Efficiency and Miniaturization
One of the biggest challenges in pacemaker design is minimizing the device's size to reduce invasiveness during implantation. Flexible PCBs can be folded or rolled, allowing engineers to stack components in three-dimensional configurations. This capability has led to the development of leadless pacemakers, which are as small as a capsule (approximately 1 cm in length) and can be implanted directly into the heart via a catheter, eliminating the need for traditional pacing leads.
By using a flexible PCB for pacemakers, designers can achieve up to a 50% reduction in device footprint compared to rigid PCB layouts, based on industry case studies. This miniaturization directly improves patient comfort and reduces surgical risks.
2. Enhanced Durability Against Bending Stress

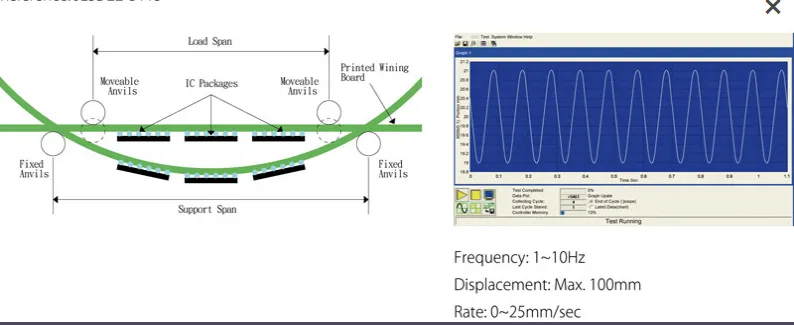

Pacemakers are subject to constant movement due to the body's natural motions, such as breathing or physical activity. This puts significant pacemaker PCB bending stress on the internal components. Flexible PCBs are designed to endure repeated bending and flexing without cracking or losing functionality. They can withstand bending radii as tight as 1 mm, ensuring long-term durability in dynamic environments like the human body.
For instance, a flexible PCB can maintain signal integrity even after thousands of bending cycles, with studies showing minimal degradation in electrical performance (e.g., impedance values remaining stable at around 50 ohms). This durability is critical for the lifespan of a pacemaker, which often needs to function reliably for 10-15 years.
3. Improved Reliability in Implants
The reliability of flexible circuits in implants is a cornerstone of their adoption in pacemakers. These circuits are less prone to mechanical failure compared to rigid boards because they absorb stress rather than resist it. Additionally, flexible PCBs reduce the number of interconnects and solder joints, which are common points of failure in traditional designs. Fewer connections mean a lower risk of electrical shorts or open circuits, enhancing the overall reliability of the device.
In terms of performance metrics, flexible PCBs in pacemakers can achieve signal transmission speeds of up to 1 GHz, ensuring rapid and accurate communication between the device's sensors and electrodes. This reliability is vital for delivering precise electrical impulses to regulate heartbeats, often with timing accuracy within milliseconds.
4. Compatibility with Advanced Flex-Rigid Designs

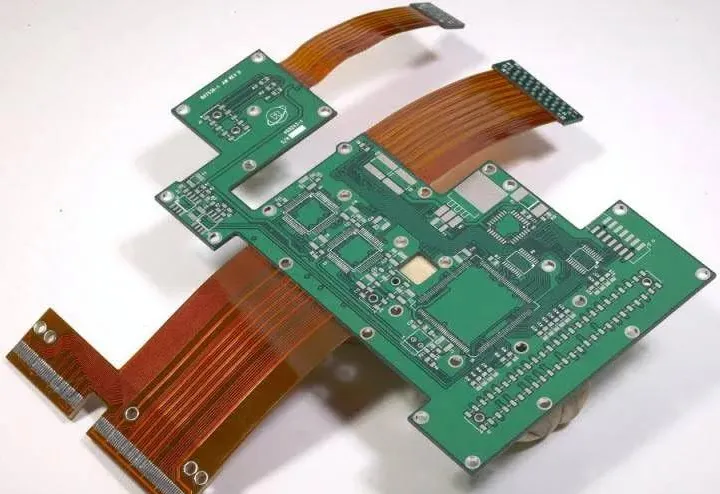

A flex-rigid PCB design for pacemakers combines the benefits of both flexible and rigid circuits. In this hybrid approach, rigid sections provide structural support for mounting heavier components like batteries or microprocessors, while flexible sections allow for bending and space optimization. This design is particularly useful in modern pacemakers that incorporate multiple functionalities, such as heart rhythm monitoring and wireless data transmission.
Flex-rigid PCBs can reduce the device's weight by up to 30% compared to fully rigid designs, making the implant less noticeable to the patient. They also support complex multilayer configurations, enabling higher circuit density within a smaller area.
Applications of Flexible PCBs in Modern Pacemaker Technology
Beyond their inherent advantages, flexible PCBs enable specific applications that are transforming pacemaker technology. Here are some key areas where they make a significant impact.
1. Leadless Pacemaker Development
Traditional pacemakers rely on leads (wires) to connect the device to the heart, but these leads can fail over time due to wear or infection risks. Leadless pacemakers, enabled by flexible PCBs, integrate all components into a single tiny unit that sits directly inside the heart. The flexibility of the PCB allows it to conform to the heart's curvature, ensuring stable contact with cardiac tissue.
This application not only reduces the risk of complications but also simplifies the implantation process, often cutting surgical time by 40% compared to traditional methods.
2. Wearable and Temporary Cardiac Monitoring
While pacemakers are permanent implants, flexible PCBs are also used in temporary cardiac monitoring devices that work alongside pacemakers. These wearable patches, equipped with flexible circuits, monitor heart activity and transmit data wirelessly to healthcare providers. Their flexibility ensures comfort during extended wear, while their thin profile (often less than 0.5 mm thick) makes them discreet.
This dual application of flexible PCBs in both implants and external monitors highlights their versatility in cardiac care.
3. Integration of Advanced Features
Modern pacemakers are not just about pacing the heart; they often include features like MRI compatibility, remote monitoring, and adaptive rate response. Flexible PCBs support the integration of these advanced functionalities by providing the necessary circuit density and layout flexibility. For example, they can accommodate additional sensors and antennas for wireless communication without increasing the device's size.
The Importance of Biocompatible Flexible PCB Materials
One of the most critical aspects of using flexible PCBs in pacemakers is ensuring that the materials are safe for implantation. Biocompatible flexible PCB materials are specifically chosen to prevent adverse reactions in the body, such as inflammation or rejection.
Common materials include polyimide, which offers excellent thermal stability (withstanding temperatures up to 300°C during manufacturing) and chemical resistance. Polyimide-based flexible PCBs also have a low dielectric constant (around 3.4), ensuring minimal signal loss in high-frequency applications like pacemaker electrode control.
Additionally, coatings such as parylene are often applied to flexible PCBs to enhance biocompatibility and provide a moisture barrier, protecting the circuit from bodily fluids. These coatings can be as thin as 1 micrometer, maintaining the PCB's flexibility while adding a critical layer of safety.
Engineers must also consider the long-term stability of these materials. A pacemaker may remain in the body for over a decade, and the PCB materials must resist degradation while maintaining electrical performance. Rigorous testing, including accelerated aging studies at temperatures of 85°C and 85% humidity, ensures that these materials meet the stringent requirements of medical implants.
Challenges and Future Trends in Flexible PCB Design for Pacemakers
While flexible PCBs offer numerous benefits, there are challenges to address. Manufacturing costs for flexible and flex-rigid PCBs can be higher than for traditional rigid boards due to the specialized materials and processes involved. However, advancements in production techniques are gradually reducing these costs, making flexible PCBs more accessible for widespread use in medical devices.
Looking ahead, the future of flexible PCBs in pacemaker design is promising. Innovations like bioresorbable materials, which dissolve harmlessly in the body after a set period, are being explored for temporary pacemakers. Additionally, the integration of nanotechnology could lead to even smaller, more efficient circuits, pushing the boundaries of miniaturization further.
Wireless power delivery is another emerging trend. Flexible PCBs could support thin, lightweight coils for wireless charging, eliminating the need for battery replacements and extending the lifespan of pacemakers indefinitely.
How ALLPCB Supports Flexible PCB Innovation for Medical Devices
At ALLPCB, we are committed to advancing medical technology through high-quality PCB solutions. Our expertise in flexible and flex-rigid PCB manufacturing ensures that medical device designers have access to reliable, biocompatible, and high-performance circuits tailored to their needs. Whether it's optimizing a design for pacemaker PCB bending stress or ensuring the reliability of flexible circuits in implants, we provide end-to-end support from prototyping to mass production.
Our state-of-the-art facilities adhere to strict quality standards, including ISO 13485 certification for medical device manufacturing, ensuring that every PCB meets the rigorous demands of implantable applications. With a focus on precision and innovation, we help bring life-saving technologies like modern pacemakers to reality.
Conclusion
Flexible PCBs have revolutionized modern pacemaker design, offering unmatched advantages in space efficiency, durability, and reliability. From enabling leadless pacemakers to supporting advanced features like wireless monitoring, a flexible PCB for pacemakers is at the heart of these life-saving devices. The use of biocompatible flexible PCB materials and innovative flex-rigid PCB design for pacemakers ensures safety and performance, even under the challenging conditions of the human body.
As technology continues to evolve, flexible PCBs will play an even larger role in shaping the future of cardiac care. At ALLPCB, we are proud to be part of this journey, providing the tools and expertise needed to push the boundaries of medical electronics. Whether you're an engineer designing the next generation of pacemakers or a researcher exploring new applications, understanding the role of flexible PCBs is key to unlocking their full potential.
