Choosing the right PCB material for robotics is crucial for ensuring performance, durability, and reliability, especially in demanding applications. Whether you're designing for harsh environments, high-temperature conditions, or need flexible materials, the material selection can make or break your project. In this guide, we'll dive deep into selecting the best PCB materials for robotics, focusing on key factors like durability in extreme conditions, thermal resistance, flexibility, and laminate choices. Let's explore how to make informed decisions for your next robotics project.
Why PCB Material Selection Matters in Robotics
Robotics applications often push the limits of technology, requiring printed circuit boards (PCBs) that can withstand unique challenges. From industrial robots operating in extreme heat to drones navigating rugged terrains, the PCB must endure stress while maintaining signal integrity and functionality. Poor material choices can lead to failures like delamination, cracking, or signal loss, costing time and money.
The right material ensures your PCB can handle mechanical stress, temperature fluctuations, and environmental factors like moisture or chemicals. For instance, a robot in a factory might face temperatures exceeding 100°C, while a marine robot could be exposed to saltwater corrosion. By understanding the specific needs of your robotics application, you can select materials that optimize performance and longevity.
Key Factors in Selecting PCB Materials for Robotics
Before diving into specific materials, let's break down the critical factors to consider when choosing PCB materials for robotics. These factors will guide your decision-making process and ensure your design meets the demands of the application.
1. Environmental Conditions: PCB Material for Harsh Environments
Robotics often operate in harsh environments, such as extreme cold, humidity, dust, or chemical exposure. For example, agricultural robots might encounter pesticides, while underwater robots face constant moisture and pressure. The PCB material must resist these conditions to prevent corrosion, swelling, or electrical failure.
Materials with high moisture resistance, like those with low water absorption rates (e.g., less than 0.2%), are ideal for humid or wet environments. Additionally, coatings or laminates that provide chemical resistance can protect against corrosive substances. Testing standards like IPC-TM-650 can help evaluate a material’s performance in harsh conditions, ensuring reliability over time.
2. Thermal Performance: High-Temperature PCB Materials
High temperatures are a common challenge in robotics, especially for applications like automotive or industrial systems where components may operate near heat sources. A PCB material with a high glass transition temperature (Tg) is essential to prevent softening or deformation. For instance, materials with a Tg above 170°C are often recommended for high-temperature environments.
Thermal conductivity also matters. A material with good heat dissipation (e.g., 1.0 W/m·K or higher) can prevent overheating of critical components. This is vital for maintaining signal integrity and preventing thermal runaway, which could damage the PCB or connected systems.

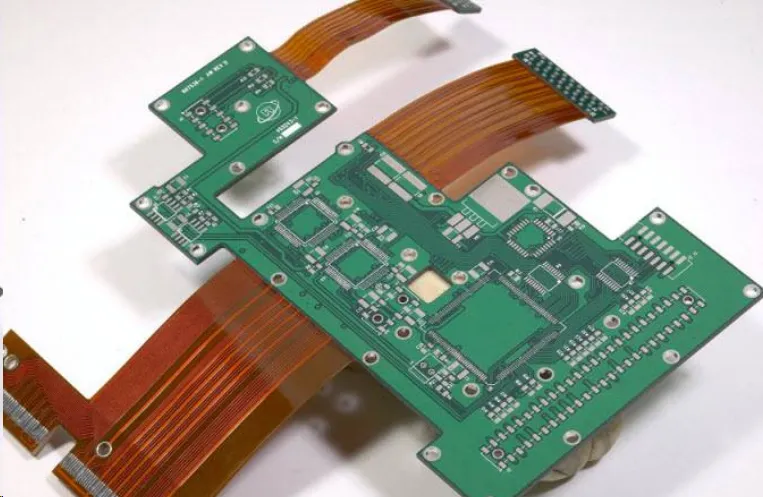

3. Flexibility: Flexible PCB Materials for Dynamic Designs
Many robotics applications require PCBs that can bend or flex without breaking, especially in compact or moving designs like robotic arms or wearable devices. Flexible PCB materials allow for innovative designs where space is limited or constant motion is involved.
Flexible materials must balance durability with bendability. A common specification to look for is the bend radius, which indicates how tightly a material can be bent without cracking. For example, a bend radius of 10x the material thickness is often a safe threshold for many flexible substrates.
4. Electrical Properties: Signal Integrity and Performance
Robotics often involve high-speed data transmission and precise control systems, making electrical properties like dielectric constant (Dk) and dissipation factor (Df) critical. A low Dk (e.g., 3.5 or below) ensures minimal signal delay, while a low Df (e.g., 0.002 or less) reduces signal loss, which is essential for high-frequency applications.
Matching the material’s impedance to the design requirements (e.g., 50 ohms for many RF applications) is also crucial. Poor impedance control can lead to signal reflections, degrading performance in sensitive robotics systems.

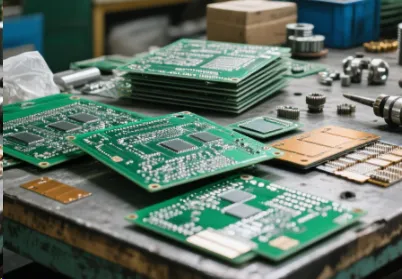

Popular PCB Materials for Robotics Applications
Now that we’ve covered the key factors, let’s explore specific materials suited for robotics, focusing on their properties and ideal use cases.
1. FR-4: The Standard Choice for General Robotics
FR-4 is the most widely used PCB material due to its affordability and balanced properties. Made from woven fiberglass and epoxy resin, it offers decent mechanical strength and a Tg of around 130-140°C, making it suitable for many robotics applications with moderate temperature demands.
However, standard FR-4 may not perform well in extreme heat or harsh environments without additional protective coatings. For robotics in milder conditions, such as educational robots or indoor systems, FR-4 is a cost-effective and reliable choice.
2. High-Tg FR-4: For High-Temperature Robotics
For robotics exposed to higher temperatures, high-Tg FR-4 variants with a Tg of 170°C or more are a better option. These materials resist thermal deformation better than standard FR-4 and are often used in industrial robots or automotive systems where heat from motors or engines is a concern.
High-Tg FR-4 also offers improved thermal stability during soldering processes, reducing the risk of delamination. If your robotics project involves sustained temperatures above 100°C, this material provides a good balance of performance and cost.
3. Polyimide: Ideal for High-Temperature PCB and Flexibility
Polyimide is a go-to material for robotics requiring both high-temperature resistance and flexibility. With a Tg often exceeding 250°C, polyimide can withstand extreme heat, making it perfect for aerospace or military robots operating in harsh conditions.
Additionally, polyimide is highly flexible, with excellent tensile strength even after repeated bending. This makes it a top choice for flexible PCB designs in robotics where space constraints or dynamic movement are factors. Its low moisture absorption (around 1-2%) also adds durability in humid environments.
4. PTFE-Based Materials: For High-Frequency Robotics
In robotics applications involving high-frequency signals, such as autonomous navigation systems or communication devices, PTFE-based materials (often reinforced with glass or ceramic fillers) excel. They offer a low dielectric constant (Dk around 2.1-2.5) and minimal signal loss, ensuring reliable performance at frequencies above 1 GHz.
While these materials are more expensive, their stability in high-temperature and harsh environments makes them worth considering for critical robotics systems where signal integrity is non-negotiable.
5. Metal-Core PCBs: Enhanced Thermal Management
For robotics with significant heat generation, metal-core PCBs (MCPCBs) are an excellent choice. Typically made with an aluminum or copper base, these boards provide superior thermal conductivity (often 1-3 W/m·K or higher), efficiently dissipating heat away from sensitive components.
MCPCBs are commonly used in robotics with high-power components, such as motor controllers or LED systems in inspection robots. Their ability to handle temperatures well above 150°C without degrading makes them ideal for demanding thermal environments.
Selecting PCB Laminate for Robotics: What to Know
Laminate choice is a critical aspect of PCB material selection for robotics. Laminates provide the structural and electrical foundation of the board, and their properties directly impact performance. Here’s what to consider when selecting PCB laminate for robotics.
1. Dielectric Strength and Insulation
Laminates must provide strong insulation to prevent electrical shorts, especially in high-voltage robotics applications. Look for laminates with high dielectric strength (e.g., 500 V/mil or more) to ensure safety and reliability under stress.
2. Thermal Expansion (CTE)
The coefficient of thermal expansion (CTE) measures how much a material expands or contracts with temperature changes. A mismatch in CTE between the laminate and components can cause mechanical stress or cracking. For high-temperature robotics, choose laminates with a CTE close to that of copper (around 17 ppm/°C) to minimize risks.
3. Layer Count and Thickness
Robotics PCBs often require multilayer designs to accommodate complex circuitry. The laminate must support the desired layer count while maintaining signal integrity. Thinner laminates (e.g., 0.2 mm per layer) are ideal for compact designs, while thicker options provide more durability in rugged applications.
4. Environmental Certifications
For robotics in regulated industries like medical or aerospace, laminates must comply with standards like RoHS (Restriction of Hazardous Substances) or UL (Underwriters Laboratories) ratings for flame resistance. Always check the laminate’s certifications to ensure it meets your project’s requirements.
Tips for Optimizing PCB Material Selection in Robotics
Beyond choosing the right material and laminate, here are practical tips to ensure your PCB performs optimally in robotics applications:
- Collaborate with Manufacturers Early: Work closely with your PCB fabrication partner to discuss material availability, stack-up designs, and testing capabilities. Early collaboration can prevent costly redesigns.
- Simulate Environmental Stress: Use simulation tools to model how your PCB will behave under temperature, humidity, or mechanical stress. This can help identify potential failures before production.
- Prioritize Testing: Conduct thorough testing, such as thermal cycling (e.g., -40°C to 125°C) or humidity exposure, to validate material performance in real-world conditions.
- Balance Cost and Performance: While high-end materials like polyimide offer superior properties, they come at a higher cost. Evaluate whether a more affordable option like high-Tg FR-4 can meet your needs without compromising reliability.
Conclusion: Building Reliable Robotics with the Right PCB Materials
Selecting the right PCB material for robotics is a balancing act between environmental demands, thermal performance, flexibility, and electrical requirements. Whether you’re dealing with harsh environments, high temperatures, or the need for flexible designs, understanding the properties of materials like FR-4, polyimide, and metal-core PCBs can guide you to the best choice. Additionally, selecting the right laminate ensures structural integrity and compliance with industry standards.
At ALLPCB, we’re committed to helping you navigate these decisions with expert guidance and high-quality fabrication services. By prioritizing the right materials and testing for your specific robotics application, you can build systems that are durable, efficient, and ready to tackle the toughest challenges. Start your next project with confidence by making informed material choices today.
