When it comes to designing and manufacturing High-Density Interconnect (HDI) PCBs, selecting the right laminate materials for sequential lamination is critical. The choice of materials directly impacts the performance, reliability, and cost of the final product. For engineers and designers searching for the best HDI PCB laminate materials, the process of sequential lamination material selection involves evaluating factors like high Tg (glass transition temperature), low CTE (coefficient of thermal expansion), and the properties of materials from leading suppliers like Isola, Panasonic, and Rogers. In this comprehensive guide, we’ll break down everything you need to know to make an informed decision, ensuring your HDI PCBs meet the highest standards of quality and performance.
Why Laminate Materials Are Crucial for HDI PCBs

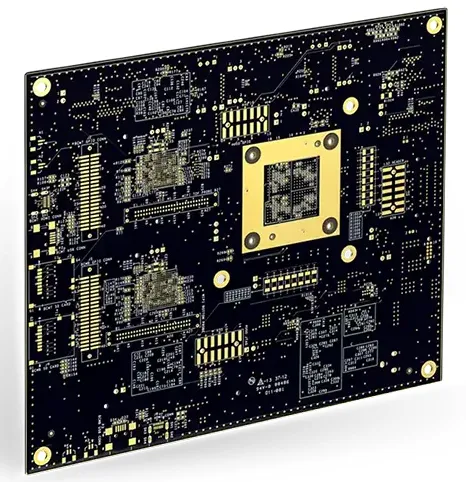

HDI PCBs are designed for compact, high-performance applications, often found in smartphones, medical devices, and advanced automotive systems. These boards require multiple layers with fine traces and microvias, which are built through a process called sequential lamination. This technique involves bonding layers of dielectric and copper materials in stages, ensuring precise alignment and connectivity between layers.
The laminate materials used in this process must withstand high temperatures, maintain dimensional stability, and support signal integrity at high frequencies. Choosing the wrong material can lead to issues like delamination, warping, or signal loss, which can compromise the entire board. That’s why understanding HDI PCB laminate materials and their properties is the first step in successful sequential lamination material selection.
Key Properties to Consider in Sequential Lamination Material Selection
Before diving into specific material comparisons, let’s explore the essential properties that define the best laminates for HDI PCBs. These characteristics ensure the material can handle the demands of sequential lamination and the operational environment of the final product.
1. High Tg (Glass Transition Temperature)
The glass transition temperature (Tg) indicates the point at which a laminate material shifts from a rigid to a more flexible state. For HDI PCBs, high Tg PCB materials are essential because they can endure the elevated temperatures during sequential lamination and soldering processes without deforming. A Tg value of 170°C or higher is often recommended for HDI designs to prevent issues during multiple thermal cycles. For example, materials with a Tg of 180°C can maintain structural integrity even under repeated exposure to temperatures above 150°C during assembly.
2. Low CTE (Coefficient of Thermal Expansion)
The coefficient of thermal expansion measures how much a material expands or contracts with temperature changes. Low CTE PCB materials are critical for HDI PCBs because they minimize stress on microvias and through-holes during thermal cycling. A CTE value below 15 ppm/°C in the Z-axis (thickness direction) is ideal for ensuring reliability in multilayer designs. This reduces the risk of cracking or delamination, especially in boards with 8 or more layers.
3. Dielectric Constant (Dk) and Loss Tangent (Df)
For high-speed and high-frequency applications, the dielectric constant (Dk) and loss tangent (Df) of a laminate material play a significant role in signal integrity. A lower Dk (typically between 3.0 and 4.0) helps maintain signal speed, while a low Df (below 0.01) reduces signal loss. These properties are especially important in HDI PCBs used for 5G, RF, and microwave applications.
4. Thermal Conductivity and Moisture Absorption
Materials with good thermal conductivity help dissipate heat, which is vital for high-power HDI designs. Additionally, low moisture absorption (below 0.5%) prevents swelling or degradation of the laminate over time, ensuring long-term reliability in humid environments.
Sequential Lamination Process and Material Challenges

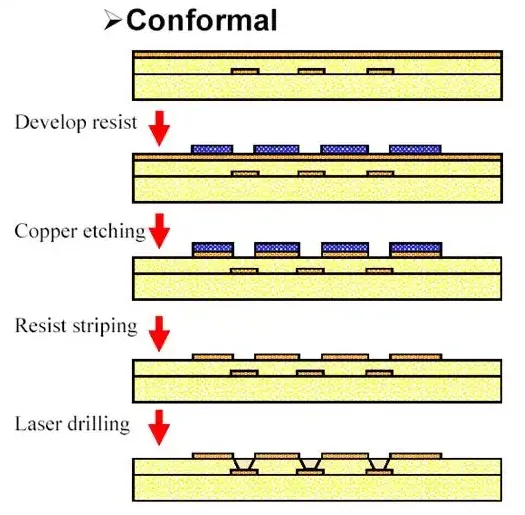

Sequential lamination involves building an HDI PCB layer by layer, bonding prepreg (pre-impregnated resin) and copper foils to form a multilayer structure. Each lamination cycle subjects the materials to heat and pressure, often at temperatures exceeding 200°C and pressures up to 500 psi. This process demands materials that can maintain their properties through multiple cycles without degrading.
One challenge in sequential lamination is ensuring uniform resin flow and curing. If the laminate or prepreg material has inconsistent resin content, it can lead to voids or uneven bonding, affecting the board’s reliability. Another issue is maintaining registration accuracy between layers, which requires materials with low dimensional changes during thermal processing. This is where low CTE PCB materials become indispensable.

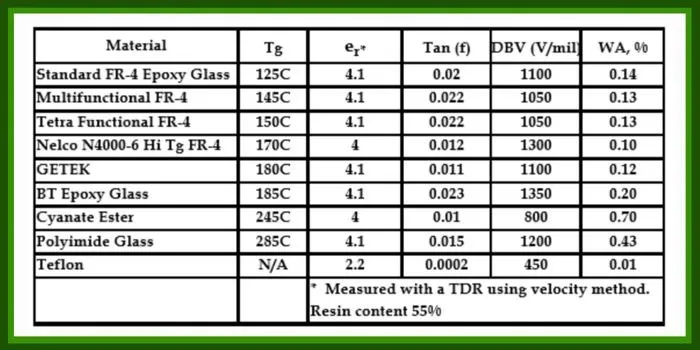

Comparing Leading Laminate Suppliers: Isola vs. Panasonic vs. Rogers
Three major players in the PCB laminate market offer a range of materials tailored for HDI applications. Below, we compare the offerings from Isola, Panasonic, and Rogers based on their suitability for sequential lamination and key properties like high Tg and low CTE.
Isola Laminates for HDI PCBs
Isola is known for its high-performance laminate materials, widely used in advanced electronics. Their products often feature high Tg values, ranging from 170°C to over 200°C, making them suitable for demanding HDI designs. For instance, some of their materials offer a CTE as low as 12 ppm/°C in the Z-axis, ensuring excellent thermal stability during sequential lamination. Additionally, Isola laminates are designed with low Dk (around 3.5) and Df (below 0.008), supporting high-speed signal transmission.
Panasonic Laminates for HDI PCBs
Panasonic provides a variety of laminate materials focused on reliability and cost-effectiveness for HDI applications. Their materials typically have Tg values between 150°C and 180°C, which are adequate for many standard HDI designs. Panasonic also offers low CTE options, with some products achieving values below 14 ppm/°C, reducing the risk of thermal mismatch in multilayer boards. Their laminates are often chosen for automotive and consumer electronics due to their balance of performance and affordability.
Rogers Laminates for HDI PCBs
Rogers specializes in high-frequency and high-performance materials, often used in RF and microwave HDI PCBs. Their laminates boast exceptionally low Dk (as low as 2.9) and Df (below 0.002), making them ideal for applications requiring minimal signal loss. While their Tg values are competitive, often exceeding 180°C, Rogers materials also excel in thermal conductivity, helping manage heat in dense HDI designs. However, their low CTE options (around 10-15 ppm/°C) are particularly beneficial for maintaining structural integrity during sequential lamination.
How to Choose the Right Laminate for Your HDI PCB
Selecting the best laminate for sequential lamination in HDI PCBs depends on your specific application and performance requirements. Here are some practical steps to guide your decision:
- Define Your Application Needs: Determine whether your HDI PCB will be used in high-frequency, high-power, or thermally challenging environments. This will narrow down the required Tg, CTE, and dielectric properties.
- Consider Layer Count and Complexity: For boards with 10 or more layers, prioritize low CTE PCB materials to prevent warping or delamination during multiple lamination cycles.
- Evaluate Signal Integrity Requirements: If your design involves high-speed signals (e.g., above 10 GHz), opt for materials with low Dk and Df to minimize signal delay and loss.
- Balance Cost and Performance: High-performance materials often come at a premium. Assess whether the benefits of advanced laminates justify the cost for your project.
- Test Material Compatibility: Ensure the chosen laminate is compatible with your manufacturing process, including lamination temperatures, pressures, and resin flow characteristics.
Practical Examples of Material Selection in HDI Designs
To illustrate the impact of material selection, consider two common HDI PCB applications:

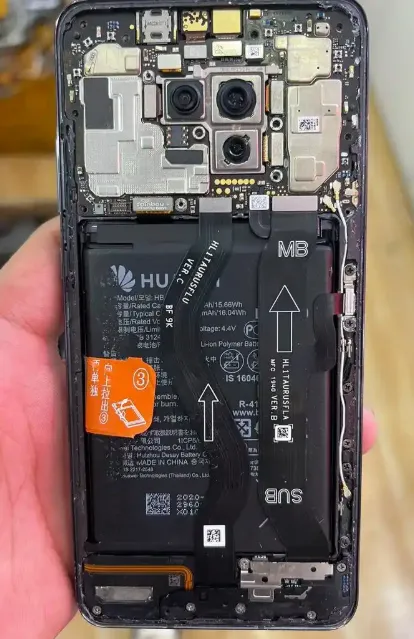

1. Smartphone Mainboard: A typical smartphone HDI PCB may have 8-12 layers with microvias as small as 50 micrometers. For this application, a laminate with a Tg of 180°C and a CTE below 13 ppm/°C is ideal to handle multiple lamination cycles and thermal stress during soldering. A material with a Dk of 3.6 ensures signal integrity for high-speed data transfer.
2. Automotive Radar Module: In automotive radar systems operating at 77 GHz, signal loss is a major concern. A laminate with a Dk of 3.0 and a Df below 0.003 is necessary to maintain performance. Additionally, a high Tg above 200°C and low CTE around 10 ppm/°C ensure reliability under harsh thermal conditions.
Common Pitfalls to Avoid in Sequential Lamination Material Selection
Even with the right knowledge, mistakes in material selection can lead to costly failures. Here are some pitfalls to watch out for:
- Overlooking Thermal Cycles: Choosing a material with a Tg too close to the lamination or soldering temperature can cause softening and deformation.
- Ignoring CTE Mismatch: Pairing materials with significantly different CTE values can lead to stress and cracking at the interfaces.
- Neglecting Moisture Sensitivity: High moisture absorption can degrade performance, especially in humid or outdoor applications.
- Focusing Only on Cost: Opting for cheaper materials may save money upfront but can result in reliability issues down the line.
Future Trends in HDI PCB Laminate Materials
As technology advances, the demand for HDI PCBs in 5G, IoT, and AI applications continues to grow. This drives innovation in laminate materials, with suppliers developing options that offer even lower Dk and Df values for ultra-high-frequency signals. Additionally, there’s a push toward environmentally friendly materials with reduced halogen content and improved recyclability. Staying updated on these trends can help you choose cutting-edge materials that future-proof your designs.
Conclusion: Making an Informed Choice for HDI PCB Success
Selecting the best laminates for sequential lamination in HDI PCBs is a balancing act of performance, reliability, and cost. By focusing on key properties like high Tg, low CTE, and suitable dielectric characteristics, you can ensure your HDI designs meet the demands of modern applications. Comparing offerings from industry leaders like Isola, Panasonic, and Rogers provides a starting point, but the final decision should align with your specific project needs. With the right HDI PCB laminate materials, you can achieve superior signal integrity, thermal stability, and long-term durability, setting your products apart in a competitive market.
At ALLPCB, we’re committed to supporting your success with expert guidance and high-quality manufacturing solutions. Whether you’re designing for consumer electronics or industrial applications, understanding sequential lamination material selection is the key to unlocking the full potential of your HDI PCBs.
