When it comes to designing portable gaming devices, selecting the right PCB materials is crucial for ensuring durability, performance, and a seamless user experience. Whether you're working on handheld gaming consoles or compact gaming gadgets, the materials you choose can impact everything from heat resistance to structural integrity. In this comprehensive guide, we'll explore how to make informed decisions about PCB materials, focusing on key aspects like high TG PCB material for gaming, PCB durability for gaming consoles, material selection for PCB handhelds, rigid-flex PCB design for gaming, and PCB warpage prevention in gaming devices. Let's dive into the details to help you build robust and reliable portable gaming hardware.
Why PCB Material Selection Matters for Portable Gaming Devices
Portable gaming devices face unique challenges. They need to be lightweight, compact, and able to withstand frequent handling, drops, and temperature changes. The printed circuit board (PCB) is the backbone of these devices, housing critical components like processors, graphics chips, and memory. Choosing the wrong material can lead to overheating, signal loss, or even physical damage over time. By prioritizing the right materials, you can enhance PCB durability for gaming consoles and ensure long-lasting performance in the hands of gamers.
Understanding High TG PCB Material for Gaming Applications
One of the first considerations in PCB material selection for gaming devices is the glass transition temperature (TG). High TG PCB materials are designed to withstand higher temperatures without deforming or losing their mechanical properties. In gaming devices, where components like GPUs and CPUs generate significant heat during intense gameplay, using high TG materials can prevent delamination and ensure reliability.
Standard FR-4 materials typically have a TG value of around 130-140°C. However, high TG FR-4 variants offer TG values of 170°C or higher, making them ideal for gaming applications. These materials provide better thermal stability, which is essential for maintaining performance during extended gaming sessions. For instance, a high TG PCB material can handle thermal cycles better, reducing the risk of failure in portable gaming devices that are often used in varying environmental conditions.
Ensuring PCB Durability for Gaming Consoles
Durability is a top priority for gaming consoles, especially portable ones that are carried around and subjected to physical stress. PCB durability for gaming consoles depends on selecting materials that resist mechanical wear, moisture, and impact. Materials like advanced FR-4 with enhanced resin systems or even polyimide-based laminates offer superior strength and flexibility compared to standard options.
For example, polyimide materials are known for their excellent tensile strength and resistance to chemicals and humidity. These properties make them a great choice for handhelds that might be exposed to sweat, spills, or humid environments. Additionally, using thicker copper layers (e.g., 2 oz or higher) in the PCB design can improve current-carrying capacity and reduce the risk of trace damage under mechanical stress.
Material Selection for PCB Handhelds: Balancing Weight and Strength
When it comes to material selection for PCB handhelds, engineers must strike a balance between weight and structural integrity. Portable gaming devices need to be lightweight for user comfort, but the PCB must still be strong enough to support components and resist bending or cracking. This is where material choices like lightweight laminates and thinner substrates come into play.
For instance, using a thinner FR-4 substrate (e.g., 0.8mm instead of the standard 1.6mm) can reduce weight while maintaining adequate strength if paired with a high-quality resin system. Additionally, incorporating materials with low dielectric constants (Dk) and low dissipation factors (Df) can improve signal integrity, which is critical for high-speed data transfer in modern gaming handhelds. A Dk value of around 3.5-4.0 and a Df of less than 0.02 are often ideal for maintaining signal speeds above 5 GHz, common in today’s gaming hardware.

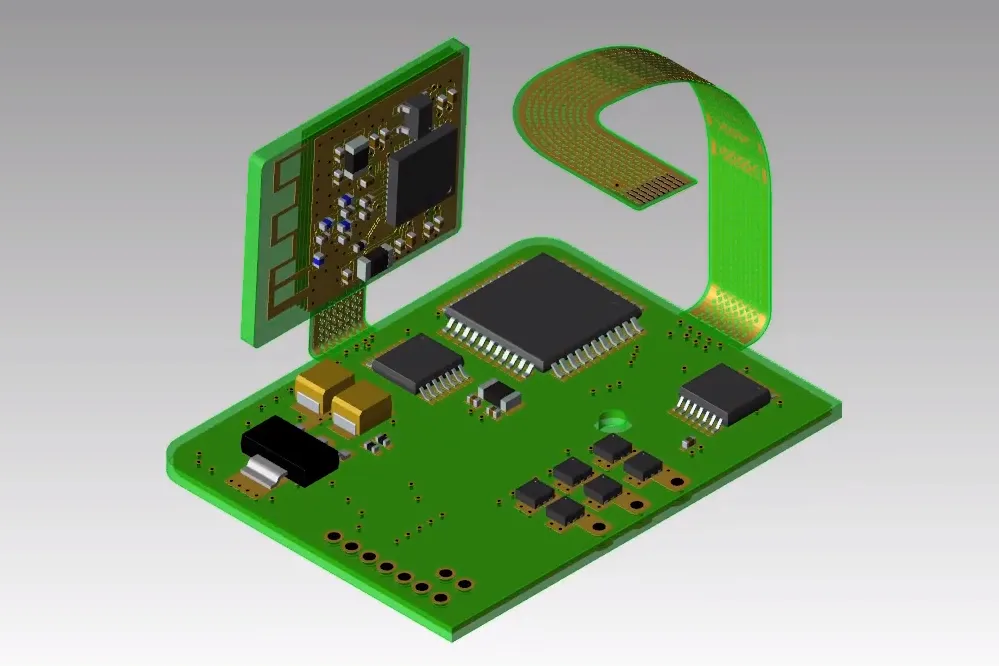

Rigid-Flex PCB Design for Gaming: Flexibility Meets Reliability
Rigid-flex PCB design for gaming is gaining popularity in portable devices due to its ability to combine the benefits of rigid and flexible circuits. This hybrid approach allows designers to create compact layouts that fit into small, irregularly shaped enclosures while maintaining reliable connections between components. For gaming handhelds, rigid-flex PCBs are particularly useful for integrating buttons, screens, and other peripherals without increasing the device’s footprint.

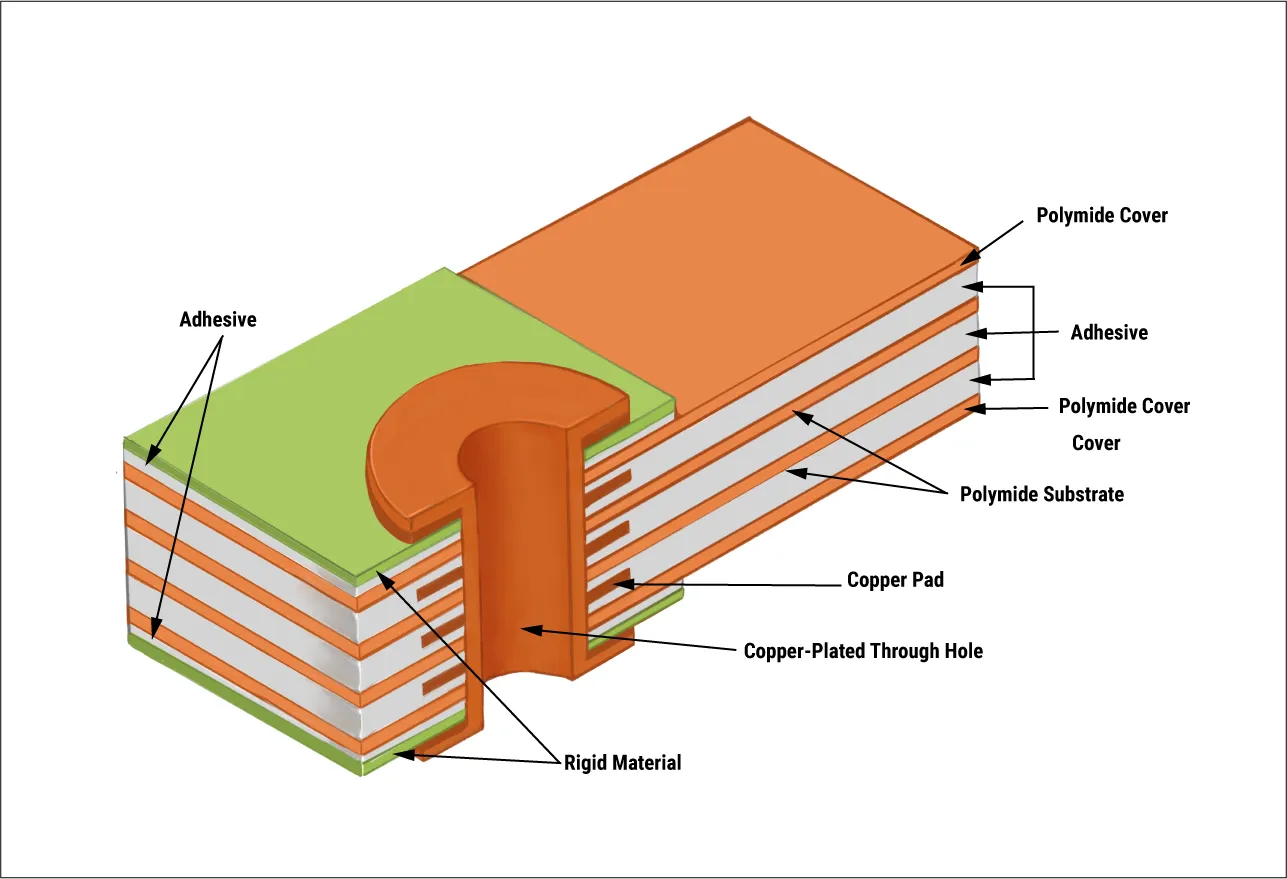

Rigid-flex designs often use polyimide as the flexible material due to its high flexibility and thermal resistance. The rigid sections, typically made of FR-4 or high TG materials, provide structural support for mounting heavier components like processors. This combination reduces the need for connectors and cables, which can be points of failure in portable devices. Moreover, rigid-flex PCBs can handle repeated bending (up to 100,000 cycles in some cases), making them suitable for foldable or modular gaming designs.
PCB Warpage Prevention in Gaming Devices
PCB warpage is a common issue in portable gaming devices due to thermal stress and uneven heating during operation or manufacturing. Warpage can lead to soldering defects, component misalignment, and even complete device failure. Effective PCB warpage prevention for gaming starts with material selection and design considerations that minimize stress and ensure uniform thermal expansion.
Choosing materials with a low coefficient of thermal expansion (CTE) is a key strategy. For example, high TG FR-4 materials often have a CTE of around 14-16 ppm/°C in the X-Y direction, which closely matches the CTE of copper (17 ppm/°C), reducing the risk of warpage during temperature changes. Additionally, symmetrical stack-up designs—where the PCB layers are balanced in thickness and material type—can prevent uneven stress. Using a core thickness of at least 0.2mm in multilayer PCBs can also add stability and reduce bending under heat.
Another tip is to avoid large copper imbalances on opposite sides of the PCB. For instance, if one side has a large ground plane while the other has minimal copper, the board may warp during reflow soldering. Design software can help simulate thermal behavior and identify potential warpage risks before production begins.
Additional Factors to Consider in PCB Material Selection
Beyond the core aspects discussed, several other factors play a role in choosing PCB materials for portable gaming devices. Let’s break these down into actionable insights:
- Thermal Conductivity: Materials with high thermal conductivity, such as metal-core PCBs, can dissipate heat more effectively. While not common in handhelds due to weight concerns, selective use of thermally conductive dielectrics (e.g., with conductivity of 1.0 W/m·K or higher) can help manage hotspots near high-power components.
- Moisture Resistance: Look for materials with low moisture absorption rates (below 0.2%) to prevent swelling or electrical issues in humid conditions. This is especially important for portable devices used outdoors or in varying climates.
- Cost vs. Performance: High-end materials like polyimide or advanced laminates offer superior performance but come at a higher cost. For budget-friendly gaming devices, enhanced FR-4 with high TG properties can provide a good balance of cost and reliability.
Practical Tips for Designing Durable PCBs for Gaming Devices
Here are some practical tips to ensure your PCB materials and design choices lead to durable portable gaming devices:
- Test Materials Under Real Conditions: Simulate the thermal and mechanical stresses your device will face during gameplay. Use environmental testing chambers to evaluate how materials hold up under temperature cycles from 0°C to 85°C.
- Optimize Layer Count: Keep the layer count as low as possible (e.g., 4-6 layers for most handhelds) to reduce manufacturing complexity and warpage risks while meeting signal integrity needs.
- Collaborate with Suppliers: Work closely with your PCB fabrication partner to select materials that match your design goals. Provide detailed specifications for TG, CTE, and dielectric properties to avoid mismatches.
- Incorporate Protective Coatings: Apply conformal coatings to protect the PCB from moisture and dust. A thin layer (25-75 microns) of acrylic or silicone coating can significantly extend the lifespan of the board.
Conclusion: Building the Future of Portable Gaming with the Right PCB Materials
Designing durable portable gaming devices starts with choosing the right PCB materials. From high TG PCB materials for gaming to rigid-flex designs and warpage prevention strategies, every decision impacts the device’s performance and longevity. By focusing on thermal stability, mechanical strength, and signal integrity, you can create handhelds and consoles that withstand the rigors of gaming while delivering an exceptional user experience.
Whether you're prioritizing PCB durability for gaming consoles or fine-tuning material selection for PCB handhelds, the insights shared in this guide can help you make informed choices. Remember to balance cost, weight, and performance while leveraging advanced materials and design techniques to stay ahead in the competitive gaming hardware market. With the right approach, your portable gaming devices will not only meet but exceed gamer expectations.
