When it comes to designing printed circuit boards (PCBs) for high-power or high-temperature applications, thermal performance is a critical factor. If you're deciding between traditional FR-4 materials and advanced options like Direct Bonded Copper (DBC) PCBs, you might wonder which offers better heat management. In short, DBC PCBs outperform FR-4 in thermal conductivity and heat dissipation, making them ideal for demanding environments. In this blog, we’ll dive deep into the comparison of DBC vs FR4, explore PCB thermal conductivity, and highlight the benefits of ceramic-based solutions for high-temperature needs.

Why Thermal Performance Matters in PCB Design

Heat is the enemy of electronic components. Excessive temperatures can degrade performance, reduce lifespan, and even cause catastrophic failures in circuits. As devices become smaller and more powerful, managing heat through effective PCB materials is more important than ever. Poor thermal conductivity can lead to hotspots, uneven heat distribution, and reliability issues, especially in industries like automotive, aerospace, and power electronics.

Traditional FR-4, a widely used PCB substrate made of woven fiberglass and epoxy resin, works well for many applications. However, its thermal limitations make it less suitable for high-power or high-temperature environments. This is where advanced materials like DBC come into play, offering superior thermal resistance and conductivity to keep systems running smoothly.

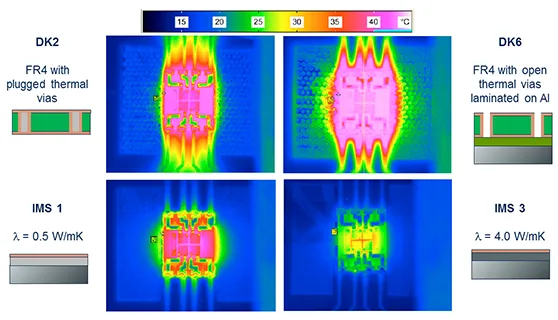

Thermal imaging of FR-4 vs DBC PCB showing heat distribution

Understanding FR-4: The Industry Standard

FR-4 has been the go-to material for PCB manufacturing for decades due to its affordability, ease of fabrication, and decent electrical insulation properties. It’s a composite material made of woven fiberglass cloth bonded with an epoxy resin, offering a balance of mechanical strength and electrical performance.

However, when it comes to thermal conductivity, FR-4 falls short. Its thermal conductivity typically ranges from 0.3 to 0.5 W/mK (Watts per meter-Kelvin), which means it struggles to transfer heat away from components efficiently. In high-power applications, this can result in temperature rises of 50°C or more above ambient conditions, risking component failure. Additionally, FR-4 has a glass transition temperature (Tg) of around 130-140°C, beyond which it loses structural integrity, making it unsuitable for extreme heat environments.

What Are Direct Bonded Copper (DBC) PCBs?

Direct Bonded Copper (DBC) PCBs are a specialized type of substrate designed for high-power and high-temperature applications. They consist of a ceramic base, such as alumina (Al2O3) or aluminum nitride (AlN), with copper layers directly bonded to the surface. This construction eliminates the need for additional adhesive layers, which often act as thermal barriers in other designs.

The result is a PCB with exceptional thermal conductivity, often ranging from 24 W/mK for alumina-based DBC to over 170 W/mK for aluminum nitride-based DBC. This is a massive improvement over FR-4, allowing DBC PCBs to handle heat loads far more effectively. They’re commonly used in power electronics, LED lighting, automotive systems, and renewable energy applications where heat dissipation is critical.

Cross-section of Direct Bonded Copper PCB structure.

DBC vs FR4: A Detailed PCB Thermal Conductivity Comparison

Let’s break down the key differences between DBC and FR-4 in terms of thermal performance, focusing on thermal conductivity, thermal resistance, and suitability for high-temperature environments.

1. Thermal Conductivity

Thermal conductivity measures how well a material can transfer heat. As mentioned earlier, FR-4 has a thermal conductivity of just 0.3-0.5 W/mK. In contrast, DBC substrates offer values ranging from 24 W/mK to 180 W/mK, depending on the ceramic material used. For example, alumina-based DBC provides around 24-30 W/mK, while aluminum nitride can reach up to 180 W/mK. This means DBC can dissipate heat up to 300 times more effectively than FR-4, reducing the risk of overheating in high-power circuits.

2. Thermal Resistance

Thermal resistance indicates how much a material resists heat flow. Lower thermal resistance means better heat dissipation. Due to its low thermal conductivity, FR-4 has high thermal resistance, often leading to temperature gradients across the board. DBC, with its high conductivity, offers much lower thermal resistance, ensuring heat spreads evenly and escapes quickly. This is crucial for maintaining component reliability in applications like power converters or motor drives.

3. High-Temperature Performance

FR-4 starts to degrade at temperatures above its Tg of 130-140°C, with potential delamination or warping. DBC substrates, on the other hand, can withstand continuous operating temperatures of 300°C or higher, depending on the ceramic used. Aluminum nitride, for instance, maintains stability at temperatures up to 500°C, making DBC an excellent choice for high-temperature PCB materials in extreme conditions.

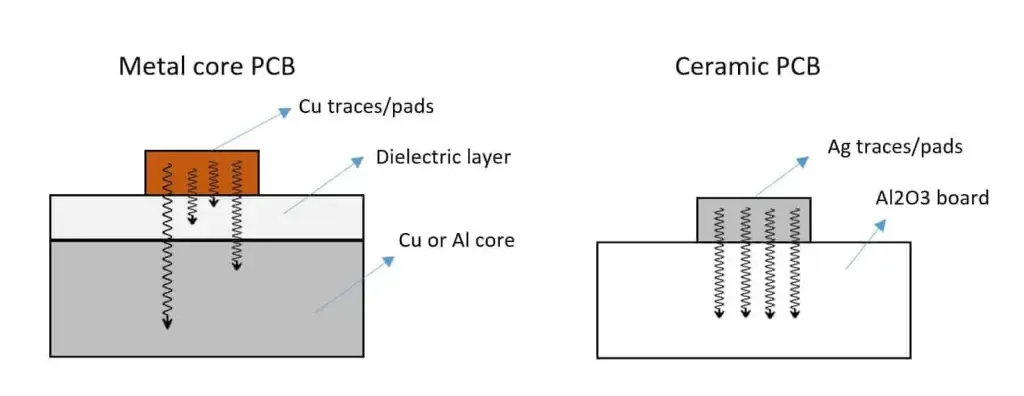

Graph comparing thermal conductivity of FR-4 vs DBC materials

Ceramic PCB Benefits: Why DBC Stands Out

DBC PCBs leverage ceramic substrates, which bring a host of benefits beyond just thermal conductivity. Here are some key advantages that make them a preferred choice over FR-4 in specific applications:

Superior Heat Dissipation: The high thermal conductivity of ceramics ensures efficient heat transfer, protecting sensitive components from thermal stress.
Excellent Electrical Insulation: Ceramics like alumina and aluminum nitride provide high dielectric strength, preventing electrical breakdown even at high voltages.
Mechanical Durability: Ceramic substrates are rigid and resistant to vibration, making them ideal for harsh environments like automotive or industrial settings.
Thermal Expansion Match: DBC materials have a coefficient of thermal expansion (CTE) closer to that of semiconductor materials, reducing stress on solder joints during temperature changes.
Long-Term Reliability: With no organic components to degrade over time, DBC PCBs offer exceptional longevity, even under continuous high-temperature operation.

These ceramic PCB benefits make DBC a go-to solution for applications where FR-4 simply cannot keep up, such as in electric vehicle power modules or high-brightness LED assemblies.

Applications of DBC PCBs in High-Temperature Environments

DBC PCBs are tailored for scenarios where thermal management is non-negotiable. Here are some common use cases:

Power Electronics: Inverters, converters, and power supplies generate significant heat. DBC ensures efficient cooling, maintaining performance and reliability.
Automotive Systems: Electric and hybrid vehicles rely on DBC for battery management systems and motor controllers, where temperatures can spike during operation.
LED Lighting: High-power LEDs produce intense heat. DBC substrates dissipate this heat, extending the lifespan of lighting systems.
Renewable Energy: Solar inverters and wind turbine controllers benefit from DBC’s ability to handle high power and temperature fluctuations.

In contrast, FR-4 is better suited for low-to-medium power applications like consumer electronics, where cost is a bigger concern than thermal performance.

DBC PCB in electric vehicle power module.

Challenges and Considerations with DBC PCBs

While DBC offers undeniable advantages, it’s not without its challenges. Understanding these can help designers make informed decisions:

Higher Cost: DBC substrates are significantly more expensive than FR-4 due to the materials and manufacturing processes involved. This can be a barrier for cost-sensitive projects.
Complex Fabrication: The direct bonding process requires specialized equipment and expertise, potentially increasing lead times.
Brittleness: Ceramic substrates are less flexible than FR-4 and can crack under mechanical stress if not handled carefully.

For many high-power applications, though, the benefits of improved thermal resistance in PCBs and reliability outweigh these drawbacks.

How to Choose Between DBC and FR-4 for Your Project

Selecting the right PCB material depends on your specific requirements. Here are some factors to consider:

Power and Heat Load: If your design involves high current or significant heat generation, DBC is the better choice. For low-power circuits, FR-4 is often sufficient.
Operating Environment: Applications in extreme temperatures or harsh conditions favor DBC due to its stability and durability.
Budget Constraints: If cost is a primary concern and thermal demands are minimal, FR-4 remains the economical option.
Size and Weight: DBC PCBs can be heavier and thicker due to the ceramic substrate, which may impact designs with strict size limitations.

By weighing these factors, you can determine which material aligns best with your project’s needs.

Future Trends in High-Temperature PCB Materials

As electronics continue to push boundaries, the demand for high-performance materials like DBC is growing. Research is ongoing into new ceramic compositions and hybrid substrates that combine the benefits of ceramics with greater flexibility or lower costs. Additionally, advancements in manufacturing techniques may reduce the price of DBC, making it more accessible for a wider range of applications.

Thermal management will remain a cornerstone of PCB design, especially as industries like 5G, electric vehicles, and renewable energy expand. Staying informed about emerging high-temperature PCB materials can give designers a competitive edge in creating reliable, efficient products.

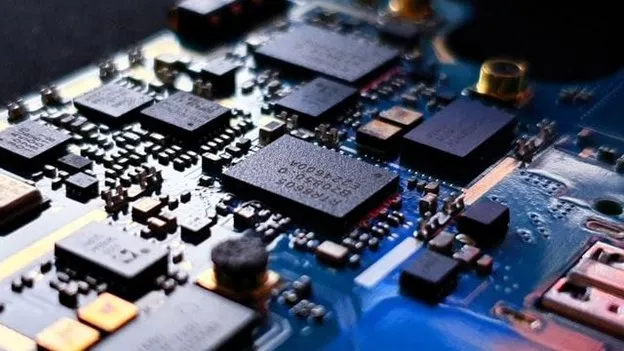

Future trends in high-temperature PCB materials research.

Conclusion: Why DBC Is the Future for Thermal Performance

In the battle of DBC vs FR4, it’s clear that Direct Bonded Copper PCBs offer superior thermal conductivity, lower thermal resistance, and unmatched performance in high-temperature environments. While FR-4 remains a reliable and cost-effective choice for many standard applications, it cannot match the heat dissipation capabilities and durability of DBC in demanding scenarios. For engineers working on power electronics, automotive systems, or other high-heat projects, exploring the benefits of ceramic-based DBC substrates is a step toward better reliability and efficiency.

Understanding the nuances of PCB thermal conductivity comparison and material selection can make all the difference in your design’s success. Whether you’re tackling thermal resistance in PCBs or seeking high-temperature solutions, DBC provides a robust alternative to traditional materials, ensuring your circuits stay cool under pressure.
