If you're an electrical engineer wondering about conformal coating shelf life, storage, and handling, here's the quick answer: Most conformal coatings have a shelf life of 6 to 12 months under proper storage conditions, typically in a cool, dry environment between 5°C and 25°C (41°F to 77°F) with low humidity. Improper storage or handling can lead to conformal coating material degradation, reducing effectiveness or causing application issues. To ensure longevity, store coatings in sealed containers, avoid temperature extremes, and always check the expiration date before use.
In this comprehensive guide, we’ll dive deeper into the nuances of conformal coating storage, conformal coating handling, and conformal coating expiration. Whether you're protecting PCBs in harsh environments or managing inventory for a large-scale project, these best practices will help you maximize the performance and lifespan of your coatings.
What Is Conformal Coating and Why Does Shelf Life Matter?

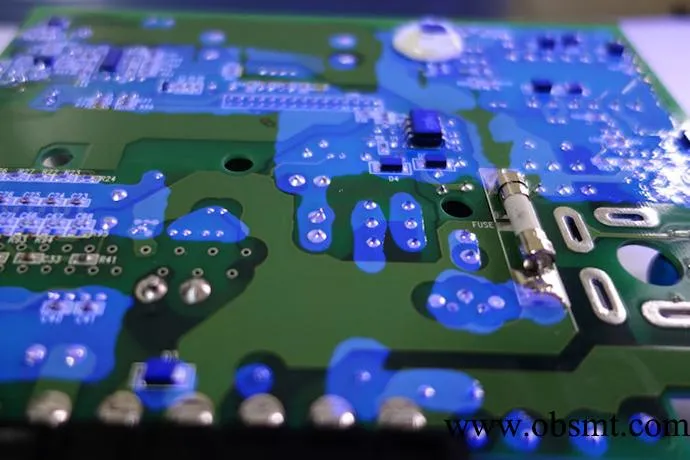

Conformal coatings are thin polymeric films applied to printed circuit boards (PCBs) and electronic components to protect them from environmental factors like moisture, dust, chemicals, and temperature fluctuations. These coatings enhance dielectric resistance and operational integrity, ensuring reliability in demanding applications such as aerospace, automotive, and industrial electronics.
However, like any chemical product, conformal coatings have a finite shelf life. Over time, exposure to improper storage conditions can cause chemical breakdown, viscosity changes, or premature curing, leading to conformal coating material degradation. For electrical engineers, using a degraded coating can result in poor adhesion, uneven coverage, or even complete failure to protect the PCB, potentially costing thousands in repairs or replacements. Understanding conformal coating shelf life is critical to maintaining quality and avoiding production delays.
Understanding Conformal Coating Shelf Life
The shelf life of a conformal coating refers to the period during which the material remains usable under recommended storage conditions. This typically ranges from 6 to 12 months from the date of manufacture, though it varies by type and manufacturer. For example:
- Acrylic coatings often have a shelf life of 12 months.
- Silicone coatings, particularly moisture-cure types, may have a shorter shelf life of 6 to 9 months due to sensitivity to humidity.
- Polyurethane coatings generally last around 12 months if stored properly.
Manufacturers provide a conformal coating expiration date on the product label, which indicates when the material may no longer meet performance specifications. Using a coating past this date risks issues like increased viscosity, poor curing, or reduced dielectric strength—potentially dropping from a typical 2-3 kV/mm to below acceptable levels for high-voltage applications.
As an engineer, I’ve seen projects delayed because a batch of expired coating led to uneven application and required rework. Checking expiration dates before starting a job can save hours of troubleshooting. Always refer to the material safety data sheet (MSDS) or technical data sheet (TDS) for specific shelf life information.
Factors Leading to Conformal Coating Material Degradation
Several environmental and handling factors can accelerate conformal coating material degradation, shortening shelf life and affecting performance. Let’s break down the most common culprits:
1. Temperature Extremes
High temperatures can cause chemical reactions within the coating, leading to premature curing or thickening. For instance, storing a coating above 30°C (86°F) for extended periods might reduce its shelf life by half. Conversely, freezing temperatures below 0°C (32°F) can cause separation of components in some formulations, making them unusable.
2. Humidity and Moisture
Moisture-cure silicones are especially vulnerable to humidity, as exposure to air can initiate curing even before application. Storing these coatings in a humid environment (above 50% relative humidity) can lead to clumping or gelation, rendering them ineffective.
3. Exposure to Light
Some coatings, particularly UV-curable types, degrade when exposed to sunlight or artificial UV light. This can alter their chemical structure, affecting curing times or adhesion properties.
4. Improper Container Sealing
Leaving containers open or poorly sealed allows air and contaminants to enter, which can trigger curing or introduce impurities. Over time, this compromises the coating’s consistency and performance.

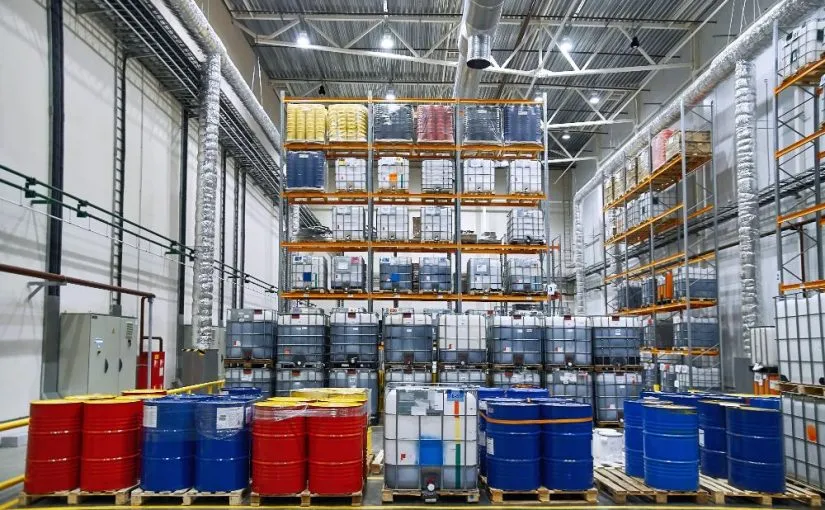

Conformal Coating Storage Best Practices
Proper conformal coating storage is essential to preserving shelf life and ensuring consistent performance. Here are actionable tips tailored for electrical engineers managing these materials:
1. Maintain Optimal Temperature and Humidity
Store conformal coatings in a cool, dry place, ideally between 5°C and 25°C (41°F to 77°F) with humidity below 50%. Use climate-controlled storage rooms if possible, especially in regions with extreme weather. For example, during a project in a humid coastal area, I used a dehumidifier in the storage room to keep humidity at 40%, preventing premature curing of silicone coatings.
2. Use Original or Airtight Containers
Always store coatings in their original containers or transfer them to airtight, chemically compatible containers if needed. Ensure lids are tightly sealed after each use to prevent air exposure. Label containers with the date of purchase and expiration to track shelf life easily.
3. Avoid Direct Sunlight
Keep coatings away from windows or areas with direct sunlight. If UV exposure is a concern, use opaque storage cabinets or cover containers with light-blocking materials.
4. Rotate Stock Regularly
Implement a first-in, first-out (FIFO) inventory system to use older stock before newer batches. This minimizes the risk of using expired coatings and ensures consistent quality in production.
5. Monitor Storage Conditions

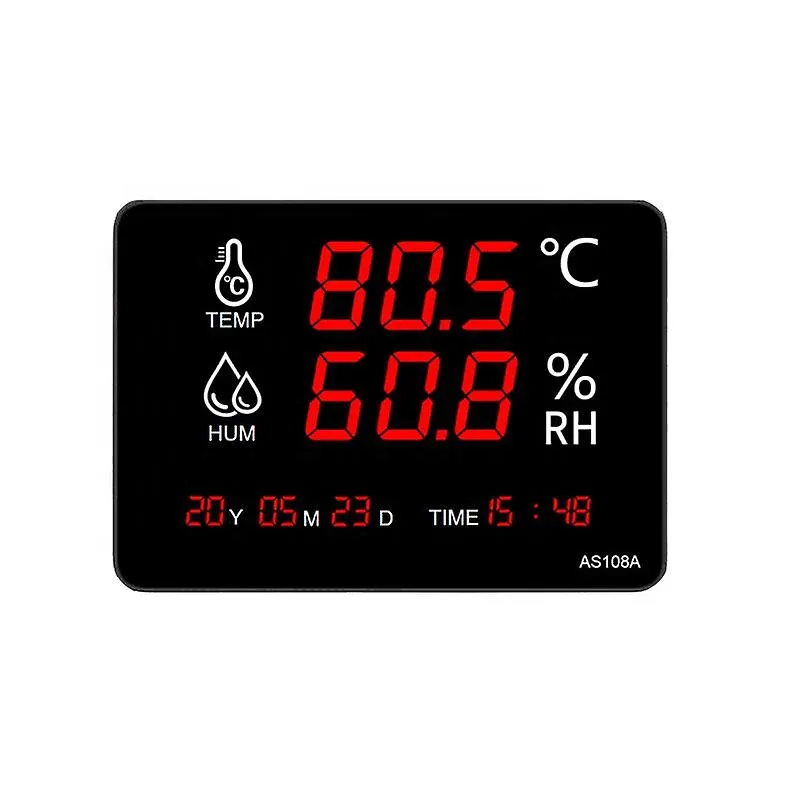

Use temperature and humidity sensors in storage areas to track environmental conditions. Set alerts for deviations outside the recommended range so you can take corrective action promptly.
Conformal Coating Handling Best Practices
Effective conformal coating handling during use is just as important as proper storage. Mishandling can introduce contaminants or degrade the material, even if it’s within its shelf life. Follow these guidelines to maintain quality:
1. Check for Expiration Before Use
Always verify the conformal coating expiration date before starting a project. If the material is close to or past its expiration, perform a small test application to check viscosity, curing time, and adhesion. For critical applications, it’s safer to discard expired coatings and order fresh material.
2. Mix Only What You Need
For two-part coatings (like some epoxies or polyurethanes), mix only the amount required for immediate use. Once mixed, the pot life—typically 30 minutes to 2 hours—limits usability. Leaving mixed material unused can lead to waste and potential contamination of unmixed stock.
3. Use Clean Tools and Equipment
Ensure brushes, spray guns, or dip containers are free of residue from previous coatings or solvents. Contamination can alter the coating’s chemical properties, leading to poor performance. I once encountered uneven curing on a PCB because a spray nozzle had traces of an incompatible solvent—cleaning equipment thoroughly resolved the issue.
4. Minimize Air Exposure During Application
When pouring or transferring coatings, work quickly to reduce air exposure, especially for moisture-cure silicones. Use dispensing systems with sealed reservoirs for large-scale applications to maintain material integrity.

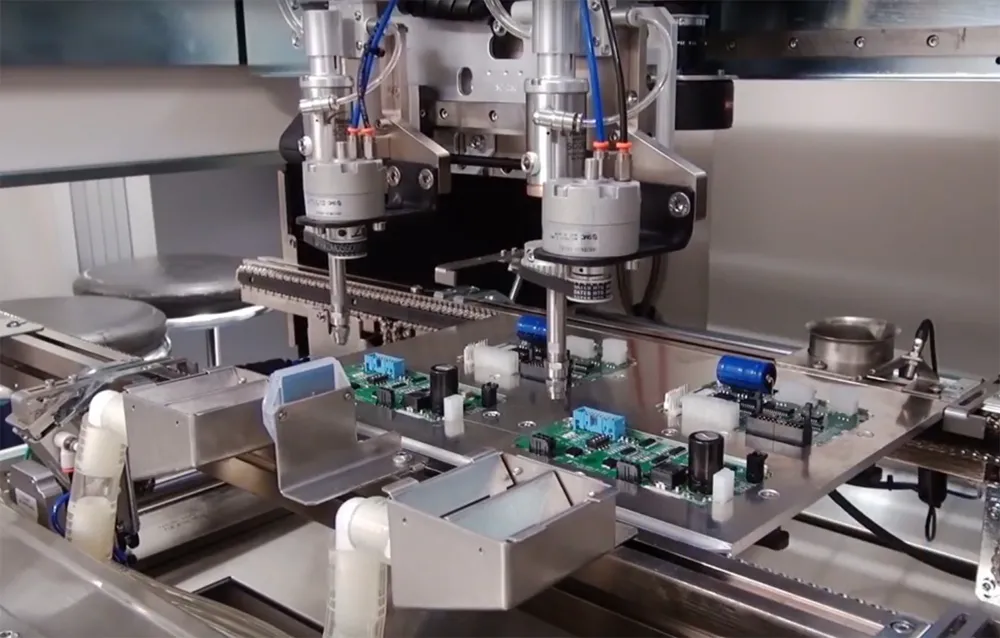

5. Follow Manufacturer Guidelines
Refer to the TDS for specific handling instructions, such as recommended thinning ratios or curing conditions. Deviating from these guidelines can compromise the coating’s protective properties, like reducing dielectric strength below the typical 2 kV/mm needed for high-voltage circuits.
What to Do with Expired Conformal Coatings
If you find yourself with expired conformal coatings, don’t automatically assume they’re unusable. However, proceed with caution, especially for critical applications. Here’s how to handle expired materials:
1. Test Before Use
Conduct a small-scale test on a non-critical PCB to evaluate viscosity, curing, and adhesion. Measure dielectric strength with a high-voltage tester to ensure it meets your project’s requirements (e.g., above 1.5 kV/mm for most standard applications). If performance is subpar, discard the material.
2. Contact the Manufacturer
Some manufacturers offer re-certification or shelf-life extension programs if the coating was stored under ideal conditions. Provide batch numbers and storage history for their assessment.
3. Dispose of Safely
If the coating is unusable, follow local regulations for chemical waste disposal. Avoid pouring it down drains or throwing it in regular trash, as many coatings contain hazardous components.
Key Takeaways for Electrical Engineers
Managing conformal coating shelf life, storage, and handling is crucial for ensuring the reliability of electronic assemblies. Here’s a quick summary of best practices:
- Store coatings at 5°C to 25°C (41°F to 77°F) with low humidity (<50%).
- Use airtight containers and avoid direct sunlight to prevent conformal coating material degradation.
- Check conformal coating expiration dates and rotate stock using a FIFO system.
- Handle materials carefully, using clean tools and minimizing air exposure during application.
- Test expired coatings before use or dispose of them safely if performance is compromised.
By following these guidelines, you can avoid costly rework, ensure consistent PCB protection, and maintain project timelines. I’ve learned through experience that a little extra care in storage and handling goes a long way—during one high-stakes aerospace project, proper storage of silicone coating prevented failures that could have delayed delivery by weeks.
Conclusion
Conformal coatings are invaluable for protecting electronics, but their effectiveness hinges on proper management of conformal coating shelf life, storage, and handling. As electrical engineers, taking the time to store materials correctly, monitor expiration dates, and handle them with care can make the difference between a reliable product and a costly failure. Start implementing these best practices today to safeguard your projects and ensure long-term performance.
