In today’s world of electronics, managing power efficiently is more important than ever. Whether you're designing a small consumer gadget or a complex industrial system, knowing how much current flows through your circuit is key to ensuring performance and safety. This is where current sense resistors, also known as shunt resistors, come into play. These components are essential for current measurement, enabling precise monitoring and control in various applications. But how do they work, and why are they so critical for power management and overcurrent protection? In this blog, we’ll dive deep into the world of low value resistors used for current sensing and explore how they can enhance efficiency in your designs.
At their core, current sense resistors are specialized components with very low resistance values, typically in the milliohm range, designed to measure the current flowing through a circuit by producing a small voltage drop. This voltage is proportional to the current, as defined by Ohm’s Law (V = I × R), and can be measured to monitor power usage or detect faults. From battery management systems in electric vehicles to power supplies in data centers, these resistors play a vital role in modern electronics. Let’s explore their functionality, benefits, and applications in detail to help you make informed design choices.
What Are Current Sense Resistors and How Do They Work?
A current sense resistor, often referred to as a shunt resistor, is a precision component designed to measure electric current in a circuit. Unlike standard resistors that are used to limit current or divide voltage, these resistors have extremely low resistance values—often between 1 milliohm (mΩ) and 100 mΩ. Their primary purpose is to create a measurable voltage drop when current passes through them, which can then be used to calculate the current using Ohm’s Law.
For example, if a 10 mΩ shunt resistor is placed in a circuit with a current of 5 amperes (A) flowing through it, the voltage drop across the resistor will be 50 millivolts (mV). By measuring this voltage with a voltmeter or an amplifier circuit, the current can be accurately determined. This simple yet effective method makes current sense resistors ideal for applications requiring precise current measurement.
These resistors are typically placed in series with the load, either on the high side (near the power source) or low side (near ground). Low-side sensing is more common because it minimizes the common-mode voltage, making measurements safer and less prone to noise. However, high-side sensing is often used in automotive systems for faster fault detection, though it requires careful design to handle higher voltages.
Key Benefits of Using Current Sense Resistors in Power Management
Current sense resistors offer several advantages that make them indispensable for effective power management. Below are some of the key benefits that engineers can leverage in their designs:
- Accurate Current Measurement: With their precise resistance values and low tolerance (often below 1%), these resistors provide highly accurate current readings, which are critical for monitoring power consumption and system performance.
- Cost-Effective Solution: Compared to other current sensing methods like Hall-effect sensors, shunt resistors are relatively inexpensive, making them a popular choice for budget-conscious projects without sacrificing reliability.
- Compact Design: Their small size allows them to be easily integrated into space-constrained applications, such as portable devices or densely packed circuit boards.
- Energy Efficiency: By enabling precise monitoring, current sense resistors help optimize power usage, reducing energy waste and extending the lifespan of components like batteries.
- Overcurrent Protection: They play a crucial role in detecting excessive current flow, allowing systems to shut down or reduce load before damage occurs, thus enhancing safety.
For instance, in a battery management system, a low value resistor can monitor the charging and discharging currents to prevent overcharging, which could lead to overheating or even explosions. This level of control directly contributes to better power efficiency and system reliability.
Applications of Current Sense Resistors in Modern Electronics
The versatility of current sense resistors makes them suitable for a wide range of applications. Here are some common areas where they are used to improve power management and provide overcurrent protection:
1. Battery Management Systems (BMS)
In electric vehicles and portable devices, battery management systems rely on current sense resistors to monitor the current flowing in and out of the battery. This helps maintain optimal charging levels and prevents overcurrent conditions that could damage the battery. For example, a typical shunt resistor in a BMS might have a value of 5 mΩ and handle currents up to 100 A, ensuring accurate readings even under high load.
2. Power Supplies and Converters
In DC-DC converters and power supplies, current sense resistors are used to monitor output current and ensure stable operation. They help detect faults like short circuits and enable feedback control to adjust the output, improving overall efficiency. A resistor with a power rating of 1 watt and a resistance of 10 mΩ can effectively manage current sensing in a 12V power supply delivering up to 10 A.
3. Motor Control Systems
Motors in industrial equipment and robotics require precise current monitoring to prevent overheating and mechanical failure. Shunt resistors provide real-time data on motor current, allowing controllers to adjust speed or torque as needed. This is especially critical in applications where motors draw high currents, such as in automated manufacturing lines.
4. Automotive Electronics
Modern vehicles use current sense resistors for various functions, including monitoring power distribution and protecting circuits from overcurrent. In electric and hybrid vehicles, they are often placed on the high side of the circuit to quickly detect faults in the power path, ensuring safety and reliability under demanding conditions.
Choosing the Right Current Sense Resistor for Your Design
Selecting the appropriate current sense resistor is critical to achieving accurate measurements and ensuring system reliability. Here are the key factors to consider when choosing a shunt resistor for your application:
- Resistance Value: Choose a resistance value that produces a measurable voltage drop without dissipating excessive power. For instance, a 1 mΩ resistor is suitable for high-current applications (e.g., 50 A), producing a 50 mV drop, while a 50 mΩ resistor might be better for lower currents (e.g., 1 A) to achieve a similar voltage drop.
- Power Rating: Ensure the resistor can handle the power dissipation, calculated as P = I2 × R. A resistor with insufficient power rating will overheat and fail. For a 10 A current through a 10 mΩ resistor, the power dissipation is 1 watt, so a resistor with at least a 2-watt rating is recommended for safety.
- Temperature Coefficient: Look for resistors with a low temperature coefficient of resistance (TCR), such as 50 ppm/°C or lower, to minimize measurement errors due to temperature changes.
- Tolerance: Opt for resistors with tight tolerance (e.g., 0.5% or 1%) to ensure precision in current measurement, especially in critical applications like medical devices.
- Mounting Style: Surface-mount resistors are ideal for compact designs, while through-hole resistors may be preferred for high-power applications requiring better heat dissipation.
By carefully evaluating these parameters, you can select a shunt resistor that meets the specific needs of your circuit, ensuring both accuracy and durability.
Challenges and Solutions in Current Sensing with Shunt Resistors
While current sense resistors are highly effective, they come with certain challenges that designers must address to achieve optimal performance. Below are some common issues and their solutions:
1. Heat Dissipation

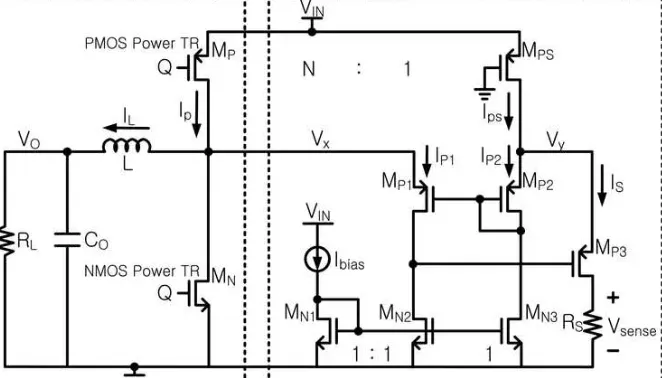

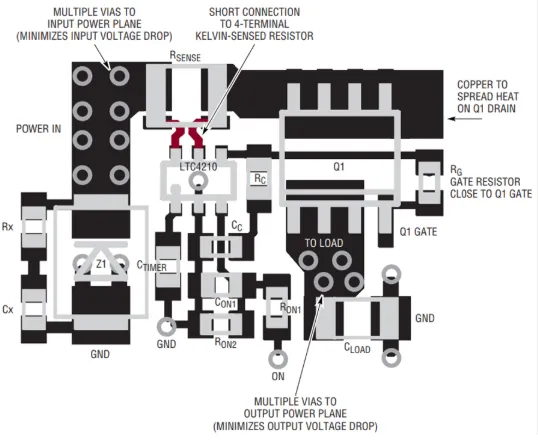

Since current sense resistors handle significant currents, they can generate heat, especially in high-power applications. This heat can affect accuracy and damage nearby components. To mitigate this, choose resistors with appropriate power ratings and use heat sinks or proper PCB layout techniques to dissipate heat effectively.
2. Noise in Measurements
In low-side sensing, noise from AC signals or ground loops can interfere with voltage measurements across the resistor. Using differential amplifiers or isolating the measurement path can reduce noise and improve accuracy. Additionally, placing the resistor close to ground minimizes common-mode voltage issues.
3. Voltage Drop Impact
The voltage drop across a shunt resistor, while small, can still affect the load voltage in sensitive circuits. To minimize this, select a resistor with the lowest possible resistance value that still provides a measurable voltage drop, balancing accuracy with minimal impact on the system.
Enhancing Overcurrent Protection with Current Sense Resistors
One of the most critical roles of current sense resistors is providing overcurrent protection. By continuously monitoring the current in a circuit, these resistors can detect when the current exceeds safe limits, triggering protective mechanisms like circuit breakers or shutdowns. This is especially important in applications where excessive current can lead to catastrophic failures, such as in power supplies or automotive systems.
For example, in a 24V industrial power supply delivering up to 20 A, a 5 mΩ shunt resistor can be used to monitor the output current. If the current exceeds 25 A, producing a voltage drop of 125 mV, a comparator circuit can detect this and shut down the system to prevent damage. This simple setup ensures safety without adding significant cost or complexity to the design.
Current sense resistors are often paired with microcontrollers or dedicated monitoring ICs to provide real-time feedback and automated protection. This integration is particularly valuable in smart devices, where dynamic adjustments to current limits can optimize performance and prevent failures.
Future Trends in Current Sensing Technology
As electronics continue to evolve, so do the technologies surrounding current sensing. While shunt resistors remain a staple due to their simplicity and cost-effectiveness, advancements are being made to improve their performance. For instance, manufacturers are developing resistors with even lower TCR values and higher power ratings to meet the demands of high-current applications like renewable energy systems and electric vehicle chargers.
Additionally, the integration of current sensing into System-on-Chip (SoC) designs is gaining traction, allowing for more compact and efficient solutions. However, for many applications, the reliability and accuracy of discrete low value resistors will continue to make them the preferred choice for current measurement and power management.
Conclusion: Optimizing Efficiency with Current Sense Resistors
Current sense resistors, or shunt resistors, are powerful tools for enhancing power management and ensuring system safety through precise current measurement. Their ability to provide accurate data with minimal cost and complexity makes them invaluable in a wide range of applications, from battery management to motor control. By carefully selecting the right low value resistor and addressing challenges like heat dissipation and noise, engineers can build more efficient and reliable systems with robust overcurrent protection.
Understanding the role of these components is the first step toward optimizing your designs. Whether you’re working on a small consumer device or a large industrial system, integrating current sense resistors can significantly improve performance and safety. With the right approach, you can harness their potential to create electronics that are not only efficient but also future-ready for the evolving demands of technology.
