DRP-AI uses an AI accelerator composed of a dynamically reconfigurable processor (DRP) and AI-MAC. The accelerator speeds up AI inference to deliver high-performance inference with low power consumption, enabling real-time image AI processing without a heatsink or cooling fan. In addition, an OpenCV accelerator that leverages the high flexibility of DRP technology provides image preprocessing for AI inference and enables high-speed image processing beyond AI workloads on a single chip.
Features
- Central processing unit (CPU) and double data rate (DDR) memory interface
- Vision and AI
- Video, graphics, and display
- High-speed interfaces
- One Gigabit Ethernet interface
- One USB 3.1 Gen 1 host/device interface
- One PCI Express (PCIe) Gen 2 interface (x2 lanes)
- Two Secure Digital Input/Output (SDIO) 3.0 interfaces
- One embedded multimedia card (eMMC) 4.5.1 interface
- Package: flip-chip ball grid array (FCBGA), 15 × 15 mm, 0.5 mm pitch

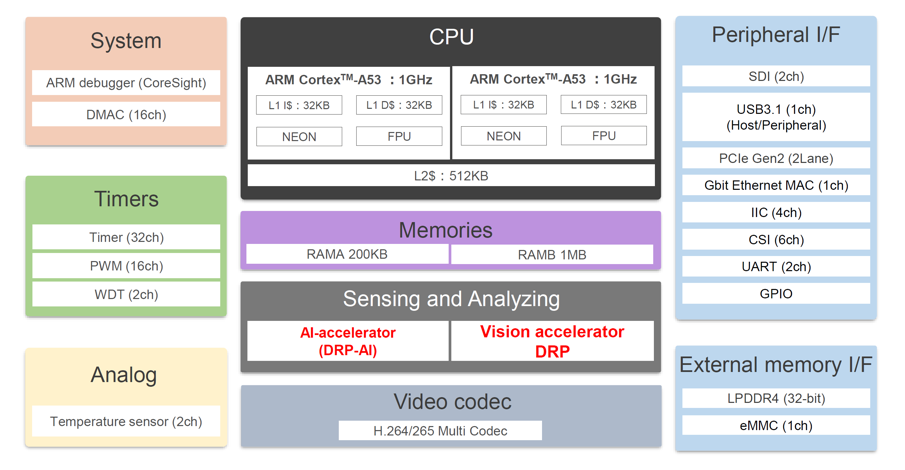

RZ/V2MA block diagram

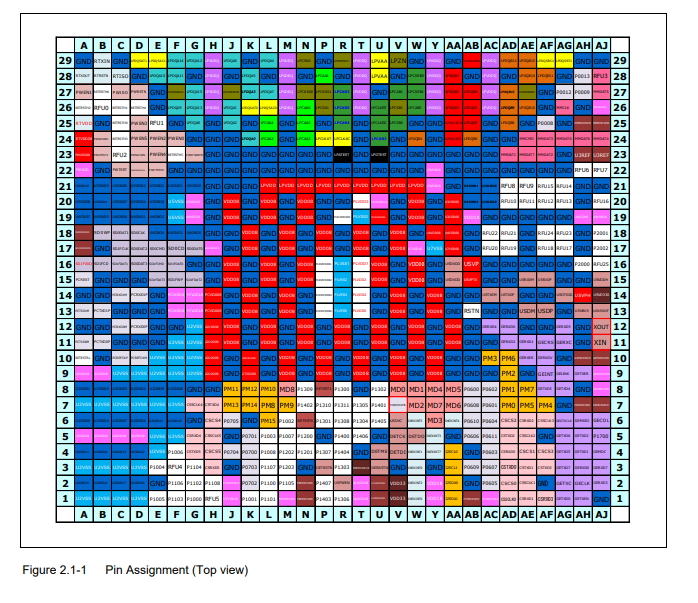

Pin assignment

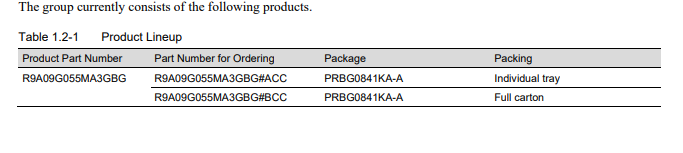

Product lineup
