In the fast-evolving world of automotive technology, flexible PCBs are transforming how vehicles operate, offering innovative solutions for smarter, safer, and more efficient transportation electronics. If you're searching for insights on flexible PCB automotive applications, flex PCB design guidelines, bendable PCB for vehicles, flexible circuits in the transportation industry, or high-reliability flex circuits, this blog is your go-to resource. We'll dive deep into how these advanced circuits are reshaping the automotive landscape and provide actionable tips for leveraging their benefits.
Flexible printed circuit boards (PCBs) are lightweight, bendable, and highly adaptable, making them ideal for the compact and complex designs of modern vehicles. From powering infotainment systems to enhancing safety features, their applications are vast. In this comprehensive guide, we'll explore their role in automotive electronics, key design considerations, and why they are critical for the future of transportation.

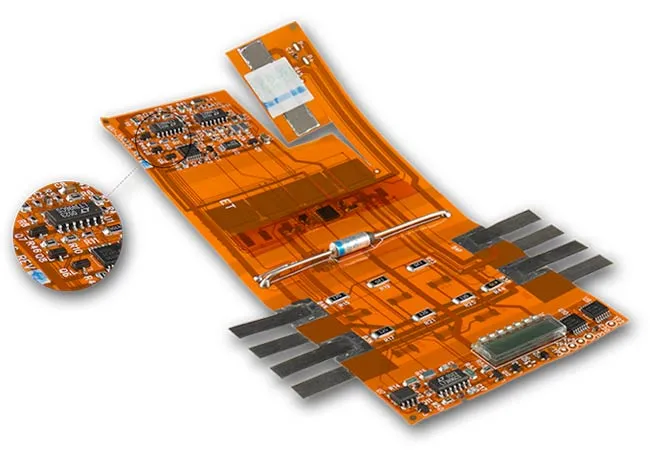

What Are Flexible PCBs and Why Do They Matter in Automotive?
Flexible PCBs, often called flex circuits, are thin, lightweight circuit boards made from materials like polyimide that can bend, fold, and twist without breaking. Unlike traditional rigid PCBs, these circuits can conform to unique shapes and fit into tight spaces, a feature that’s incredibly valuable in the automotive sector where space is often limited.
In vehicles, electronics are everywhere—from engine control units to dashboard displays and advanced driver-assistance systems (ADAS). Flexible PCBs play a crucial role by providing reliable connections in areas where rigid boards simply can’t fit. Their ability to withstand vibration, heat, and constant movement makes them a perfect match for the harsh conditions inside a vehicle.
For instance, a typical car today might contain over 100 electronic control units (ECUs). Many of these rely on flex circuits to manage signals at speeds up to 1 Gbps for high-speed data transfer in systems like cameras or sensors. This ensures real-time responses for critical safety features, highlighting why high-reliability flex circuits are non-negotiable in automotive designs.
Key Flexible PCB Automotive Applications
The rise of electric vehicles (EVs), autonomous driving, and connected cars has increased the demand for innovative electronics. Let’s break down some of the most impactful flexible PCB automotive applications shaping the industry.
1. Advanced Driver-Assistance Systems (ADAS)
ADAS technologies, such as lane departure warnings and adaptive cruise control, rely on sensors, cameras, and radar systems. Flexible PCBs connect these components in tight spaces around the vehicle, ensuring seamless data transfer with minimal signal loss. Their bendability allows them to wrap around corners or fit into curved surfaces, maintaining performance even under constant vibration.
2. Infotainment and Dashboard Displays
Modern car interiors feature sleek, curved screens for navigation and entertainment. A bendable PCB for vehicles is essential here, as it can conform to the shape of the dashboard while supporting high-speed signals for touchscreens and multimedia systems. This results in a cleaner design with fewer connectors, reducing the risk of failure.
3. Battery Management Systems in Electric Vehicles
Electric vehicles depend on complex battery management systems (BMS) to monitor and control power usage. Flexible PCBs are used to connect battery cells and sensors, often in confined spaces. Their lightweight nature also helps reduce the overall weight of the vehicle, improving efficiency.

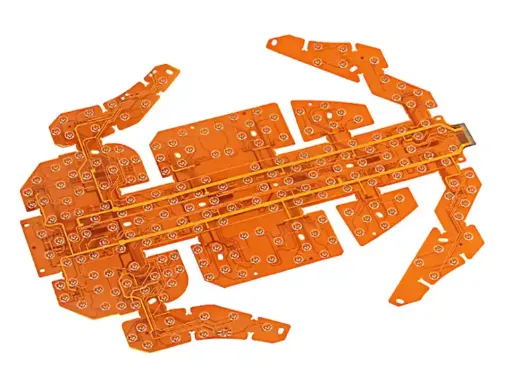

4. Lighting Systems
LED lighting, both interior and exterior, often uses flex circuits to fit into irregular shapes. For example, taillights or ambient cabin lighting can be designed with flexible PCBs to follow the contours of the vehicle, providing both aesthetic appeal and functional reliability.
Benefits of Flexible Circuits in the Transportation Industry
The flexible circuits transportation industry trend is growing rapidly, and for good reason. Here are the key advantages that make flex PCBs indispensable for automotive manufacturers.
- Space-Saving Design: Flex circuits can be folded or rolled, reducing the need for bulky connectors and saving up to 60% of space compared to rigid boards.
- Weight Reduction: With vehicles aiming for better fuel efficiency or longer EV range, the lightweight nature of flex PCBs (often weighing less than 1 gram per square inch) makes a significant difference.
- Durability: These circuits can endure vibrations up to 10G and temperature ranges from -40°C to 150°C, ensuring high-reliability flex circuits in harsh automotive environments.
- Cost Efficiency: By reducing the number of connectors and simplifying assembly, flex PCBs can lower manufacturing costs by up to 30% in some cases.
These benefits directly address the challenges of modern vehicle design, where every gram of weight and millimeter of space counts. As cars become smarter, the reliance on flexible circuits will only increase.
Flex PCB Design Guidelines for Automotive Applications
Designing a flexible PCB for automotive use requires careful planning to ensure performance and longevity. Below are essential flex PCB design guidelines tailored for engineers working on transportation electronics.
1. Choose the Right Materials
Polyimide is the go-to material for flex PCBs due to its high thermal stability (up to 260°C) and excellent dielectric properties (dielectric constant around 3.5). For applications requiring even more flexibility, consider thinner substrates, but ensure they meet the automotive-grade standards like AEC-Q100 for reliability.
2. Optimize Bend Radius
The bend radius—the minimum radius a flex PCB can be bent without damage—is critical. A general rule is to maintain a bend radius of at least 10 times the thickness of the board for dynamic bending (repeated flexing). For static bends (one-time folding), a ratio of 6:1 is often sufficient. Exceeding these limits can cause cracking or signal degradation.
3. Minimize Stress Points
Avoid placing vias or components near bend areas, as these are prone to stress. Use teardrop-shaped pads to reduce stress concentration, and route traces perpendicular to the bend line to prevent cracking. This ensures the PCB can handle vibrations up to 5G without failure.
4. Account for Thermal Expansion
Automotive environments expose PCBs to extreme temperature swings. Design with materials that have a low coefficient of thermal expansion (CTE), ideally below 17 ppm/°C, to prevent warping or delamination.
5. Ensure Signal Integrity
For high-speed applications like ADAS, maintain controlled impedance (typically 50 ohms for single-ended signals) by using consistent trace widths and spacing. Avoid sharp corners in trace routing; instead, use curved traces to minimize signal reflection.
Challenges of Using Flexible PCBs in Automotive
While flexible PCBs offer numerous advantages, they come with unique challenges that engineers must address to ensure reliability in automotive settings.
- Complex Manufacturing: Producing flex circuits requires precise processes, and errors in lamination or etching can lead to failures. This often results in higher initial costs compared to rigid boards.
- Limited Current Capacity: Due to their thin construction, flex PCBs can handle less current (typically under 5A per trace) than rigid boards, requiring careful power distribution planning.
- Testing Difficulties: Traditional testing methods for rigid PCBs may not work for flex circuits, necessitating specialized equipment to simulate bending and vibration.
Despite these hurdles, advancements in manufacturing and testing technologies are making it easier to integrate flex PCBs into automotive designs, ensuring they meet the strict reliability standards of the industry.
The Future of Flexible Circuits in the Transportation Industry
The flexible circuits transportation industry is poised for significant growth as vehicles become more connected and autonomous. With the global electric vehicle market expected to reach 26.8 million units by 2030, the demand for lightweight, space-saving electronics will skyrocket. Flexible PCBs will be at the heart of this transformation, enabling innovations like fully integrated cockpit displays and next-generation battery systems.
Moreover, as 5G connectivity becomes standard in vehicles, flex circuits will play a vital role in supporting high-speed data transfer (up to 10 Gbps) for real-time communication between car systems and the cloud. Their ability to adapt to complex geometries will also drive the development of wearable sensors for driver monitoring, further enhancing safety.
Why High-Reliability Flex Circuits Are Critical
In automotive applications, failure is not an option. A malfunctioning circuit in an ADAS system could lead to catastrophic consequences. This is why high-reliability flex circuits are essential. They must pass rigorous testing for thermal cycling (up to 1,000 cycles between -40°C and 125°C), humidity resistance (85% RH for 1,000 hours), and mechanical stress (bending up to 10,000 cycles without failure).
Manufacturers achieve this reliability by using high-quality materials, implementing strict quality control, and adhering to industry standards like ISO/TS 16949 for automotive electronics. For engineers, choosing a trusted supplier with a proven track record in flex circuit production is key to ensuring consistent performance.
How to Get Started with Flexible PCBs for Automotive Projects
If you're an engineer or designer looking to incorporate flexible PCBs into your next automotive project, here are some practical steps to follow:
- Define Your Requirements: Identify the specific needs of your application, such as space constraints, bending frequency, and environmental conditions.
- Collaborate with Experts: Work with a reliable PCB manufacturer that offers design support and prototyping services to refine your concept.
- Test Rigorously: Simulate real-world conditions like vibration (up to 10G) and temperature extremes to validate the design before mass production.
- Iterate Based on Feedback: Use data from testing to make adjustments, ensuring the final product meets automotive standards.
By following these steps, you can harness the full potential of flexible PCBs to create cutting-edge automotive electronics that stand the test of time.
Conclusion: Driving Innovation with Flexible PCBs
Flexible PCBs are revolutionizing the automotive industry, offering unmatched versatility and reliability for the next generation of transportation electronics. From enabling advanced safety features to supporting sleek, modern designs, their impact is undeniable. By understanding flexible PCB automotive applications, following flex PCB design guidelines, and prioritizing high-reliability flex circuits, engineers can push the boundaries of what’s possible in vehicle design.
As the flexible circuits transportation industry continues to grow, staying ahead of the curve means embracing these innovative solutions. Whether you're working on a bendable PCB for vehicles or exploring new ways to optimize space and weight, flex circuits are your key to smarter, more efficient automotive electronics.
Ready to take your automotive project to the next level? Start exploring the possibilities of flexible PCBs today and bend the rules for a brighter, more connected future on the road.
