Oersted's Discovery: Uniting Electricity and Magnetism
Danish physicist Hans Christian Oersted was the first to discover the connection between electricity and magnetism. On July 21, 1820, during a university lecture, Oersted was using a voltaic pile for a demonstration. As he connected the battery, he noticed that a nearby compass needle deflected from its original position, coming to rest perpendicular to the current-carrying wire.
While the students did not react to this phenomenon, Oersted was thrilled. Before the 19th century, electricity and magnetism were studied as separate, unrelated phenomena. Oersted had been investigating the various effects of electricity since 1807, suspecting a link between the two forces but lacking evidence. After more than a decade of exploration with little progress, this classroom observation was a major breakthrough.
Recognizing the significance of his finding, Oersted immediately began a series of analytical experiments. He confirmed that when a compass needle was placed parallel to a current-carrying wire, it deflected to a perpendicular orientation. The needle returned to its original state when the current was turned off. He also found that the effect was consistent across different types of metal wires and that it persisted even when materials like cardboard, glass, stone, water, or metal were placed between the wire and the compass.
Oersted theorized that the deflection was caused by the flow of electric charge and that the direction of deflection was related to the direction of the current. He concluded that an electric current produces a circular magnetic field around the conductor. This was the first discovery of the magnetic effect of electric current.
In 1820, Oersted published his findings in a paper titled "Experiments on the Effect of a Current on a Magnetic Needle," which appeared in the French scientific journal Annales de chimie et de physique. His discovery unified the studies of electricity and magnetism, sparking a wave of research in electromagnetism across Europe.
Ampere's Laws and the Nature of Magnetism
Oersted's paper captured the interest of French physicist André-Marie Ampere. Born in Lyon in 1775, Ampere was a child prodigy with a gift for mathematics. After learning of Oersted's discovery, he shifted his focus from mathematics to physics and made a series of foundational discoveries.
Building on Oersted's experiment, Ampere developed the right-hand screw rule to determine the direction of the magnetic field around a current. For a straight wire, if the right hand grasps the wire with the thumb pointing in the direction of the current, the curled fingers indicate the direction of the magnetic field lines. For a solenoid, if the right hand grasps the coil with the fingers pointing in the direction of the current, the thumb points in the direction of the magnetic field inside the solenoid.
Ampere also discovered that two parallel current-carrying wires exert a force on each other: currents flowing in the same direction attract, while currents in opposite directions repel.
In 1821, Ampere proposed that magnetism originates from molecular-level circular currents, which he called "molecular currents." He theorized that these currents turn each molecule into a tiny magnet. In a non-magnetic material, these molecular magnets are randomly oriented, and their magnetic effects cancel out. In a magnetic material, they are aligned, producing a net magnetic field. This model provided a deeper insight into the intrinsic connection between electricity and magnetism and is remarkably close to the modern understanding.
Ampere went on to study the laws governing the magnetic forces produced by currents, formulating Ampere's circuital law, which is used to calculate the magnetic field generated by an arbitrarily shaped current-carrying conductor. In his honor, the SI unit of electric current was named the "ampere" (A).
Ohm's Law: Quantifying Electrical Resistance
Just as the voltaic pile inspired Oersted and Ampere, it also captured the interest of German secondary school teacher Georg Ohm. Ohm conducted numerous experiments using self-made instruments and discovered both Ohm's law and the law of resistance.
In his experiments, Ohm observed that for the same voltaic pile, different metallic wires produced different current intensities, and that the current also depended on the wire's length. This led him to investigate the relationship between current, electromotive force, and the properties of the conductor.
Ohm introduced the concept of resistance and discovered that the resistance of a conductor is directly proportional to its length and inversely proportional to its cross-sectional area, also depending on the material of the conductor.
In 1826, Ohm formulated his famous law. For a section of a circuit, Ohm's law states that the current flowing through a conductor is directly proportional to the voltage across it and inversely proportional to its resistance. For a complete circuit, the law states that the current is directly proportional to the power source's electromotive force and inversely proportional to the total resistance of the circuit (including both external and internal resistance).
To honor his contributions, the unit of electrical resistance was named the "ohm" (Ω).
Michael Faraday: From Experiment to Field Theory
Michael Faraday, born in 1791 to a poor blacksmith's family, made monumental contributions to electromagnetism. With little formal education, he began working as a bookbinder's apprentice. This job gave him the opportunity to read voraciously, and he became captivated by articles on electricity and chemistry.
After attending a lecture by the renowned chemist Humphry Davy at the Royal Institution in 1812, Faraday applied for a position at the lab. Davy was impressed by Faraday's knowledge and hired him as a laboratory assistant. Though his initial duties were menial, Faraday quickly proved his analytical skills and became an indispensable collaborator in Davy's experiments.
Electromagnetic Induction: Generating Current from Magnetism
While Oersted and Ampere had shown that electricity could produce magnetism, Faraday wondered if the reverse was true: could magnetism produce electricity? After years of experimentation based on this idea, he achieved a breakthrough in 1831.
In a famous experiment, Faraday wound two separate, insulated coils of wire on opposite sides of an iron ring. He connected one coil to a galvanometer and the other to a voltaic pile. He observed that the galvanometer's needle deflected only at the moment he connected or disconnected the battery. When the current was steady, the needle remained at zero. This demonstrated that an electric current is produced only by a changing magnetic field.
This phenomenon, which he named electromagnetic induction, is the principle that a changing magnetic flux through a closed circuit induces an electromotive force (and thus a current) in the circuit. Faraday's law of induction states that the magnitude of the induced electromotive force is proportional to the rate of change of the magnetic flux. This discovery laid the foundation for modern electrical engineering, including generators and transformers.
Based on this principle, Faraday also constructed a device that demonstrated the working principle of an electric motor, in which a magnet continuously rotated around a conductor.
Further Contributions: Electrolysis, Field Theory, and More
Faraday's work extended far beyond induction. In 1833, he established the two laws of electrolysis, which quantify the relationship between the amount of substance deposited at an electrode and the quantity of electric charge passed through the electrolyte. During this research, he introduced terms that are still fundamental to electrochemistry, including electrode, anode, cathode, and ion.
In 1843, he was the first to provide experimental proof for the law of conservation of charge. He also developed the concepts of electric and magnetic fields and visualized them using "lines of force." This was a radical departure from the prevailing "action-at-a-distance" theories, proposing instead that electric and magnetic forces are transmitted through an intervening medium or field. In 1845, he discovered the Faraday effect, a magneto-optical phenomenon where a magnetic field rotates the plane of polarization of light passing through a transparent material. This was an early hint at the connection between light and electromagnetism.
James Clerk Maxwell: The Great Synthesizer
While Faraday was a brilliant experimentalist, he lacked the formal mathematical training to fully describe his discoveries. That task fell to Scottish scientist James Clerk Maxwell, who would build a complete theoretical framework for electromagnetism.
Born in 1831, the same year Faraday discovered induction, Maxwell was a mathematical prodigy. After graduating from the University of Cambridge, he began studying Faraday's works. Unlike many of his contemporaries who dismissed Faraday's non-mathematical "lines of force," Maxwell recognized the profound truth they contained and set out to express them in the language of mathematics.
Displacement Current and Electromagnetic Waves
In his research, Maxwell identified a gap in the existing understanding. It was known that a conduction current (the flow of charges) creates a magnetic field. However, Maxwell realized that a magnetic field also exists in the space between the plates of a capacitor as it charges, even though no charge flows through the insulating dielectric. He proposed that a changing electric field in the dielectric acts as a type of current, which he termed "displacement current." This displacement current, like a conduction current, also produces a magnetic field.
This concept was a crucial addition. It meant that not only does a changing magnetic field create an electric field (Faraday's law), but a changing electric field also creates a magnetic field. Maxwell saw that these two effects could feed each other, creating a self-sustaining disturbance that propagates through space as a wave: an electromagnetic wave.
Maxwell's Equations and the Theory of Light

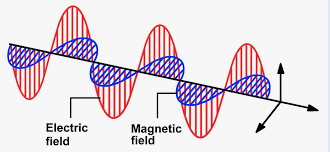

In his 1864 paper, "A Dynamical Theory of the Electromagnetic Field," Maxwell presented a set of four differential equations that completely describe the behavior of electric and magnetic fields. From these equations, he derived a wave equation and calculated the speed of these propagating electromagnetic waves. The calculated speed was remarkably close to the experimentally measured speed of light.
This led him to the revolutionary conclusion that light itself is an electromagnetic wave. His comprehensive theory was published in his 1873 treatise, A Treatise on Electricity and Magnetism. Just as Newton's Principia synthesized classical mechanics, Maxwell's treatise synthesized electromagnetism, establishing it as a cornerstone of physics.
Maxwell's equations unified electricity, magnetism, and optics, demonstrating that:
- Electric charges produce electric fields (Gauss's law).
- There are no magnetic monopoles (Gauss's law for magnetism).
- A changing magnetic field produces an electric field (Faraday's law of induction).
- A magnetic field is produced by an electric current and by a changing electric field (Ampere's law with Maxwell's addition).
Heinrich Hertz: Experimental Proof of EM Waves
Despite the elegance of Maxwell's theory, many scientists remained skeptical. The existence of the predicted electromagnetic waves had yet to be proven experimentally. This challenge was taken up by the German physicist Heinrich Hertz.
In 1886, Hertz invented a simple yet effective detector for electromagnetic waves: a loop of copper wire with a small gap between two metal spheres at its ends. His transmitter was a spark-gap oscillator, consisting of two metal rods connected to an induction coil that produced high-voltage sparks across a central gap.
In 1888, Hertz conducted his landmark experiment. In a darkened room, he generated sparks with his transmitter. Across the room, he observed tiny sparks jumping across the gap in his detector loop. This was the first conclusive evidence that invisible electromagnetic waves were being radiated by the transmitter and received by the detector.
Hertz went on to show that these waves exhibited the properties of light, including reflection (by placing a metal sheet to create standing waves), refraction (by passing them through a large asphalt prism), diffraction, and polarization. He also measured their wavelength and, knowing their frequency, calculated their propagation speed, confirming it was equal to the speed of light. These experiments provided undeniable validation of Maxwell's theory and unified the study of light and electromagnetism.
The Electrical Age: From Theory to Technology
With the theoretical foundations firmly established, the 19th century saw a series of inventions that harnessed electrical power, ushering in the Second Industrial Revolution.
The Electric Motor and Generator
The first electric motors were developed shortly after Oersted's discovery, with Faraday demonstrating a simple DC motor in 1821. However, these early motors were powered by voltaic piles, which provided too little current for practical applications.
The need for a powerful source of electricity drove the development of the generator. In 1832, Hippolyte Pixii built the first hand-cranked dynamo, which used a rotating permanent magnet. A key innovation was the commutator, which converted the generated alternating current (AC) into direct current (DC).
A major breakthrough came with the invention of the self-excited generator, which used the generator's own output to power its electromagnets instead of relying on weak permanent magnets. In 1867, Werner von Siemens created a practical and powerful dynamo based on this principle. The Siemens dynamo was to the electrical revolution what the Watt steam engine was to the first Industrial Revolution, making large-scale electrical power generation possible.
The Telegraph and Telephone
The ability of electricity to transmit information rapidly led to the invention of the telegraph. After several earlier concepts, American painter Samuel Morse developed a practical system in 1837, along with the "Morse code," a system of dots and dashes. In 1844, the first public telegraph line was established between Washington, D.C., and Baltimore, revolutionizing long-distance communication.
Building on this, inventors sought to transmit the human voice directly. In 1876, Alexander Graham Bell, a Scottish-born professor of acoustics, patented the telephone. His device converted sound waves into electrical signals at a transmitter and then converted those signals back into sound at a receiver, enabling real-time voice communication.
The Incandescent Light Bulb
Perhaps the most visible application of electricity was electric lighting. While Humphry Davy had demonstrated an arc lamp in the early 1800s, its intense glare made it unsuitable for general use.
The challenge of creating a practical, durable electric light for homes and businesses was famously taken up by the American inventor Thomas Edison. After extensive research, Edison concluded that he needed a high-resistance filament that could glow brightly without burning out, enclosed in an evacuated glass bulb.
After testing over 1,600 different materials, his team had a breakthrough on October 21, 1879, with a carbonized cotton thread filament that lasted for 45 hours. Edison continued to refine the design, eventually finding that carbonized bamboo fiber could last for over 1,200 hours. To promote his invention, Edison established a power station in New York City in 1882, creating the first electrical grid to supply power to his incandescent lamps.
Edison, who held over 1,300 patents, famously said, "Genius is one percent inspiration and ninety-nine percent perspiration," a testament to the methodical and tireless work that turned the principles of electromagnetism into the technologies that define the modern world.
